Quick Start Guide
CLUB 700 BT

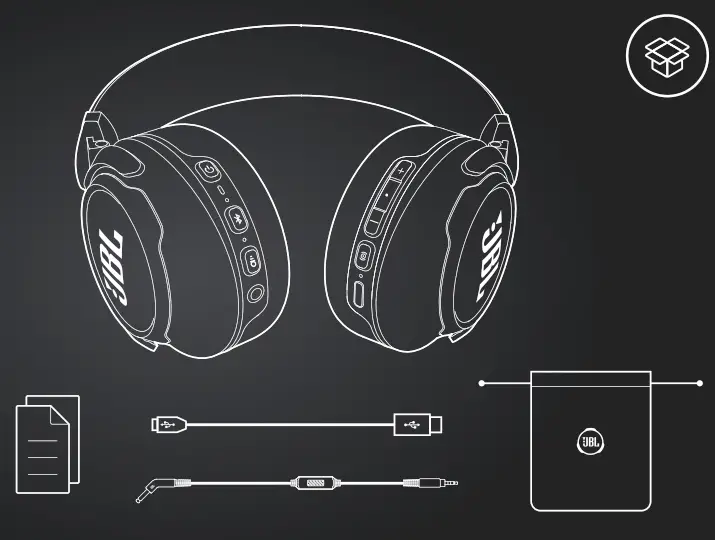

WHAT’S IN THE BOX

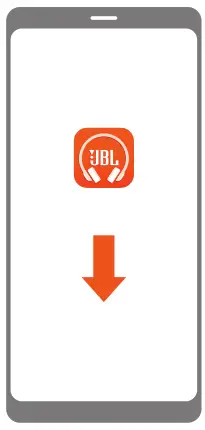

APP
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

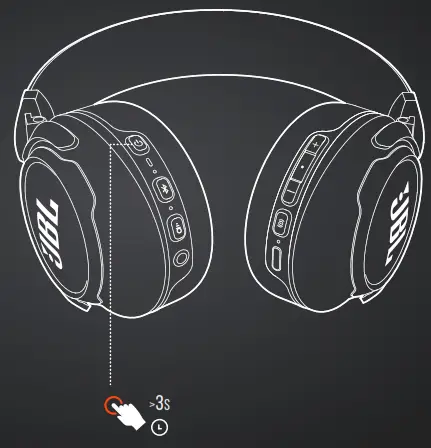

POWER ON & CONNECT

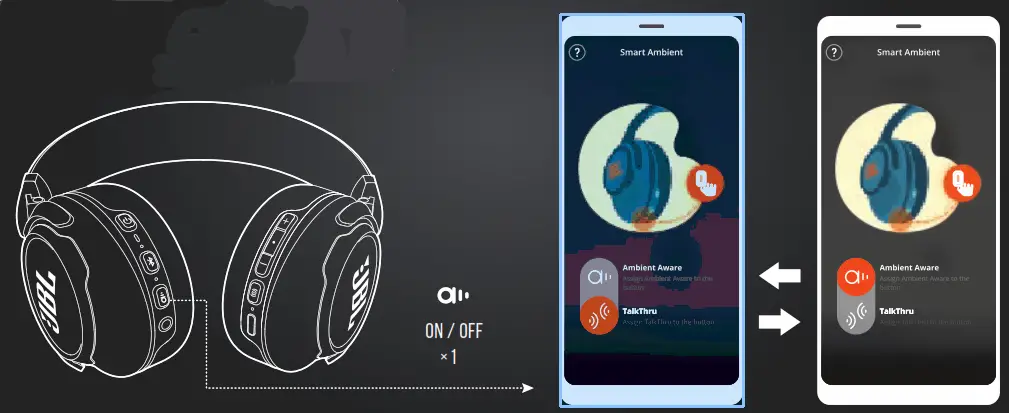

AMBIENT AWARE / TALKTHRU

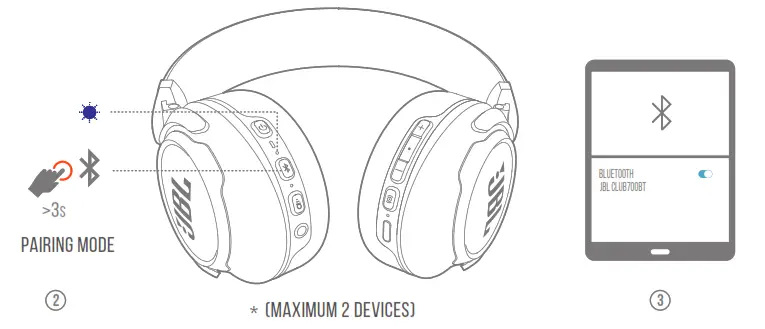

MULTI-POINT CONNECTION

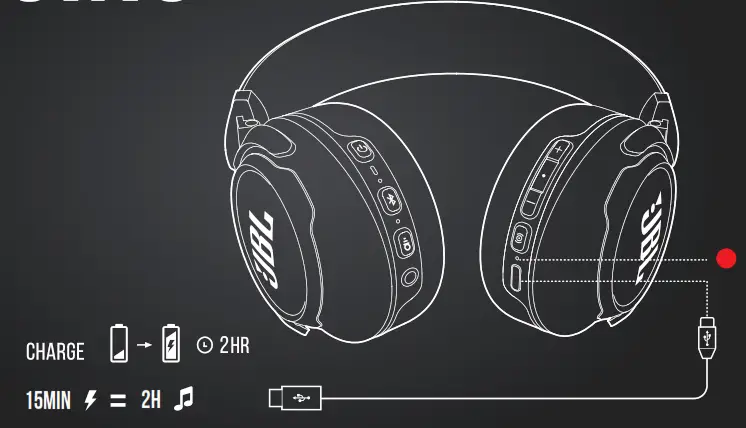

CHARGING

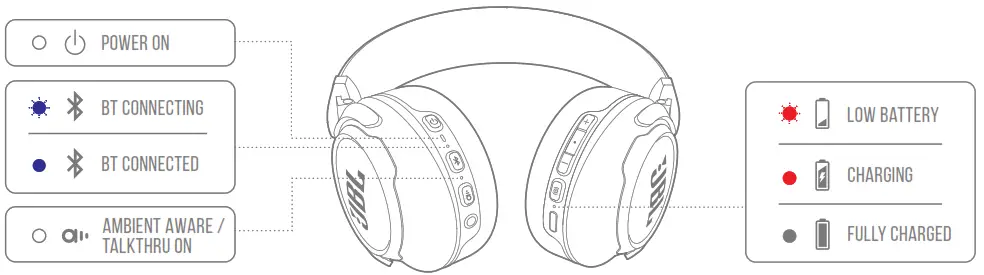

LED BEHAVIORS
TECH SPEC
- Driver Size: 40 mm dynamic driver
- Frequency response (Passive): 16 Hz – 40 kHz
- Frequency response (Active): 16 Hz – 22 kHz
- Sensitivity: 100 dB SPL@1 kHz / 1 mW
- Maximum SPL: 93 dB
- Maximum Input Power (Passive): 1000 mW
- Microphone sensitivity: -24 dBV@1kHz/Pa
- Impedance: 32 ohm
- Bluetooth transmitted power: <4 dbm
- Bluetooth transmitted modulation: GFSK, π/4 DQPSK, 8DPSK
- Bluetooth frequency: 2.402 GHz – 2.480 GHz
- Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP 1.6
- Bluetooth version: V5.0
- BATTERY TYPE: LITHIUM ION POLYMER BATTERY( 3.7 V / 610 mAh)
- Power Supply: 5 ≈ 1 A
- Charging time: <2 hrs
- Music play time with BT oN: 50 hrs
- Weight: 283 g
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International
Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

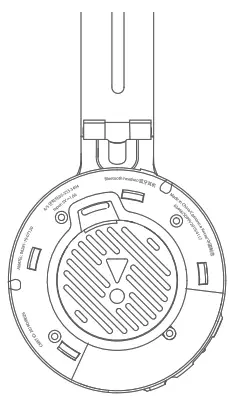

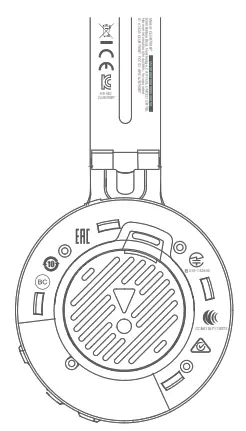

Compliance Information on Ear Cup
