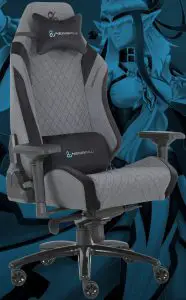

NEITH ZEPHYR
INSTRUCTION GUIDE
COMPONENTS
| 1. Castors X5 2. Base 3. Gas Lift 4. Gas Lift Cover 5. Mechanism 6. M5x12mm Screws X2 7. M8x25mm Screws X12 8. M8x2Omm Screws X4 9. M8 Hex Key 10. Side Covers | 11. Armrests 12. Backrest 13. Seat 14. Lumbar Support Cushion 15. Cushion 16. Side cover X4 17. M8″ Anti-slip screw X4 18. 08*018 Gasketx4 19. M8 RubberGasketx4 |
MOUNTING STEPS

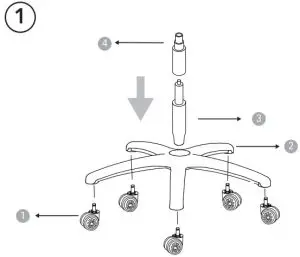

Push and twist the wheels into the starbase. And place the cylinder cover over the gas lift.

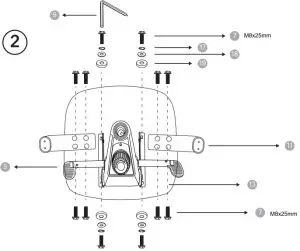

Align the butterfly mechanism with the screw holes at the bottom of the seat as shown in the image above.
The Rubber Gasket
Rubber gaskets can reduce the noise when the chair is in motion. You can choose whether to install it.

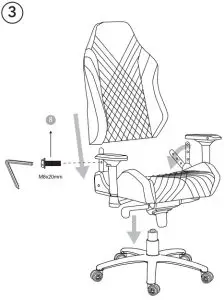

Attached are the seats to the base.

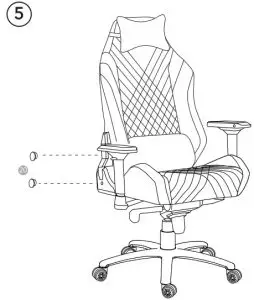

Fasten the side covers, and put the small side cover on

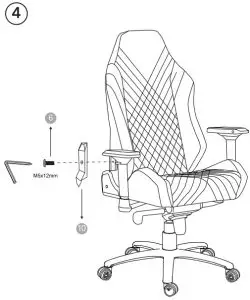

Fasten the backrest with provided screws.

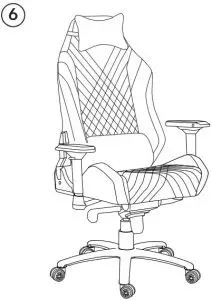

Finish
GOT QUESTION?
Go newskillgaming.com
http://www.newskillgaming.com/es/soporte/
ATTENTION!
- Verify all parts before assembly.
- The pictures in this guide may not look like your chair, but the instruction guide is the same regardless of the model.
- Do not use the chair unless all the bolts and screws are tight.
- At least every six months check all bolts and scores to ensure they are tight.
- Don does not use this chair as a step stool/ladder.
