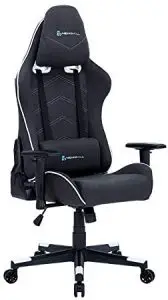

Kitsune Zephyr
Series Gaming Chair Finished in Ultra-Breathable Fabric
INSTRUCTION GUIDE
ATTANTION!
- Verify all parts before assembly.
- The pictures in this guide may not look like your chair, but the instruction guide is the same regardless of the model.
- Do not use the chair unless all the bolts and screws are tight.
- At least every six months check all bolts and seres to ensure they are tight.
- Don not use this chair as a step stool/ladder.
COMPONENTS
| 1. Seat 2. Backrest 3. Lumbar Support Cushion 4. Head Support Cushion 5. Mechanism 6. Gas Lift 7. Castors XS 8. Gas Lift Cover 9. Left Side Cover | 10. Right Side Cover 11. Base 12. Hex Key 13. M8x20mm Screws X4 M8x25mm Screws X4 14. M5x12mm Screws X2 15. Small Side Cover X2 16. Screw Washers X4 17. Rubber Gasket |
MOUNTING STEPS

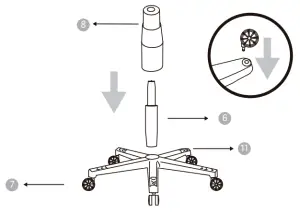

1.
Push and twist the wheels into the starbase.
And place the cylinder cover over the gas lift.

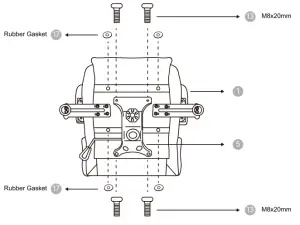

2.
Align the butterfly mechanism with the screw holes at the bottom of the seat as shown in the image above.
The Rubber Gasket
Rubber gaskets can reduce the noise when the chair is in motion. You can choose whether to install it.

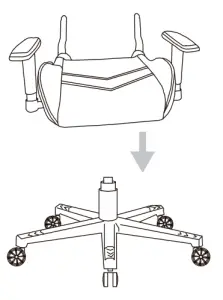

3.
Attached are the seats to the base.

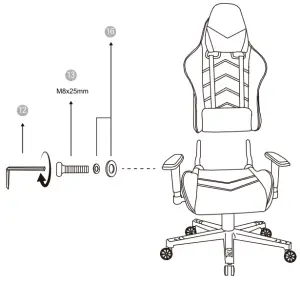

4.
Fasten the backrest with provided screws.

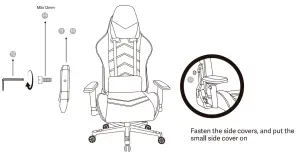

5.

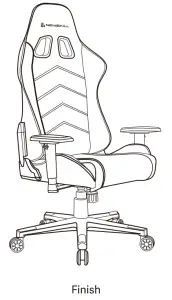

6.
