Zent Office Chair
Instructions
Zent Office Chair

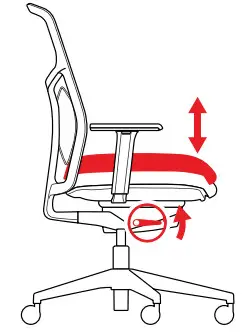

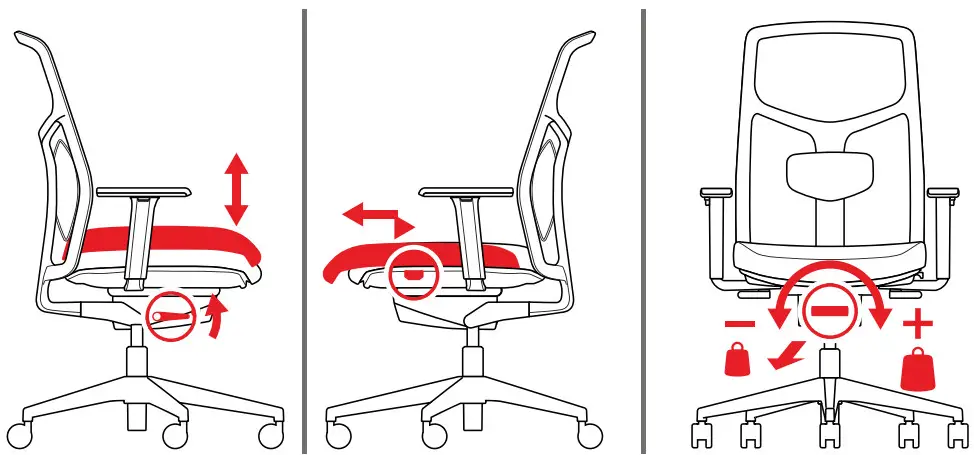

Seat height
To lower:
- Pull lever on right hand side up
- Release lever when desired height is reached
To raise:
- Stand up
- Pull lever up
- Release lever when desired height is reached

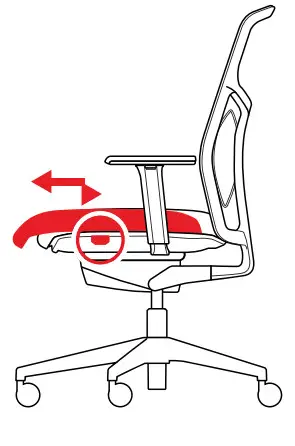

Seat depth
Shorter/longer:
- Pull the button on left hand side
- Slide the seat forward/backwards
- Release button when desired position is reached
Synchro movement
This synchro movement has 4 lock positions. One lock position in the neutral position, 3 backwards Pushing the lever on right hand side inward results in the neutral position.

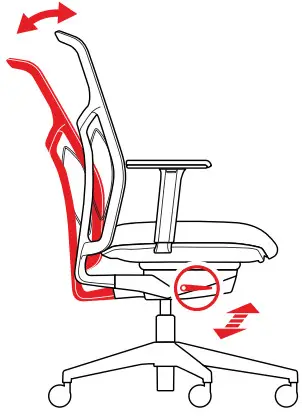

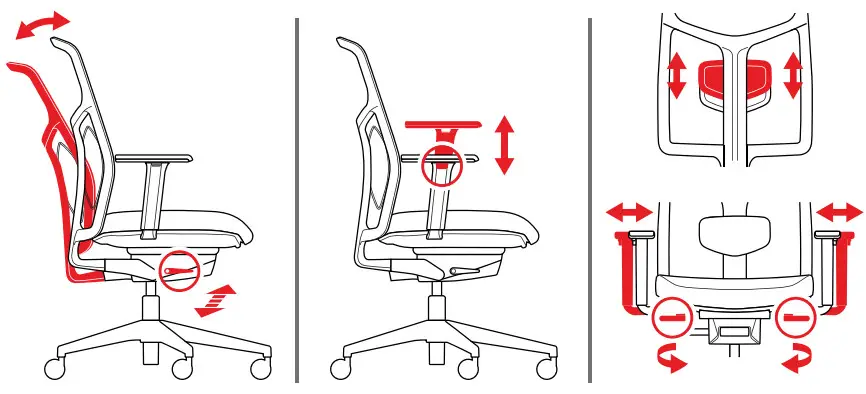

End-stop movement
To put the backrest in one of its three locking positions:
- Pull lever on right hand side 1, 2 or 3 position outwards
- Push backrest towards its locking position
Release locking movement:
- Push lever on right hand side inward

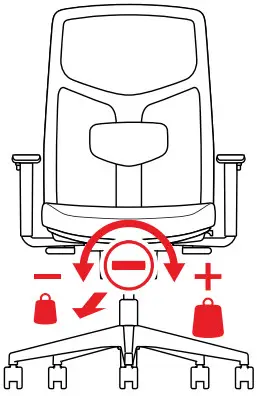

Weight setting synchro
This chair is provided with a Auto-Tensioning Synchro movement. To optimise this movement towards its optimum comfort you can turn the knob on the front underneath the seat. Pull it outwards.
To increase back pressure:
- Turn the lever to the left
To reduce back pressure:
- Turn the lever to the right

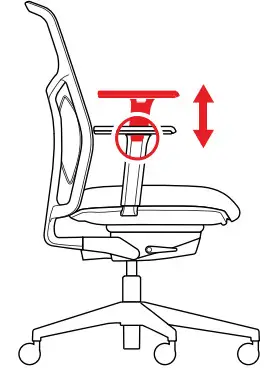

Armrests
Use the armrest to relax your neck and shoulders Higher/lower:
- Take the armrest
- Keep the button pressed
- Raise/lower the armrest
- Release button when desired position is reached
Total armrest wider/narrower:
- Turn lever underneath the seat forward
- Adjust the armrests to the required position
- Turn lever underneath the seat backwards
Lumbar support
Height of lower back support with mesh backrest Up/down
- Seated in the chair raise/lower the lumbar support by hand towards the required height
