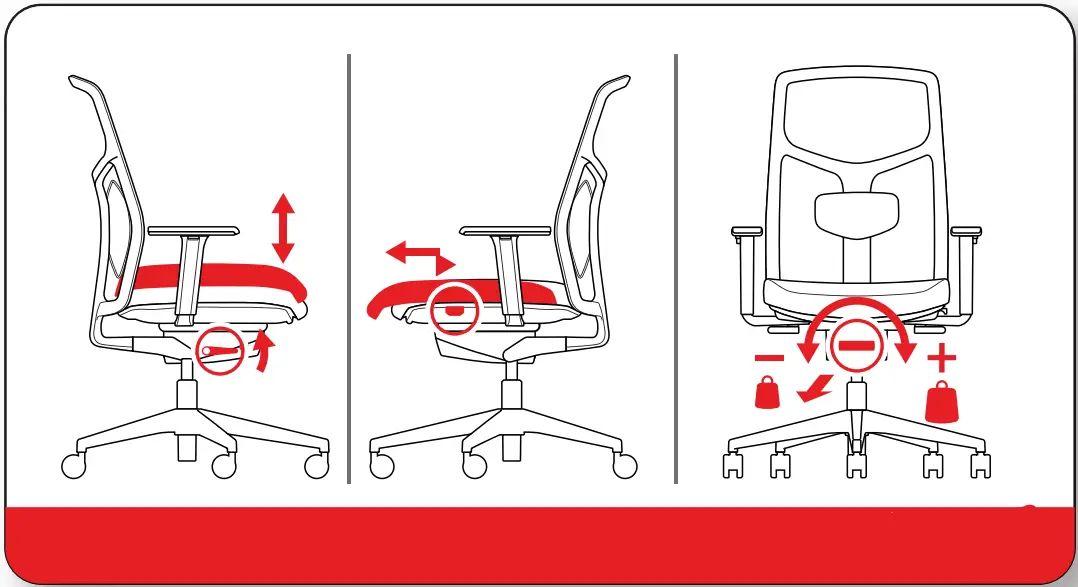

ahrend LOGOUser Manualahrend Zest Desk Chair - FIG 1

Zest Desk Chair

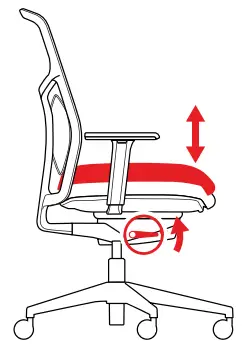

Seat height
To lower:

  • Pull the lever on the right-hand side up
  • Release the lever when the desired height is reached

To raise:

  • Stand up
  • Pull lever up
  • Release the lever when the desired height is reached

ahrend Zest Desk Chair - FIG 2

Seat depth
Shorter/longer:

  • Pull the button on the left-hand side
  • Slide the seat forward/backward
  • Release the button when the desired position is reached

ahrend Zest Desk Chair - FIG 3

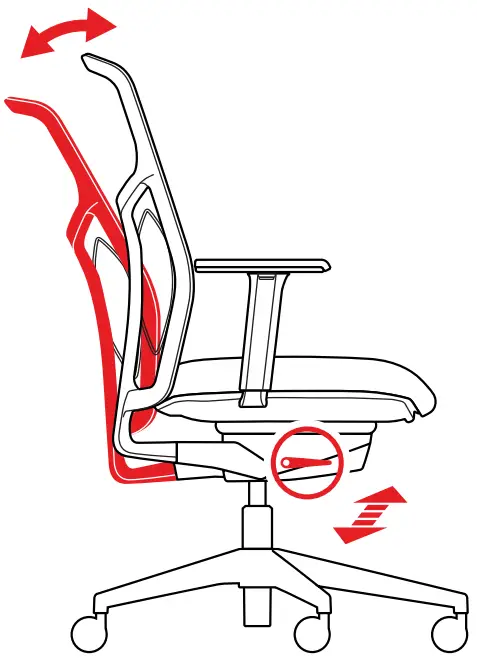

Synchro movement
This synchro movement has 4 lock positions. One lock position in the neutral position, 3 backward Pushing the lever on the right-hand side inward results in the neutral position.
End-stop movement
To put the backrest in one of its three lockings positions:

  • Pull the lever on the right-hand side 1, 2, or 3 positions outwards
  • Push the backrest towards its locking position

Release locking movement:

  • Push lever on right-hand side inward

ahrend Zest Desk Chair - FIG 4

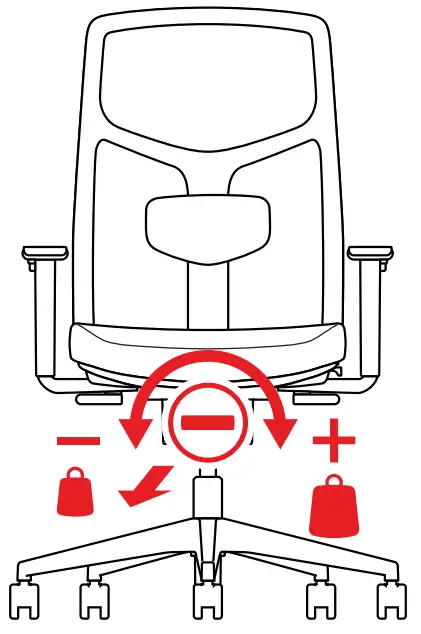

Weight setting synchro
This chair is provided with a Auto-Tensioning Synchro movement. To optimize this movement towards its optimum comfort you can turn the knob on the front underneath the seat. Pull it outwards.
To increase back pressure:

  • Turn the lever to the left

To reduce back pressure:

  • Turn the lever to the right

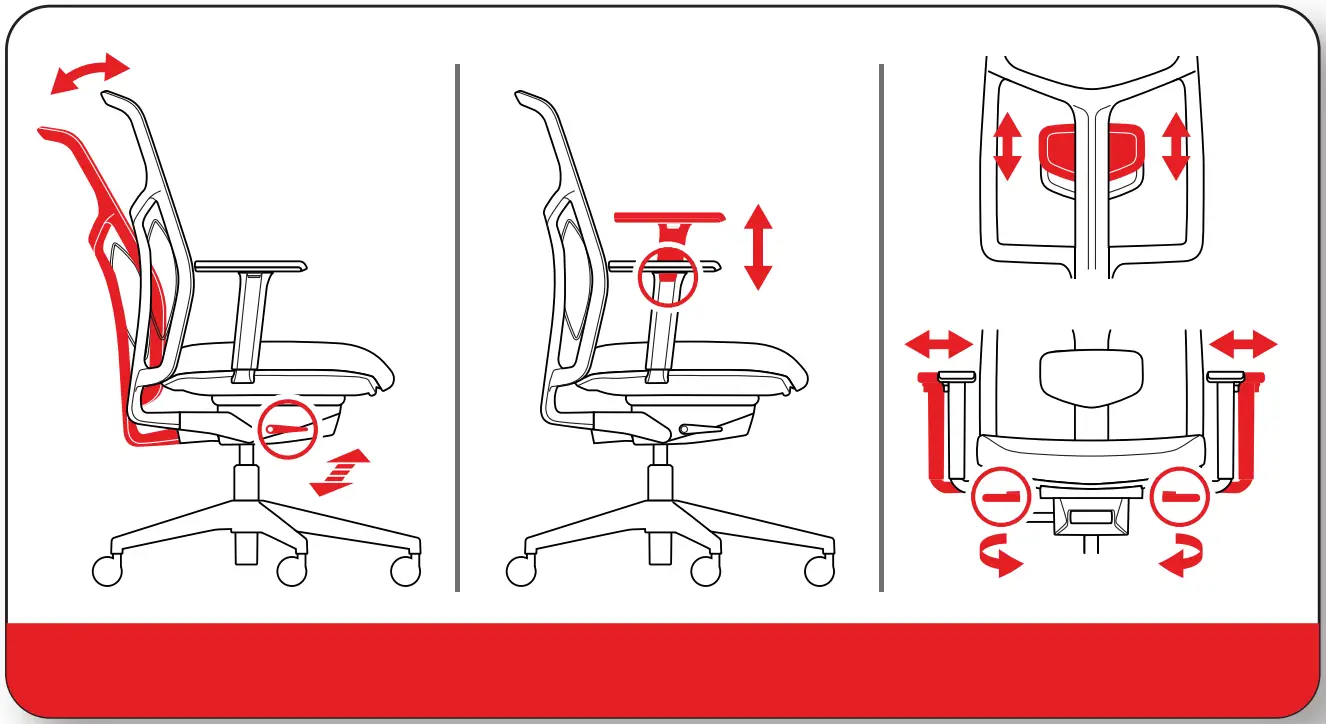

ahrend Zest Desk Chair - FIG 5ahrend Zest Desk Chair - FIG 6

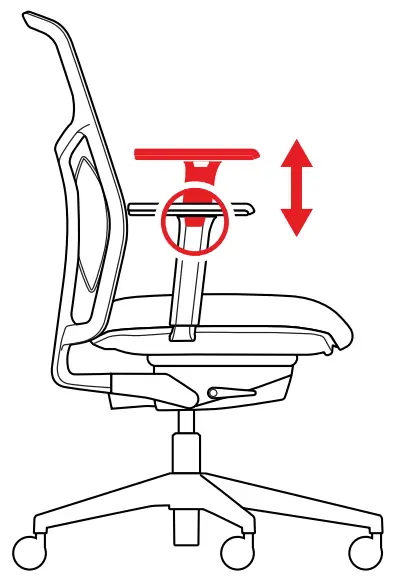

Armrests
Use the armrest to relax your neck and shoulders
Higher/lower:

  • Take the armrest
  • Keep the button pressed
  • Raise/lower the armrest
  • Release the button when the desired position is reached

ahrend Zest Desk Chair - FIG 7

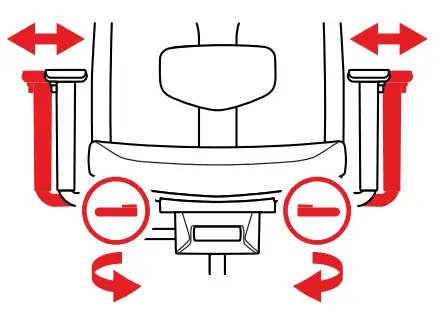

Total armrest wider/narrower:

  • Turn the lever underneath the seat forward
  • Adjust the armrests to the required position
  • Turn the lever underneath the seat backward

ahrend Zest Desk Chair - FIG 8

Lumbar support
Height of lower back support with mesh backrest Up/down

  • Seated in the chair raise/lower the lumbar support by hand towards the required height

ahrend Zest Desk Chair - FIG 9
