Newskill Neith Pro Professional Gaming Chair Installation Guide

Newskill Neith Pro Professional Gaming Chair Installation Guide

NEWSKILL Neith Pro logo

NEWSKILL Neith Pro Professional Gaming Chair

1123

Components

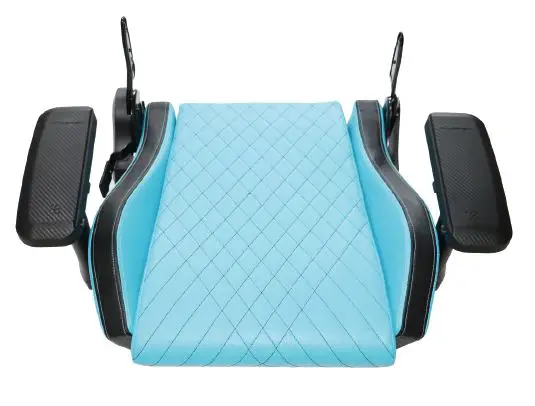

Seat

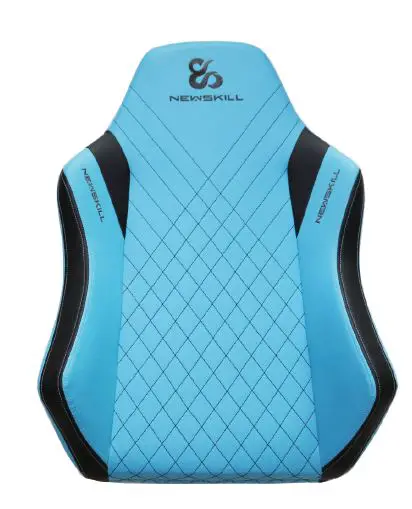

NEWSKILL Neith Pro fig 1Backrest

NEWSKILL Neith Pro fig 2

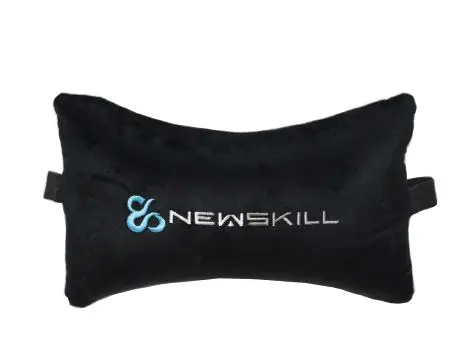

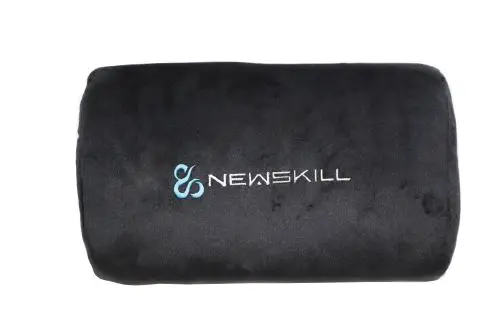

Lumbar supportNEWSKILL Neith Pro fig 3Head supportNEWSKILL Neith Pro fig 4

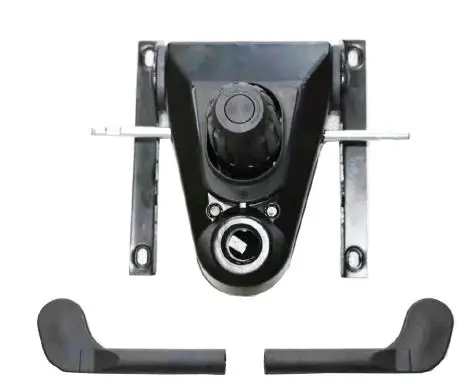

 Mechanism

NEWSKILL Neith Pro fig 5

Base

NEWSKILL Neith Pro fig 6

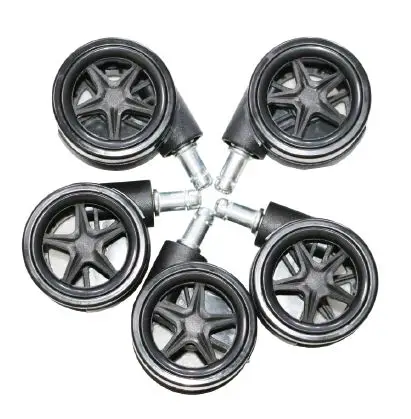

Castors x5

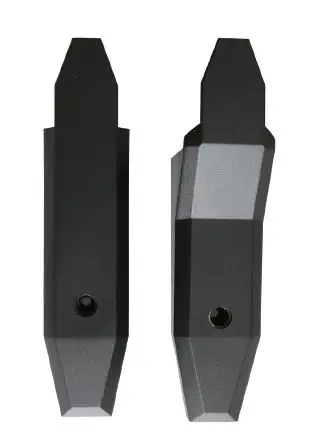

NEWSKILL Neith Pro fig 7Side CoversNEWSKILL Neith Pro fig 8

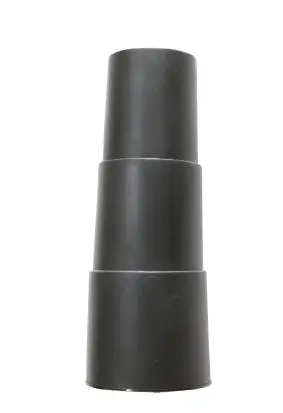

Gas Lift CoverNEWSKILL Neith Pro fig 9

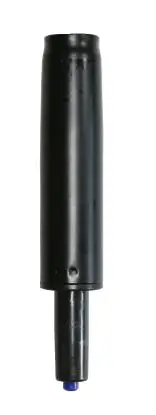

Gas LiftNEWSKILL Neith Pro fig 10

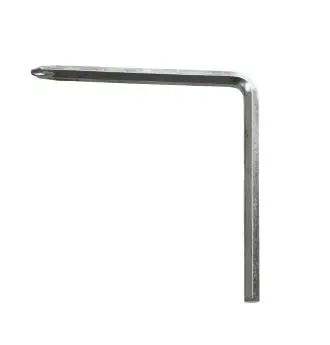

Gas Lift

NEWSKILL Neith Pro fig 11

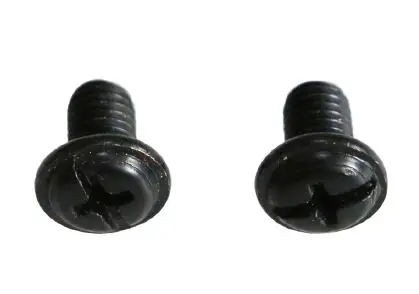

4D M5x12mm Screws x2

NEWSKILL Neith Pro fig 12

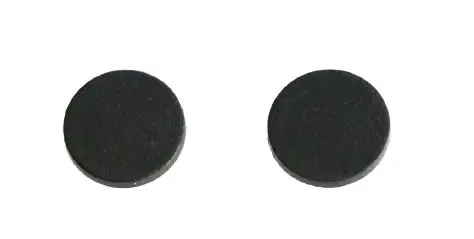

Side Covers x2NEWSKILL Neith Pro fig 13

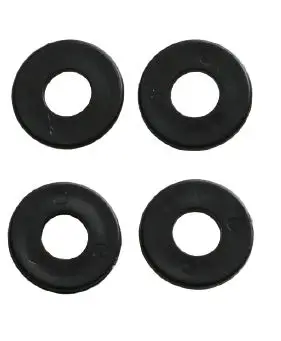

Rubber Gasket x4

NEWSKILL Neith Pro fig 14

ASSEMBLY

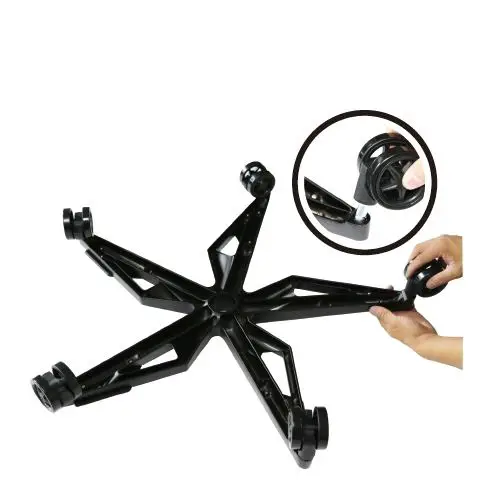

Push and twist the wheels into the star base. NEWSKILL Neith Pro fig 15

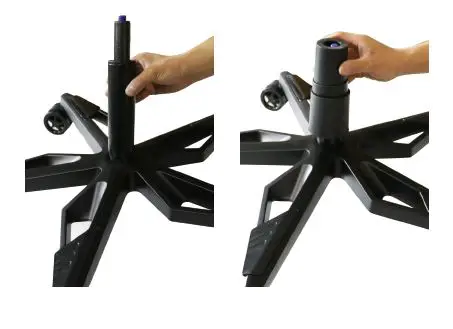

Place the gas lift cover over the gas lift.

NEWSKILL Neith Pro fig 16

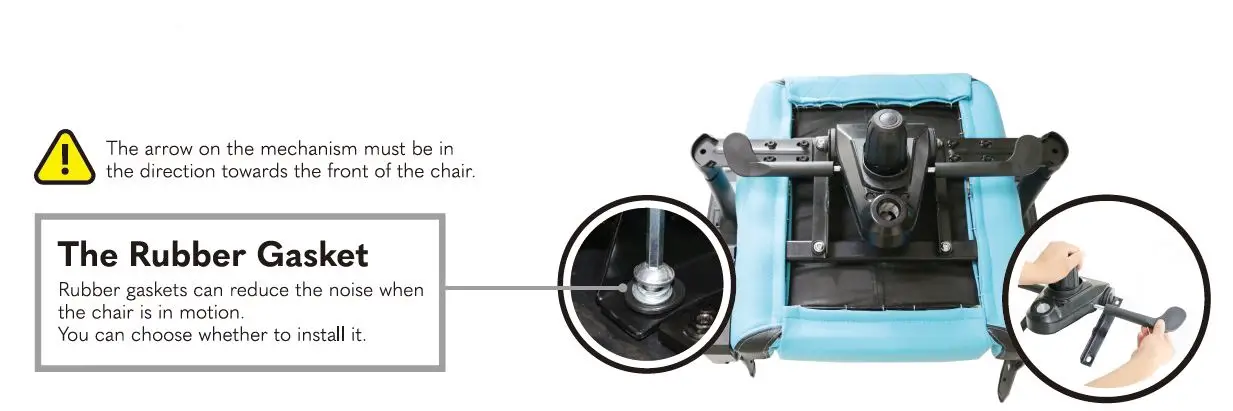

First insert the puller into the mechanism. Remove the screws on the base, align the butterfly mechanism with the screw holes at the bottom of the seat. NEWSKILL Neith Pro fig 17

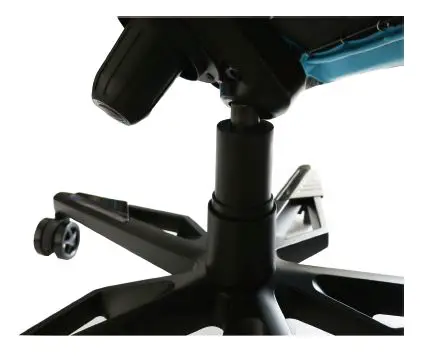

Attach the seats to the base.

NEWSKILL Neith Pro fig 18

Remove the screws on the side of the back rest and fasten the adjuster on the seat.

NEWSKILL Neith Pro fig 19

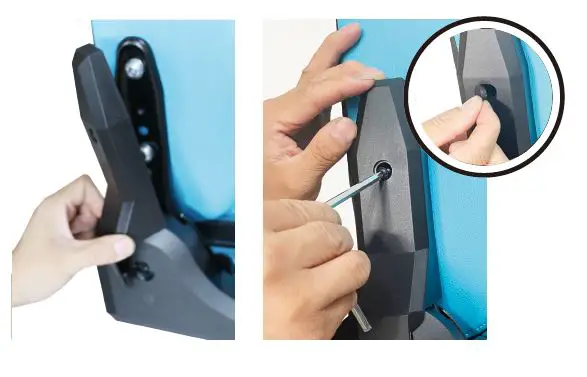

Fasten the side cover with the screws provided

NEWSKILL Neith Pro fig 20

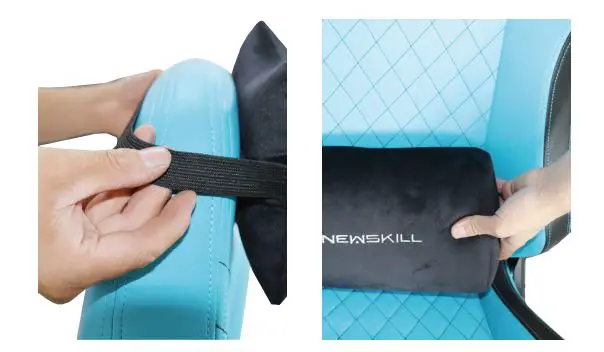

Fix the lumbar and head support cushions on the backrest to finish.

NEWSKILL Neith Pro fig 21
