Gocator®
2540,2550
Quick Start Guide
Gocator 2540 High-Speed 3D Laser Profile Sensors
For the user manual, CAD drawings, firmware release notes, SDK, and more, go to lmi3D.com/product-downloads.
15268-01.01_Manual_Quickstart_Gocator_2540_2550_Series

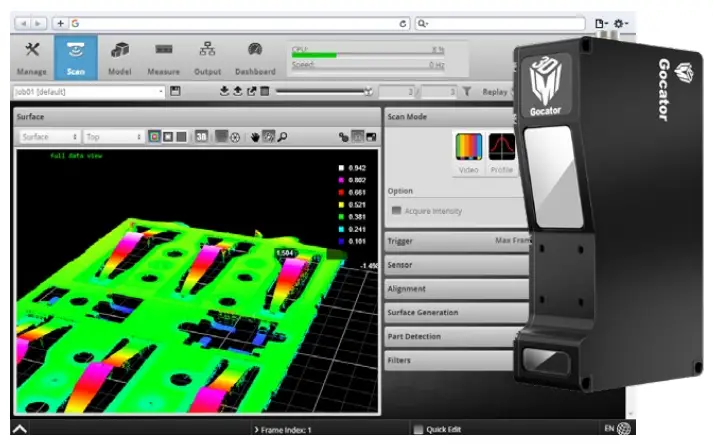

An example of the user interface in use
TROUBLESHOOTING
| PROBLEM SUGGESTED RESOLUTION | |
| Mechanical / Environmental | |
| The sensor is warm. | •It is normal for a sensor to be warm when powered on. |
| Connection | |
| When connecting with a web browser, the sensor is not found (page does not load). | •Verify the sensor power is on. This will be indicated by an illuminated POWER LED. •Verify the Power & Ethernet cordset is connected to the Power/LAN connector and the Ethernet RJ45 plug is connected to the Ethernet switch. •Verify that the client computer’s network settings are properly configured. See Getting Started > Network and Sensor Setup in the Gocator user manual or your computer’s documentation on configuring a network adapter. •Download 14405-x.x.xx.x_SOFTWARE_GO_Utilities.zip from the downloads area of LMI’s website at www.lmi3D.com. Unzip and run the Sensor Discovery Tool (Tools \Discovery\kDiscovery.exe] to verify that the sensor has the correct network settings. |
| When attempting to log in, the password is not accepted. | •Download 14405-x.x.xx.x_SOFTWARE_GO_Utilities.zip from from the downloads area of LMI’s website at www.lmi3D.com. Unzip and run the Sensor Discovery Tool [Tools \Discovery\kDiscovery.exe] to find the sensor on the network and click Factory Restore. WARNING: Performing a factory restore resets your configuration settings to their original values. These settings can be recovered from backup files if you have previously saved them. |
| Laser Profiling | |
| When the Play button is pressed, the sensor does not emit laser light. | •Ensure that the decal covering the laser emitter window, normally affixed to new sensors, has been removed. •Verify that the LASER indicator LED on the Gocator is illuminated. If not, the laser safety input signal is off. To determine the correct solution for your application, see Specifications > Sensor Connectors > Gocator Power/LAN Connector > Laser Safety Input in the user manual. •The exposure setting may be too low. For more information, see Gocator Web Interface > Scan Setup > Sensor > Exposure in the user manual. |
| The sensor emits laser light, but the Range indicator does not illuminate and/or points are not displayed in the data viewer. | •Verify that the measurement target is within the sensor’s field of view and measurement range. The RANGE indicator LED on the Gocator will illuminate when the target is in range. •Check that the exposure time is set to a reasonable level. For more information, see Gocator Web Interface > Scan Setup > Sensor > Exposure in the user manual. |
| The sensor CPU level is near 100%. | •Review the active measurements and remove any that are unnecessary. •Consider reducing the trigger speed. •Consider reducing the laser profiling resolution. |
GOCATOR OVERVIEW

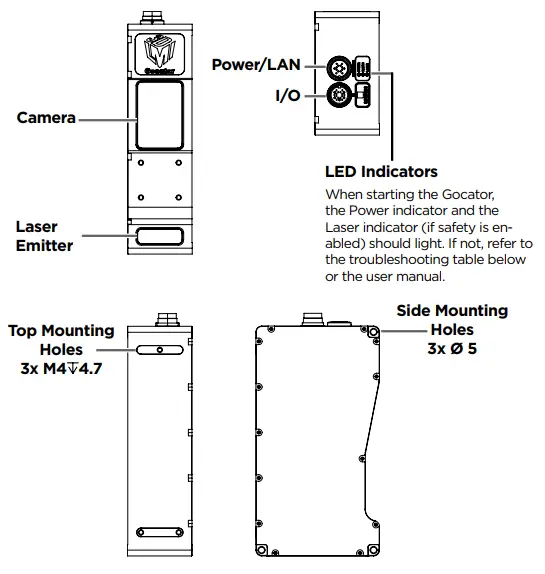

Gocator 2540 and 2550 sensors are designed with a unique Clearance Distance (CD), Measurement Range (MR) and Field of View (FOV). Refer to the user manual for more information about your model.
GROUNDING GOCATOR
Gocator housings should be grounded to the earth and the grounding shield of the Gocator I/O cordsets. Gocator sensors are designed to provide adequate grounding through the M4 screws. Always check grounding with a multi-meter to ensure electrical continuity between the mounting frame and the Gocator connectors.
The frame or electrical cabinet that the Gocator is mounted to must be connected to earth ground.
GROUNDING CORDSET (RECOMMENDED)
To minimize interference with other equipment, the Power & Ethernet or the Power & Ethernet to Master cordset (depending on cordset used in system) can be grounded by terminating the cordset shield before the split.
The most effective grounding method is to use a 360-degree clamp.
For instructions, see the user manual.
ELECTRICAL SAFETY
Minimize voltage potential between system ground (ground reference for I/O signals) and sensor ground
Use shielded cables with shield grounded at both ends. Sensor housing should be connected to earth ground.
Use a suitable power supply
The +24-48V power supply used with Gocator 2540 and 2550 sensors should be an isolated supply with inrush current protection.
Use care when handling powered devices
Wires connecting to the sensor should not be handled while the sensor is powered. Doing so may cause electrical shock to the user or damage to the equipment.
Failure to adhere to the guidelines described in this section may result in electrical shock or equipment damage.
LASER SAFETY
The full laser safety details including precautions, responsibilities and requirements are stated in the Gocator user manual. Use of controls or adjustments or performing procedures other than those specified in the user manual may result in hazardous radiation exposure.

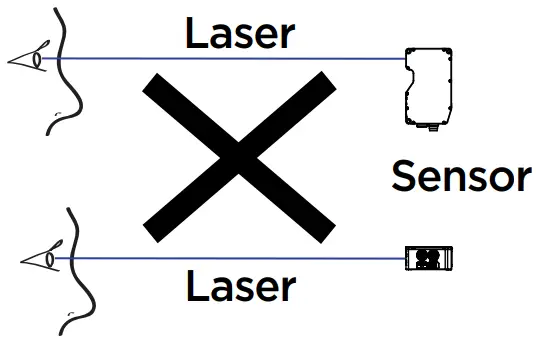

WARNING: DO NOT LOOK DIRECTLY INTO THE LASER BEAM
The light emitted from these devices has been set in accordance with IEC60825.
However, staring into the beam, whether directly or indirectly, must be avoided.
IEC60825 classifies laser products into three different categories depending on light emitted, wavelength and eye safety.
This product is designated for use solely as a component and as such it does not fully comply with the standards relating to laser products specified in U.S. FDA CFR Title 21
part 1040 and IEC 60825-1.
CLASS 2 LASER PRODUCT
LASER RADIATION
DO NOT STARE INTO THE BEAM
CLASS 3R LASER PRODUCT
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3B LASER PRODUCT
LASER RADIATION
AVOID EXPOSURE TO THE BEAM
1. MOUNTING
NOTE: Mounting the Gocator is recommended before applying power. Ensure that a proper earth ground is established and that a heat sink is properly installed before applying power.
Side mount (shown):
Use three 5 mm bolts of appropriate length.
Top mount:
Use three M4 screws of suitable length.
The recommended thread engagement into the housing is 4 to 5 mm.
Do not occlude camera’s view of the laser

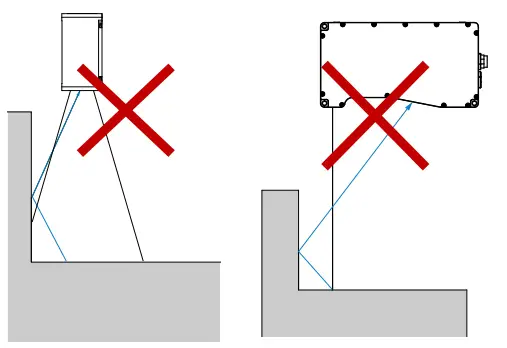

Do not install near surfaces that might create unexpected laser reflections
2. CONNECTING GOCATOR TO A HOST COMPUTER

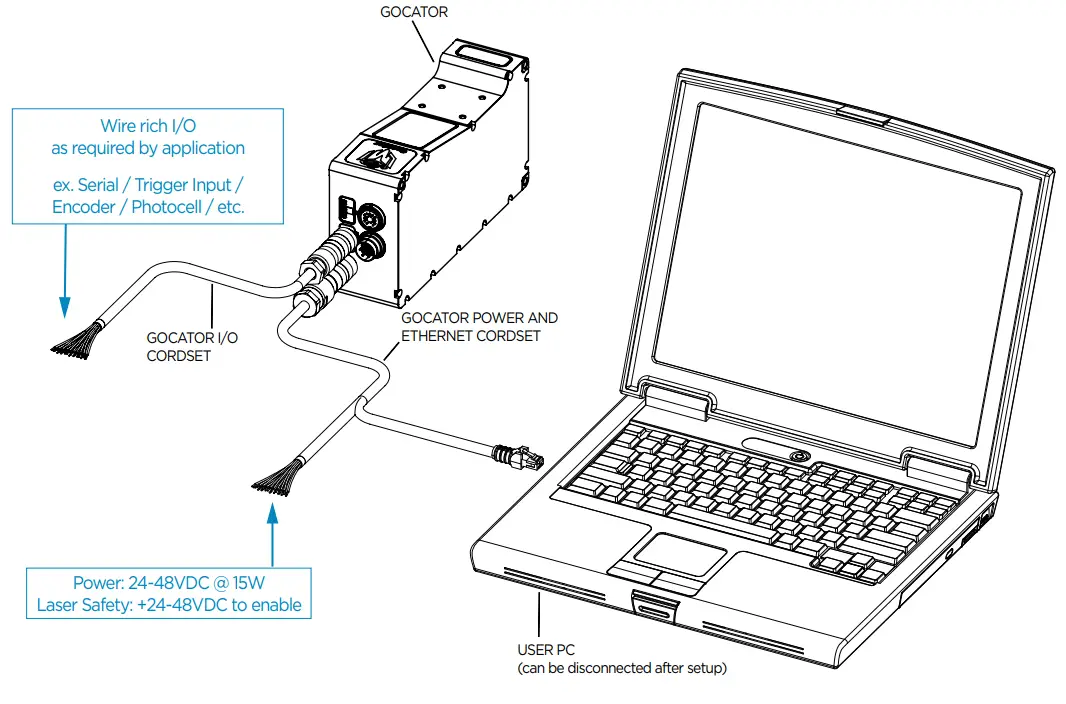

Standalone System
Always power down sensor before removing cables from the sensor

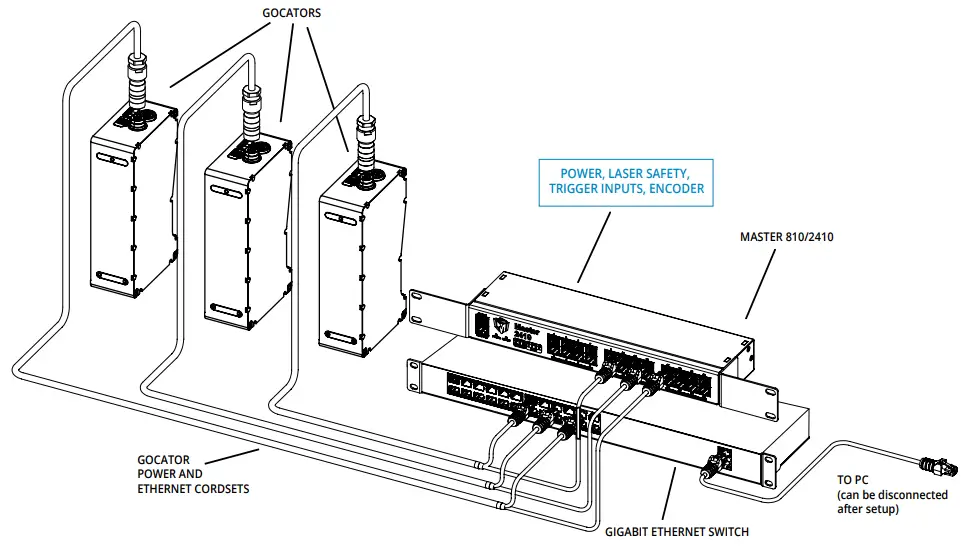

Dual / Multi-Sensor System
Leave protective caps on any connectors that are not used.

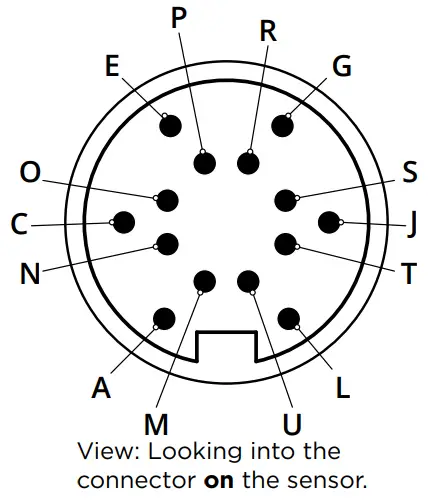

Connector Pin Details
Power/LAN
| Pin | Function | Conductor Color (Standard) | Conductor Color (High Flex) |
| L | GND_24-48V | White/Orange & Black | Orange/Red |
| L | GND_24-48V | Orange/Black | Orange/Black |
| A | DC_24-48V | White/Green & Black | Green/Red |
| A | DC_24-48V | Green/Black | Green/Black |
| G | Safety- | White/Blue & Black | Blue/Black |
| J | Safety+ | Blue/Black | Blue/Red |
| E | Sync+* | White/Brown & Black | Brown/Red |
| C | Sync-* | Brown/Black | Brown/Black |
| M | Ethernet MX1+ | White/Orange | White/Orange |
| N | Ethernet MX1- | Orange | Orange |
| O | Ethernet MX2+ | White/Green | White/Green |
| P | Ethernet MX2- | Green | Green |
| S | Ethernet MX3- | White/Blue | White/Blue |
| R | Ethernet MX3+ | Blue | Blue |
| T | Ethernet MX4+ | White/Brown | White/Brown |
| U | Ethernet MX4- | Brown | Brown |
* The Sync leads are not connected in the open wire versions of the Power/LAN cordsets.

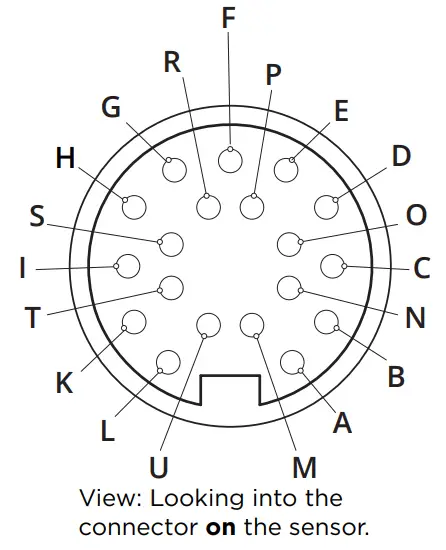

I/O
| Pin | Function | Conductor Color (Standard) | Conductor Color (High Flex) |
| D | Trigger_in+ | Grey | Blue/Red |
| H | Trigger_in- | Pink | Blue/Black |
| N | Out_1+ (Digital Output 0) | Red | Brown/Red |
| O | Out_1- (Digital Output 0) | Blue | Brown/Black |
| S | Out_2+ (Digital Output 1) | Ta n | Green/Red |
| T | Out_2- (Digital Output 1) | Orange | Green/Black |
| M | Encoder_A+ | White/Brown & Black | Pink/Red |
| U | Encoder_A- | Brown/Black | Pink/Black |
| I | Encoder_B+ | Black | Yellow/Red |
| K | Encoder_B- | Violet | Yellow/Black |
| A | Encoder_Z+ | White/Green & Black | White/Red |
| L | Encoder_Z- | Green/Black | White/Black |
| B | Serial_out+ | White | Purple/Red |
| C | Serial_out- | Brown | Purple/Black |
| E | Reserved | Blue/Black | Red |
| G | Reserved | White/Blue & Black | Black |
| P | Reserved | Green | Gray/Red |
| F | Reserved | Yellow & Maroon/White | Gray/Black & Orange/Black |
| R | Reserved | Maroon (not connected) | Orange/Red (not connected) |
3. STARTING GOCATOR
NOTE: Gocator must be connected to a host computer in order to launch the user interface and set up the sensor.
Gocator sensors are configured by connecting with a web browser. For details on browser compatibility, see the user manual.
A. LAUNCHING THE INTERFACE
Step 1
Change network setting on the host computer.
In Windows 10
a. From the Start menu, launch the Settings app and click Network & Internet, and then click Change adapter options under Advanced network settings..
b. Right-click desired network connection, and then click Properties.
c. On the Networking tab, click Internet Protocol Version 4 (TCP/IPv4), and then click Properties.
d. Select “Use the following IP address” option.
e. Enter IP Address “192.168.1.5” and Subnet Mask “255.255.255.0”, then click OK.
In Mac OS 11
a. Click Apple menu > System Preferences, and then click Network.
b. In the list to the left, select Ethernet.
c. Click Advanced, click Hardware, click the Configure pop-up menu, and set it to “Manually”.
d. Enter IP Address “192.168.1.5” and Subnet Mask “255.255.255.0”, and then click Apply.
Gocator is shipped with the following default network configuration:
| Setting | Default |
| DCHP | Disabled |
| IP Address | 192.168.1.10 |
| Subnet Mask | 255.255.255.0 |
| Gateway | 0.0.0.0 |
Step 2
Open a web browser and enter the sensor address.
The Gocator interface loads.
B. RUNNING GOCATOR
Step 1

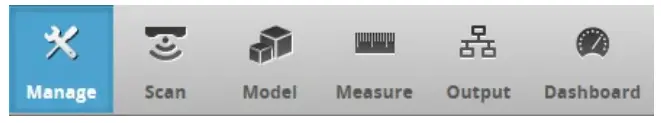

Select the Manage page.
Step 2

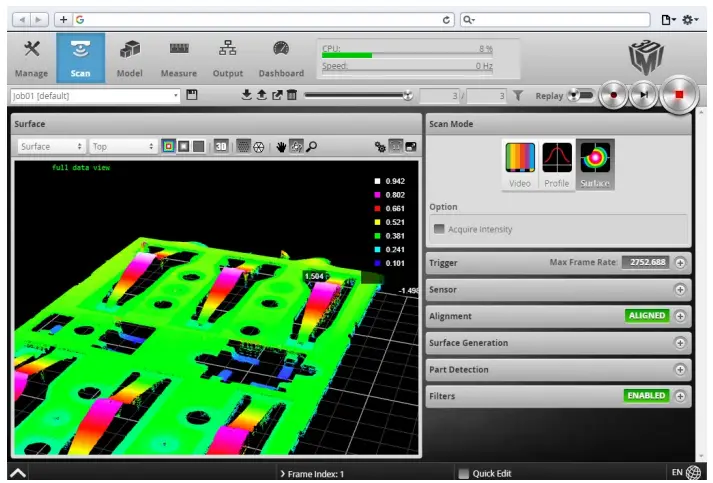

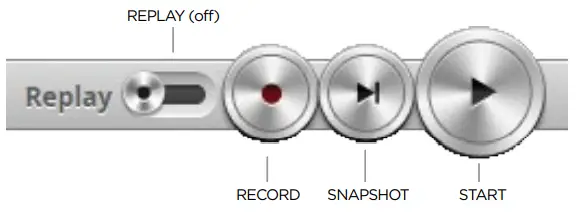

Ensure that Replay mode is off (slider set to left) and that the Laser Safety switch is enabled or the Laser Safety input is high. Press the Start button in the toolbar to start the sensor (a laser line should now be visible).
Step 3
Move target into the laser plane and measure!
NOTE
Gocator sensors can also interface directly with HexSight.
Refer to the HexSight Quick Start Guide for more information.
