motionics GLM50C Wireless Laser Measure
Important Notes
- Do NOT open the dev˜ce. Open˜ng causes permanent damage and vo˜ds the warranty.
- Do NOT stare d˜rectly ˜nto the apertures of the laser.

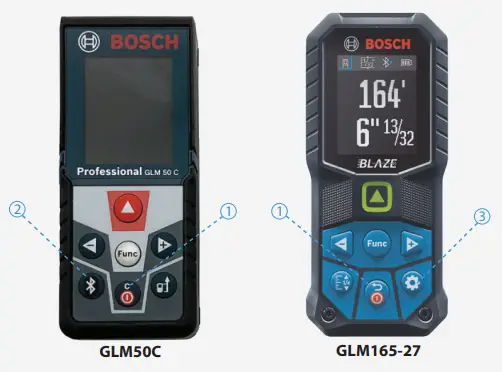

Description
- On/Off Button – press to turn laser measure on, hold to turn off
- BLE On/off Button- press to turn Bluetooth on/off on laser measure
- Setting Button – press to enter laser setting
Included in the box
- Laser Measure
- 1X Fabr˜c Pouch
- 1X User Guide 1X
Compatible Software
- OS: Mult˜Gage Reader
- Andro˜d: Mult˜Gage Reader
- W˜ndows: MultiGage Reader (BLE Dongle Requ˜red)
- OS app can be d˜rectly downloaded from the App Store for FREE.
- Android app can be d˜rectly downloaded from the Google Play Store for FREE.
- Windows software ˜s ava˜lable at mot˜on˜cs.com/download.
Quick Start
- Insert 2x batter˜es ˜nto laser measure for a rst-t˜me use.
- Turn on laser measure and Bluetooth.
- Plug ˜n USB Bluetooth dongle ˜f us˜ng W˜ndows PC.
- Run software (refer to compat˜ble software sect˜on for download, and launch).
- For a first-time use, device activation is required using code printed on device.
- On iOS, go to New Measurement>More>Setting, and enter activation code into Custom Codes field.
- On Android, go to Menu>Settings, enter activation code into Custom Codes field and press Save.
- On Windows, go to Settings>Activation>Custom Activation Codes, enter activation code, press Add Code then Save.
- Tap Pair button in software to enter pairing page.
- Wait for the software to finish scanning nearby devices, then select “Bosch GLM5OC xXXXX”| “GLM165 – 27C(G) xXXXX” to connect.
- Connection may takea few seconds. Once paired, readings show in software.
- To turn on/off laser, do the following:
- On iOS/Android, tap device name, toggle Activate Laser switch and press Save.
- On Windows, go to Gages, tap setting icon of laser measure, toggle laser switch.
[email protected]
Motionics, LLC 8500 Shoal Creek Blvd Building 4 Suite 209, Austin, TX, 78757 2021 Motionics, LLC. www.motionics.com
All rights reserved.
Made in the U.S.A
