Shakan Beam 300 Light User Manual

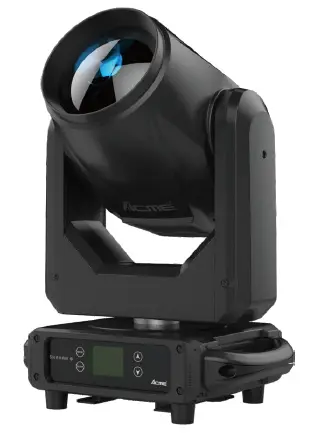

SHAKAN BEAM 300 Light

FEATURES

• Fed with a 145mm length frontal lens
•  The upgraded optical system ensures the clear image

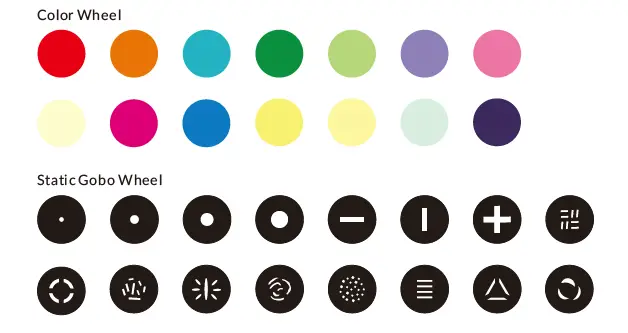

• 1 x Color Wheel: 14 complementary colors + open
•  1 x Stac Gobo Wheel: 16 popular gobos + open
•  3 x Rohtang and Indexable Prisms: one tower prism, one 8-facet prism, one 16-facet prism, and the 16-facet prism can be combined with one of
  the other two
•  Other benefits include the independent frost effect, strobe effect with variable speed, smooth dimming, excellent color macro effect, etc.

TECHNICAL SPECIFICATIONS

Specifications

• Light source: NEOLUX S
• TAGE 295W(1500Hours)
•  Color temperature: 7，800k
•  Beam angle: 2 °

Control

• DMX Channel: 12/15
•  Protocols:: DMX512, RDM
• Firmware Upgrade via DMX link

Pan/Tilt

• Pan/Tilt movement: ：540°/ 270°
•  Pan/Tilt Resoluon: 16-bit
•  Automatic Pan/Tilt position correction

Construction

• Display: LCD display
• Data In/Out: 3-pin or 5-pin XLR
•  Power In/Out: Power Connector In/Out
•  Protection Rang: IP20

Electrical and Physical

• Input voltage range: 100-240V~ 50/60Hz
•  Power Consumpon:365W
•  Dimensions：336x240x507mm (13.2″x9.4″x20.0″)
•  Carton Dimension：420x410x575mm (16.5”x16.1”x22.6”)
•  Weight：14.9kg (32.8lbs)
• 17kg(37.5lbs) (one-pack per carton

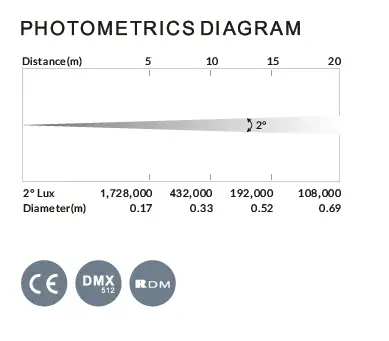

PHOTOMETRIC DIAGRAMFUNCTIONAL EFFECT

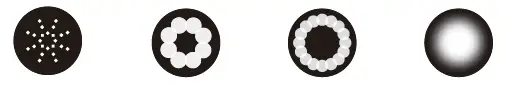

Tower Prism 8-Facet Prism 16-Facet Linear Prism Frost Filter

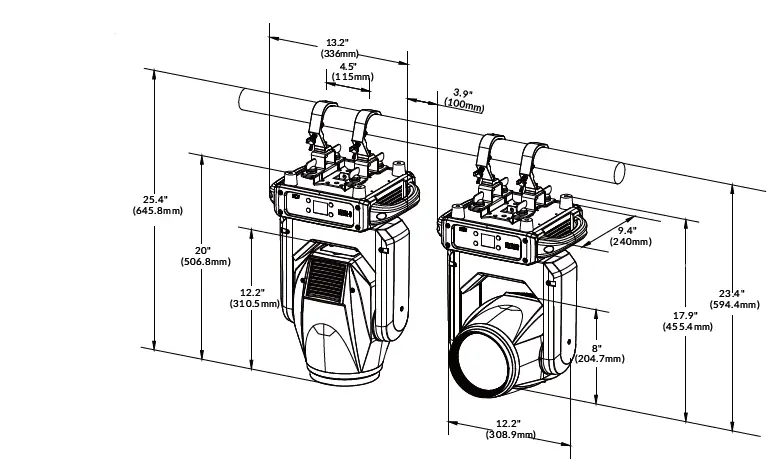

DIMENSIONS mm (in.)
