Salus Ep110 Electronic Programmable Timer Instruction Manual

SALUS EP110 Electronic Programmable
Timer Instruction Manual

Introduction

A programmable timers EP110, EP210, EP310 are used to switch ON/OFF the heating system, the hot water or any electronical device like pumps or lights as needed. It works by controlling with programmed schedules (24H or 5-2 schedule types) which contain 3 time programs each.

Product Compliance

EU Directives: 2014/30/EU, 2014/35/EU and 2011/65/EU. Please check www.saluslegal.com for the full information.

Safety Information
Use in accordance with the EU and national regulations. For indoor use only. Keep your device completely dry. This product must be installed by a competent person and in accordance with all the EU and national regulations.

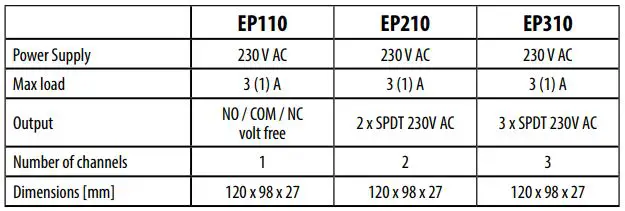

Technical data

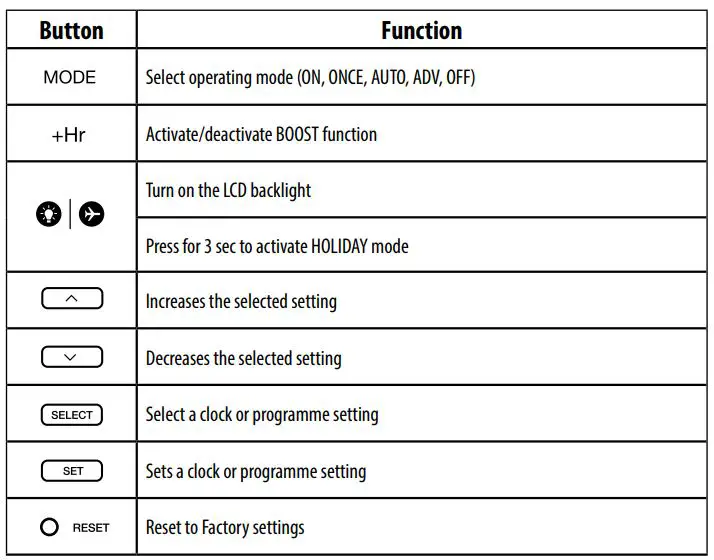

Buttons functions

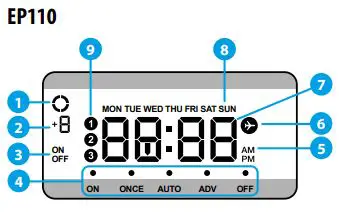

LCD display icon description

1. Device operation (animated icon)
2. Number of hours for the BOOST function
3. ON/OFF indicator
4. Work mode
5. AM/PM
6. Holiday mode
7. Clock
8. The day of the week
9. Program number

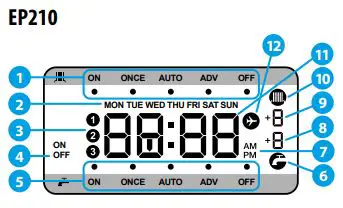

1. Zone I operation mode
2. Day of the week
3. Program number
4. ON/OFF indicator
5. Zone II operation mode
6. Zone II work status
7. AM/PM
8. Number of hours for the BOOST function for Zone II
9. Number of hours for the BOOST function for Zone I
10. Zone I work status
11. Clock
12. Holiday mode

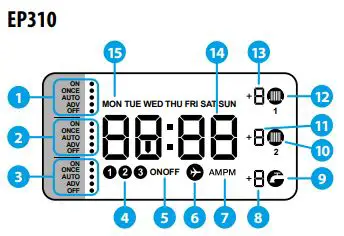

1. Zone I operation mode
2. Zone II operation mode
3. Zone III operation mode
4. Program number
5. ON/OFF indicator
6. Holiday mode
7. AM/PM
8. Number of hours for the BOOST function for Zone III
9. Zone III work status
10. Zone I work status
11. Number of hours for the BOOST function for Zone II
12. Zone II work status
13. Number of hours for the BOOST function for Zone I
14. Clock
15. Day of the week

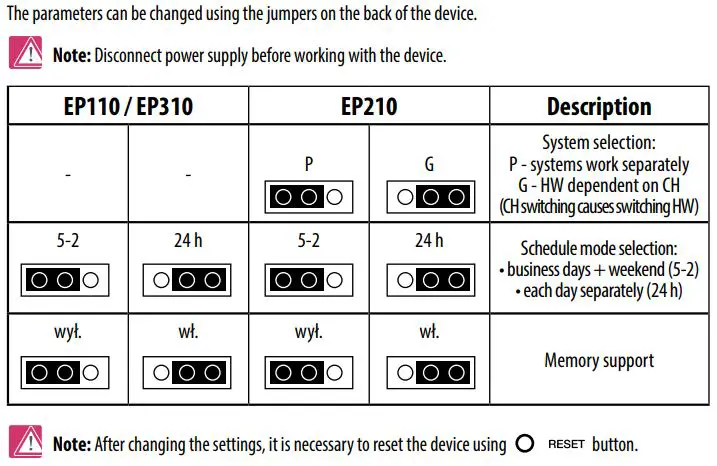

Jumpers settings

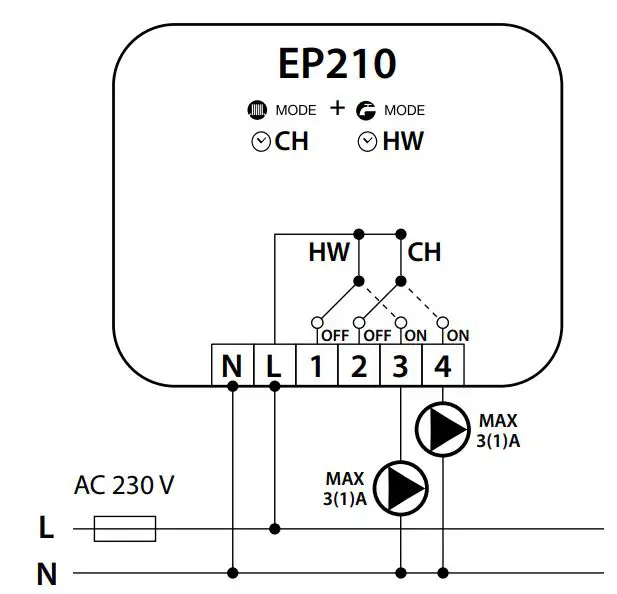

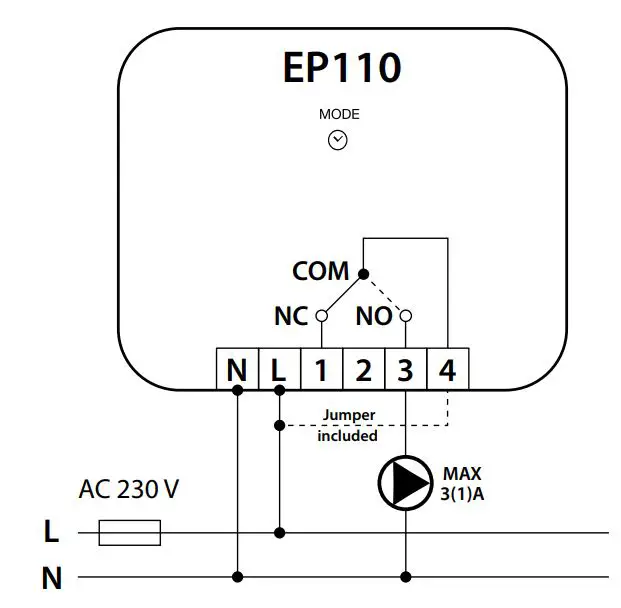

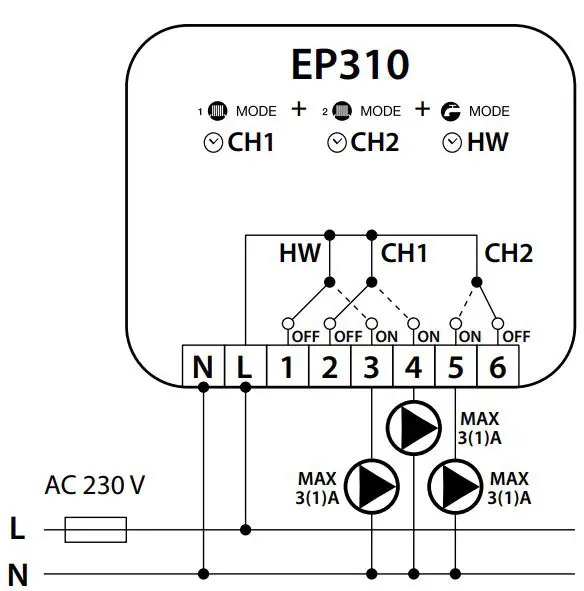

Wiring diagram

All wire connectors are located on the back of the device. To remove the cover, loose two screws located at the bottom of the device and then remove the back of the housing.

Note: Disconnect power supply before working with the device.

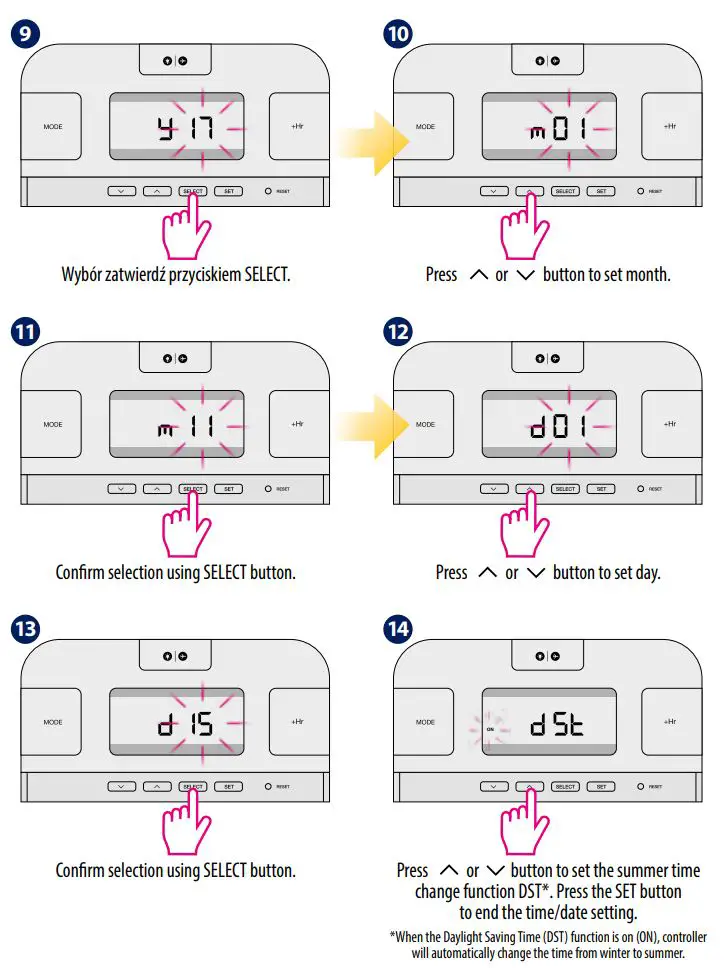

Setting time and date

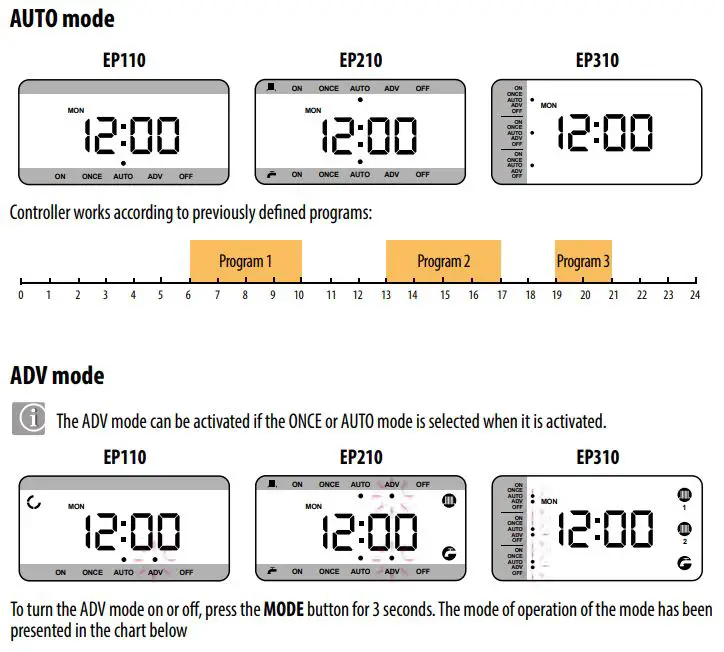

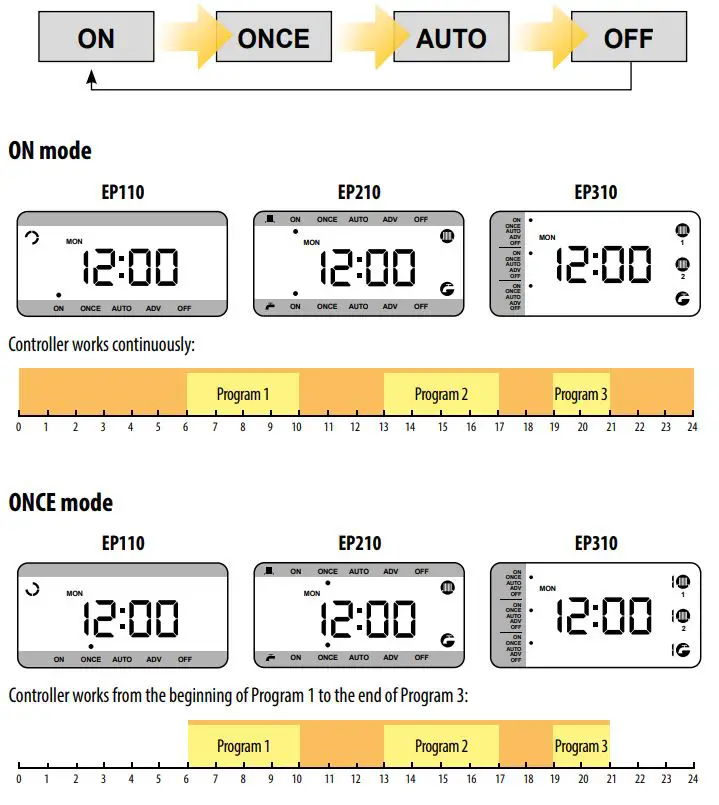

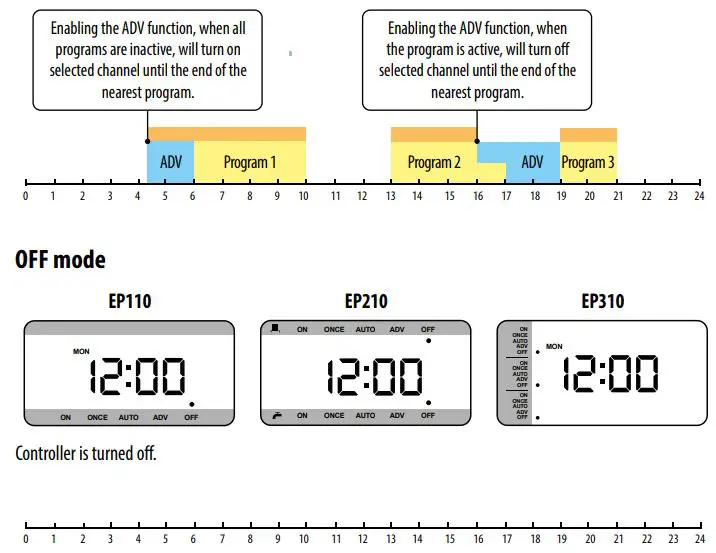

Operation modes

There are 5 different work modes available. Using MODE button, you can change modes directly according to the following sequence:

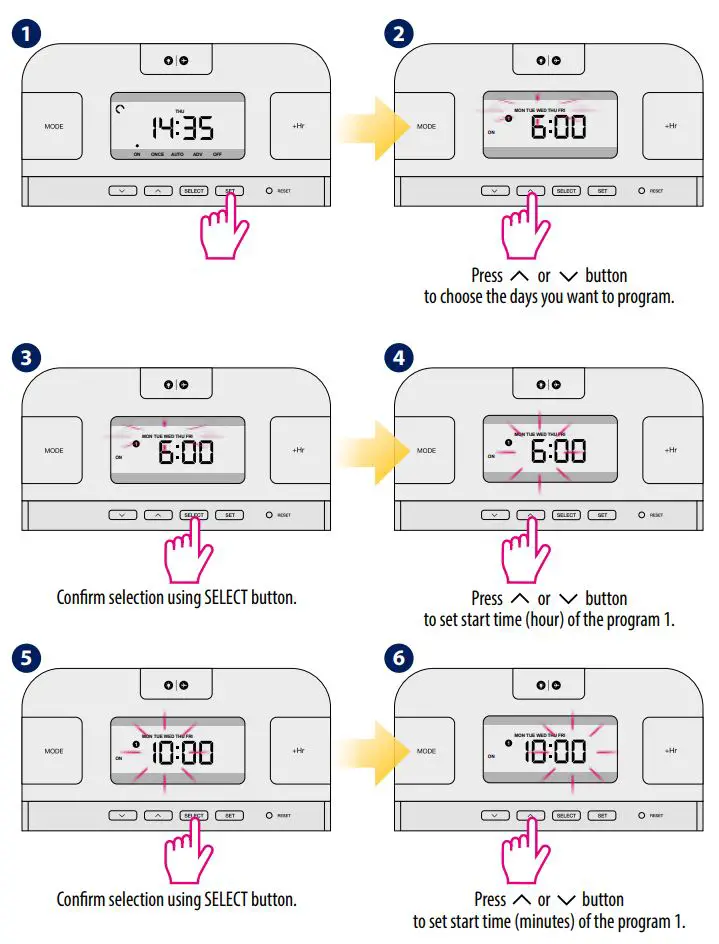

Programming EP110 controller

You can create 3 independent time schedules. There are 2 work models to choose from:

• business days + weekend (5-2)
• each day separately (24 hours) Controller works by default in working days + weekend mode (5-2).

To set each day separately (24 hours), change the jumper position according to the diagram on previous page.

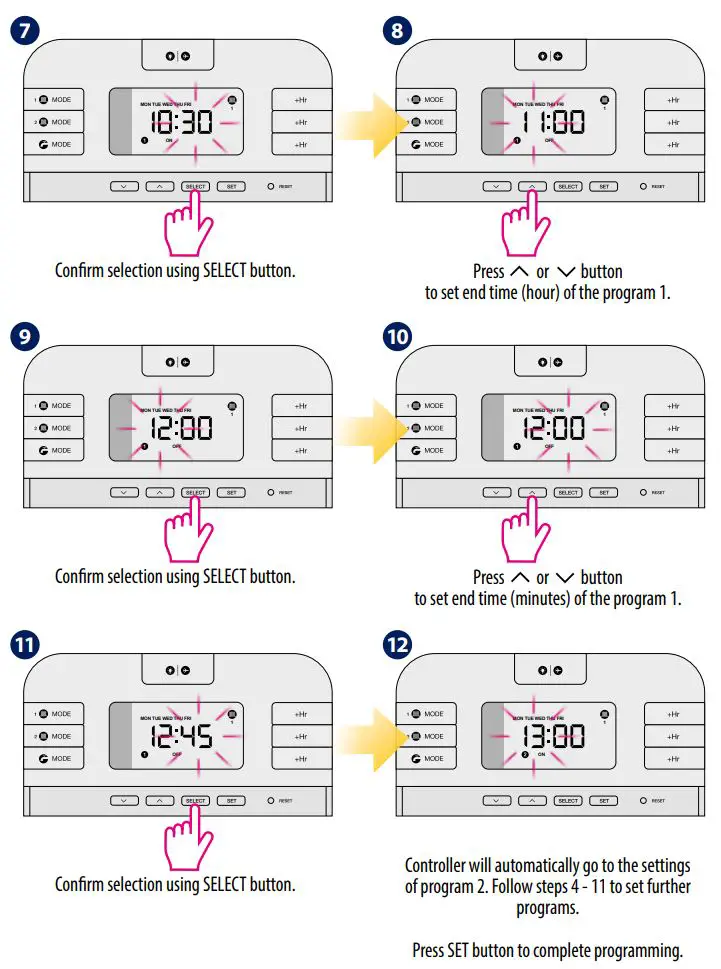

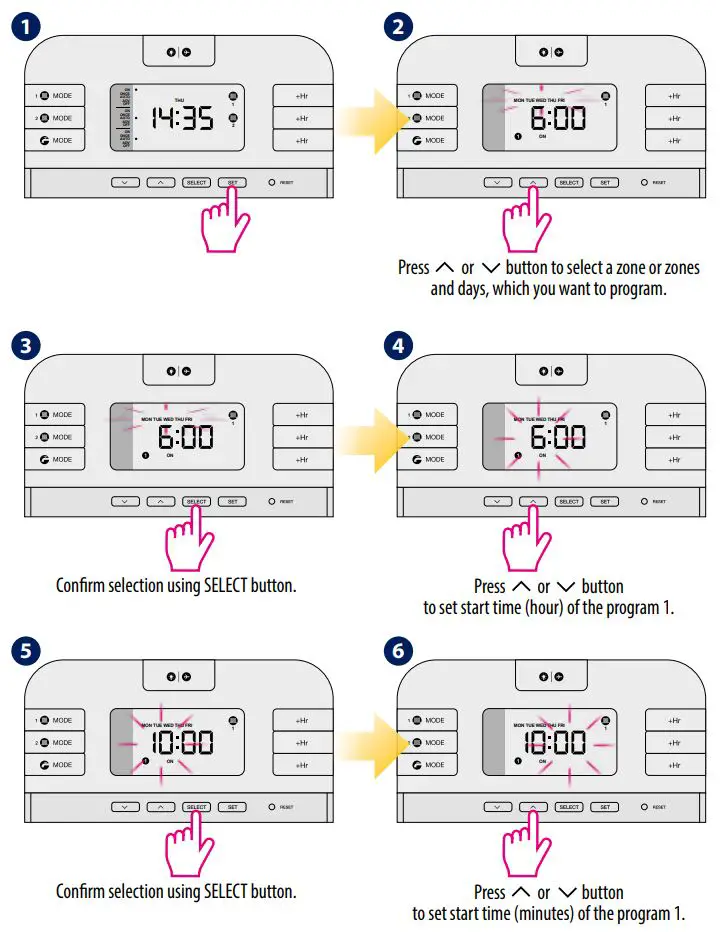

Programming EP210/EP310 controller

You can create 3 independent time schedules for each zone. There are 2 work models to choose from:

• business days + weekend (5-2)
• each day separately (24 hours) Controller works by default in working days + weekend mode (5-2).

To set each day separately (24 hours), change the jumper position according to the diagram on previous page.

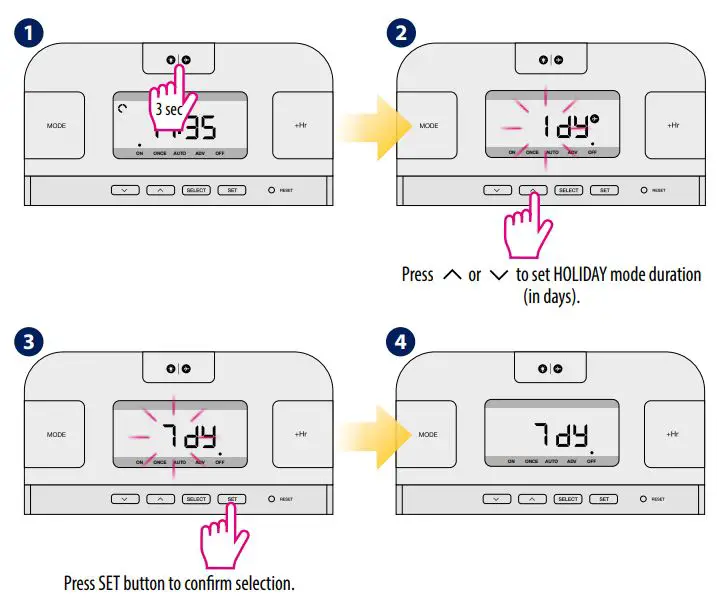

HOLIDAY mode

Holiday mode is used to disable all controller outputs for a specified number of days (up to 31 days). When HOLIDAYS mode is active, aircraft icon will appear on the display.

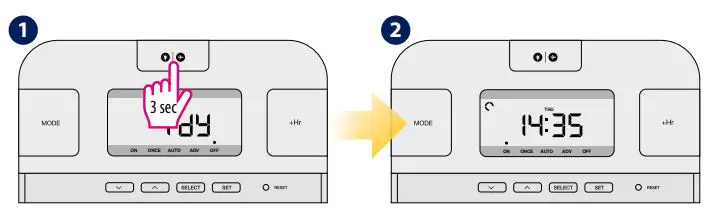

Disabling the Holiday mode

BOOST Function

BOOST function extends the active program time to 1-9 hours. Press +Hr button to activate BOOST mode (each press of the button extends the active program by 1 hour).

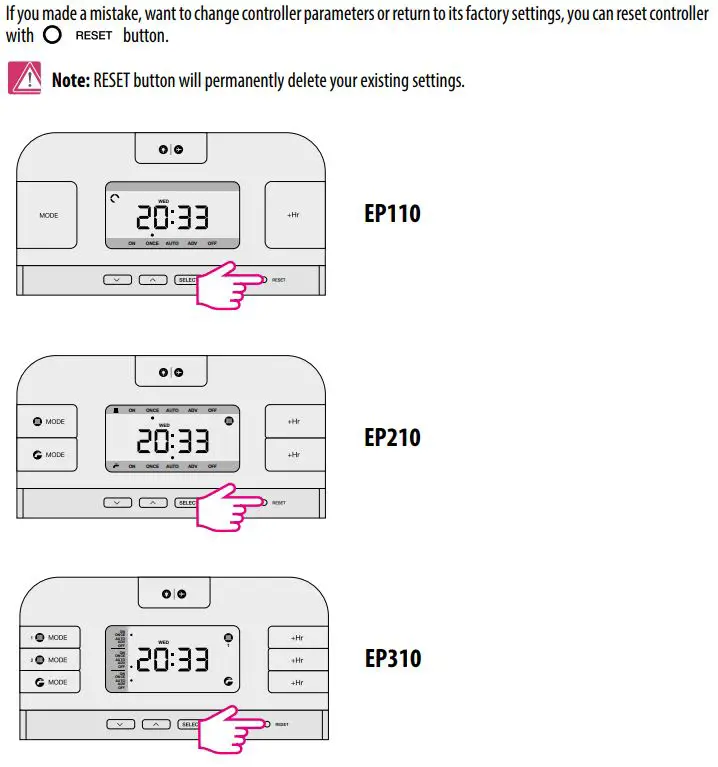

Factory Settings

DISTRIBUTOR OF SALUS CONTROLS:
QL CONTROLS Sp. z o.o., Sp. k. Rolna 4, 43-262 Kobielice, Poland

Importer:
SALUS Controls Plc Units 8-10 Northfield Business Park Forge Way, Parkgate, Rotherham S60 1SD, United Kingdom

www.salus-controls.eu
SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice.
