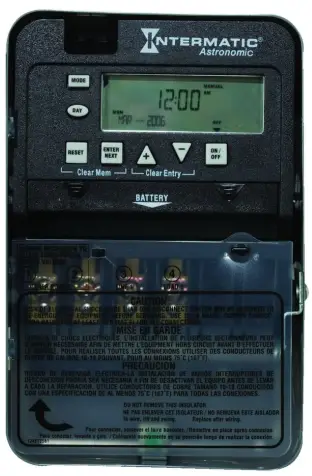

INTERMATIC ET8015C Electronic Timer Control
PRODUCT DESCRIPTION
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.
FEATURES
- Selector switch to determine input voltage between 120-277 VAC, 50/60 Hz Up to 28 events total
- To-the-minute accuracy
- Temporary override or permanent manual override
- Automatic Daylight Saving Time adjustment
- Astronomic models enable dusk-to-dawn scheduling
APPLICATIONS
- Outdoor Lighting Control
- Timing/Scheduling ON/OFF
- Machinery & Pump Controls

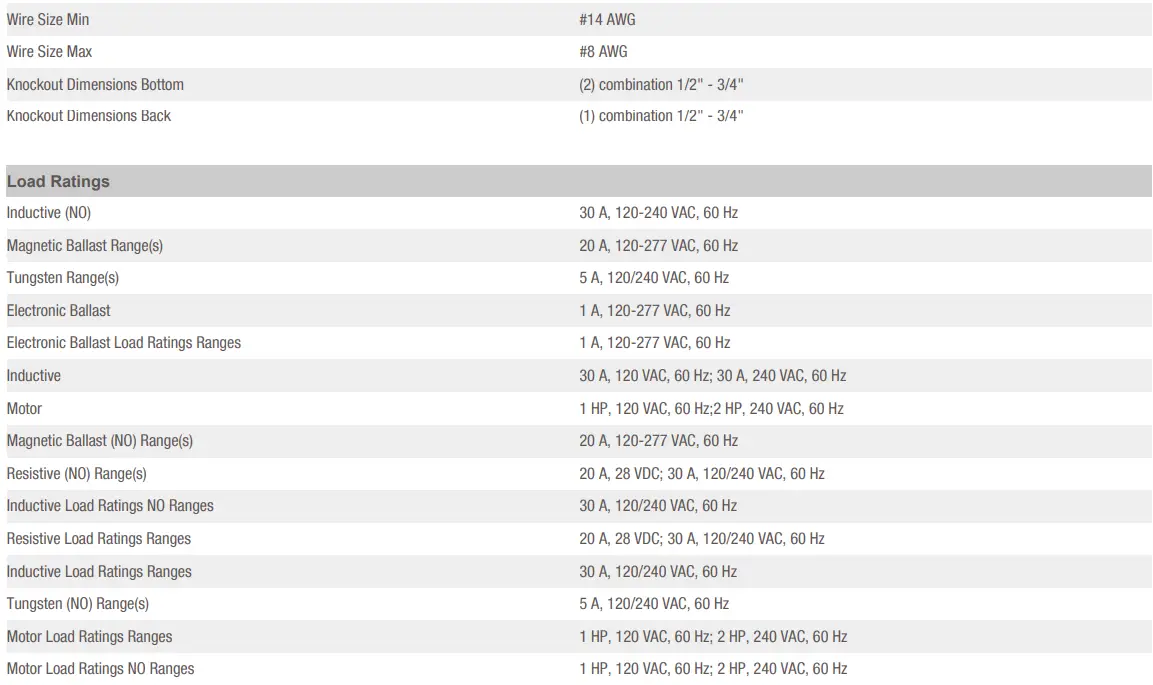

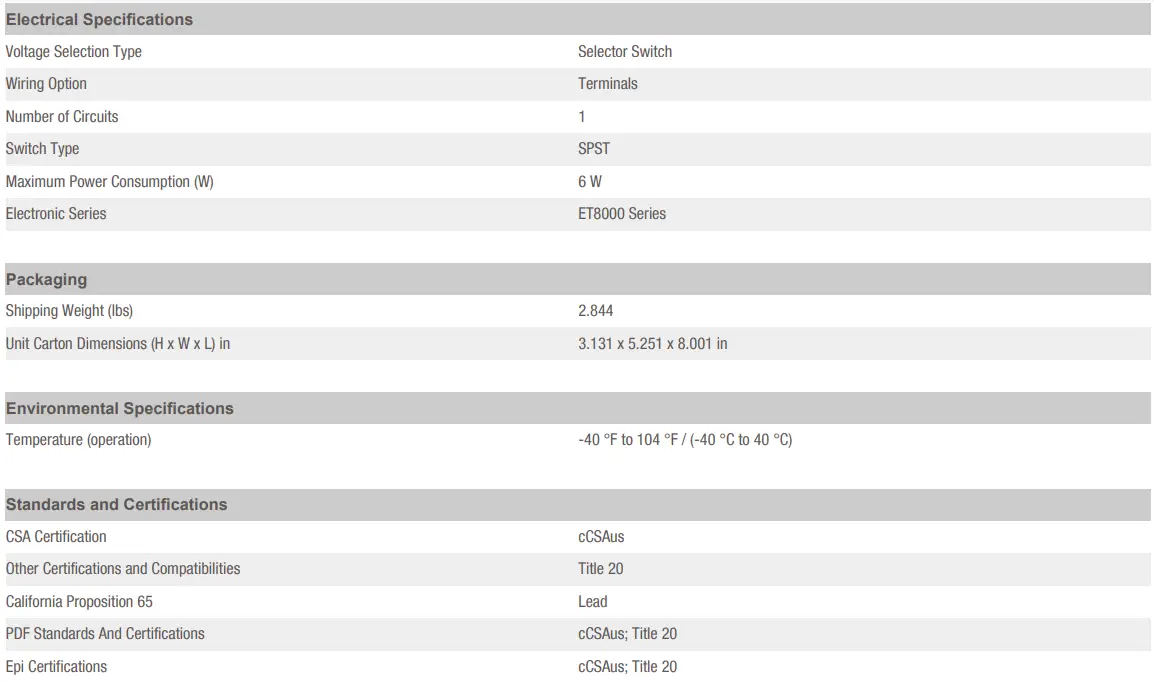

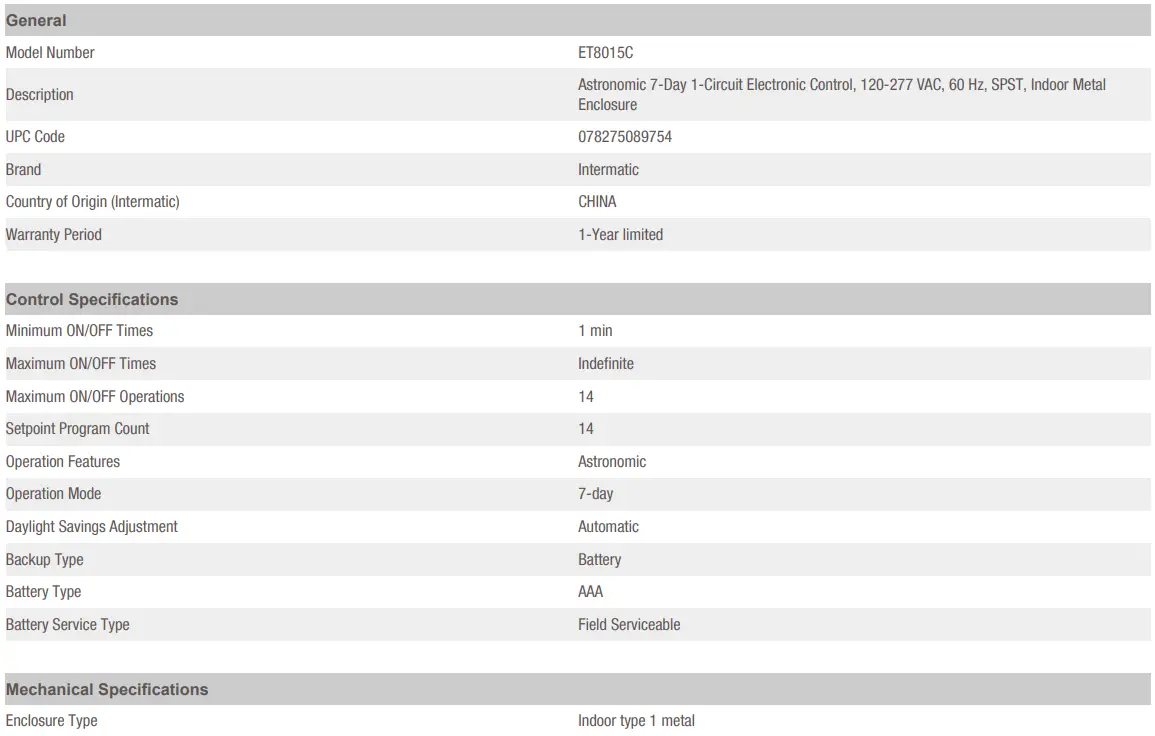

TECHNICAL DATA

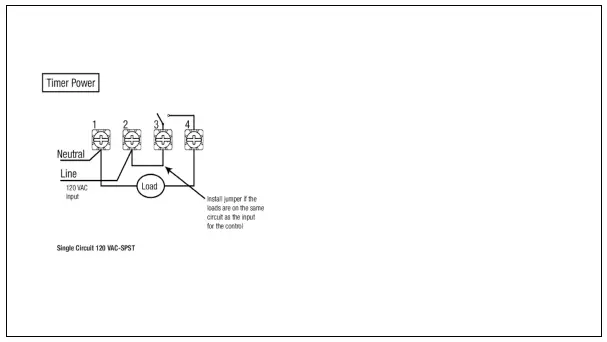

DRAWINGS AND DIAGRAMS
(SPST) Insulator for ET Series controls (ET1105C, ET1105CR, ET1705C, ET1705CR, ET8015C and ET8015CR)
