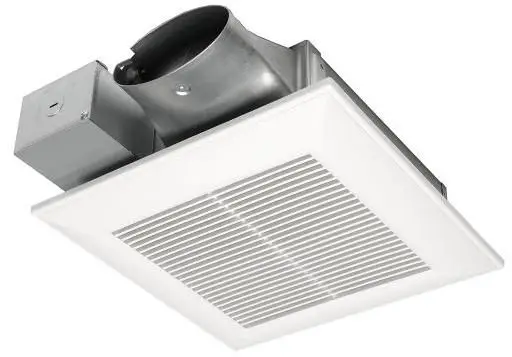

Panasonic FV-0510VSC1 Whisper Value DC Ventilation Fan with Condensation Sensor
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with the manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without the permission of the manufacturer. We suggest handling such parts after the static electricity prevention. It is forbidden to touch the PCB parts by bare hands during the repairing process.

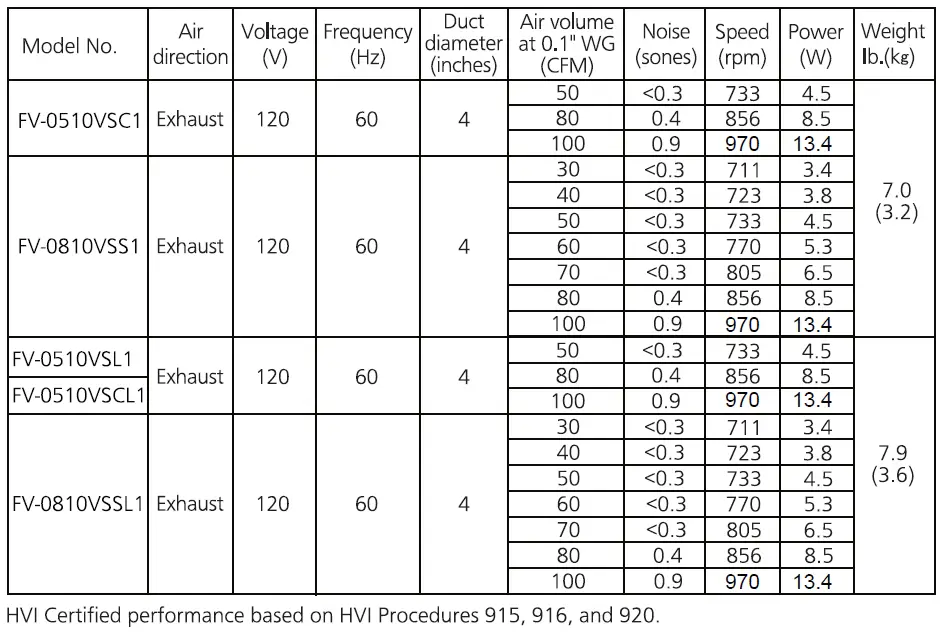

Specifications
Parts Identification

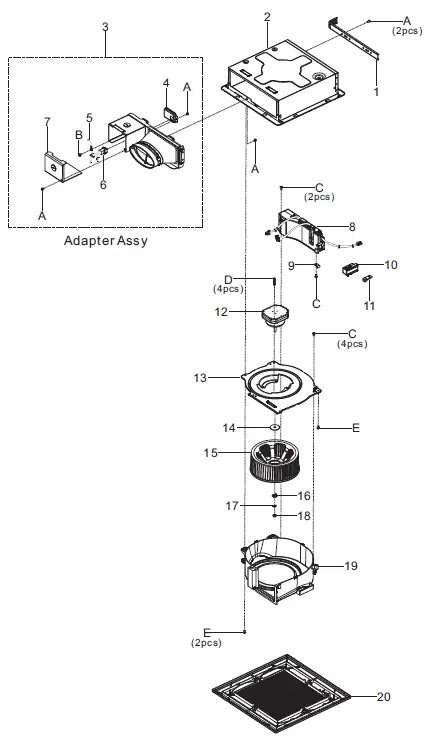

FV-0510VSC1 Main Body Section

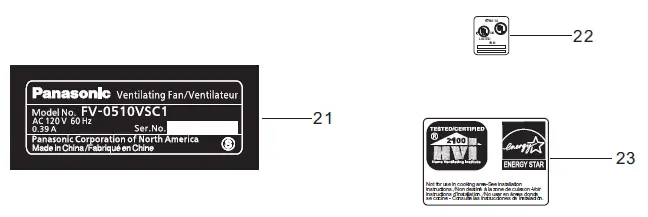

Main Labels

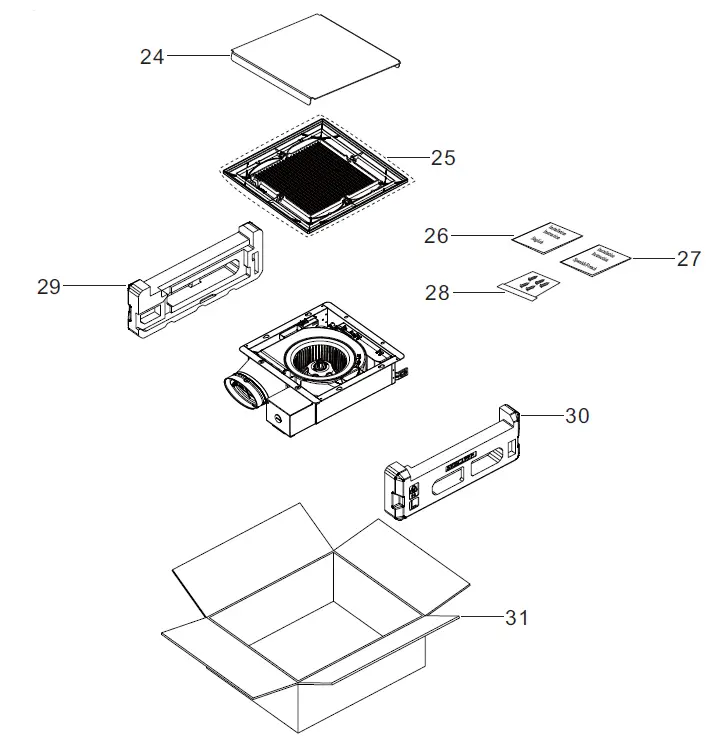

Packing Section

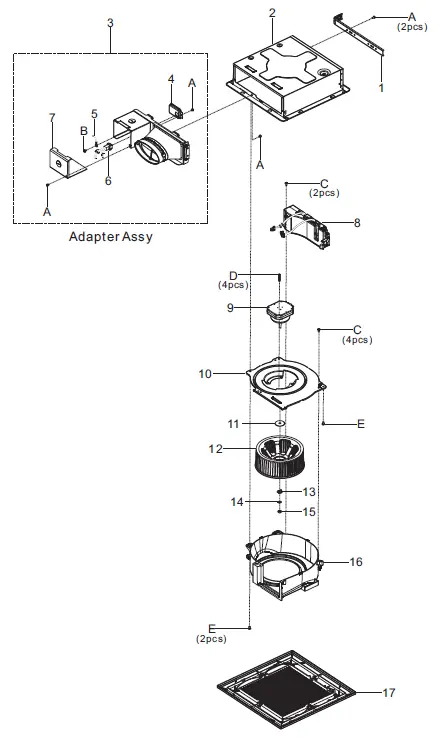

FV-0810VSS1 Main Body Section

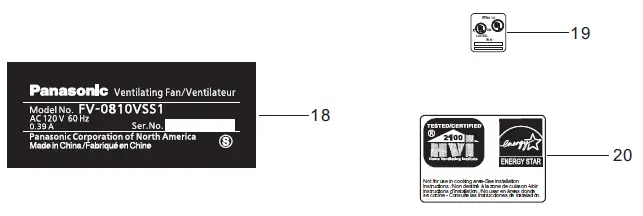

FV-0810VSS1 Main Labels
Packing Section

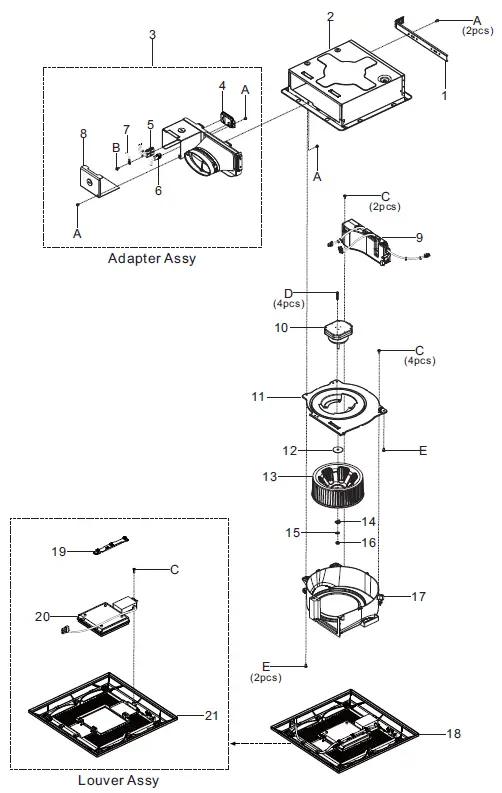

FV-0510VSL1 Main Body Section

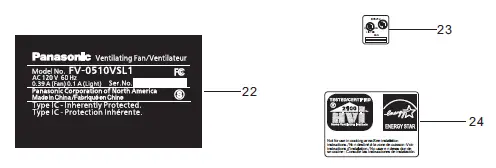

FV-0510VSL1 Main Labels

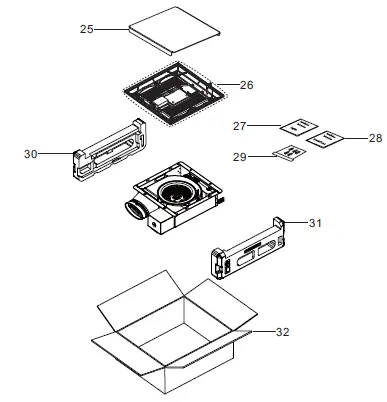

Packing Section
FV-0510VSCL1 Main Body Section

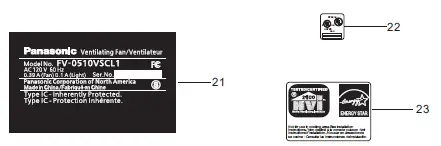

FV-0510VSCL1 Main Labels
Packing Section
FV-0810VSSL1 Main Body Section

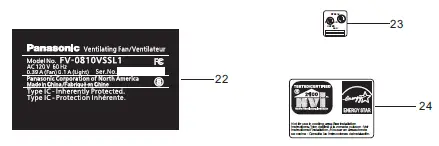

FV-0810VSSL1 Main Labels
Packing Section
Replace Motor Assy Method
(Only for FV-0510VSCL1 reference)
Steps

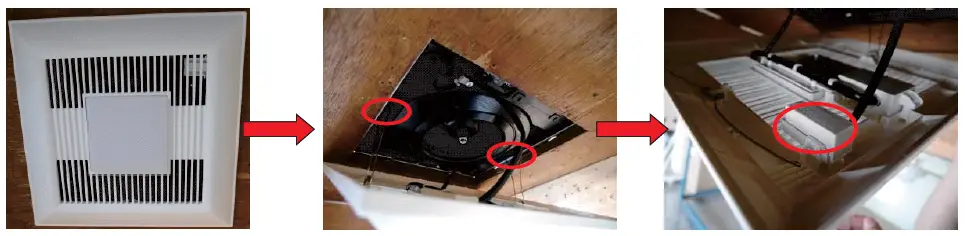

- Haul down the louver assy
- Remove the louver spring
- Remove the humidity sensor assy
- Unplug led unit connector , Then take out the louver assy

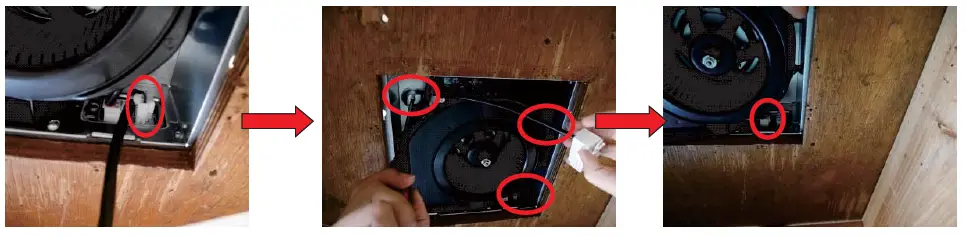

- Remove 3pcs screws
- Unplug power lead connector, Then take out the casing unit from the frame assy

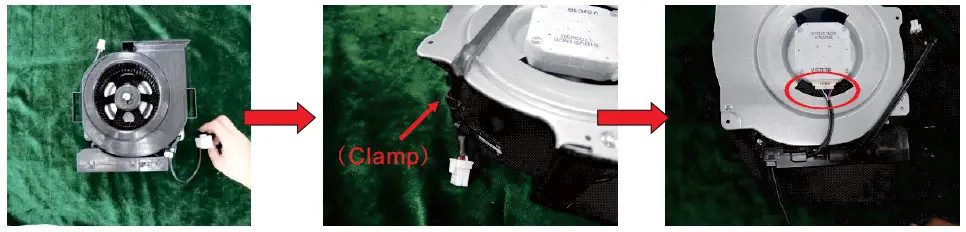

- Pull out the power lead from casing clamp
- Pull out the motor lead from motor assy
Replace Motor Assy Method (Only for FV-0510VSCL1 reference)

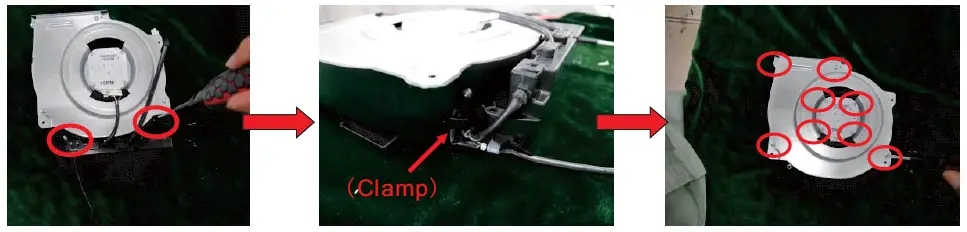

- Remove 3pcs screws
- Pull out the humidity sensor lead from casing clamp,Then take out the PCB assy unit form casing unit
- Remove 8pcs screws,Then take out the casing from casing unit

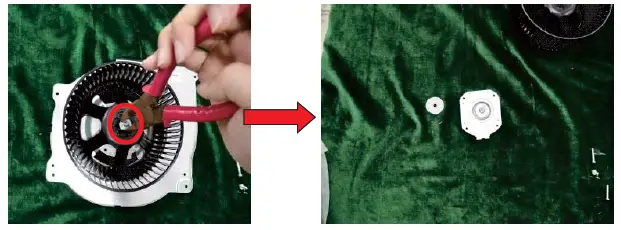

- Remove the hexagon nut,Then take out the undee washer, blade fix ring,blade and blade plate
- Replace the motor assy

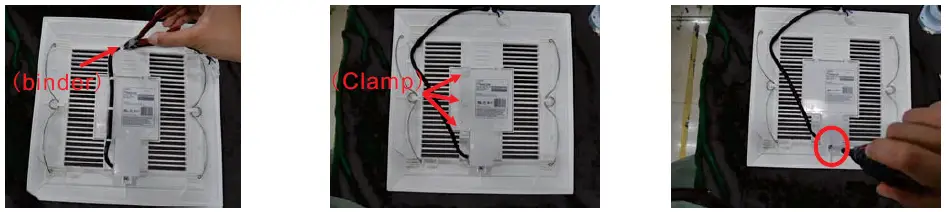

Replace Led Unit Method
- Cut the binder
- Pull out the Led unit lead from louver assy
- Remove 1pc screw,Then take out the led unit from louver assy

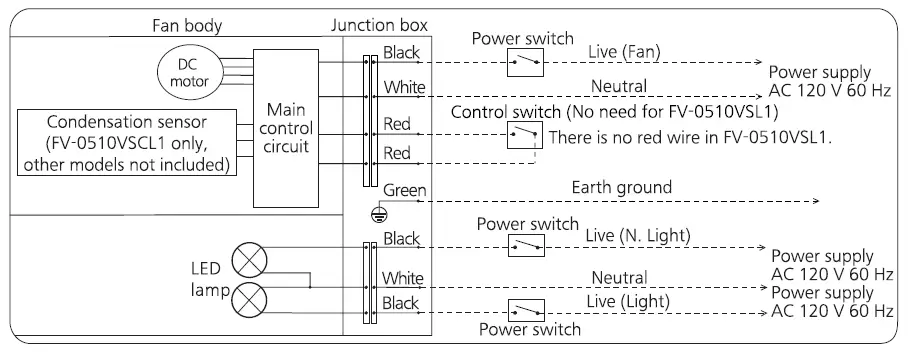

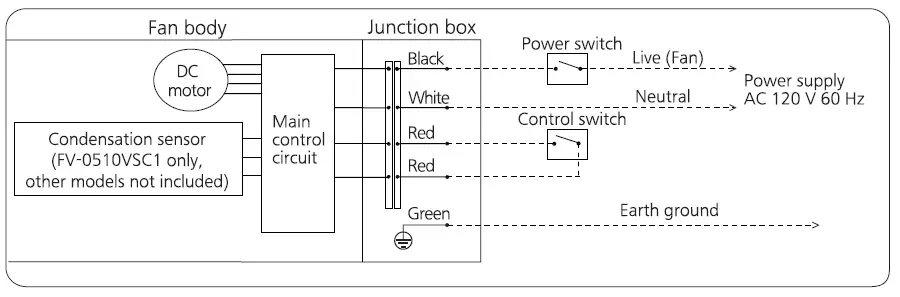

Wiring Diagram
- FV-0510VSC1
- FV-0810VSS1
- FV-0510VSL1
- FV-0510VSCL1
- FV-0810VSSL1
Parts List
FV-0510VSC1 Main Body Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 1 | FFV5710025S | Suspension Bracket | 1 | |
| 2 | FFV1600159S | Frame Assy | 1 | |
| 3 | FFV0000171S | Adapter Assy | 1 | |
| 4 | FFV0900053S | Connector Plate | 1 | |
| 5 | FFV3450010S | Earth Lead Wire | 1 | |
| 6 | FFV0900073S | Connector Assy (V) | 1 | |
| 7 | FFV2800027S | Junction Cover | 1 | |
| 8 | FFV4700073S | PCB Assy Unit | 1 | |
| 9 | FFV0740026S | Cord Clip | 1 | |
| 10 | FFV0010266S | Humidity Sensor Box | 1 | |
| 11 | FFV0010222S | Humidity Sensor | 1 | |
| 12 | FFV3700347S | Motor Assy | 1 | |
| 13 | FFV3700348S | Motor Support Unit | 1 | |
| 14 | FFV0400127S | Blade Plate | 1 | |
| 15 | FFV0400128S | Blade | 1 | |
| 16 | FFV0400113S | Blade Fix Ring | 1 | |
| 17 | FFV7010058S | Undee Washer | 1 | |
| 18 | FFV7020024S | Hexagon Nut | 1 | |
| 19 | FFV1610080S | Casing Unit | 1 | |
| 20 | FFV3400146S | Louver Assy | 1 | |
| A | FFV7000108S | Truss Tap Screw | 5 | |
| B | FFV7000227S | Earth Screw Assy | 1 | Include Spring Washer |
| C | FFV7000089S | Truss Tap Screw | 7 | |
| D | FFV7000163S | Pan Tap Screw | 4 | |
| E | FFV7000202S | Bind Tap Screw | 3 |
Main Labels
| No. | Part No. | Part Name | Q’ty | Remark |
| 21 | FFV4020907S | Name Plate | 1 | Stuck On Casing Unit |
| 22 | FFV2260003S | UL Mark | 1 | Stuck On Frame Assy |
| 23 | FFV0810011S | Caution Label 1 | 1 | Stuck On Frame Assy |
Packing Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 24 | FFV4710381S | Louver Case Assy | 1 | |
| 25 | FFV4650016S | Poly Cover | 1 | |
| 26 | FFV2540209S | Installation Instructions | 1 | English,For USA/CA Market |
| 27 | FFV2540210S | Installation Instructions | 1 | Spanish,For USA Market |
| (27) | FFV2540211S | Installation Instructions | 1 | French,For CA Market |
| 28 | FFV0010267S | Accessory A | 1 | |
| 29 | FFV4710431S | Right Pad | 1 | |
| 30 | FFV4710432S | Left Pad | 1 | |
| 31 | FFV9001333S | Packing Case Assy | 1 |
FV-0810VSS1 Main Body Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 1 | FFV5710025S | Suspension Bracket | 1 | |
| 2 | FFV1600159S | Frame Assy | 1 | |
| 3 | FFV0000171S | Adapter Assy | 1 | |
| 4 | FFV0900053S | Connector Plate | 1 | |
| 5 | FFV3450010S | Earth Lead Wire | 1 | |
| 6 | FFV0900073S | Connector Assy (V) | 1 | |
| 7 | FFV2800027S | Junction Cover | 1 | |
| 8 | FFV4700074S | PCB Assy Unit | 1 | |
| 9 | FFV3700347S | Motor Assy | 1 | |
| 10 | FFV3700348S | Motor Support Unit | 1 | |
| 11 | FFV0400127S | Blade Plate | 1 | |
| 12 | FFV0400128S | Blade | 1 | |
| 13 | FFV0400113S | Blade Fix Ring | 1 | |
| 14 | FFV7010058S | Undee Washer | 1 | |
| 15 | FFV7020024S | Hexagon Nut | 1 | |
| 16 | FFV1610080S | Casing Unit | 1 | |
| 17 | FFV3400146S | Louver Assy | 1 | |
| A | FFV7000108S | Truss Tap Screw | 5 | |
| B | FFV7000227S | Earth Screw Assy | 1 | Include Spring Washer |
| C | FFV7000089S | Truss Tap Screw | 6 | |
| D | FFV7000163S | Pan Tap Screw | 4 | |
| E | FFV7000202S | Bind Tap Screw | 3 |
Main Labels
| No. | Part No. | Part Name | Q’ty | Remark |
| 18 | FFV4020908S | Name Plate | 1 | Stuck On Casing Unit |
| 19 | FFV2260003S | UL Mark | 1 | Stuck On Frame Assy |
| 20 | FFV0810011S | Caution Label 1 | 1 | Stuck On Frame Assy |
Packing Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 21 | FFV4710381S | Louver Case Assy | 1 | |
| 22 | FFV4650016S | Poly Cover | 1 | |
| 23 | FFV2540209S | Installation Instructions | 1 | English,For USA/CA Market |
| 24 | FFV2540210S | Installation Instructions | 1 | Spanish,For USA Market |
| (24) | FFV2540211S | Installation Instructions | 1 | French,For CA Market |
| 25 | FFV0010267S | Accessory A | 1 | |
| 26 | FFV4710431S | Right Pad | 1 | |
| 27 | FFV4710432S | Left Pad | 1 | |
| 28 | FFV9001334S | Packing Case Assy | 1 |
FV-0510VSL1 Main Body Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 1 | FFV5710025S | Suspension Bracket | 1 | |
| 2 | FFV1600159S | Frame Assy | 1 | |
| 3 | FFV0000173S | Adapter Assy | 1 | |
| 4 | FFV0900074S | Connector Plate | 1 | |
| 5 | FFV0900069S | Connector Assy (L) | 1 | |
| 6 | FFV0900072S | Connector Assy (V) | 1 | |
| 7 | FFV3450010S | Earth Lead Wire | 1 | |
| 8 | FFV2800027S | Junction Cover | 1 | |
| 9 | FFV4700070S | PCB Assy Unit | 1 | |
| 10 | FFV3700347S | Motor Assy | 1 | |
| 11 | FFV3700348S | Motor Support Unit | 1 | |
| 12 | FFV0400127S | Blade Plate | 1 | |
| 13 | FFV0400128S | Blade | 1 | |
| 14 | FFV0400113S | Blade Fix Ring | 1 | |
| 15 | FFV7010058S | Undee Washer | 1 | |
| 16 | FFV7020024S | Hexagon Nut | 1 | |
| 17 | FFV1610080S | Casing Unit | 1 | |
| 18 | FFV3400147S | Louver Assy | 1 | |
| 19 | FFV2520040S | Insulation Plate | 1 | |
| 20 | FFV3400148S | Led Unit | 1 | |
| 21 | FFV3400149S | Louver Unit | 1 | |
| A | FFV7000108S | Truss Tap Screw | 5 | |
| B | FFV7000227S | Earth Screw Assy | 1 | Include Spring Washer |
| C | FFV7000089S | Truss Tap Screw | 7 | |
| D | FFV7000163S | Pan Tap Screw | 4 | |
| E | FFV7000202S | Bind Tap Screw | 3 |
Main Labels
| No. | Part No. | Part Name | Q’ty | Remark |
| 22 | FFV4020910S | Name Plate | 1 | Stuck On Casing Unit |
| 23 | FFV2260003S | UL Mark | 1 | Stuck On Frame Assy |
| 24 | FFV0810011S | Caution Label 1 | 1 | Stuck On Frame Assy |

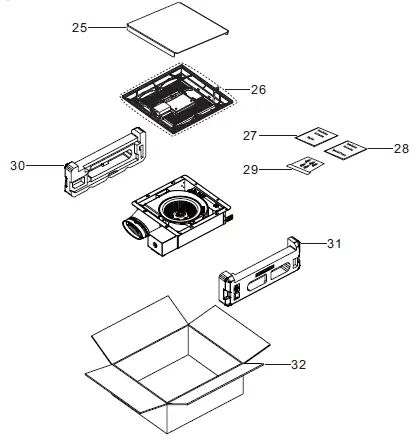

Packing Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 25 | FFV4710381S | Louver Case Assy | 1 | |
| 26 | FFV4650016S | Poly Cover | 1 | |
| 27 | FFV2540212S | Installation Instructions | 1 | English,For USA/CA Market |
| 28 | FFV2540213S | Installation Instructions | 1 | Spanish,For USA Market |
| (28) | FFV2540214S | Installation Instructions | 1 | French,For CA Market |
| 29 | FFV0010267S | Accessory A | 1 | |
| 30 | FFV4710431S | Right Pad | 1 | |
| 31 | FFV4710432S | Left Pad | 1 | |
| 32 | FFV9001336S | Packing Case Assy | 1 |
FV-0510VSCL1 Main Body Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 1 | FFV5710025S | Suspension Bracket | 1 | |
| 2 | FFV1600159S | Frame Assy | 1 | |
| 3 | FFV0000172S | Adapter Assy | 1 | |
| 4 | FFV0900054S | Connector Plate | 1 | |
| 5 | FFV0900069S | Connector Assy (L) | 1 | |
| 6 | FFV0900073S | Connector Assy (V) | 1 | |
| 7 | FFV3450010S | Earth Lead Wire | 1 | |
| 8 | FFV2800027S | Junction Cover | 1 | |
| 9 | FFV4700073S | PCB Assy Unit | 1 | |
| 10 | FFV0740026S | Cord Clip | 1 | |
| 11 | FFV0010266S | Humidity Sensor Box | 1 | |
| 12 | FFV0010222S | Humidity Sensor | 1 | |
| 13 | FFV3700347S | Motor Assy | 1 | |
| 14 | FFV3700348S | Motor Support Unit | 1 | |
| 15 | FFV0400127S | Blade Plate | 1 | |
| 16 | FFV0400128S | Blade | 1 | |
| 17 | FFV0400113S | Blade Fix Ring | 1 | |
| 18 | FFV7010058S | Undee Washer | 1 | |
| 19 | FFV7020024S | Hexagon Nut | 1 | |
| 20 | FFV1610080S | Casing Unit | 1 | |
| 21 | FFV3400147S | Louver Assy | 1 | |
| 22 | FFV2520040S | Insulation Plate | 1 | |
| 23 | FFV3400148S | Led Unit | 1 | |
| 24 | FFV3400149S | Louver Unit | 1 | |
| A | FFV7000108S | Truss Tap Screw | 5 | |
| B | FFV7000227S | Earth Screw Assy | 1 | Include Spring Washer |
| C | FFV7000089S | Truss Tap Screw | 8 | |
| D | FFV7000163S | Pan Tap Screw | 4 | |
| E | FFV7000202S | Bind Tap Screw | 3 |
Main Labels
| No. | Part No. | Part Name | Q’ty | Remark |
| 21 | FFV4020909S | Name Plate | 1 | Stuck On Casing Unit |
| 22 | FFV2260003S | UL Mark | 1 | Stuck On Frame Assy |
| 23 | FFV0810011S | Caution Label 1 | 1 | Stuck On Frame Assy |
Packing Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 24 | FFV4710381S | Louver Case Assy | 1 | |
| 25 | FFV4650016S | Poly Cover | 1 | |
| 26 | FFV2540212S | Installation Instructions | 1 | English,For USA/CA Market |
| 27 | FFV2540213S | Installation Instructions | 1 | Spanish,For USA Market |
| (27) | FFV2540214S | Installation Instructions | 1 | French,For CA Market |
| 28 | FFV0010267S | Accessory A | 1 | |
| 29 | FFV4710431S | Right Pad | 1 | |
| 30 | FFV4710432S | Left Pad | 1 | |
| 31 | FFV9001335S | Packing Case Assy | 1 |
FV-0810VSSL1 Main Body Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 1 | FFV5710025S | Suspension Bracket | 1 | |
| 2 | FFV1600159S | Frame Assy | 1 | |
| 3 | FFV0000171S | Adapter Assy | 1 | |
| 4 | FFV0900054S | Connector Plate | 1 | |
| 5 | FFV0900069S | Connector Assy (L) | 1 | |
| 6 | FFV0900073S | Connector Assy (V) | 1 | |
| 7 | FFV3450010S | Earth Lead Wire | 1 | |
| 8 | FFV2800027S | Junction Cover | 1 | |
| 9 | FFV4700074S | PCB Assy Unit | 1 | |
| 10 | FFV3700347S | Motor Assy | 1 | |
| 11 | FFV3700348S | Motor Support Unit | 1 | |
| 12 | FFV0400127S | Blade Plate | 1 | |
| 13 | FFV0400128S | Blade | 1 | |
| 14 | FFV0400113S | Blade Fix Ring | 1 | |
| 15 | FFV7010058S | Undee Washer | 1 | |
| 16 | FFV7020024S | Hexagon Nut | 1 | |
| 17 | FFV1610080S | Casing Unit | 1 | |
| 18 | FFV3400147S | Louver Assy | 1 | |
| 19 | FFV2520040S | Insulation Plate | 1 | |
| 20 | FFV3400148S | Led Unit | 1 | |
| 21 | FFV3400149S | Louver Unit | 1 | |
| A | FFV7000108S | Truss Tap Screw | 5 | |
| B | FFV7000227S | Earth Screw Assy | 1 | Include Spring Washer |
| C | FFV7000089S | Truss Tap Screw | 7 | |
| D | FFV7000163S | Pan Tap Screw | 4 | |
| E | FFV7000202S | Bind Tap Screw | 3 |
Main Labels
| No. | Part No. | Part Name | Q’ty | Remark |
| 22 | FFV4020911S | Name Plate | 1 | Stuck On Casing Unit |
| 23 | FFV2260003S | UL Mark | 1 | Stuck On Frame Assy |
| 24 | FFV0810011S | Caution Label 1 | 1 | Stuck On Frame Assy |
Packing Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 25 | FFV4710381S | Louver Case Assy | 1 | |
| 26 | FFV4650016S | Poly Cover | 1 | |
| 27 | FFV2540212S | Installation Instructions | 1 | English,For USA/CA Market |
| 28 | FFV2540213S | Installation Instructions | 1 | Spanish,For USA Market |
| (28) | FFV2540214S | Installation Instructions | 1 | French,For CA Market |
| 29 | FFV0010267S | Accessory A | 1 | |
| 30 | FFV4710431S | Right Pad | 1 | |
| 31 | FFV4710432S | Left Pad | 1 | |
| 32 | FFV9001337S | Packing Case Assy | 1 |
