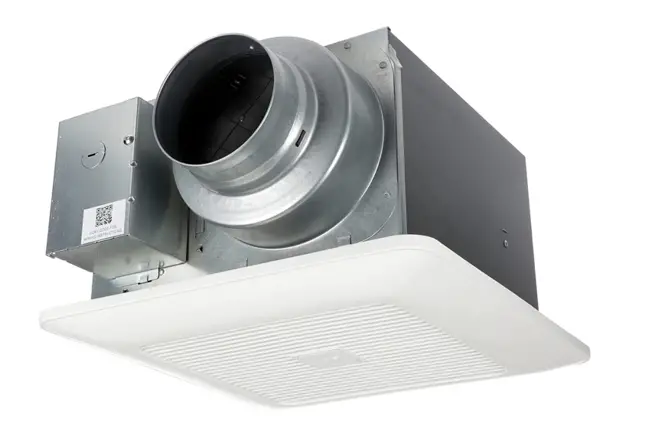

Panasonic RG-M79A Ventilating Fan
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are marked byAin the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention. It is forbidden to touch the PCB parts by bare hands during the repairing process.
Specifications
HVI Certified performance based on HVI Procedures 915, 916, 920.
Parts Identification
Main Body Section

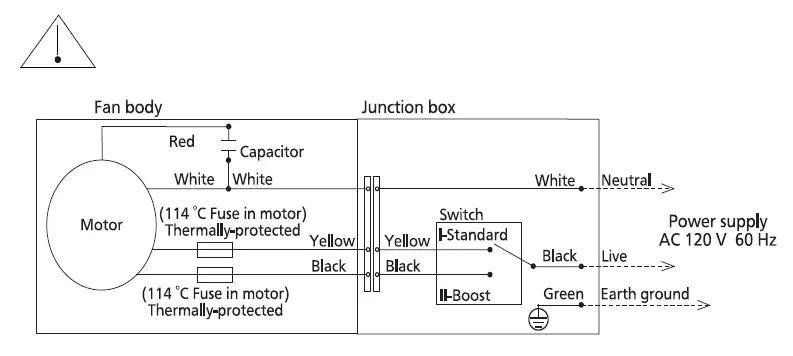

Wiring Diagram
Parts List
Main Body Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 1 | FFV1600147S | Frame Assembly | 1 | |
| 2 | FFV0000149S | Adapter Assembly | 1 | |
| 3 | FFV2800022S | Electric Section | 1 | |
| 4 | FFV2800023S | Junction Cover | 1 | |
| 5 | FFV3450010S | Earth Lead Wire | 1 | |
| 6 | FFV2800024S | Junction Box | 1 | |
| 7 | FFV0900064S | Connector Plate | 1 | |
| 8 | FFV0900065S | Connector Assembly | 1 | |
| 9 | FFV3730118S | Motor Support | 1 | |
| 10 | FFV3730119S | Motor Unit | 1 | |
| 11 | FFV0400116S | Blade | 1 | |
| 12 | FFV7020021S | Nut | 1 | |
| 13 | FFV0790110S | Casing | 1 | |
| 14 | FFV0900066S | Connector Box | 1 | |
| 15 | FFV0900017S | Connector Box Cover | 1 | |
| 16 | FFV3402169S | Grill Assembly | 1 | |
| 17 | FFV0810011S | Caution Label | 1 | |
| 18 | FFV2260003S | Holograph Label | 1 | |
| 19 | FFV79A10050 | Name Plate | 1 | |
| A | FFVXTT4-8FFJ | Screw (ST4-8) | 4 | |
| B | FFVXYM4DC8BN | Screw w/washer(M4-8) | 1 | |
| C | FFV7000089S | Truss Tap Screw | 3 | |
| D | FFV7000074S | Truss Tap Screw | 4 | |
| E | FFV7000095S | Pan Tap Screw | 2 |

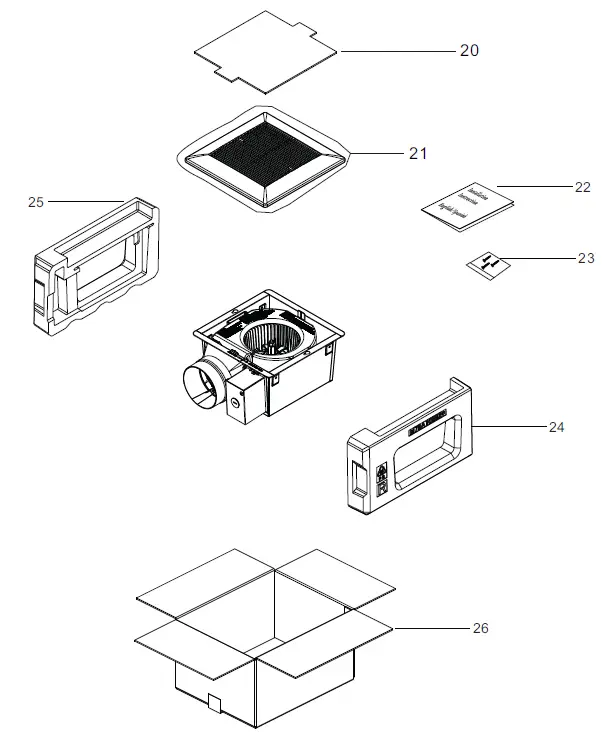

Packing Section
| No. | Part No. | Part Name | Q’ty | Remark |
| 20 | FFV4710384S | Cover Pad | 1 | |
| 21 | FFV4650037S | Poly Cover | 1 | |
| 22 | FFV79A10420 | Installation Instruction (ES) | 1 | English & Spanish for USA |
| 23 | FFV0010252S | Accessory A | 1 | |
| 24 | FFV79A10992 | Right Pad | 1 | |
| 25 | FFV79A10991 | Left Pad | 1 | |
| 26 | FFV79A10410 | Packing Case | 1 |
