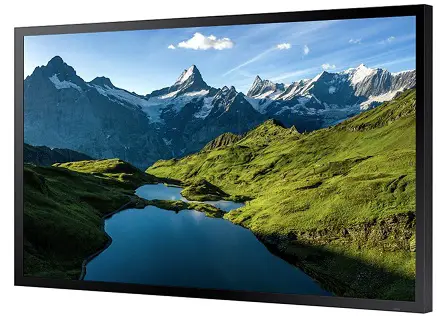

SAMSUNG OH55A-S 55 Inch FHD Outdoor Signage Smart Display User Guide
OH55A-S
- The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
- Download the user manual from the following Samsung Website for further details. http://www.samsung.com/displaysolutions
Checking the Components
- QUICK SETUP GUIDE (2) Warranty card (Not available in some locations) (3) Regulatory guide (4) Power cord
- Batteries (AAA x 2) (Not available in some locations) (6) Remote Control
Contact the vendor where you purchased the product if any components are missing. Components may differ in different locations.

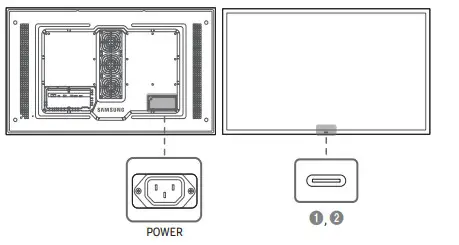

Parts
- Power LED
- Remote sensor
Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function.
− Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
Connecting and Using a Source Device
Connecting to a PC
Contact SAMSUNG WORLD WIDE
Web site: http://www.samsung.com
| Country/Area | Customer Care Centre |
| ALBANIA | 045 620 202 |
| AUSTRIA | 0800 72 67 864 (0800-SAMSUNG) |
| BELGIUM | 02-201-24-18 |
| BOSNIA | 055 233 999 |
| BULGARIA | 0800 111 31 – Безплатен за всички оператори *3000 – Цена на един градски разговор или според тарифата на мобилният оператор 09:00 до 18:00 – Понеделник до Петък |
| CROATIA | 072 726 786 |
| CYPRUS | 8009 4000 only from landline, toll free |
| CZECH | 800 – SAMSUNG (800-726786) |
| Samsung Electronics Czech and Slovak, s.r.o. V Parku 2323/14, 148 00 – Praha 4 | |
| DENMARK | 707 019 70 |
| ESTONIA | 800-7267 |
| FINLAND | 030-6227 515 |

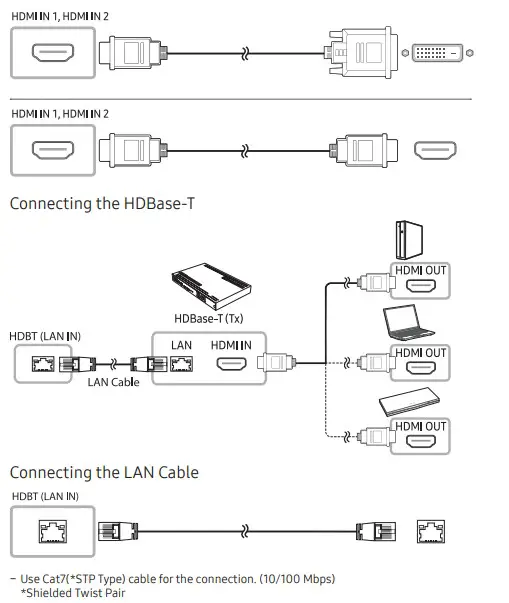

Connecting to a Video Device
| Country/Area | Customer Care Centre |
| FRANCE | 01 48 63 00 00 |
| GERMANY | 06196 77 555 77 |
| GREECE | 80111-SAMSUNG (80111 726 7864) only from land line (+30) 210 6897691 from mobile and land line |
| HUNGARY | 0680SAMSUNG (0680-726-7864) |
| IRELAND (EIRE) | 0818 717100 |
| ITALIA | 800-SAMSUNG (800.7267864) |
| KOSOVO | 038 40 30 90 |
| LATVIA | 8000-7267 |
| LITHUANIA | 8-800-77777 |
| LUXEMBURG | 261 03 710 |
| MONTENEGRO | 020 405 888 |
| NETHERLANDS | 088 90 90 100 |
| NORTH MACEDONIA | 023 207 777 |
| NORWAY | 21629099 |

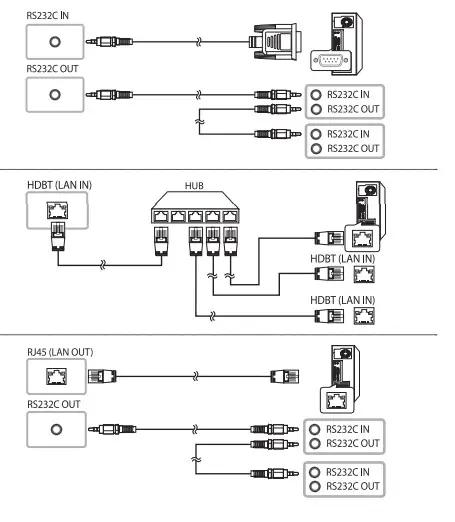

Connecting to MDC
For details on how to use the MDC programme, refer to Help after installing the programme.
The MDC programme is available on the website.
| Country/Area | Customer Care Centre |
| POLAND | 801-172-678* lub +48 22 607-93-33* * (opłata według taryfy operatora) |
| PORTUGAL | 210 608 098 Chamada para a rede fixa nacional Dias úteis das 9h às 20h |
| ROMANIA | 0800872678 – Apel gratuit *8000 – Apel tarifat în reţea |
| SERBIA | 011 321 6899 |
| SLOVAKIA | 0800 – SAMSUNG (0800-726 786) |
| SLOVENIA | 080 697 267 (brezplačna številka) |
| SPAIN | 91 175 00 15 |
| SWEDEN | 0771-400 300 |
| SWITZERLAND | 0800 726 786 |
| TURKEY | 444 77 11 |
| UK | 0333 000 0333 |
Specifications
| Model Name | OH55A-S | |
| Panel | Size | 55 CLASS (54.6 inches / 138.7 cm) |
| Display area | 1209.6 mm (H) x 680.4 mm (V) | |
| Power Supply | AC100-240V~ 50/60Hz Refer to the label at the back of the product as the standard voltage can vary in different countries. | |
|
Environmental considerations | Operating | Temperature : -30 ℃ – 50 ℃ (-22 ℉ – 122 ℉) |
| Humidity : 10% – 80%, non-condensing | ||
| Storage | Temperature : -20 ℃ – 50 ℃ (-4 ℉ – 122 ℉) | |
| Humidity : 5% – 95%, non-condensing | ||
− This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
− For detailed device specifications, visit the Samsung website.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Wall Mount Kit Specifications
Troubleshooting Guide
| Issues | Solutions |
| The screen keeps switching on and off. | Check the cable connection between the product and PC, and ensure the connection is secure. |
| No Signal is displayed on the screen. | Check that the product is connected correctly with a cable. |
| Check that the device connected to the product is powered on. |
