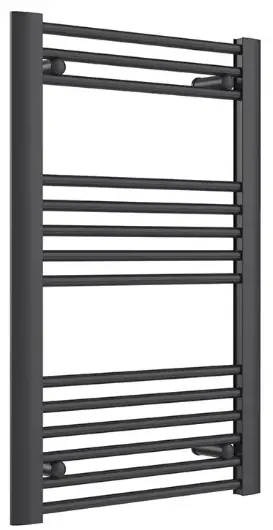

Reina Divale A-DVL1205A Anthracite Radiator 530mm x 1200mm
DESCRIPTION
| DESCRIPTION | ILLUSTRATION |

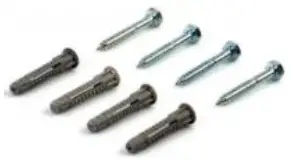

| Fixing choose the appropriate fixing for the wall material if required |  |
| PTFE tape |  |
| Electric drill |  |
| Masonry drill bit Appropriate to the fixings |  |

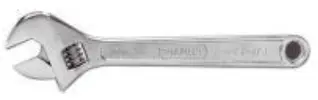

| Adjustable spanner |  |

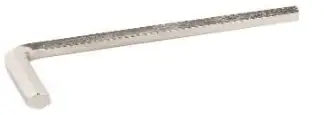

| Radiator valve hex key |  |

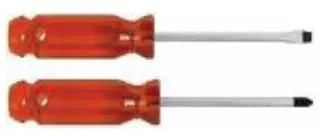

| Flat head and philips head screw drivers |  |

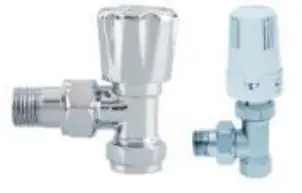

| 1 lock shield valve and 1 gate or thermostatic valve |  |
| Spirit level |  |
| Measuring tape |  |

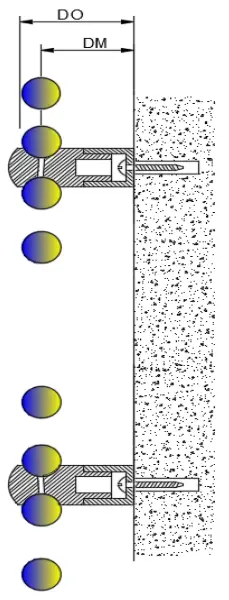

OVERVIEW

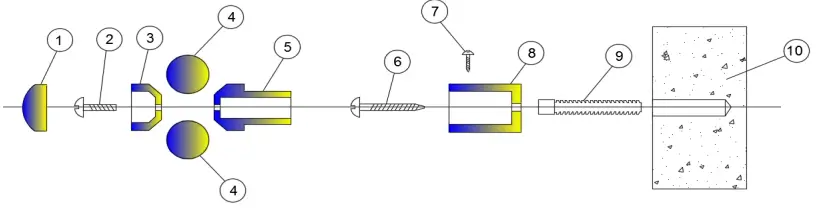

| 1 | BRACKET COVER |
| 2 | RAD. SCREW |
| 3 | FIXING BRACKET |
| 4 | RADIATOR |
| 5 | RAD. BRACKET |
| 6 | WALL SCREW |
| 7 | FIXING SCREW |
| 8 | WALL BRACKET |
| 9 | WALL ANCHOR |
| 10 | WALL |

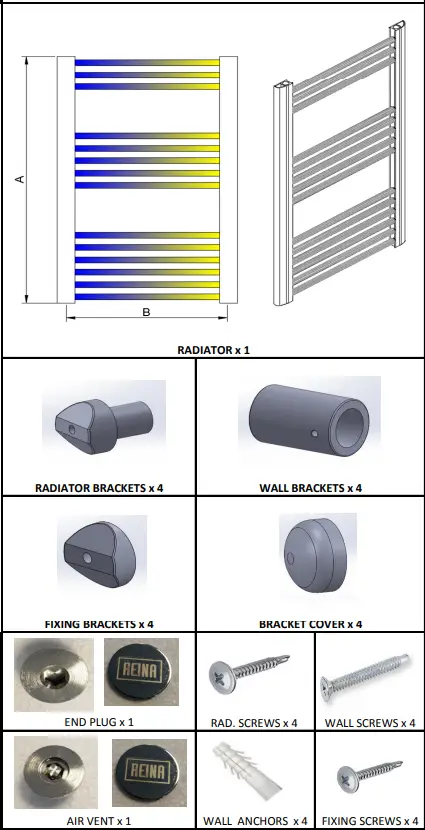

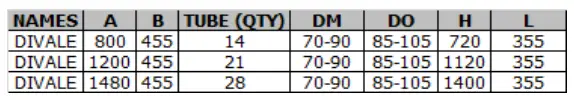

DIMENSION
GENERAL RECOMMENDATION
- Before fitting the radiator it is necessary to wash out the heating system to remove any existing mud, scale, work residues, traces of flux, oil, etc.
- When the system water pH is outside the 5,5-8,5 range and/or when the dissolved is above 0,1mg/liter, it is always needed to protect the heating system components (the radiator is one of these) with a proper chemical treatment compatible with all parts in contact with water (silicon rubber too).
- In order to fit the radiator to the wall, it is necessary to choose the proper fixings for the wall material.
- If the system water exceeds 50°C, please install a warning mark near the radiator to avoid any accidental scalding.
- Clean the radiator surface only with a soft cloth to avoid scratching the finish and do not use chemical agents during cleaning operations. It is prohibited to climb on the radiator
- Maximum working temperature 95°C, maximum working pressure 4 bar.
