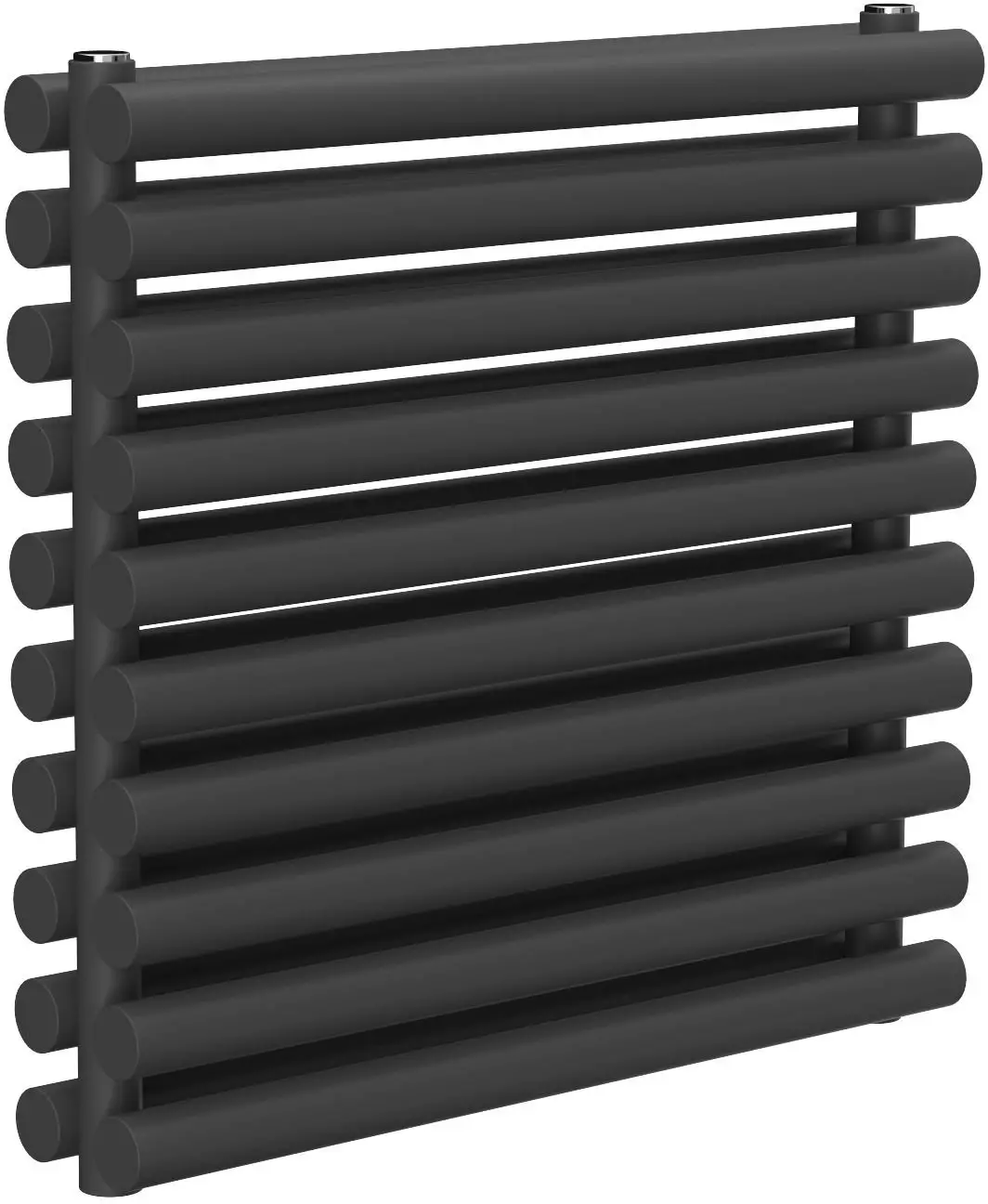

REINA RND-RDA512SA Single Anthracite Radiator

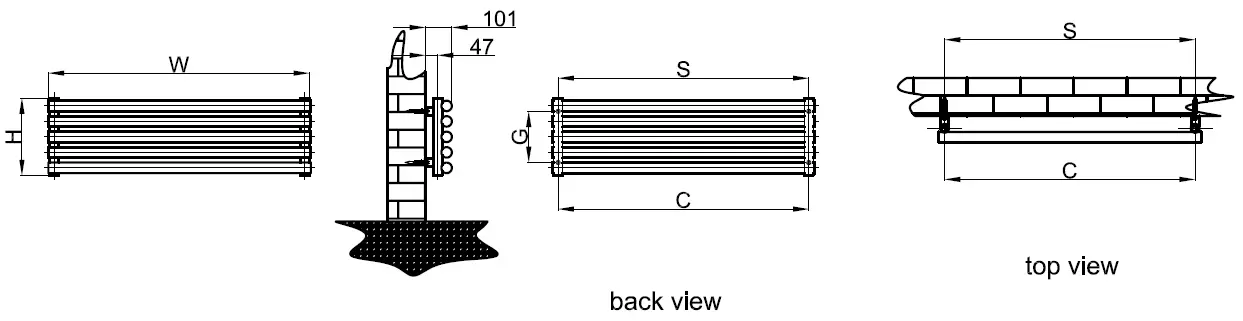

DIMENSIONS
supplied installation accessories
| -Vertical Mounting |
| -Optional Rail Colour Selection |
| -Max Operational Pressure:6Bar |
| -lnlet/Outlet:1/2″Female Pipe Thread |
| -All Dimensions are in mm |
| mm | mm | mm | mm | mm | mm | kg | |||
| RND-RDA2O6S | RND-RDA2O6S | 295 | 600 | 70 | 555 | 47 | 101 | 5 | 5.8 |
| RND-RDA2O8S | RND-RDA2O8S | 295 | 800 | 70 | 755 | 47 | 101 | 5 | 7.7 |
| RND-RDA21OS | RND-RDA21 OS | 295 | 1000 | 70 | 955 | 47 | 101 | 5 | 9.6 |
| RND-RDA212S | RND-RDA212S | 295 | 1200 | 70 | 1155 | 47 | 101 | 5 | 11.5 |
| RND-RDA214S | RND-RDA214S | 295 | 1400 | 70 | 1355 | 47 | 101 | 5 | 13.4 |
| RND-RDA5O6S | RND-RDA5O6S | 590 | 600 | 70 | 555 | 47 | 101 | 10 | 11.6 |
| RND-RDA5O8S | RND-RDA5O8S | 590 | 800 | 70 | 755 | 47 | 101 | 10 | 15.4 |
| RND-RDA51OS | RND-RDA51 OS | 590 | 1ooo | 70 | 955 | 47 | 101 | 10 | 19.2 |
| RND-RDA512S | RND-RDA512S | 590 | 1200 | 70 | 1155 | 47 | 101 | 10 | 23.0 |
