PISA TOWEL RAIL INSTALLATION INSTRUCTIONS

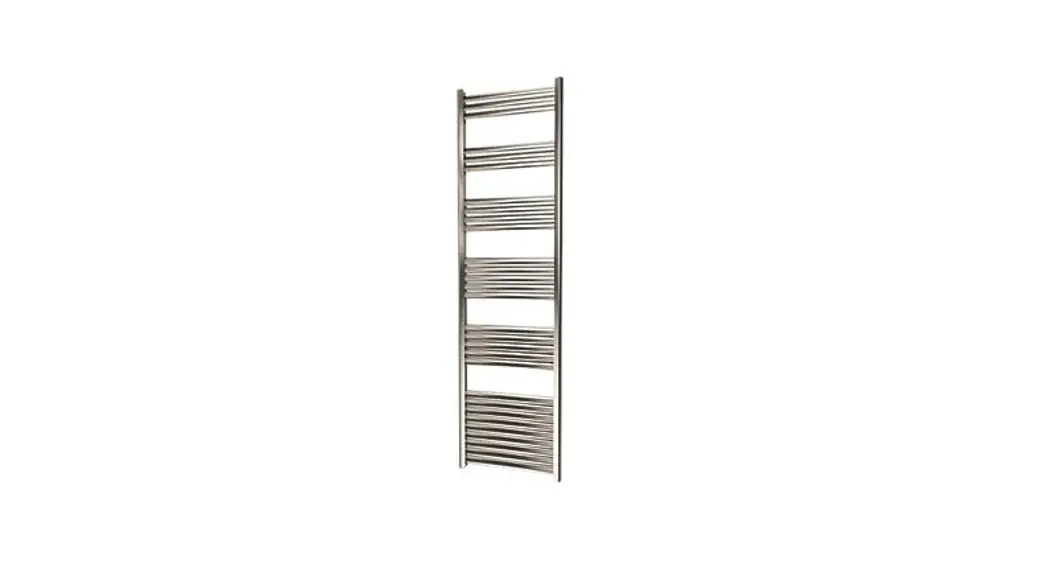

The PISA Towel Rail comes with a 10-year guarantee. Please note
that the radiator shown in the manual is for illustration purposes
only.

TOOLS REQUIRED (NOT SUPPLIED)

Drill & Drill Bit
Residual Current Device (recommended)
Pozi Drive Screwdriver / Flathead Screwdriver
PTFE Tape
Measuring Tape
Spirit Level
Pencil

SAFETY

Installation should be carried out by a qualified professional
or other fully competent person and should be installed in
accordance with the relevant British and European Standards
(BS7593:2006, EN12828:2012+A1;2014, EN12831:2003 &
EN14336:2004).

When drilling walls, check first for hidden pipes and/or cables.
Please ensure that you wear all necessary personal protective
equipment for your safety. Use safety eyewear when drilling. Handle
the product with care. Keep small parts away from children. Please
check that all components are present and that you are entirely
happy with the size, design, and finish before starting
installation.

DISCLAIMER

Please notify the retailer immediately of any damage or faults.
The manufacturer cannot be held responsible for any installation
costs that may arise from damaged or faulty product being
installed.

List of additional parts supplied

Wall Plug x4
Grub Screw x4
Round Bracket (external) x4
Round Bracket (internal) x4
Air Vent x1
Front Bracket x4
Front Cover x4

Fixing Tips:

A piece of insulating tape or a couple of layers of masking tape
applied to the wall before drilling will help stop the drill from
wandering, particularly on tiled surfaces. Exercise great care when
using power tools near water. The use of a Residual Current Device
(RCD) or Cordless Drill is recommended. Always double-check the
position and your measurements before drilling holes. When working
near a basin or bath, insert the plug into the waste. This could
help you avoid losing small parts.

Fitting the Radiator onto the wall.

Gently remove the radiator from all packaging. Sufficient PTFE
tape must be applied to valve-tail threads prior to their
installation. Silicone thread sealant should be applied to all
threaded components manufactured with ‘O-rings’.
Screw the air vent into the one hole on the top of the
radiator.
Ensure the selected wall is sufficiently strong enough to hold
the weight of the towel warmer filled with water.
NOTE: Wall plugs and screws supplied are intended for masonry
walls. Alternative fixings may be required dependent on wall
type.
Before drilling, please make sure there are no hidden pipes or
wires in the wall.
Using the radiator and a spirit level, mark the position of the
brackets.
Mark the centres of the brackets on the wall. Drill four
suitable holes and insert wall plugs.
Screw the round external brackets into the wall plugs using the
wall screws.
Screw the round internal bracket to the front cover plate.
These two parts connect through the radiator horizontal bar.
Mount the radiator onto the wall by sliding the internal
brackets on the radiator into the external brackets on the wall.
Secure the radiator into position by tightening the grub screws
into the holes on the side of the external brackets using the
hexagonal key.

View Fullscreen

PISA TOWEL RAIL INSTALLATION INSTRUCTIONS
10 Year Guarantee Please note: Radiator shown for illustration purposes only. TR.COM V1.2 29.04.2015

TOOLS REQUIRED (NOT SUPPLIED)
Drill & Drill Bit Residual Current Device (recommended) Pozi Drive Screwdriver / Flathead Screwdriver PTFE Tape Measuring Tape Spirit Level Pencil
SAFETY
Installation should be carried out by a qualified professional or other fully competent person and should be installed in accordance with the relevant British and European Standards (BS7593:2006, EN12828:2012+A1;2014, EN12831:2003 & EN14336:2004).
When drilling walls, check first for hidden pipes and/or cables. Please ensure that you wear all necessary personal protective
equipment for your safety. Use safety eyewear when drilling. Handle the product with care. Keep small parts away from children. Please check that all components are present and that you are
entirely happy with the size, design and finish before starting installation.
DISCLAIMER
Please notify the retailer immediately of any damage or faults. The manufacturer cannot be held responsible for any installation costs that may arise from damaged or faulty product being installed.
TR.COM V1.2 29.04.2015

List of additional parts supplied

Wall Plug x4 Grub Screw Round Bracket Round Bracket

Wall Screw x 4

x 4

(external) x4

(internal) x4

Air Vent x1

Front Bracket x4 Front Cover x4

Fixing Tips:
A piece of insulating tape or a couple of layers of masking tape applied to the wall before drilling will help stop the drill from wandering, particularly on tiled surfaces.
Exercise great care when using power tools near water. The use of a Residual Current Device (RCD) or Cordless Drill is recommended.
Always double check the position and your measurements before drilling holes.
When working near a basin or bath, insert the plug into the waste. This could help you avoid losing small parts.
Fitting the Radiator onto the wall.
1. Gently remove the radiator from all packaging. Sufficient PTFE tape must be applied to valve-tail threads prior to their installation. Silicone thread sealant should be applied to all threaded components manufactured with `O-rings’.
2. Screw the air vent into the one hole on the top of the radiator. 3. Ensure the selected wall is sufficiently strong enough to hold the
weight of the towel warmer filled with water. 4. NOTE : Wall plugs and screws supplied are intended for masonry
walls. Alternative fixings may be required dependent on wall type.
TR.COM V1.2 29.04.2015

5. Before drilling, please make sure there are no hidden pipes or wires in the wall.
6. Using the radiator and a spirit level, mark the position of the brackets. 7. Mark the centres of the brackets on the wall. Drill four suitable holes
and insert wall plugs. 8. Screw the round external brackets into the wall plugs using the wall
screws. 9. Screw the round internal bracket to the front cover plate. These two
parts connect through the radiator horizontal bar. 10. Mount the radiator onto the wall by sliding the internal brackets on the
radiator into the external brackets on the wall. Secure the radiator into position by tightening the grub screws into the holes on the side of the external brackets using the hexagonal key.
Make the necessary connections to the heating circuit. Finally, remove any trapped air from the radiator using the air vent. This step may need to be repeated to ensure all air is removed.
Care & Maintenance
Regular cleaning with a soft cloth will keep the surface of your Designer Radiator looking new. Soapy water can be used to remove stubborn stains, then buff dry with a soft cloth.
Do not use abrasive or chemical cleaners to clean your radiator as these will damage the surface finish over time.
We have taken great care to ensure that this product reached you in perfect condition. However, should any parts be damaged or missing, please contact your point of purchase. This does not affect your statutory rights. In addition, if you require any replacement parts, your point of purchase will be happy to assist.
