Infrared-radiators
Front cover
VIT-BL-S / VIT-BL-L / VIT-BB-S / VIT-BB-L
INSTRUCTIONS FOR INSTALLATION
VIT-BL-S Infrared Radiators Front Cover

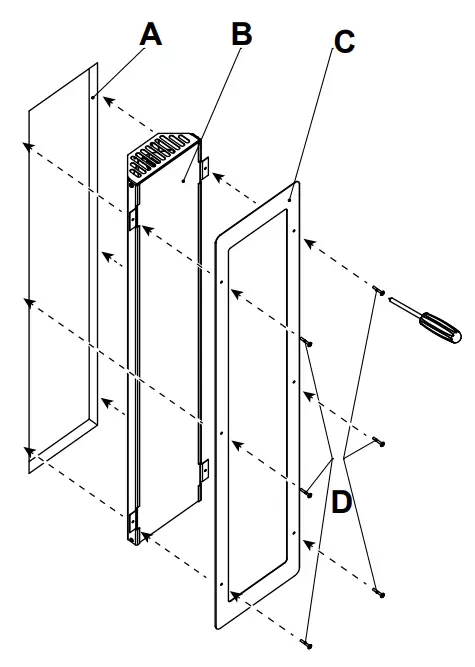

A … Cabin wall cutout
B … Infrarred radiator
C … Frontcover
D … Mounting screws
| VIT-BL-S (350W) 1-027-948 | Frontcover (brushed stainless steel) 727 x 191 x 1 mm |
| VIT-BL-L (500W/750W/1300W) 1-028-779 | Front cover (brushesd stainless steel) 892 x 191 x 1 mm |
| VIT-BB-S (350W) 1-028-905 | Front cover black (powder-coated stainless steel) 727 x 191 x 1 mm |
| VIT-BB-L (500W/750W/1300W) 1-028-157 | Front cover black (powder-coated stainless steel) 892 x 191 x 1 mm |
Version 08/22
ID no. Y05-0693
