ANCORA Towel Radiator
- Vertical Mounting
- Max Operational Pressure: 6 Bar
- Inlet/Outlet: 1/2” Female Pipe Thread
- All Dimensions are in mm
- Optional Rail Colour Selection

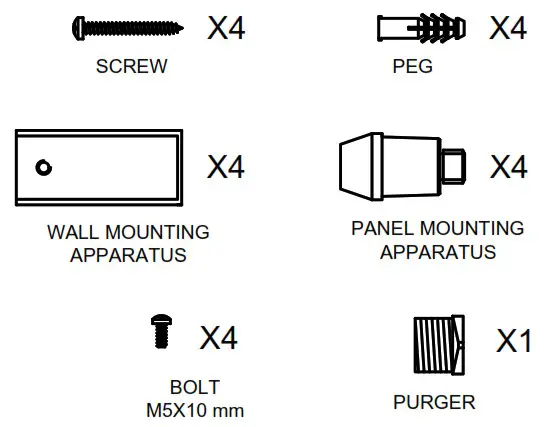

SUPPLIED INSTALLATION ACCESSORIES
| Product Name | Product Code | Height | Width | Thickness | Plumbing Axes Center to Center | Hanger Axes Horizontal | Hanger to Bottom of the Product | Hanger Axes Vertical | Water Volume | Empty Weight | Thermal Output |
| H | W | D | C | S | F | G | – | – | Watt – BTU/hr (Δ50°) | ||
| mm | mm | mm | mm | mm | mm | mm | L | kg | |||
| ANCORA 490 X 1800 | RND-AN418 | 1800 | 490 | 7 | 490 | 343 | 1405 | 1020 | 0.7 | 24 | 872 – 2975 |
