A-BTN115WP Towel Rail
Installation Guide
BURTON INSTALLATION GUIDE
A-BTN115WP Towel Rail
This product must be fitted only by a fully qualified installer.
DESCRIPTION
| ILLUSTRATION | DESCRIPTION |

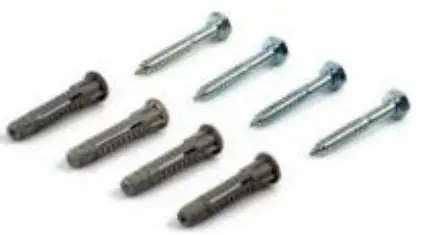

 | appropriate fixing for the wall material if required Fixing choose the |

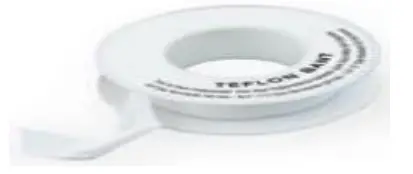

 | PTFE tape |

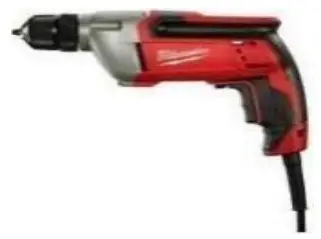

 | Electric drill |
 | to the fixings Masonry drill bit appropriate |

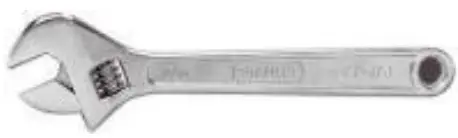

 | Adjustable spanner |

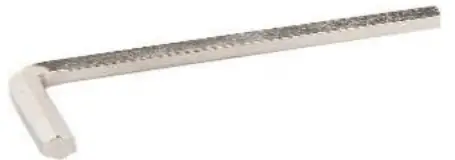

 | Radiator valve hex key |

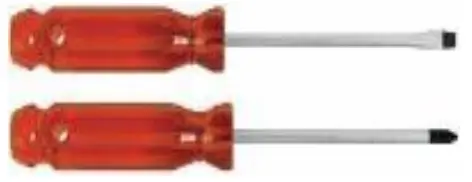

 | Flat head and philips head screw drivers |

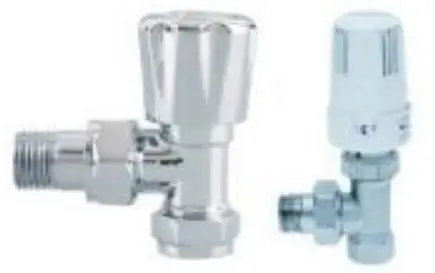

 | 1 lock shield valve and 1 gate or thermostatic valve |

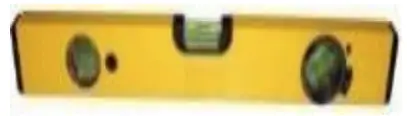

 | Spirit level |

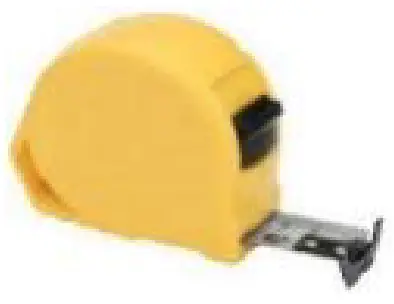

 | Measuring tape |

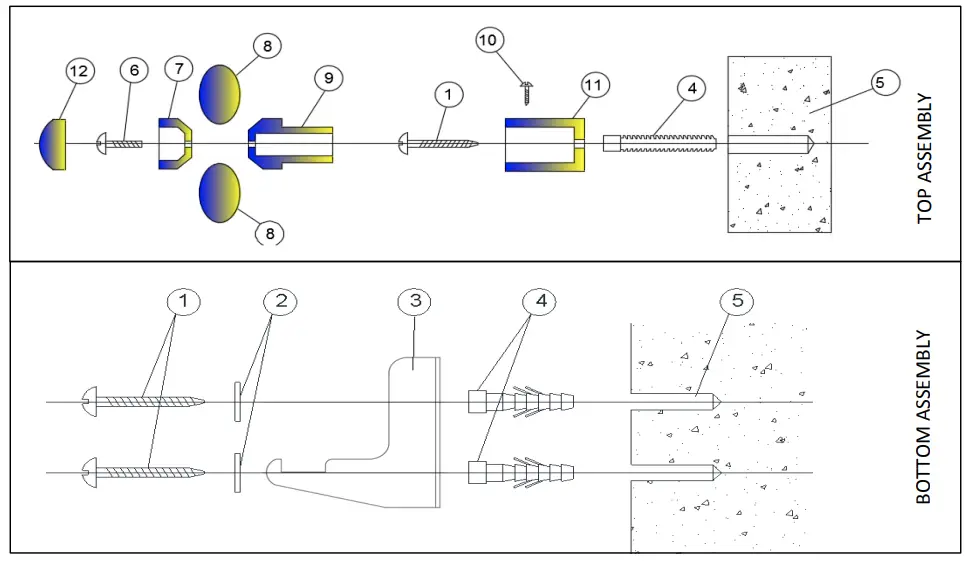

| 1 | WALL SCREW |
| 2 | WASHERS |
| 3 | BOTTOM BRACKET |
| 4 | WALL ANCHORS |
| 5 | WALL |
| 6 | RADIATOR SCREW |
| 7 | FIXING BRACKET |
| 8 | RADIATOR |
| 9 | TOP BRACKET |
| 10 | FIXING SCREW |
| 11 | WALL BRACKET |
| 12 | COVER |

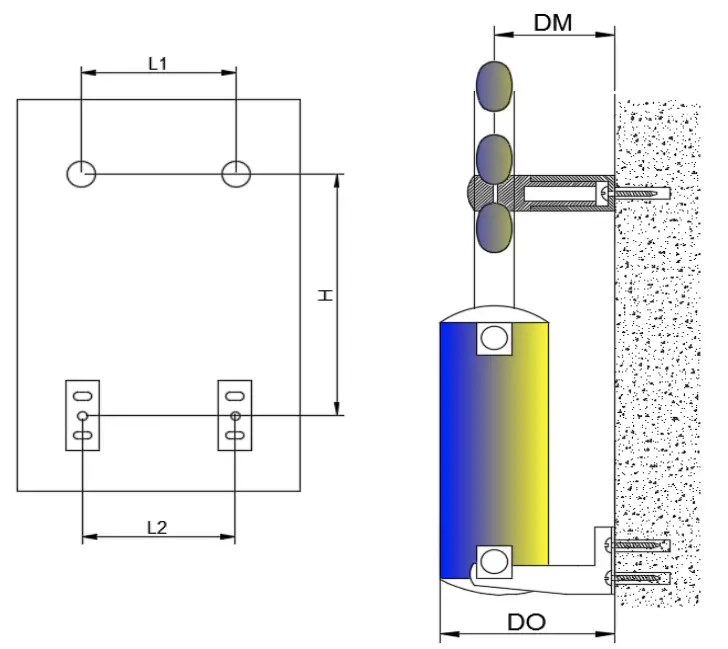

| NAMES | A | B | TUBE (QTY) | DM | DO | H | Ll | Ll |
| BURTON | 1180 | 455 | 15 | 68 | 116 | 1063 | 355 | 260 |
GENERAL RECOMMENDATION
- Before fitting the radiator it is necessary to wash out the heating system to remove any existing mud, scale, work residues, traces of flux, oil, etc.
- When the system water pH is outside the 5,5-8,5 range and/or when the dissolved is above 0,1mg/liter, it is always needed to protect the heating system components (the radiator is one of these) with a proper chemical treatment compatible with all parts in contact with water (silicon rubber too).
- In order to fit the radiator to the wall, it is necessary to choose the proper fixings for the wall material.
- If the system water exceeds 50°C, please install a warning mark near the radiator to avoid any accidental scalding.
- Maximum working temperature 95°C, maximum working pressure 4 bar.
- Clean the radiator surface only with a soft cloth to avoid scratching the finish and do not use chemical agents during cleaning operations. It is prohibited to climb on the radiator.
