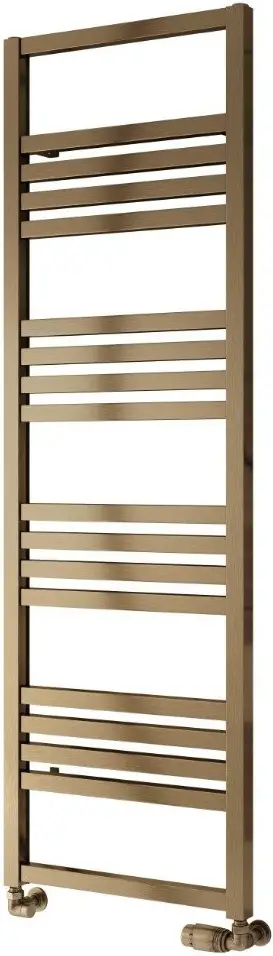

heater shop A-BLC1535Z Bolca Bronze Towel Rail
This product must be fitted only by a fully qualified installer.
DESCRIPTION
TOOLS
- END PLUG x 1
- RADIATOR BRACKETS x 4
- AIR VENT x 1
- WALL ANCHORS x 4
- RAD. SCREWS x 4
DESCRIPTION/ILLUSTRATION

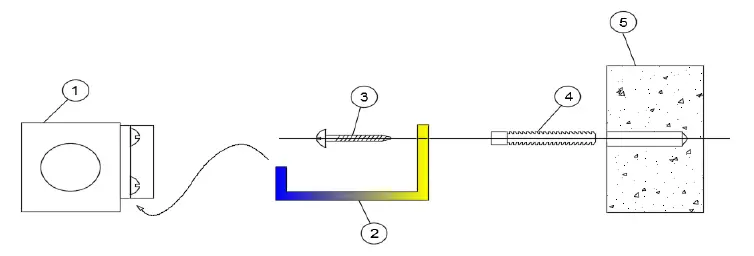

INSTALLATION
- RADIATOR
- RADIATOR BRACKET
- WALL SCREW
- WALL ANCHOR
- WALL

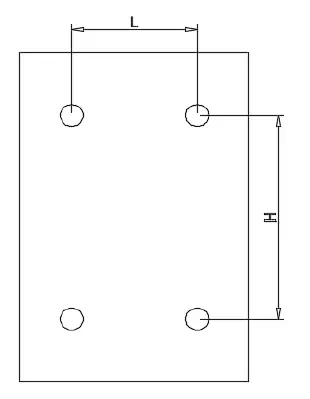

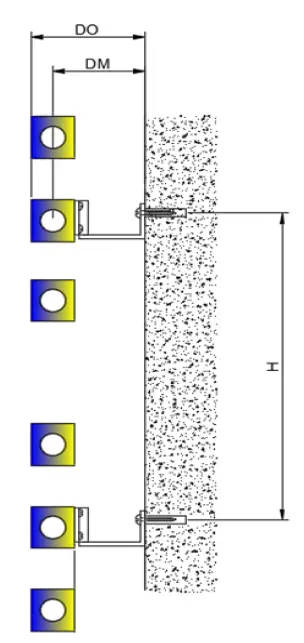

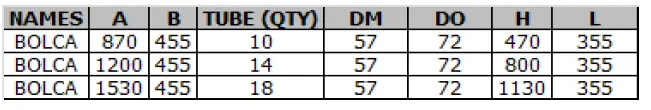

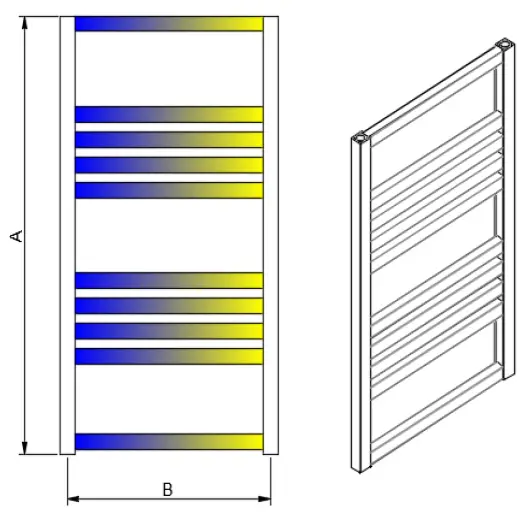

DIMENSION
GENERAL RECOMMENDATION
- Before fitting the radiator it is necessary to wash out the heating system to remove any existing mud, scale, work residues, traces of flux, oil, etc.
- When the system water pH is outside the 5,5-8,5 range and/or when the dissolved is above 0,1mg/liter, it is always needed to protect the heating system components (the radiator is one of these) with a proper chemical treatment compatible with all parts in contact with water (silicon rubber too).
- In order to fit the radiator to the wall, it is necessary to choose the proper fixings for the wall material.
- If the system water exceeds 50°C, please install a warning mark near the radiator to avoid any accidental scalding.
- Clean the radiator surface only with a soft cloth to avoid scratching the finish and do not use chemical agents during cleaning operations. It is prohibited to climb on the radiator.
- Maximum working temperature 95°C, maximum working pressure 4 bar.
