A-ATA0835P Anita Polished Towel Rail
ANITA INSTALLATION GUIDE
This product must be fitted only by a fully qualified installer.
| DESCRIPTION | DESCRIPTION | ILLUSTRATION | ||
 RADIATOR x 1 | Fixing choose the appropriate fixing for the wall material if required |  | ||
| PTFE tape |  | |||
| Electric drill |  | |||
Masonry drill bit appropriate to the fixings |  | |||
Adjustable spanner |  | |||

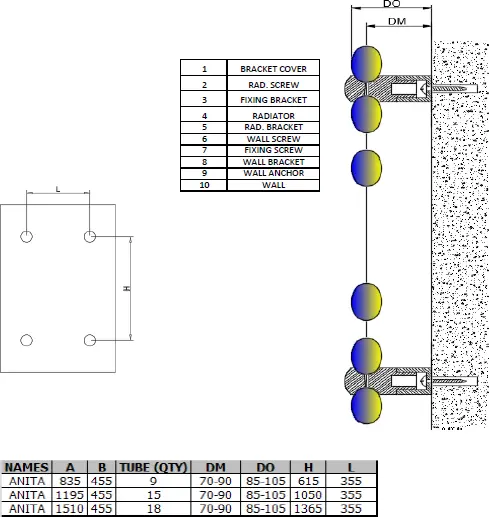

 RADIATOR BRACKETS x 4 |  WALL BRACKETS x 4 | Radiator valve hex key |  | |
 FIXING BRACKETS x 4 |  BRACKET COVER x 4 | Flat head and philips head screw drivers |  | |
 END PLUG x 1 |  RAD. SCREWS x 4 |  WALL SCREWS x 4 | 1 lock shield valve and 1 gate or thermostatic valve |  |
| Spirit level |  | |||
 AIR VENT x 1 |  WALL ANCHORS x 4 |  FIXING SCREWS x 4 | Measuring tape |  |
GENERAL RECOMMENDATION
– Before fitting the radiator it is necessary to wash out the heating system to remove any existing mud, scale, work residues, traces of flux, oil, etc.
– When the system water pH is outside the 5,5-8,5 range and/or when the dissolved is above 0,1mg/liter, it is always needed to protect the heating system components (the radiator is one of these) with a proper chemical treatment
compatible with all parts in contact with water (silicon rubber too).
– In order to fit the radiator to the wall, it is necessary to choose the proper fixings for the wall material.
– If the system water exceeds 50°C, please install a warning mark near the radiator to avoid any accidental scalding.
– Clean the radiator surface only with a soft cloth to avoid scratching the finish and do not use chemical agents during cleaning operations. It is prohibited to climb on the radiator.
– Maximum working temperature 95°C, maximum working pressure 4 bar.
