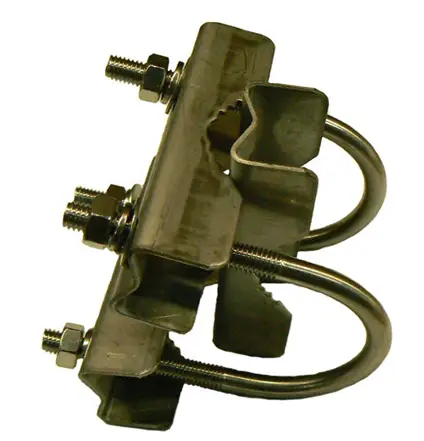

1943 Clamp Kit Stainless Steel
Installation Guide
1943 Clamp Kit Stainless Steel

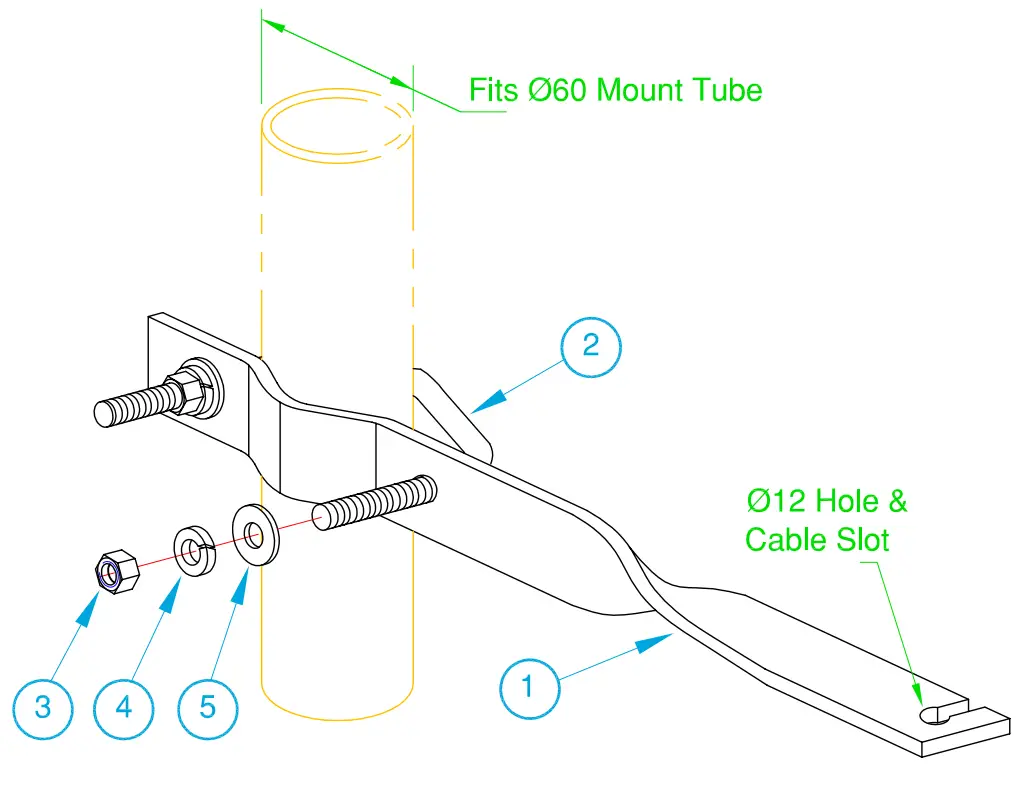

Assembly Sketch
1943 CLAMP KIT Stainless Steel
PARTS SUPPLIED:
| 5 | Washer, Flat, M8, Stainless Steel | 2 |
| 4 | Washer, Spring, M8, Stainless Steel | 2 |
| 3 | Nut, Hex, M8, Stainless Steel Gr. 316 | 2 |
| 2 | U-Bolt, M8 x 65 Gap x 95, Stainless Steel | 1 |
| 1 | Clamp Arm, Stainless Steel | 1 |
| Item | Description | Quantity. |
DESIGNERS AND MANUFACTURERS OF RADIO FREQUENCY ANTENNAS
Hall Street. Undenow. Victoria. Australia.
Tel: (03) 5157 1203 Fax: (03) 5157 1641
Copyright – e Communication Services Pty. Ltd.
No part of this Drawing is o reproduced without
Written Authority 1943-B.dwg LM 21-10-10
Approved: RG 21-10-10 Rev. 1. Appr. GK 22-03-11
