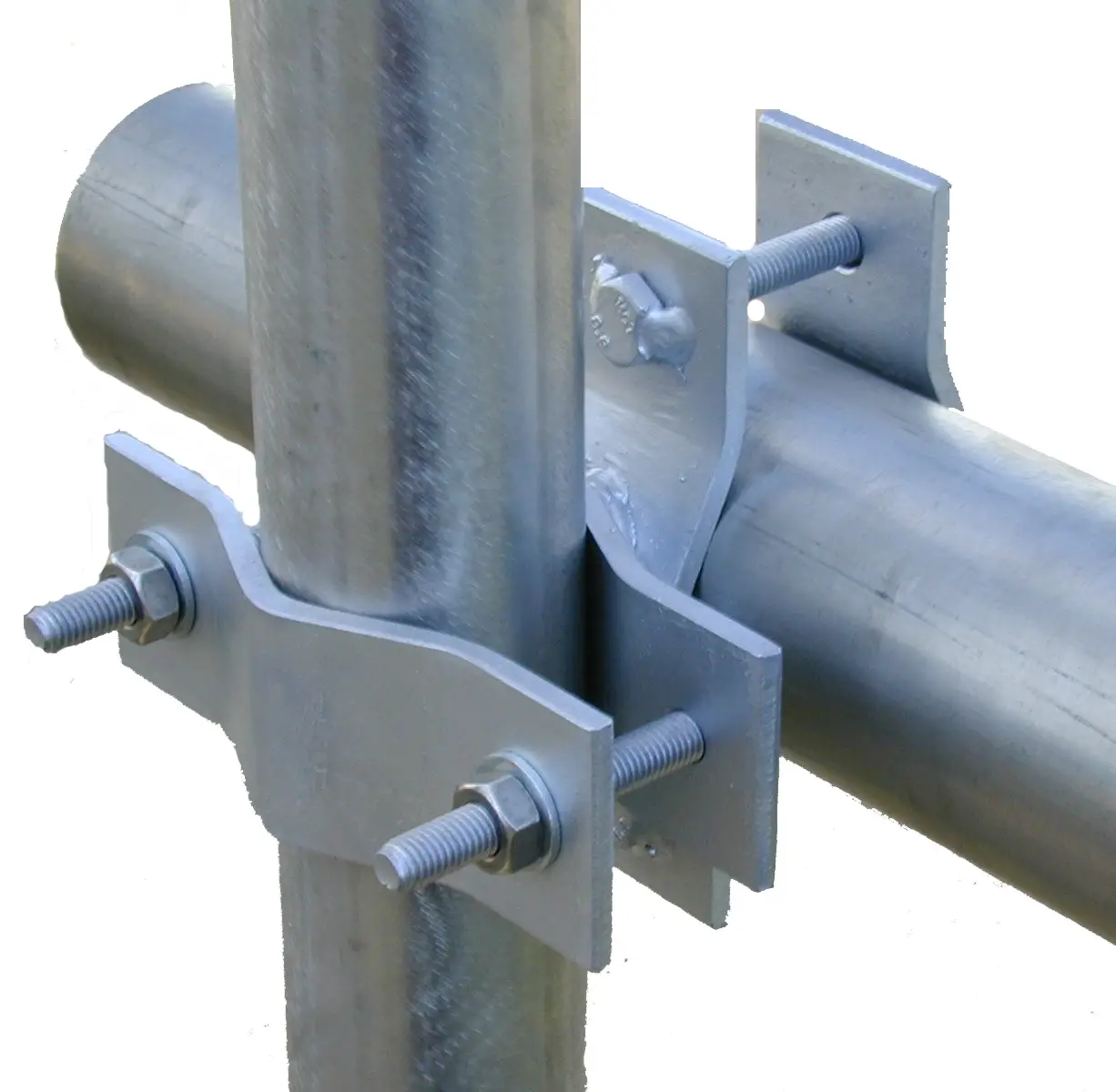

ZCG UAM90L Right Angle Heavy Duty Clamp Bracket
Clamp Material & Finish
- 6mm Mild Steel Grade 300 Hot Dip Galvanised.
Weld Notes:
Item 6. Welded Assy – 8mm full Fillet Weld.

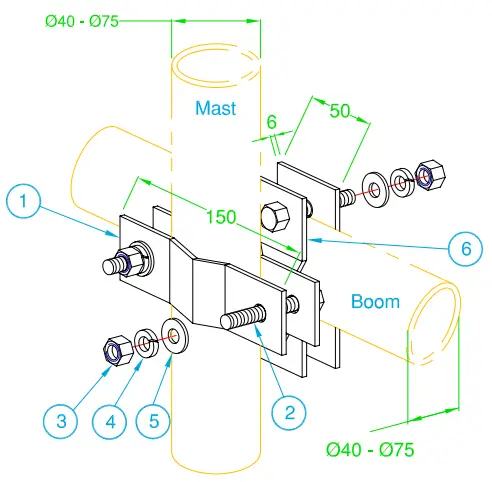

PARTS SUPPLIED
| 6 | Vee Cross Welded Assembly, MS, Galvanised | 1 |
| 5 | Washer, Flat, Galvanised, M1O | 4 |
| 4 | Washer, Spring, Galvanised, M1O | 4 |
| 3 | Nut, Hex, Galvanised, M1O | 4 |
| 2 | Bolt, MS, Hex, Galvanised, M1Ox 75mm | 4 |
| 1 | Clamp Bar, MS, Galvanised | 2 |
| Item | Description | Quantity. |
Communication Services Ply. Ltd. Trading as:
Tel: (03) 5157 1203 Fax: (03) 5157 1641
DESIGNERS AND MANUFACTURERS OF RADIO FREQUENCY ANTENNAS
Hall Street, Lindenow, Victoria, Australia.
Tel: (03) 5157 1203 Fax: (03) 5157 1641
Copyright (G-Tech) Communication Services Pty. Ltd. No part of
this Drawing is to be reproduced without Written Authority.
1607-B.dwg LM 08-04-11 Approved: RG 08-04-11 Rev. 1. LM 08-03-16.
