DIAMANT PRO
TRADITIONAL ESPRESSO

Contents hide

1 Versions

2 Description

3 Main USP & Advanced features

4 Specifications

5 Standard Features

6 Supplied Accessories

7 Options

8 Documents / Resources

8.1 References

9 Related Posts

Versions

• DIAMANT PRO 3GR 4B TA	• DIAMANT PRO 2GR 3B TA
• DIAMANT PRO 3GR TA	• DIAMANT PRO 2GR TA

Description

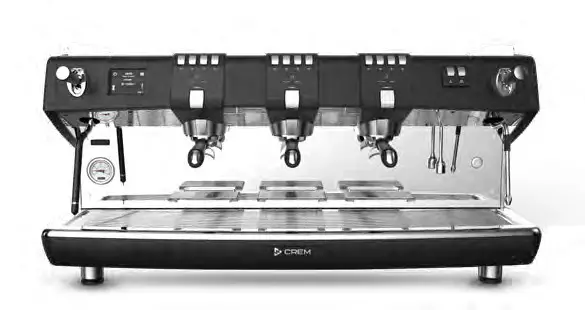

	Diamant Pro 3GR 4B / Diamant Pro 3GR
	Diamant Pro 2GR 3B / Diamant Pro 2GR

Smarter, stronger, better

Our beautifully crafted and yet strongest Espresso machine has been renovated to produce an unmatched espresso experience.
Thanks to the perfect balance between the state-of-the-art technology and the finest espresso tradition, we have designed a second to none professional coffee machine which meets the highest barista standards together with the requirements of the very demanding coffee drinking market.

Main USP & Advanced features

• PID Control
• Multi boiler (PID) versions available
• Steam Levers with flush function
• SmartSteam (option)
• Smart Tea
• E-Cup warmer (option)

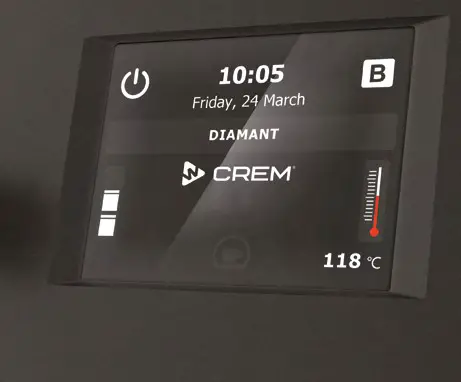

• Touchscreen main control & individual group OLED DISPLAYS
• Cleaning/maintenance warnings

www.creminternational.com

Specifications

	Diamant Pro 3GR 4B	Diamant Pro 2GR 3B	Diamant Pro 3GR	Diamant Pro 2GR
Height, width, depth	535, 1090, 630 mm21, 43, 25“	535, 885, 620 mm21, 35, 25”	535, 1090, 630 mm21, 43, 25“	535, 885, 620 mm21, 35, 25”
Weight	112.5 Kg \| 24.8 lb	91.5 Kg \| 201.7 lb	100 Kg \| 220.5 lb	82 Kg \|180.8 lb
Power ratings(Power ratings+OPTIONS)	380-415V3N~6350W 50-60 Hz (O) SmartSteam: 380-415V 3N~6400W 50-60 Hz	220-240V 1N~3600W 50-60Hz (O) SmartSteam:220-240V 1N~ 3620W 50-60Hz (O) 3Ph:380-415V 3N~ 4800W 50-60Hz O) SmartSteam + 3ph:380-415V 3N~ 4850W 50-60Hz	380-415V2N~4350W 50-60 Hz (O) SmartSteam:380-415V 2N~ 4400W 50-60 Hz (O) 3Ph:380-415V 3N~ 6350W 50-60 Hz (O) SmartSteam +3ph:380-415V 3N~ 6400W 50-60 Hz	220-240V 1N~3600W 50-60Hz (O) SmartSteam:220-240V 1N~ 3620W 50-60Hz (O) 3Ph:380-415V 3N~ 4800W 50-60Hz O) SmartSteam + 3ph:380-415V 3N~ 4850W 50-60Hz
Boiler(s) capacity	17.5 l + 3 x 1.5 l	11.5 l + 2 x 1.5 l	17.5 l	11.5 l
Operation pressure	0.8 to 1.2 bar	0.8 to 1.2 bar	0.8 to 1.2 bar	0.8 to 1.2 bar
Water connection	3/8” Internal thread	3/8” Internal thread	3/8” Internal thread	3/8” Internal thread
Steam wands+HW tap	2+1	2+1	2+1	2+1
Height group	TA	TA	TA	TA
Single+Doubleportafilter	1+3	1+2	1+3	1+2

Standard Features

PID CONTROL
Multi boiler (PID)
TA (high group head)
Volumetric dosing + group display
Group flush button
Main touch screen
Auto hot water tap dose
Lever taps
Cool touch steam wands
Smart Tea

Built-in rotatory pump
Soft pre-infusion group chamber
Adjustable electronic pre-infusion
60 mm single pressure gauge
Barista lights
ECO mode
Auto On/OFF
Cleaning/maintenance warnings
USB connection
Matt black body-color

Supplied Accessories

55-cm inlet hose
x3 Blind filter
Drain tube (150 cm)
SmartSteam 1-hole nozzle*
SmartSteam Multi-hole nozzle*

(*) For machines equipped with SmartSteam option only.

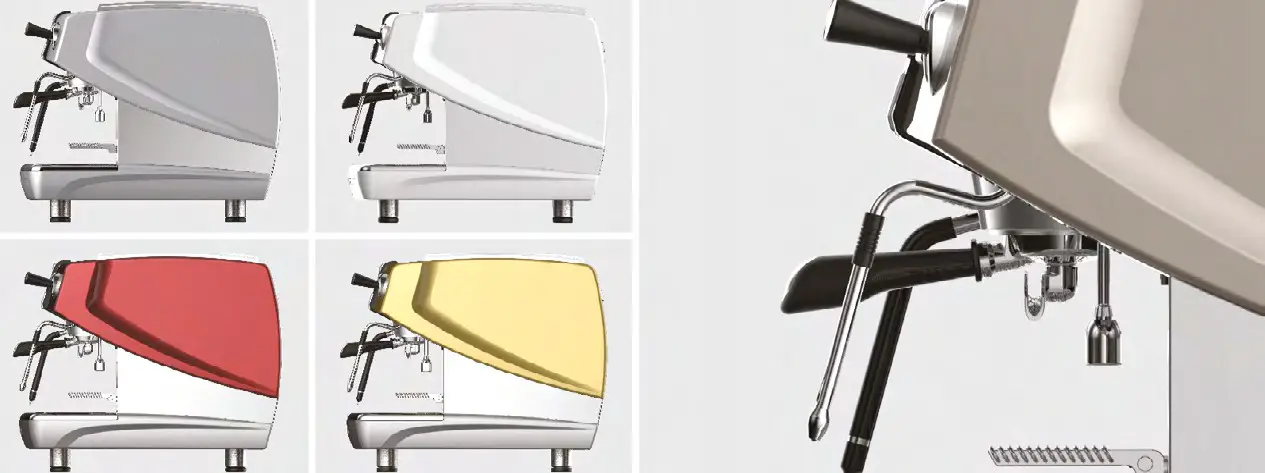

Options

SmartSteam
E-Cup warmer
Black coated steam wands
Branding/color personalization (at POA)
3Ph for 2GR single & multi boilers version
3Ph for 3GR single boiler version

NOTE: Please check your regional price list for available versions/options and part numbers.

COMPLIANCE: CB
INSTALLATION NOTE: Please refer to the User Manual and the Technical Manual.
Welbilt reserves the right to make changes to the design or specifications without prior notice.

www.creminternational.com
v2020/03DiamantSheetCenEN
