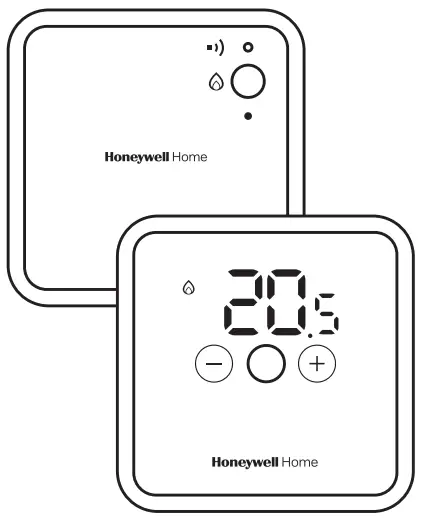

Honeywell Home DT4R Wireless Room Thermostat
Scan the QR Codes
 |  |  |
Must be installed by a competent person. To ensure your safety make sure the mains power is switched OFF before accessing wiring.
Application

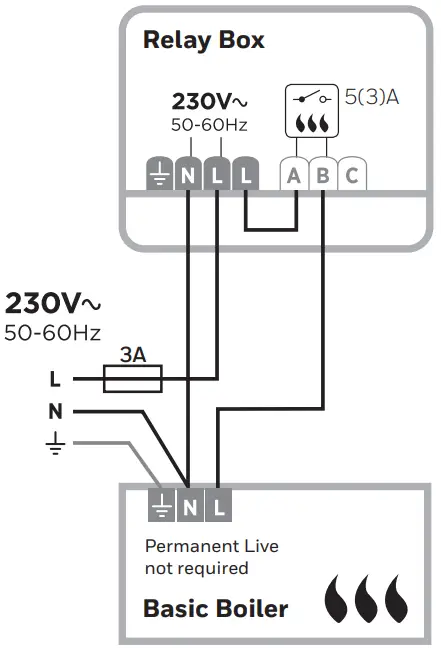

On/off boiler (230V)

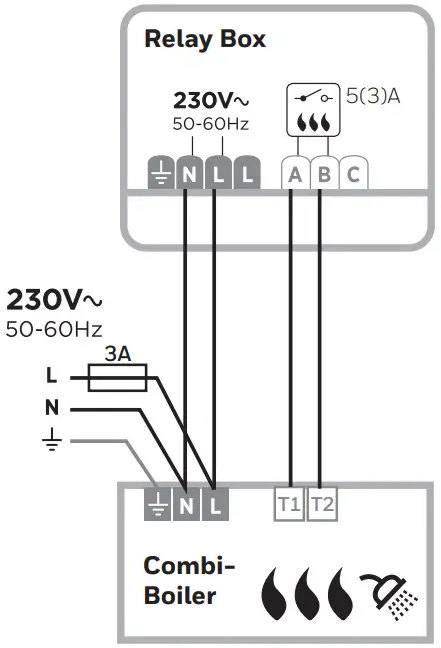

Combi boiler

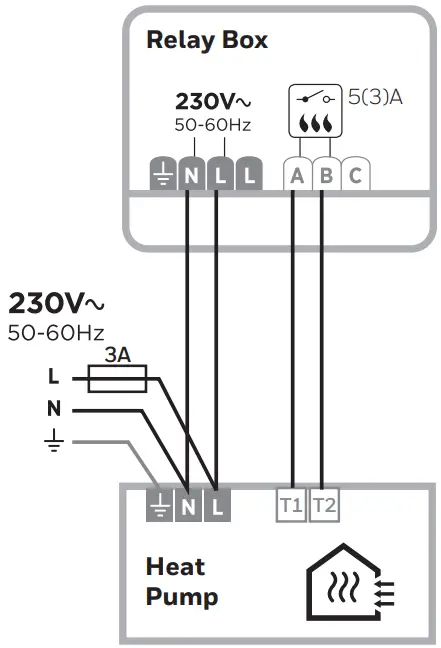

Heat Pump

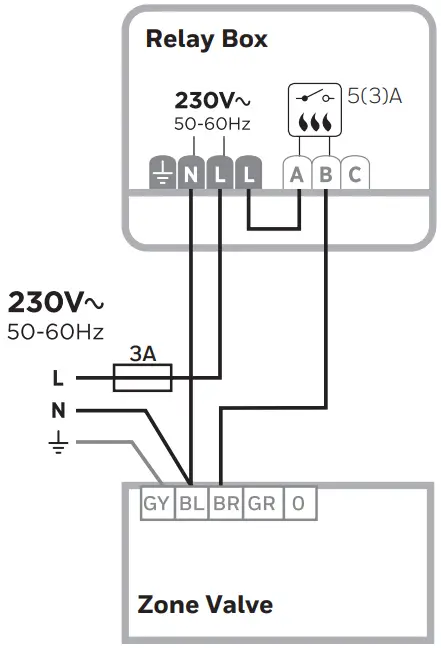

2-Port Zone Valve

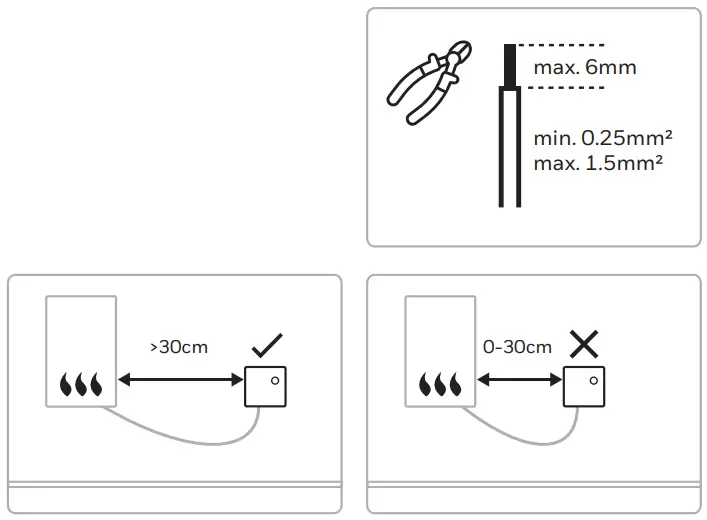

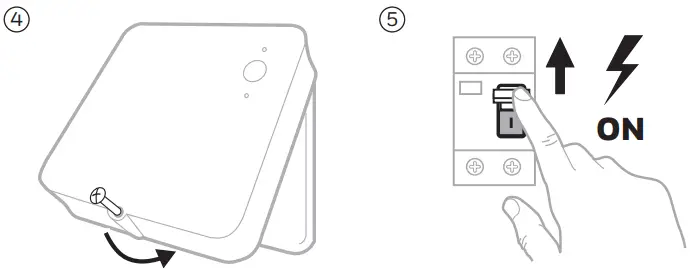

Install the Relay Box

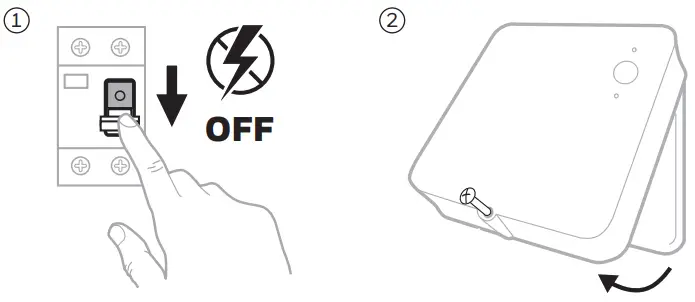

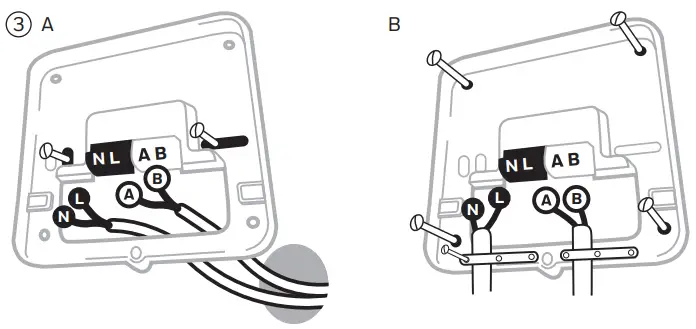

Install the Relay Box |  |

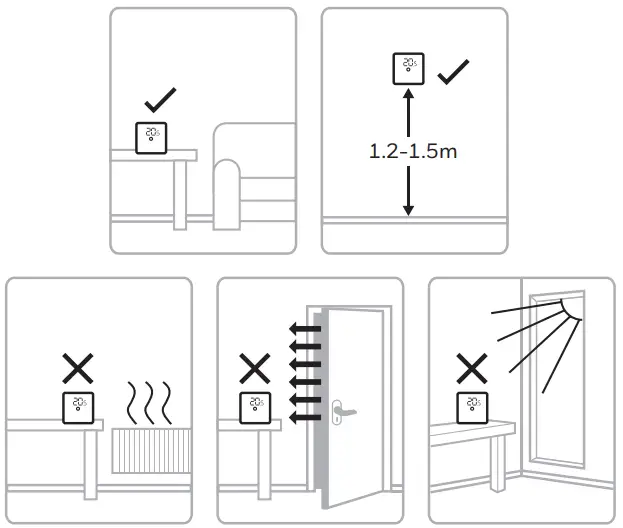

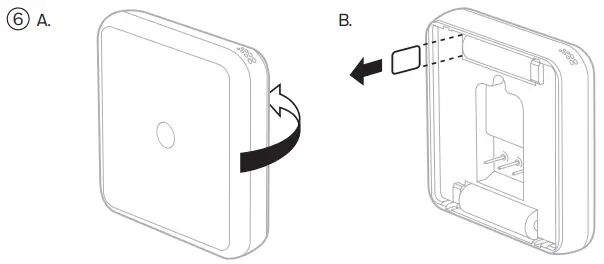

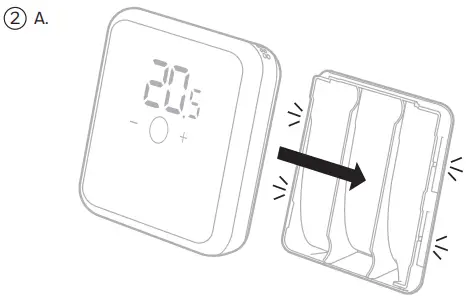

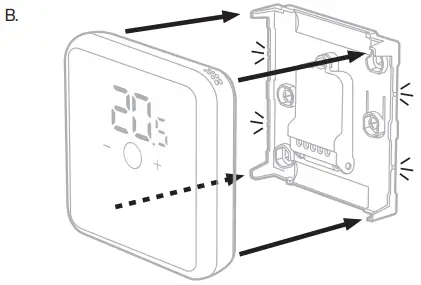

Install the Thermostat
|  |
|  |

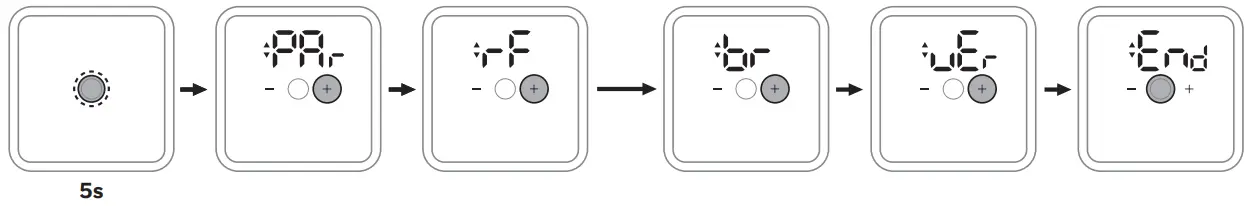

Press & hold
Press once- Parameters
- RF Settings
- Display Brightness
- Software Version
- Exit
Press & hold
Press once

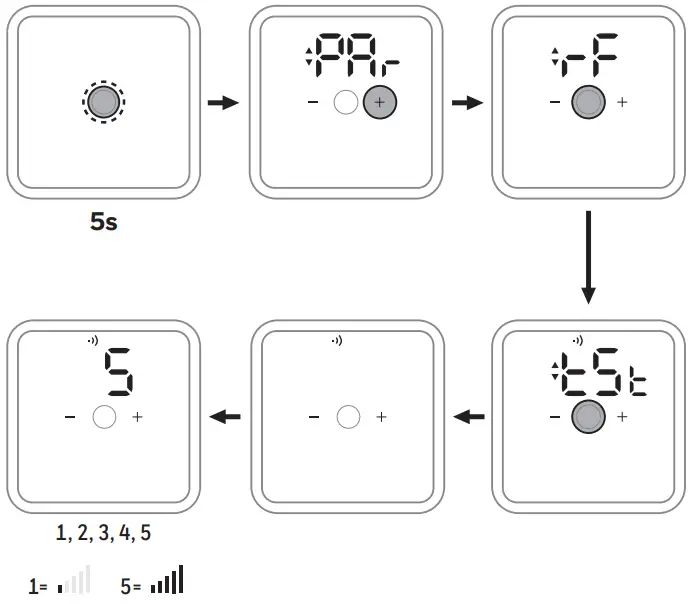

RF Communication Test
|  |
The Thermostat and Relay Box in this pack are pre-bound
Wireless Binding Instructions
|  |
https://hwllhome.co/eu-dt4-rf-rebind

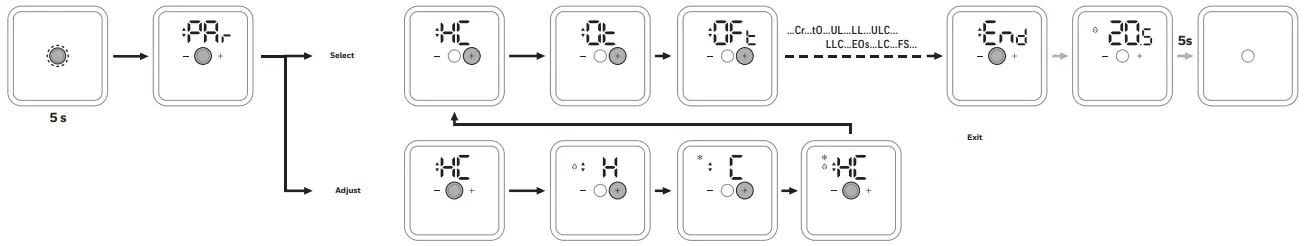

Parameters
|  |
Specifications
Heat, Cool, Heat/Cool Mode H, C, HC
Minimum On Time 1, 2, 3, 4, 5, 10, 15, 20, 25, 30
Minimum Off Time 0, 1, 5, 10
Cycle Rate 3, 6, 9, 12
Temperature Offset -3.0 … +3.0°C (0.0)
Upper Limit (heat) 19 … 35°C Lower Limit (heat) 5 … 19°C
Upper Limit (cool) 27 … 35°C Lower Limit (cool) 5 … 27°C
Eco Offset -3.0 … +3.0°C (-2.0)
Failsafe Mode 0 = Disabled
Factory Reset 0, 1 = Reset
Exit
