Tenda K4P-4TR Video PoE Security Kit
Product Information
The K4P-4TR is a 4 Channel PoE HD Video Security Kit offered by Tenda. It is a complete surveillance system that includes all necessary accessories for building a small surveillance setup. The kit is designed to provide a convenient one-stop shopping experience with compatible and barrier-free official collocation.
The product features IEEE802.3af standard PoE power supply, ensuring safe and stable internet connection and power supply. It also offers power overload protection and plug-and-play functionality for easy setup. The K4P-4TR kit is equipped with a 4MP high-performance CMOS image sensor, allowing for high-quality image resolution of 2560*1440. It provides 50-meter infrared night vision, enabling recording in high-definition even in dark environments or ultra-long distances. Additionally, it supports 4K HDMI output with a resolution of 3840*2160, providing clear images with more details.
The file system of the kit is specially designed for video surveillance, featuring HDD Bad Sector Isolation. It can automatically detect, identify, and skip bad sectors on the HDD, ensuring complete recording without losing frames. The system is safe, stable, and reliable.
The K4P-4TR also includes AI Human Detection functionality based on deep learning image identification technology. It effectively filters non-human targets, improving alarm accuracy. The kit supports 10TB large-capacity HDD access for long-term recording storage requirements. It also offers remote monitoring through the TDSEE App and browser access without plug-in, allowing users to view and playback videos, receive alarm messages, and control abnormal conditions on their mobile phones.
Product Usage Instructions

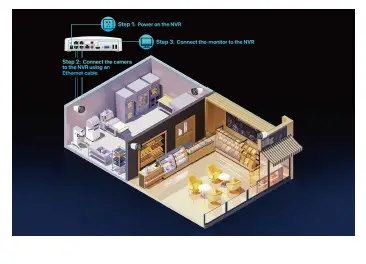

- Connect the PoE HD Network Video Recorder to your network using the Ethernet port.
- Connect the IP cameras to the PoE ports on the Network Video Recorder.
- Ensure that the HDD is properly installed in the kit for recording and storage.
- Power on the Network Video Recorder and the IP cameras.
- Download and install the TDSEE App on your iOS or Android device for remote monitoring.
- Launch the TDSEE App and follow the on-screen instructions to connect the app to the Network Video Recorder.
- Use the TDSEE App to view live video feeds, play back recorded videos, receive alarm messages, and control abnormal conditions on your mobile phone.
- For remote monitoring on a web browser, open Chrome, Edge, Opera, or Safari and enter the IP address of the Network Video Recorder. No plug-in is required for live view.
- To manage recording settings, navigate to the Network Video Recorder’s interface through the web browser or TDSEE App. Configure record modes (normal, alarm), playback modes (instant, channel, file, tag), and backup modes (USB device).
Ensure that the kit is installed in a suitable location, following the provided certification and installation method guidelines. The operating temperature should be within the specified range, and humidity levels should be maintained accordingly.
Product Description

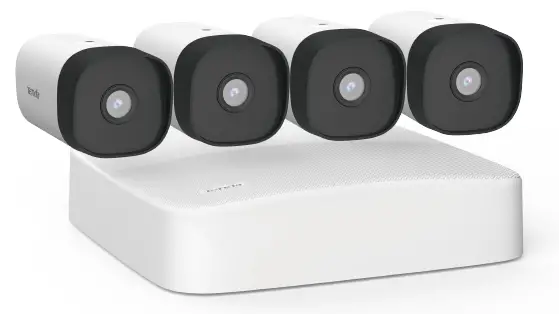

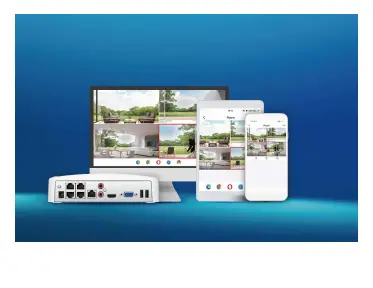

4 Channel PoE HD Video Security Kit K4P-4TR includes 1 PoE NVR and 4 PoE bullet security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD ad sector isolation, channel cloud storage, IP67 waterproof and dustproof (camera) and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms.
Product Features

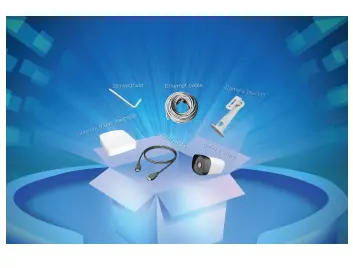

Complete Accessories
The common accessories are included in the kit for building small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience.
PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply.
4MP HD Image Quality
Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 50-meter infrared night vision enables you to record with high-definition even in a dark environment or an ultra-long distance
4K Output
4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.
HDD Bad Sector Isolation
The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuringt hat the recording is complete without losing frames. It is safe, stable and reliable.
AI Human Detection
Based on deep learning image identification technology, and built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.
Channel Cloud Storage
The video security kit supports 10TB large-capacity HDD access to meet the long-term recording storage requirements. With HDD and cloud, the data is safe and not lost.
Remote Monitoring
The video security kit supports TDSEE App remote monitoring and browser access without plug-in. You can view and paly back the videos, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.

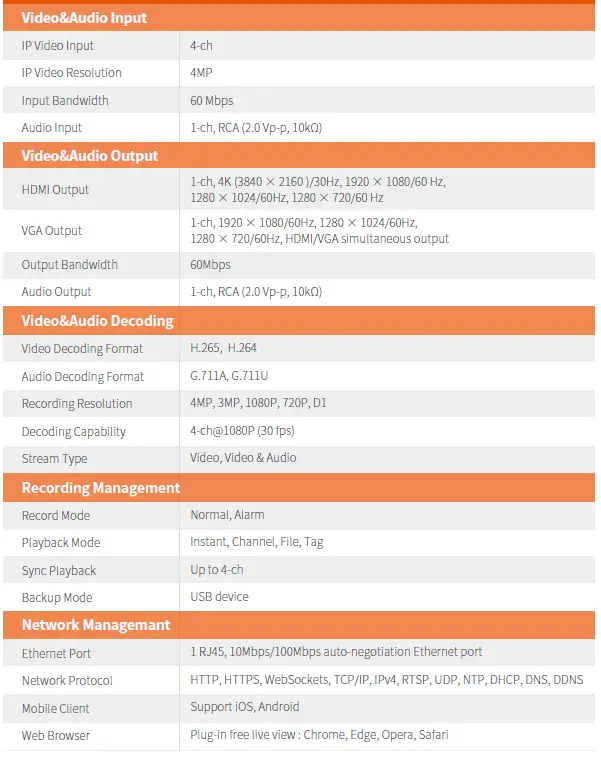

Product Specifications
PoE HD Network Video Recorder
| PoE | |
| PoE Port | 4 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3af |
| PoE Power | ≤40W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| External Interface | |
| USB Port | 2 x USB 2.0 |
| General | |
| Power | 51 VDC, 1.25 A |
| Dimension | 200 mm × 200 mm × 48 mm |
| Weight (Without HDD) | 510g (1.12lb) |
| Certification | CCC, CE, FCC, RoHS,UKCA |
| Installation Method | Desktop mounting, Wall mounting |
| Temperature | OStpoerraagteintgemtepmepraetruarteu:re-3: 00°°CC — 7400°°CC ((-3222°°FF–110548°°FF)) |
| Humidity | OStpoerraagteinhguhmuimdiitdyi:t5y:%10- %95-%90R%H (RnHon(n-coonn-cdoenndseinngs)ing) |

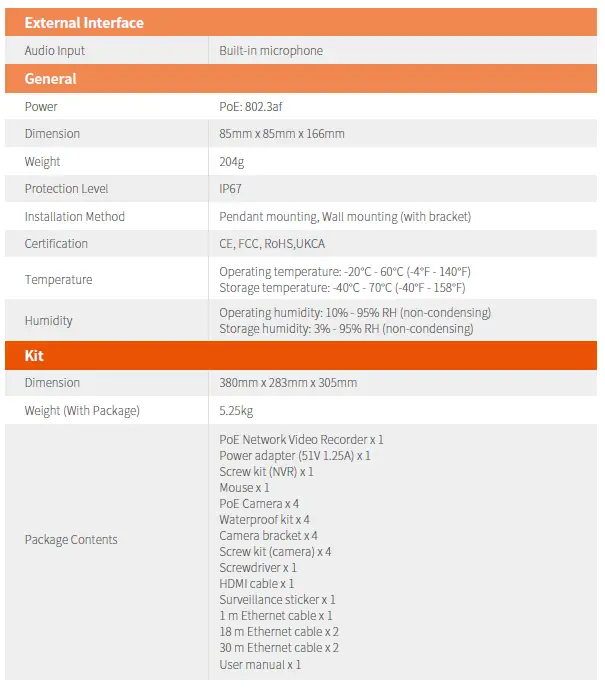

PoE Security Camera
| PoE Security Camera | |
| Camera | |
| Image Sensor | 1/3”CMOS sensor |
| Max. Resolution | 2560 x 1440 |
| Day and Night | Built-in IR-CUT Dual Filters |
| Digital Noise Reduction | 3D DNR |
| DWDR | Support |
| Backlight Compensation | Support |
| Fill Light | 4 IR Lights |
| Infrared Fill Light Distance | Up to 50 meters (depending on environment) |
| Night Vision Mode | Infrared Mode |
| Lens Specifications | |
| Lens Type | 4 [email protected] |
| FOV | Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2° |
| Video Specifications | |
| Video Encoding Format | H.265, H.264 |
| Main Stream | 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080) |
| Sub Stream | 25fps (640 × 360, 352 × 288, 320 × 240) |
| Audio Specifications | |
| Audio Encoding Format | G.711A, G.711U |
| Audio Sampling Rate | 8 kHz |
| Network Managemant | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Smart Alarm | |
| Motion Detection | Support |
| Human Detection | Support |
| Video Tampering | Support |
Tenda Technology Bldg.Int’ l E-City, #1001 Zhong Shan Yuan Rd.,Nanshan District,Shenzhen China.
E-mail:[email protected]
Tel:+86-755-2765 7098
Fax:+86-755-2765 7178
PC:518055
Specifications are subject to change without notice.Copyright ©2022 SHENZHEN TENDA TECHNOLOGY CO.,LTD. All rights reserved. Tenda is the trademark of SHENZHEN TENDA TECHNOLOGY CO.,LTD. All other brand names mentioned herein
are the trademark or registered trademarks of their respective holder
K4P-4TR 4 Channel PoE HD Video Security Kit
