Tenda K8P-4TR 8 Channel PoE HD Video Security Kit
Product Information
| Product Name | K8P-4TR 8 Channel PoE HD Video Security Kit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Description | Complete surveillance kit with 8-channel PoE HD video security system | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Features |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Specifications |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Port | 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Standard | IEEE 802.3af | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power | 60W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDD Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDD Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| External Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight (Without HDD) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation Method | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
Product Usage Instructions
To use the K8P-4TR 8 Channel PoE HD Video Security Kit, follow the instructions below:

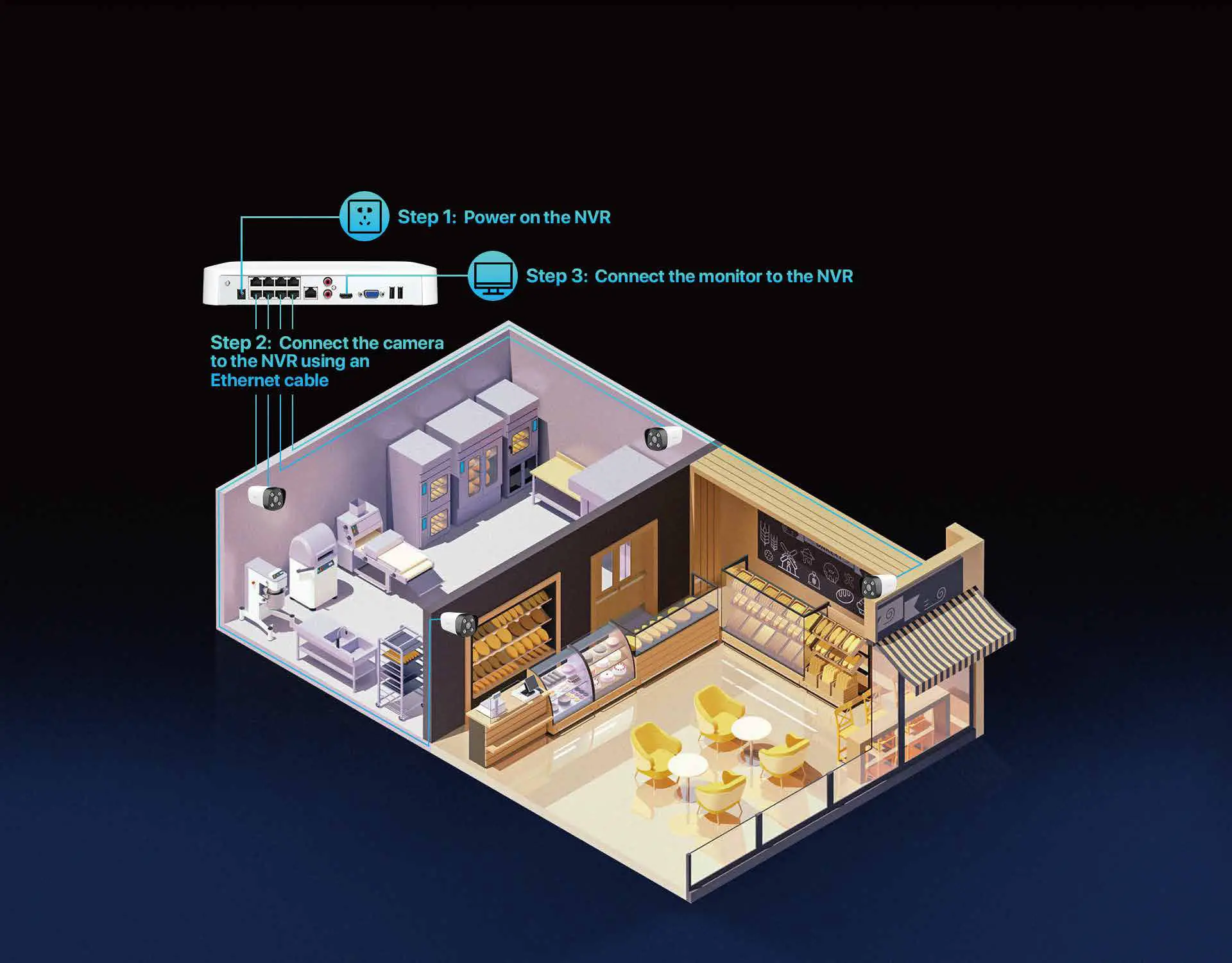

- Connect the IP cameras to the PoE ports of the PoE HD Network Video Recorder using Ethernet cables.
- Ensure that the IP video input resolution is set to the desired level (e.g., 4MP).
- Connect a display device to the HDMI or VGA output of the recorder to view the video feed.
- Configure the recording resolution based on your preferences (e.g., 4MP, 3MP, 1080P, etc.)
- Select the desired record mode (normal or alarm) for recording management.
- Choose the playback mode (instant, channel, file, or tag) to review recorded footage.
- If required, sync playback on up to 8 channels simultaneously.
- Use a USB device for backup purposes if needed.
- Connect the PoE ports to compatible devices using Ethernet cables for PoE functionality.
- Ensure that the power supply meets the IEEE 802.3af standard and provides 60W of power.
- If using an HDD for storage, connect it to the available HDD interface.
- Check the product specifications for details on capacity and external interfaces.
- Make sure to follow the provided temperature and humidity guidelines for optimal performance.
- Download the TDSEE App on your iOS or
K8P-4TR
8 Channel PoE HD Video Security Kit Description
8 Channel PoE HD Video Security Kit K8P-4TR includes 1 PoE NVR and 8 PoE bullet security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage, IP67 waterproof and dustproof (camera) and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms.

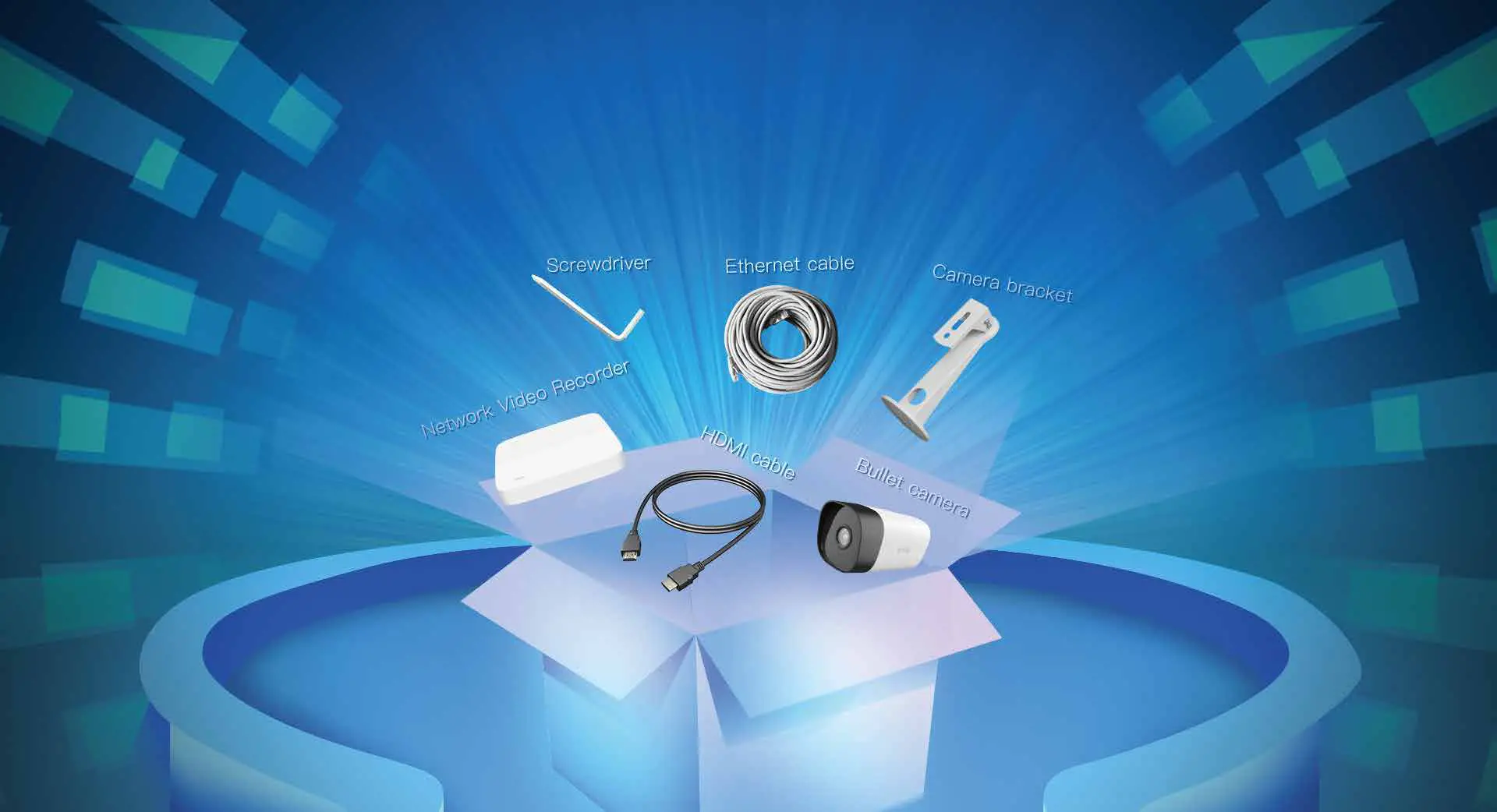

Complete Accessories
The common accessories are included in the kit for building small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience
PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply.
4MP HD Image Quality
Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 50-meter infrared night vision enables you to record with high-definition even in a dark environment or an ultra-long distance.
4K Output
4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.
HDD Bad Sector Isolation
The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuringt hat the recording is complete without losing frames. It is safe, stable and reliable.
AI Human Detection
Based on deep learning image identification technology, and built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.
Channel Cloud Storage
The video security kit supports 10TB large-capacity HDD access to meet the long-term recording storage requirements. With HDD and cloud, the data is safe and not lost

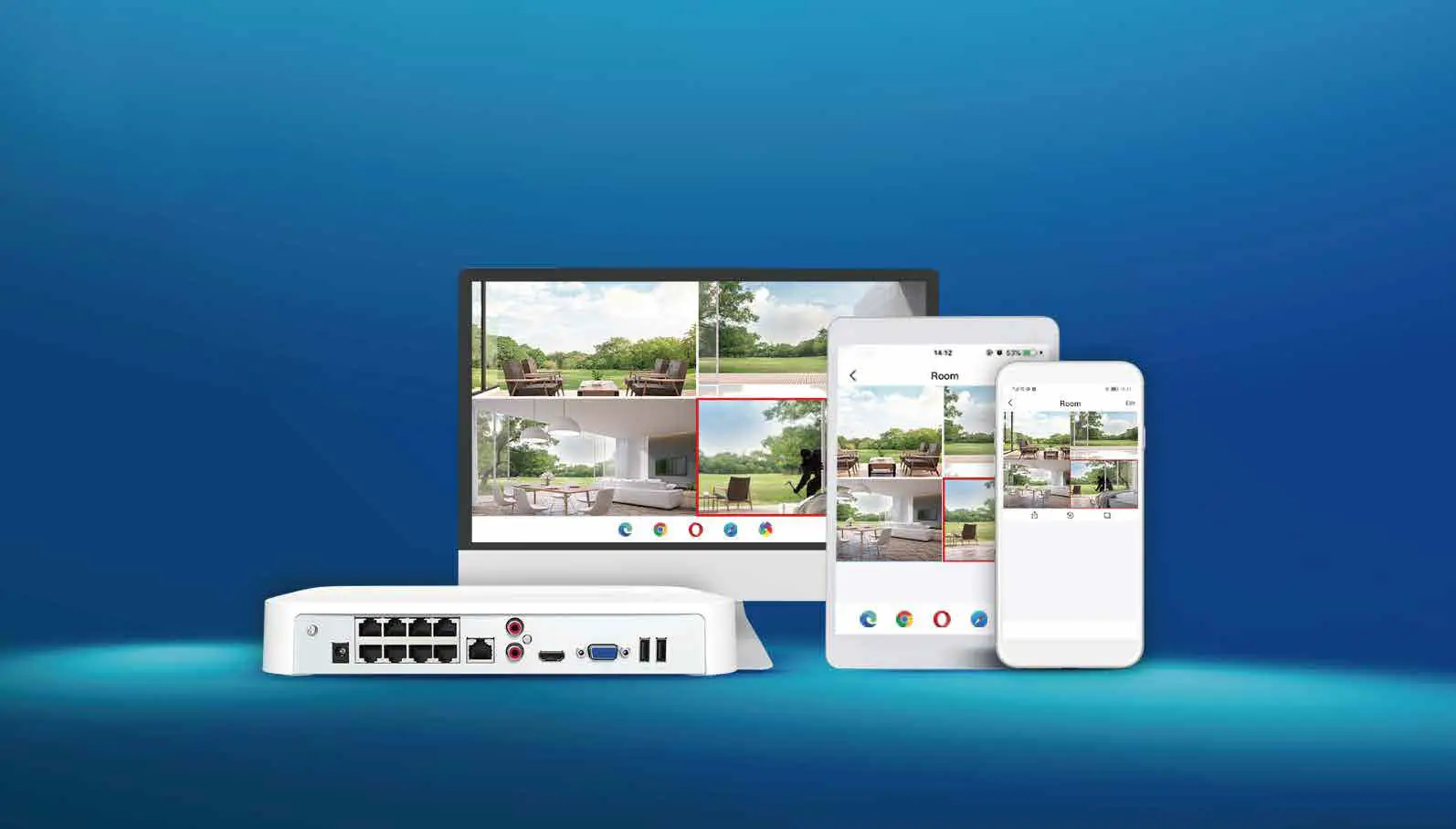

Remote Monitoring
The video security kit supports TDSEE App remote monitoring and browser access without plug-in. You can view and paly back the videos, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.
Product Specifications
PoE HD Network Video Recorder
Video &Audio Input
- IP Video Input:8-ch
- IP Video Resolution:4MP
- Input Bandwidth:60 Mbps
- Audio Intput:1-ch, RCA (2.0 Vp-p, 10kΩ)
Video &Audio Output
- HDMI Output:1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz,1280 × 1024/60Hz, 1280 × 720/60 Hz
- VGA Output:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, HDMI/VGA simultaneous output
- Output Bandwidth:60Mbps
- Audio Output:1-ch, RCA (2.0 Vp-p, 10kΩ)
Video &Audio Decoding
- Video Decoding Format:H.265, H.264
- Audio Decoding Format:G.711A, G.711U
- Recording Resolution:4MP, 3MP, 1080P, 720P, D1
- Decoding Capability:4-ch@1080P (30 fps)
- Stream Type: Video, Video & Audio
Recording Management
- Record Mode :Normal, Alarm
- Playback Mode :Instant, Channel, File, Tag
- Sync Playback :Up to 8-ch
- Backup Mode :USB device
Network Management
- Ethernet Port:1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
- Network Protocol :HTTP, HTTPS, Web Sockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
- Mobile Client :Support iOS, Android
- Web Browser: Plug-in free live view : Chrome, Edge, Opera, Safari
| PoE | |
| PoE Port | 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3af |
| PoE Power | ≤60W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| External Interface | |
| USB Port | 2 x USB 2.0 |
| General | |
| Power | 51 VDC, 1.25 A |
| Dimension | 200 mm × 200 mm × 48 mm |
| Weight (Without HDD) | 780 g (1.72lb) |
| Certification | CCC, CE, FCC, RoHS, UKCA |
| Installation Method | Desktop mounting, Wall mounting |
| Temperature | Operating temperature: 0°C – 40°C (32°F – 104°F) Storage temperature: -30°C – 70°C (-22°F – 158°F) |
| Humidity | Operating humidity: 10% – 90% RH (non-condensing) Storage humidity: 5% – 95% RH (non-condensing) |

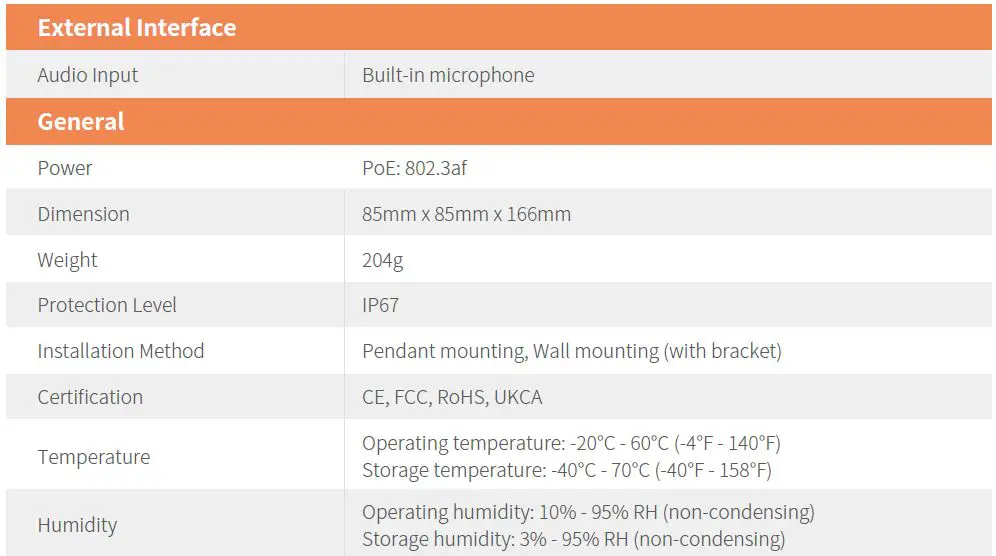

| PoE Security Camera | |
| Camera | |
| Image Sensor | 1/3”CMOS sensor |
| Max. Resolution | 2560 x 1440 |
| Day and Night | Built-in IR-CUT Dual Filters |
| Digital Noise Reduction | 3D DNR |
| DWDR | Support |
| Backlight Compensation | Support |
| Fill Light | 4 IR Lights |
| Infrared Fill Light Distance | Up to 50 meters (depending on environment) |
| Night Vision Mode | Infrared Mode |
| Lens Specifications | |
| Lens Type | 4 [email protected] |
| FOV | Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2° |
| Video Specifications | |
| Video Encoding Format | H.265, H.264 |
| Main Stream | 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080) |
| Sub Stream | 25fps (640 × 360, 352 × 288, 320 × 240) |
| Audio Specifications | |
| Audio Encoding Format | G.711A, G.711U |
| Audio Sampling Rate | 8 kHz |
| Network Managemant | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Smart Alarm | |
| Motion Detection | Support |
| Human Detection | Support |
| Video Tampering | Support |
Kit
SHENZHEN TEND TECHNOLOGY CO., LTD.
Tenda Technology Bldg.Int’ l E-City,
#1001 Zhong Shan Yuan Rd.,Nanshan District,Shenzhen China.
E-mail: [email protected]
Tel:+86-755-2765 7098
Fax:+86-755-2765 7178
