Tenda K8P-4CR 8 Channel PoE HD Video Security Kit
Product Information
| Product Name | K8P-4CR 8 Channel PoE HD Video Security Kit |
|---|---|
| Product Description | 8 Channel PoE HD Video Security Kit K8P-4CR includes 1 PoE NVR and 8 PoE conch security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms. |
Product Features
| Feature | Description |
|---|---|
| Complete Accessories | The common accessories are included in the kit for building a small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience. |
| PoE Power Supply | IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply. |
| 4MP HD Image Quality | Equipped with a 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 30-meter infrared night vision enables you to record with high-definition even in a dark environment or an ultra-long distance. |
| 4K Output | 4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed. |
| HDD Bad Sector Isolation | The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuring that the recording is complete without losing frames. It is safe, stable and reliable. |
| AI Human Detection | Based on deep learning image identification technology, and built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy. |
| Channel Cloud Storage | The video security kit supports 10TB large-capacity HDD access to meet the long-term recording storage requirements. With HDD and cloud, the data is safe and not lost. |
| Remote Monitoring | The video security kit supports TDSEE App remote monitoring and browser access without plug-in. You can view and playback the videos, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere. |
Product Specifications
| Parameter | Value |
|---|---|
| Video&Audio Input | IP Video Input: 8-ch IP Video Resolution: 4MP Input Bandwidth: 60 Mbps Audio Input: 1-ch, RCA (2.0 Vp-p, 10k) |
| Video&Audio Output | HDMI Output VGA Output Output Bandwidth: 60Mbps Audio Output: 1-ch, RCA (2.0 Vp-p, 10k) |
| Video&Audio Decoding | Video Decoding Format: H.265, H.264 Audio Decoding Format: G.711A, G.711U Recording Resolution: 4MP, 3MP, 1080P, 720P, D1 Decoding Capability: 4-ch@1080P (30 fps) Stream Type: Video, Video & Audio |
| Recording Management | Record Mode: Normal, Alarm Playback Mode: Instant, Channel, File, Tag Sync Playback: Up to 8-ch Backup Mode: USB device |
| Network Managemant | Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
Product Description

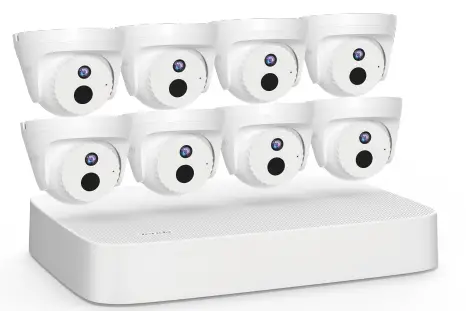

8 Channel PoE HD Video Security Kit K8P-4CR includes 1 PoE NVR and 8 PoE conch security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, DD bad sector isolation, channel cloud storage and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms.
Product Features
Complete Accessories
The common accessories are included in the kit for building small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience.
PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply.
4MP HD Image Quality
Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 30-meter infrared night vision enables you to record with high-definition even in a dark environment or an ultra-long distance.
4K Output
4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.
HDD Bad Sector Isolation
The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuringt hat the recording is complete without losing frames. It is safe, stable and reliable.
AI Human Detection
Based on deep learning image identification technology, and built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy
Channel Cloud Storage
The video security kit supports 10TB large-capacity HDD access to meet the long-term recording storage requirements. With HDD and cloud, the data is safe and not lost.
Remote Monitoring
The video security kit supports TDSEE App remote monitoring and browser access without plug-in. You can view and paly back the videos, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere
Product Specifications

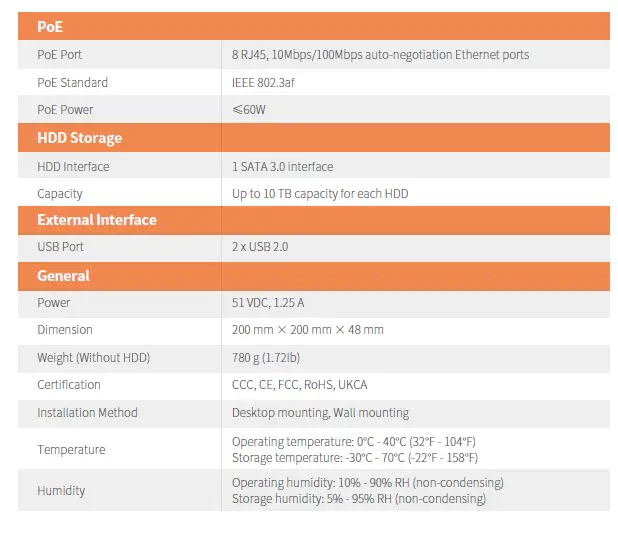

PoE HD Network Video Recorder
| PoE | |
| PoE Port | 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3af |
| PoE Power | ≤60W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| External Interface | |
| USB Port | 2 x USB 2.0 |
| General | |
| Power | 51 VDC, 1.25 A |
| Dimension | 200 mm × 200 mm × 48 mm |
| Weight (Without HDD) | 780 g (1.72lb) |
| Certification | CCC, CE, FCC, RoHS, UKCA |
| Installation Method | Desktop mounting, Wall mounting |
| Temperature | OStpoerraagteintgemtepmepraetruarteu:re-3: 00°°CC — 7400°°CC ((-3222°°FF–110548°°FF)) |
| Humidity | OStpoerraagteinhguhmuimdiitdyi:t5y:%10- %95-%90R%H (RnHon(n-coonn-cdoenndseinngs)ing) |
PoE Security Camera
| PoE Security Camera | |
| Camera | |
| Image Sensor | 1/3”CMOS sensor |
| Max. Resolution | 2560 x 1440 |
| Day and Night | Built-in IR-CUT Dual Filters |
| Digital Noise Reduction | 3D DNR |
| DWDR | Support |
| Backlight Compensation | Support |
| Fill Light | 1 IR Light |
| Infrared Fill Light Distance | Up to 30 meters (depending on environment) |
| Night Vision Mode | Infrared Mode |
| Lens Specifications | |
| Lens Type | 4 [email protected] |
| FOV | Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2° |
| Video Specifications | |
| Video Encoding Format | H.265, H.264 |
| Main Stream | 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080) |
| Sub Stream | 25fps (640 × 360, 352 × 288, 320 × 240) |
| Audio Specifications | |
| Audio Encoding Format | G.711A, G.711U |
| Audio Sampling Rate | 8 kHz |
| Network Managemant | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Smart Alarm | |
| Motion Detection | Support |
| Human Detection | Support |
| Video Tampering | Support |
SHENZHEN TENDA TECHNOLOGY CO.,LTD. Tenda Technology Bldg.Int’ I E-City, #1001 Zhong Shan Yuan Rd., Nanshan District, Shenzhen China.
E-mail:[email protected]
Tel:#86-755-2765 7098
Fax:+86-755-27657178
PC:518055
Specifications are subject to change without notice.Copyright ©2022 SHENZHEN TENDA TECHNOLOGY CO.,LTD. All rights reserved. Tenda is the trademark of SHENZHEN TENDA TECHNOLOGY CO.,LTD. All other brand names mentioned herein
are the trademark or registered trademarks of their respective holders.
