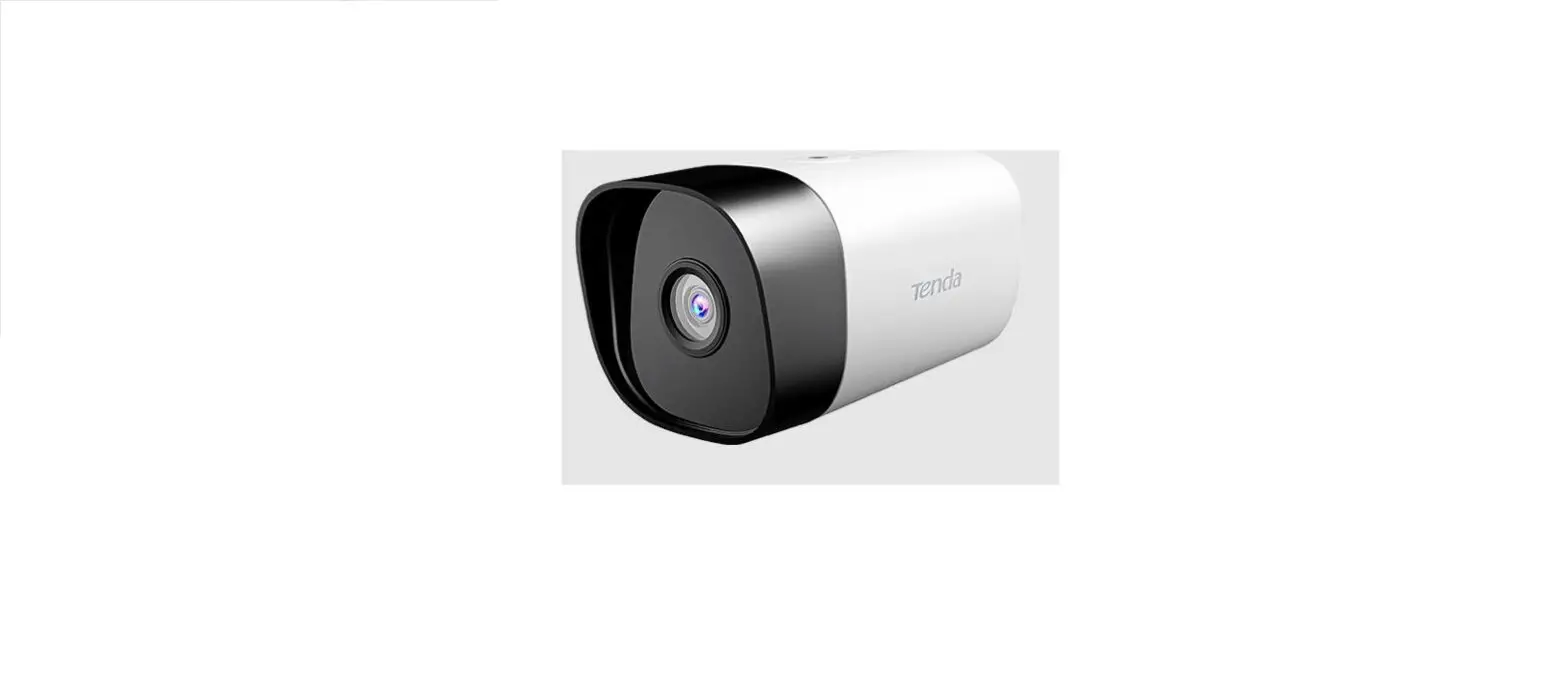

IT7-PCS 4MP PoE Full Color Bullet Security Camera
Product Information:
Product Name: IT7-PCS 4MP PoE Full-Color Bullet
Security Camera
Product Description: The IT7-PCS 4MP PoE
Full-Color Bullet Security Camera is a high-performance engineering
camera that offers a resolution of 4MP (2560×1440). It features
full-color night vision, human detection, motion detection alarm,
remote audio pickup, and PoE power supply. This camera is suitable
for both indoor and outdoor monitoring scenarios, such as parking
lots, shops, supermarkets, and jewelry stores. It can be used with
an NVR and also supports remote control via a smartphone app.
Product Features:
- Critical image stored in full color with smart night vision
function - Installation simplified with a standard PoE power supply
- 4 MP HD image with more details even when zoomed
- Audio and video synched with remote audio pickup
- Precise human detection, white light used to deter
intruders - Storage and bandwidth halved with H.265+ coding technology
- IP67 waterproof and dustproof
- High compatibility with ONVIF supported
- Wall-mounting/Ceiling-mounting
Product Specifications:
Hardware Specifications:
- Ports: Power: DC 12V 1A Ethernet: 1*RJ45 100M Ethernet port on
tail line - Lens Product Size: Not specified
Video Specifications:
- Resolution: 2560×1440
- Coding standard: H.265+/H.265/H.264
- Day and Night Shift Mode
- Noise Reduction: 3D digital noise reduction
- DWDR (Digital Wide Dynamic Range)
- Backlight Compensation
- ROI (Region of Interest)
Others:
- Smart Alarm
- Waterproof Level: IP67
- Audio: Built-in microphone
- Network Protocol: RTSP, HTTP, DHCP, DDNS, ONVIF
- Internet Protocol: IPV4
- Device Connection Mode: Wired
- Infrared Night Vision Distance: 30 Meters
- Temperature: Not specified
Product Usage Instructions:
- Ensure that the camera is connected to a power source using the
provided DC 12V 1A power adapter. - Connect the camera to a network using the RJ45 Ethernet port on
the tail line. - If using PoE (Power over Ethernet), connect the camera to a PoE
switch or injector for power and network connectivity. - To access the camera remotely, download and install the TDSEE
app on your smartphone. - Open the TDSEE app and follow the instructions to add the
camera to your account. - Once the camera is added, you can control and monitor it
remotely using the app. - To enable full-color night vision, ensure that the camera is in
an area with sufficient lighting. The camera will automatically
switch to full-color mode when there is a change in the image. - The camera supports human detection and motion detection alarm.
You can customize the detection area and sensitivity through the
app. - When abnormal conditions are detected, such as intruders, the
camera will send an alarm notification to the TDSEE app. The camera
can also activate a white light to deter intruders. - If you want to store the video footage, connect the camera to
an NVR (Network Video Recorder) compatible with ONVIF
protocol. - The camera is waterproof and dustproof with an IP67 rating. It
can withstand various weather conditions. - If you need to mount the camera, it supports both wall-mounting
and ceiling-mounting options. Follow the installation instructions
provided in the user manual.
IT7-PCS
4MP PoE Full-Color Bullet Security Camera
www.tendacn.com
IT7-PCS
4MP PoE Full-Color Bullet Security Camera
Product Description
4MP Bullet Security Camera IT7-PCS is a high-performance 4MP (2560×1440) engineering camera that integrates such functions as full-color night vision, human detection, motion detection alarm, remote audio pickup and PoE power supply. It is commonly used in such indoor and outdoor monitoring scenarios as parking lots, shops, supermarkets, and jewelry stores. The camera can be used with NVR, and also supports smartphone app remote control.
01
4MP PoE Full-Color Bullet Security Camera
Product Features
Critical image stored in full color with smart night vision function
The camera provides the human/motion detection function. When the image changes, the full-color night vision mode will be enabled automatically. The three modes of infrared, full-color and smart full-color can be switched freely to meet various night monitoring requirements.PoE relay. This greatly simplifies the networking.
Installation simplified with a standard PoE power
supply
The network power supply of the camera can be realized with only one Eth-
4 MP HD image with more details even when zoomed
Equipped with 4MP high-performance CMOS image sensor, the camera provides a resolution up to 2560 x 1440. It adopts the 3D digital noise reduction
Audio and video synched with remote audio pickup
With an inbuilt highly sensitive microphone that supports remote audio pickup, the camera can sync audio and video to truly restore the scene.
Precise human detection, white light used to deter intruders
App remote control is supported. When the device detects abnormal conditions, the alarm notification will be pushed to the TDSEE app, and white light is used to deter intruders.
02
4MP PoE Full-Color Bullet Security Camera
Product Features
Storage and bandwidth halved with H.265+coding technology
Compared with H.265, the new-generation H.265+ coding technology saves 50% storage space, which further smoothes the videos and saves the data stor-
IP67 waterproof and dustproof
As the operating temperature is -20 to 60, the camera can effectively resist the high and low temperature. With IP67 waterproof and dustproof design, the camera can withstand rainy, sunny, stormy, and even snowy
High compatibility with ONVIF supported
It can be used with mainstream NVRs in the market, featuring high compatibility.
Wall-mounting/Ceiling-mounting
03
4MP PoE Full-Color Bullet Security Camera
Product Specifications
Hardware Specifications
Ports
Power: DC 12V 1A Ethernet: 1*RJ45 100M Ethernet port on tail line
Lens Product Size
Video Specifications
Resolution
[email protected]/[email protected] 85×85×166mm
2560*1440
Coding standard Day and Night Shift Mode Noise Reduction
H.265+/H.265/H.264 Built-in IR-CUT double filter 3D digital noise reduction
DWDR Backlight Compensation ROI
Others
Smart Alarm Waterproof Level Audio Network Protocol
Support Support Support
Motion detection&Human detection&Customized area detection IP67 Built-in microphone RTSP, HTTP, DHCP, DDNS, ONVIF
Internet Protocol
IPV4
Device Connection Mode
Wired
Infrared Night Vision Distance 30 Meters
Temperature
Operating temperature: -20 to 60 Storage temperature: -40 to 70
Humidity
Operating humidity: 10%-95%RH (non-condensing) Storage humidity: 3%-95%RH (non-condensing)
Certification Package Contents
CERoHsFCC
Security camera, Waterproof kit, Quick installation guide,General Public license notice
04
4MP PoE Full-Color Bullet Security Camera
Tenda Technology Bldg.Int’ l E-City, #1001 Zhong Shan Yuan Rd.,Nanshan District,Shenzhen China.
E-mail:[email protected] Tel:+86-755-2765 7098 Fax:+86-755-2765 7178
Like us on Facebook Follow us on Twitter
05
4MP PoE Full-Color Bullet Security Camera
Specifications are subject to change without notice.Copyright ©2021 SHENZHEN TENDA TECHNOLOGY CO.,LTD. All rights reserved. Tenda is the trademark of SHENZHEN TENDA TECHNOLOGY CO.,LTD. All other brand names mentioned herein are the trademark or registered trademarks of their respective holders.
