ZIP408 Pro NVRs PoE System
Full Instruction Manual
https://systemq.com/PDF/manual/xZIP4.pdf

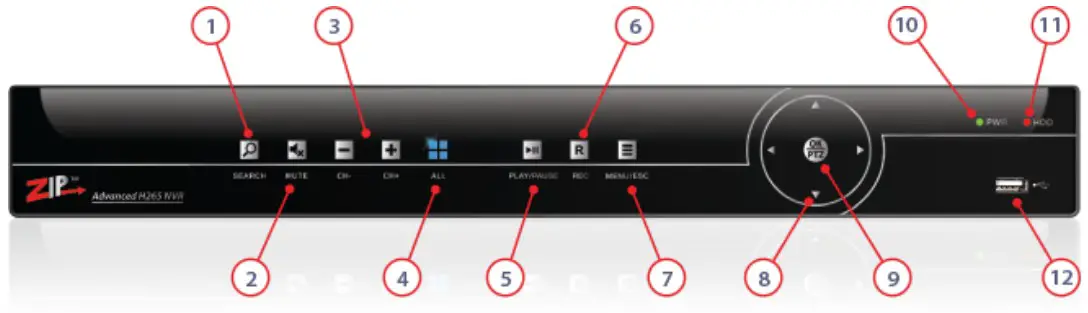

| 1. Search 2. All Channels 3. Play/Pause 4. Record 5. Menu/ Exit | 6. Direction Control 7. Ok (select) / PTZ Control 8. Power LED 9. HDD Indicator 10. USB Port |

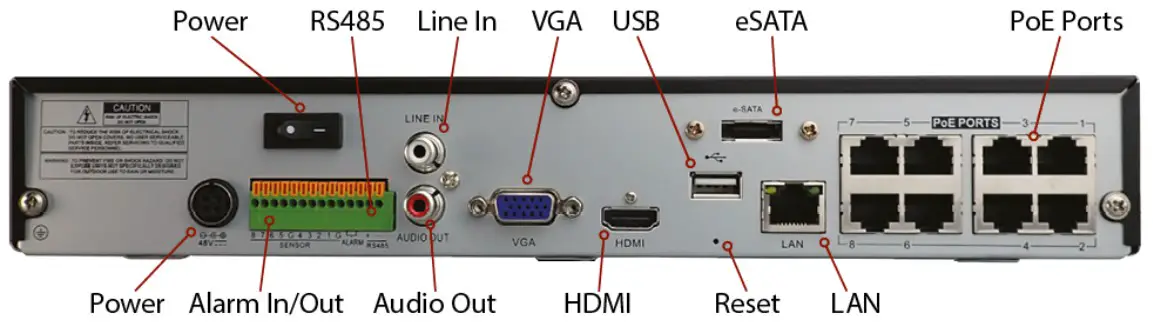

Step by Step First Time Setup
- Connect a monitor to the NVR using a HDMI or VGA cable for the video, and turn on the monitor.
- Connect the cameras to the NVR PoE Ports (Or PoE Switch) then power the NVR using the power supply provided.
Note – do not use a 3rd party or different power supply unless instructed to do so by the manufacturer. - Once the NVR has booted up, connect the USB, see Operation below and connect the Network cable to the NVR.
See Full Instruction Manual if you do not get an image on the monitor after “System Configuring”. - Program the basic settings using Smart Setup.
Operation
IR Remote Control

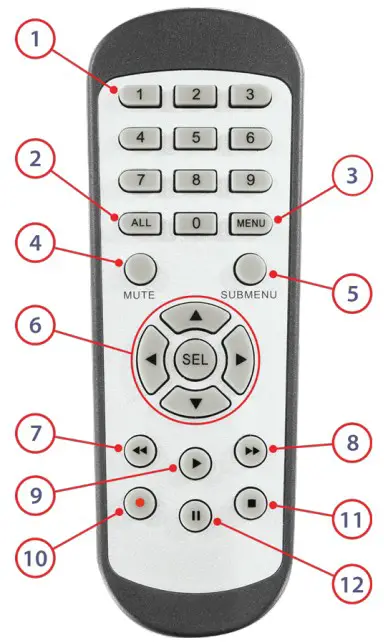

| 1. Numeric Buttons 2. Display All 3. Menu / Escape 4. Mute 5. Sub-menu 6. Navigation / Enter | 7. Rewind 8. Fast Forward 9. Play 10. Record 11. Stop 12. Pause |

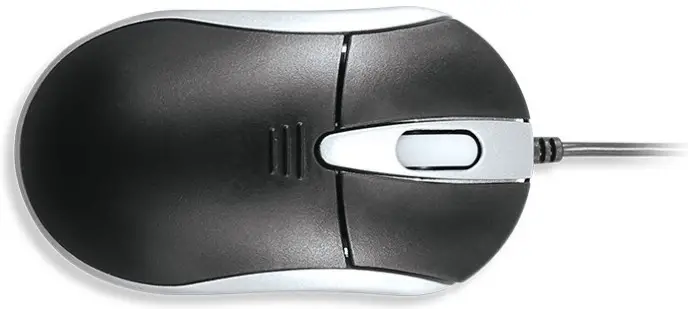

Mouse
| LeftClick | Single Click | Live view: display Quick Setting toolbar |
| Menu: select and enter | ||
| Click & Drag | Live view: drag channel | |
| Privacy Masking and Motion Detection: select target area | ||
| Digital zoom-in: zoom in to target area | ||
| RightClick | Single Click | Live view: show menu |
| Menu: exit current menu to upper level menu | ||
| Scroll Wheel | Scrolling | Scroll up/ down through highlighted field / drop down list |

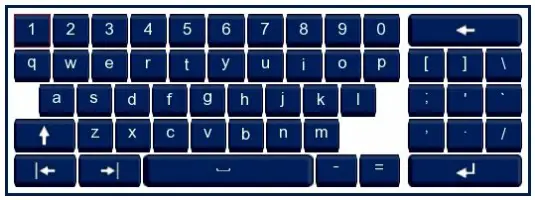

OSD Keyboard
 | Delete character to left of the cursor |
 | Confirm input |
 | Switch keyboard to upper case letters and symbols |
 | Insert a space |
 | Move courser left / right |
Login
For security the DVR password needs to be changed.
The admin name can be changed from “admin” in order to make the DVR even more secure, how this can be left on “admin”.

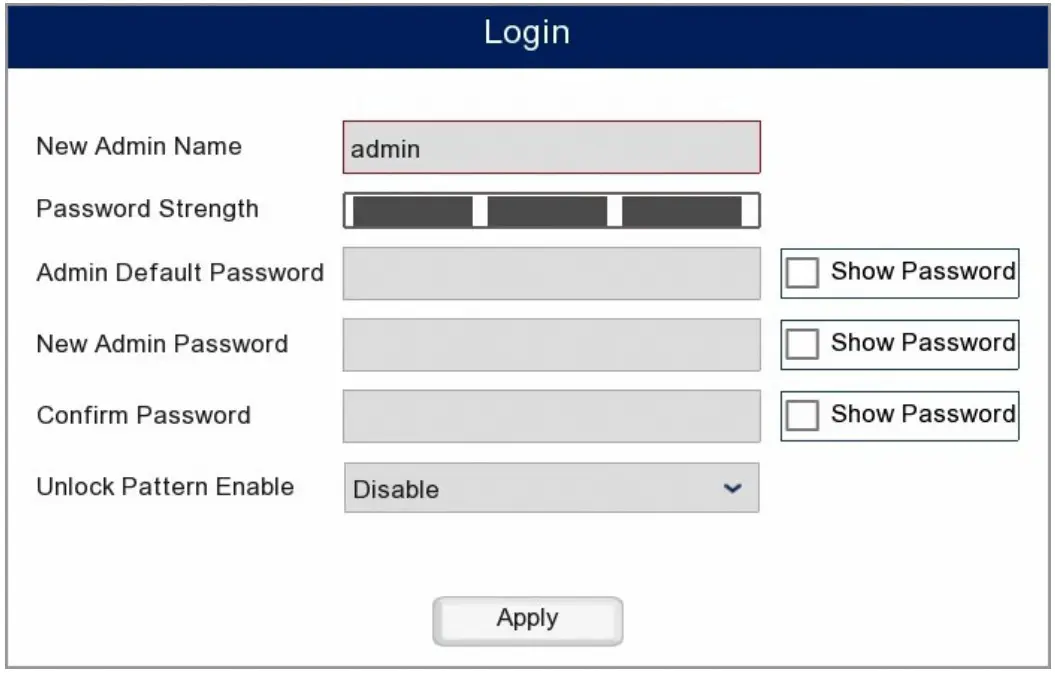

- Enter the Admin Default Password which is 555555.
- To set a new password enter the desired password into the New Admin Password field.
- Then re-enter the new password into the Confirm Password field.
The Password Strength indicator as to how secure the password is. Aim for a strong password using at least 8 characters and a combination of letters and numbers.
Note: Do not use a simple code like 12345, if the recorder is on a network this is too weak and easily accessed by malware.
Tech Tips | Mobile App Links |
|
|
|
|
|
|
How to Select a Network Address
Zip Vision Pro Android
How to Setup Motion Detection
Zip Vision Pro Apple
How to Add IP Cameras
Zip Vision Pro App Manualc zxx czx| ZIP408 | ZIP416 | |
| ONVIF Version | 2.6 v19.12 | |
| Compression | H.264 / H.265 | |
| Network Interface | RJ45 – 1000Mbps | |
| Network Cameras | 8 IP Cameras Max | 16 IP Cameras Max |
| Output Resolution | HDMI – 4K (Max) / VGA – 1080p (Max) | HDMI – 4K (Max) / VGA – 1080p (Max) |
| Recording Bandwidth | 128Mbps | 256Mbps |
| Recording Resolutions | 4K / 5MP / 3MP / 2MP (1080p) / 1.3MP (960p) / 1MP (720p) | |
| Max Drives Capacity | 10TB* (1x 10TB) | 40TB* (4x 10TB) |
| eSATA | Up To 40TB | Up To 40TB |
| Alarms | 8 in 1 out (Hardwired) | 16 in 1 out (Hardwired) |
| Power | 4 Pin Socket (48V – 2A) | 240V AC |
| Dimensions | (H) 53 x (W) 300 x (D) 227mm | (H) 70 x (W) 380 x (D) 340mm |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment refered to.
This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery and recycling please return to your local designate WEE/CG0783SS collection point as defined by your local council.
ZipNVR.com
© 2023 System Q Ltd
Document ref: ZIP408, ZIP416
