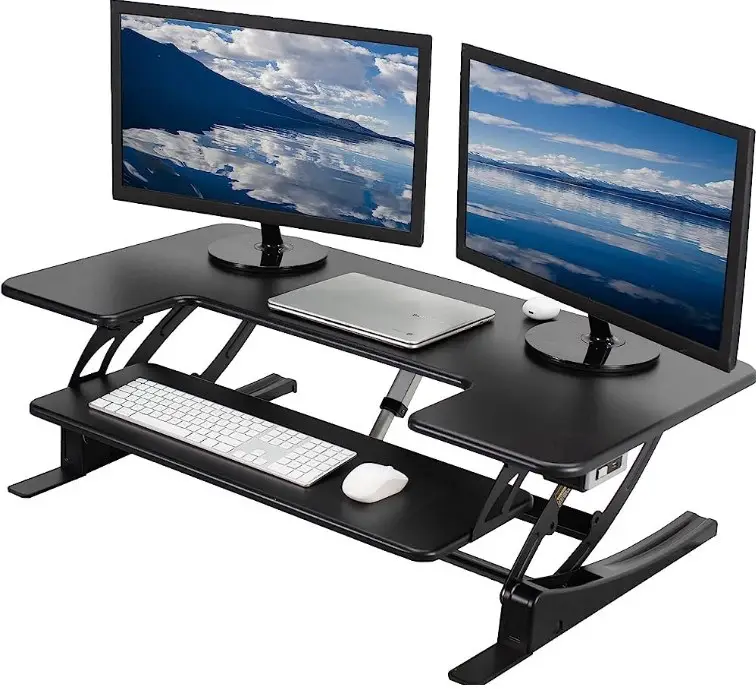

V I V O DESK-V000VLE Black Electric Desk Riser Instruction Manual

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this productfor any purpose that is not explicitly specified in this manual and do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.

WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ELECTRICAL SAFETY INSTRUCTIONS
THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY

DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED.
DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED.
NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR SELLER TO REPLACE DAMAGED PARTS.
NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE MADE CONTACT WITH LIQUIDS.
ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED.
OUTDOOR USE IS PROHIBITED.

Contents hide

1 PACKAGE CONTENTS

2 ASSEMBLY STEPS

3 Documents / Resources

3.1 References

4 Related Posts

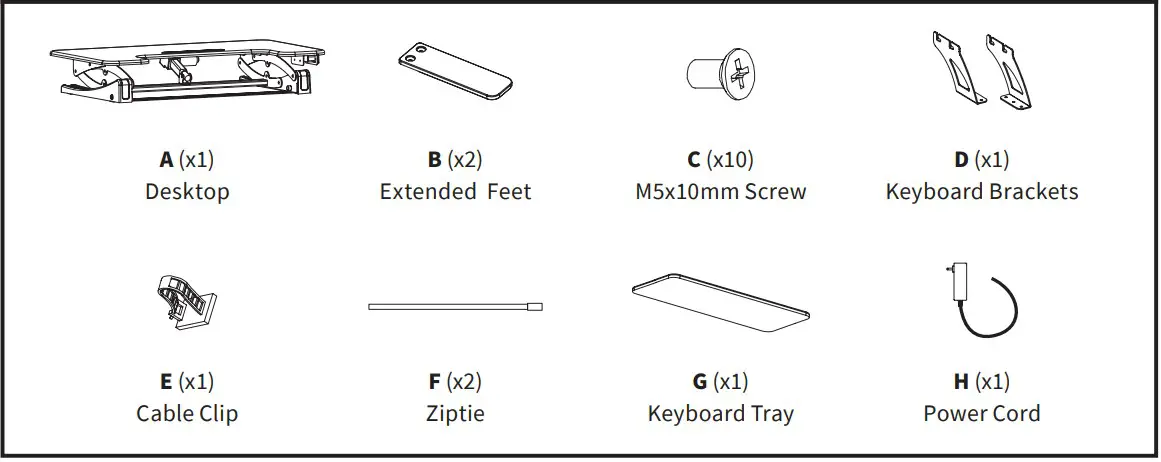

PACKAGE CONTENTS

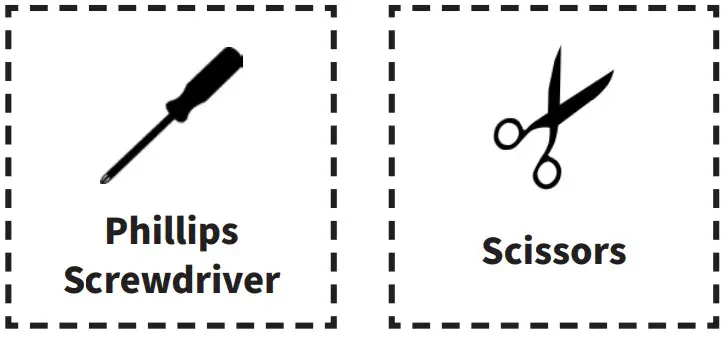

TOOLS NEEDED

DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.

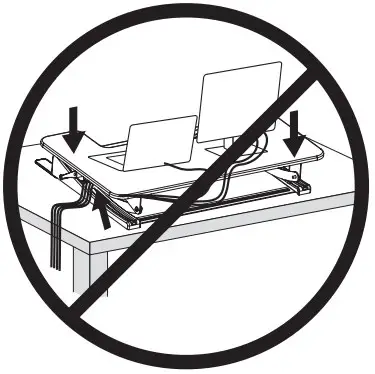

WARNING
PINCH POINT
DO NOT place hands on or near support bars. Moving parts can crush and cut. Pinch points are created during lifting and lowering the worksurface. Failure to follow these instructions may result in serious personal injury.

ASSEMBLY STEPS

STEP 1

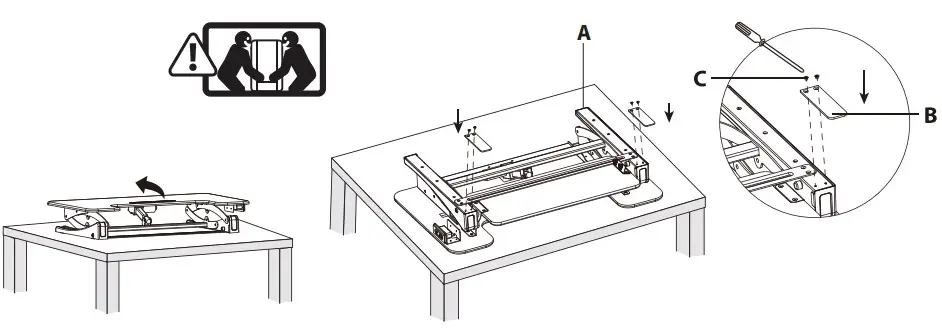

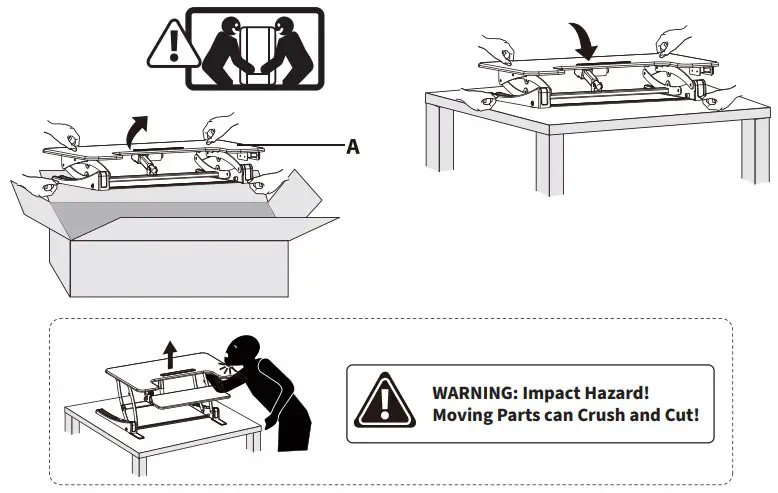

Carefully remove Desktop (A) from the packaging.

STEP 2
Flip Desktop (A) upside down, then attach Extended Feet (B) to the frame using M5x10mm Screws (C).

STEP 3

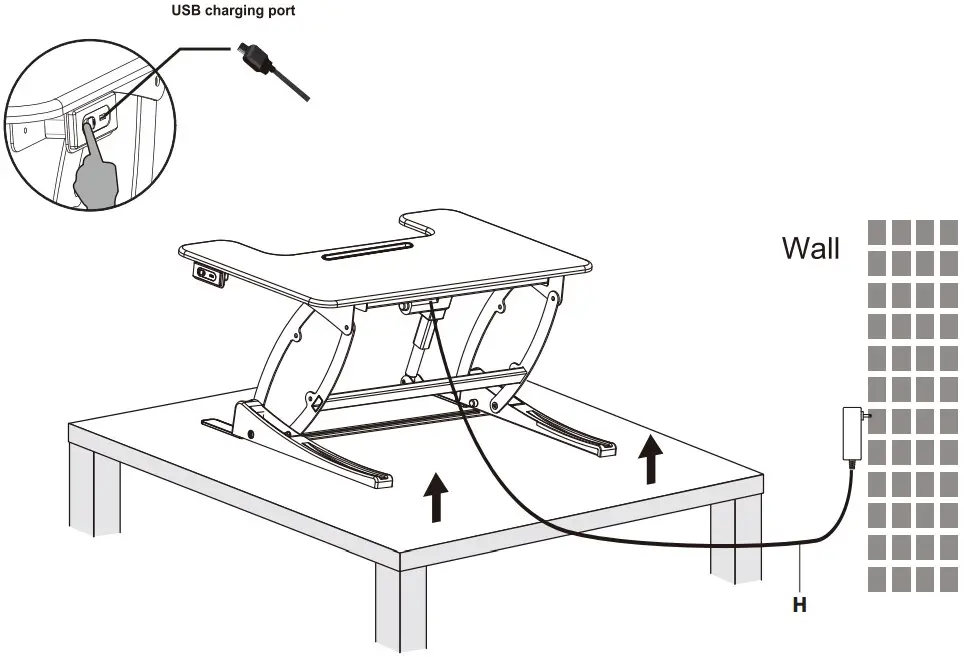

Install Power Cord (H). Plug the cord into the wall and press the switch on the right side to raise the desktop

STEP 4

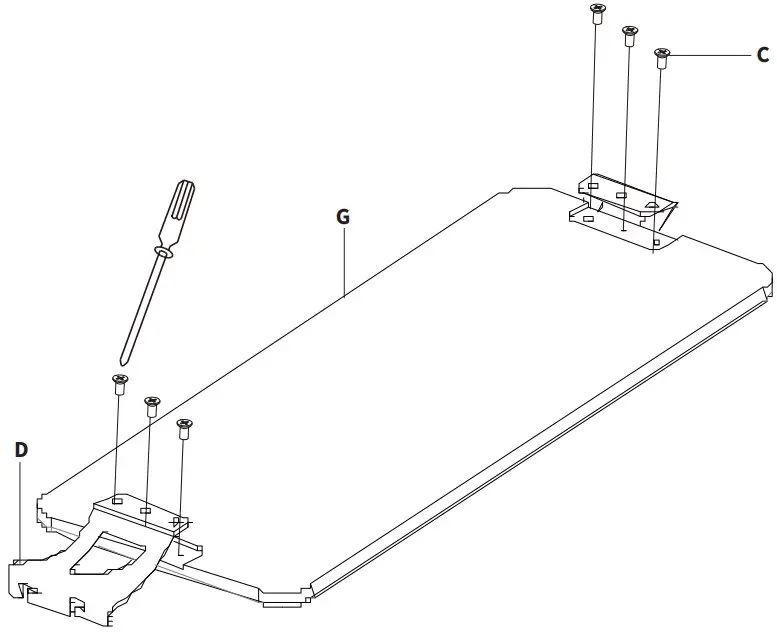

Mount Keyboard Brackets (D) to Keyboard Tray (G) using M5x10mm screws (C) and a Phillips screwdriver.

STEP 5

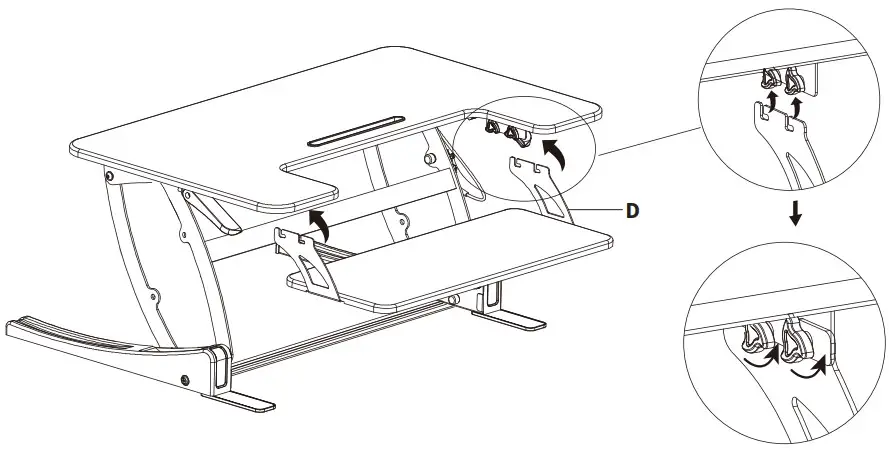

Hang assembled keyboard tray onto pre-installed knobs, and tighten knobs to secure.

NOTE: Make sure Keyboard Brackets (D) are curving towards the user, not towards the
inside of the desk.

STEP 6

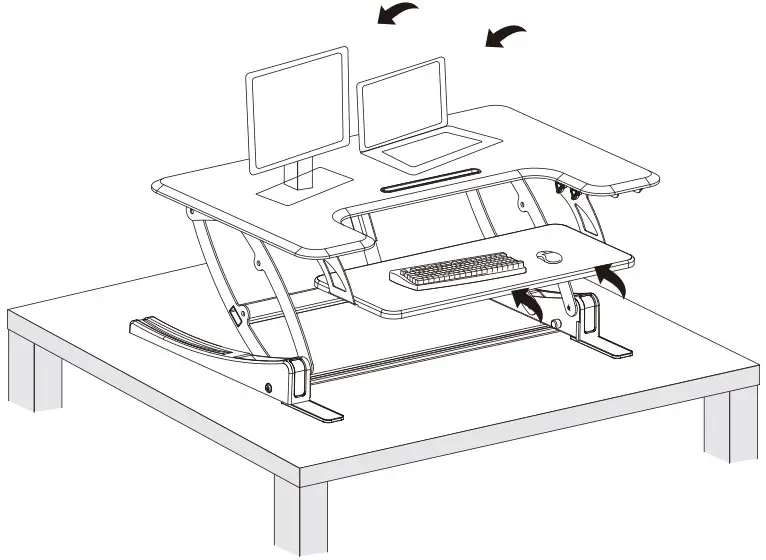

Place monitor, laptop and other items on desk surface.

STEP 7

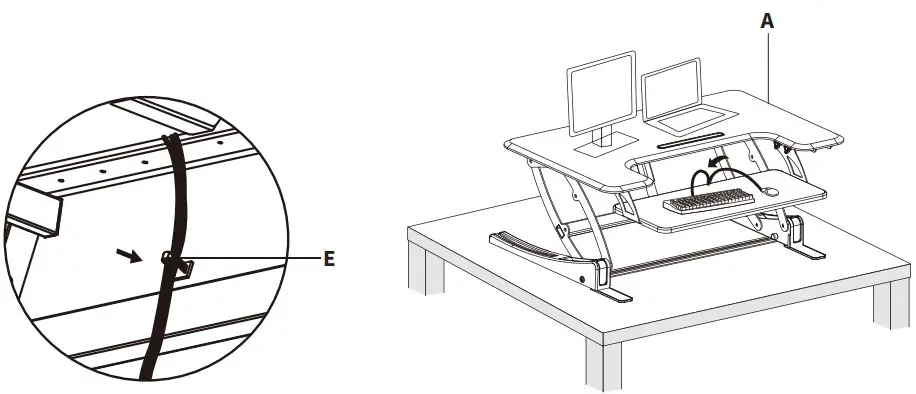

Attach Cable Clip (E) to the underside of Desktop (A) to manage cables.

STEP 8

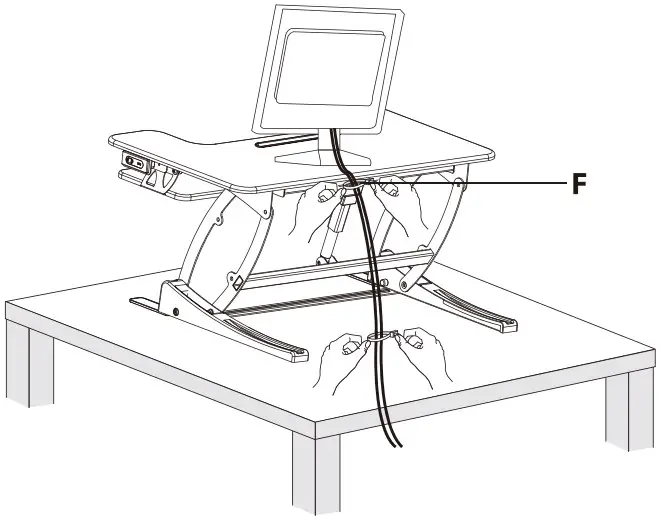

Manage cables using Zip Ties (F).

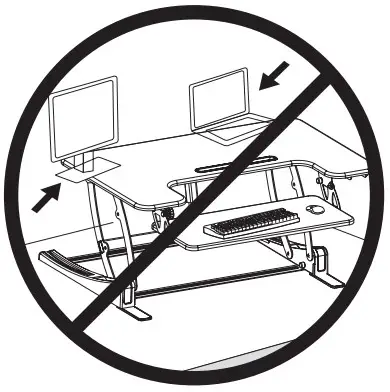

CAUTION!

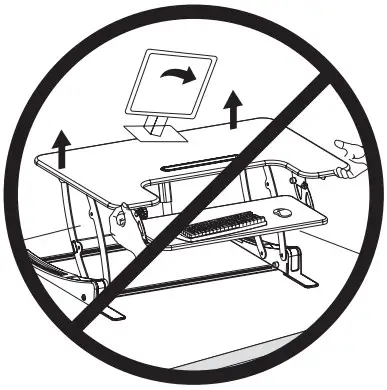

Keep monitor and laptop base fully on the desktop.

Follow the cable routing instructions to avoid the potential to pinch cables.

Leave enough slack in cable to allow for full range of vertical motion (15″ / 38 cm).

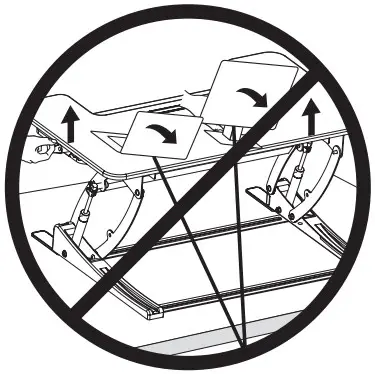

Raise desktop slowly to keep items stable.

Failure to follow these instructions may result in property damage and/or personal injury.

Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us

Open Monday – Friday 7:00am – 7:00pm CST,
our dedicated support team can offer immediate assistance with rapid response times. If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.

309-278-5303 AVG. RESOLUTION TIME (within office hrs): 5M 4S
