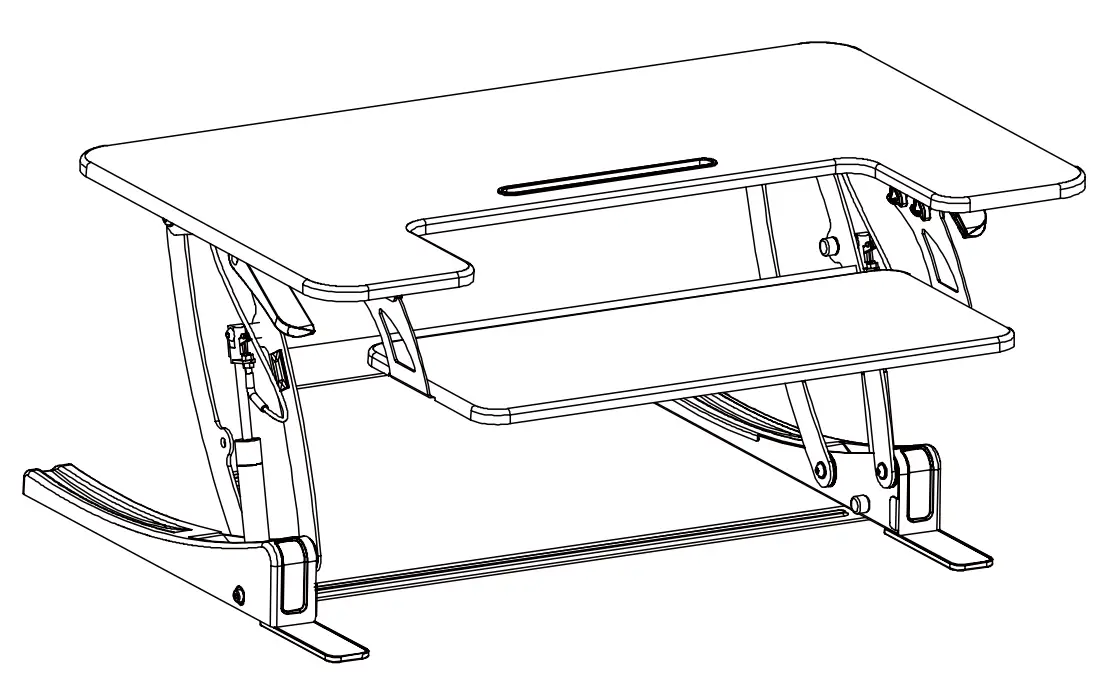

VIVO DESK-V000VL-D-N-O-W Desk Riser
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
PACKAGE CONTENTS

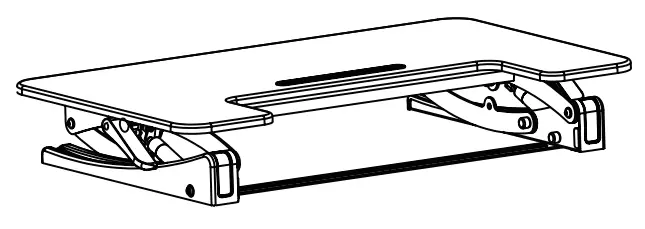

- A (x1) Desk Riser

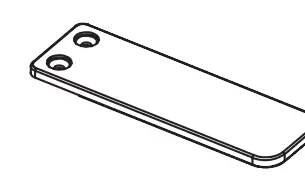

- B (x2) Foot Extension
- C (x1) Keyboard Brackets

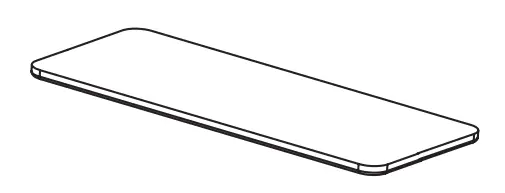

- D (x1) Keyboard Tray
- S-A (x10) M5x10
- S-B (x1) Cable Clip
- S-C (x2) Ziptie
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury
TOOLS NEEDED
ASSEMBLY STEPS

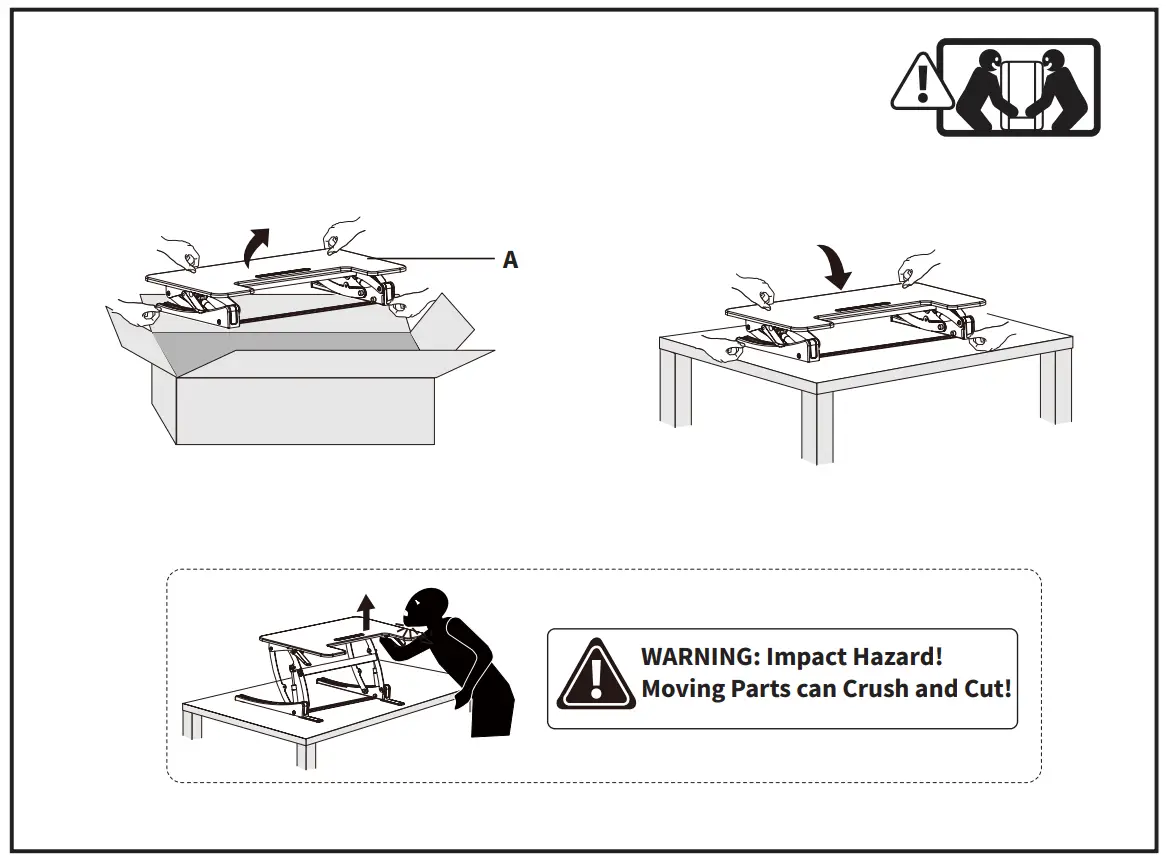

STEP 1
Carefully remove the Desk Riser (A) from the packaging.

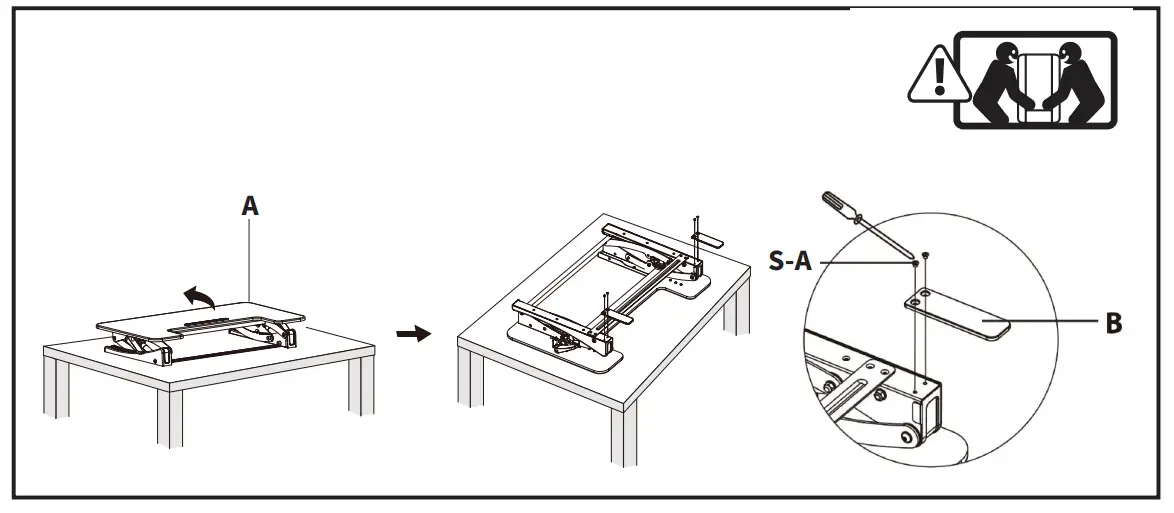

STEP 2
Flip Desk Riser (A) upside down, then attach Feet Extensions (B) to the frame using M5x10mm Screws (S-A).
STEP 3

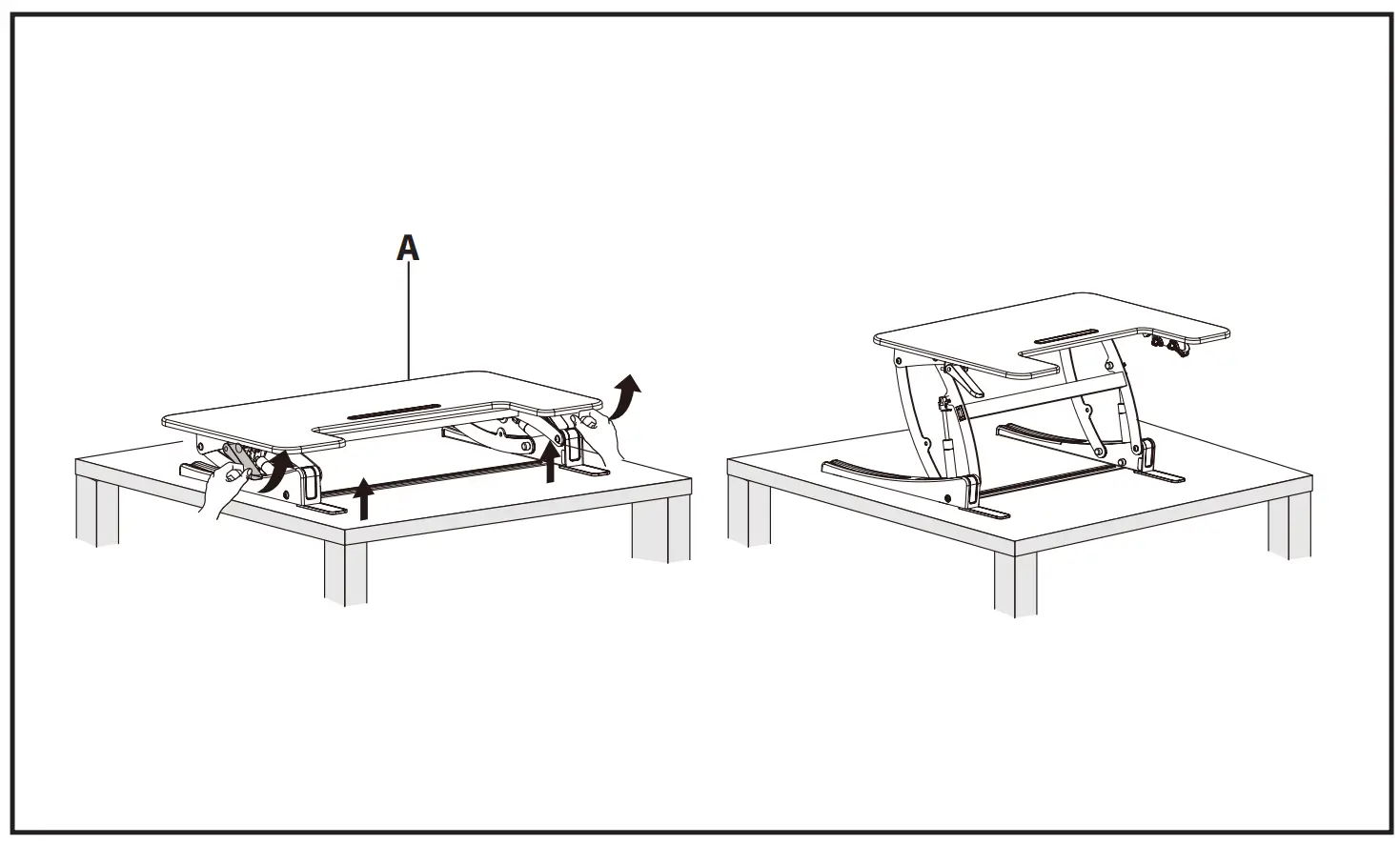

Press the handles on each side and lift Desk Riser (A).
STEP 4

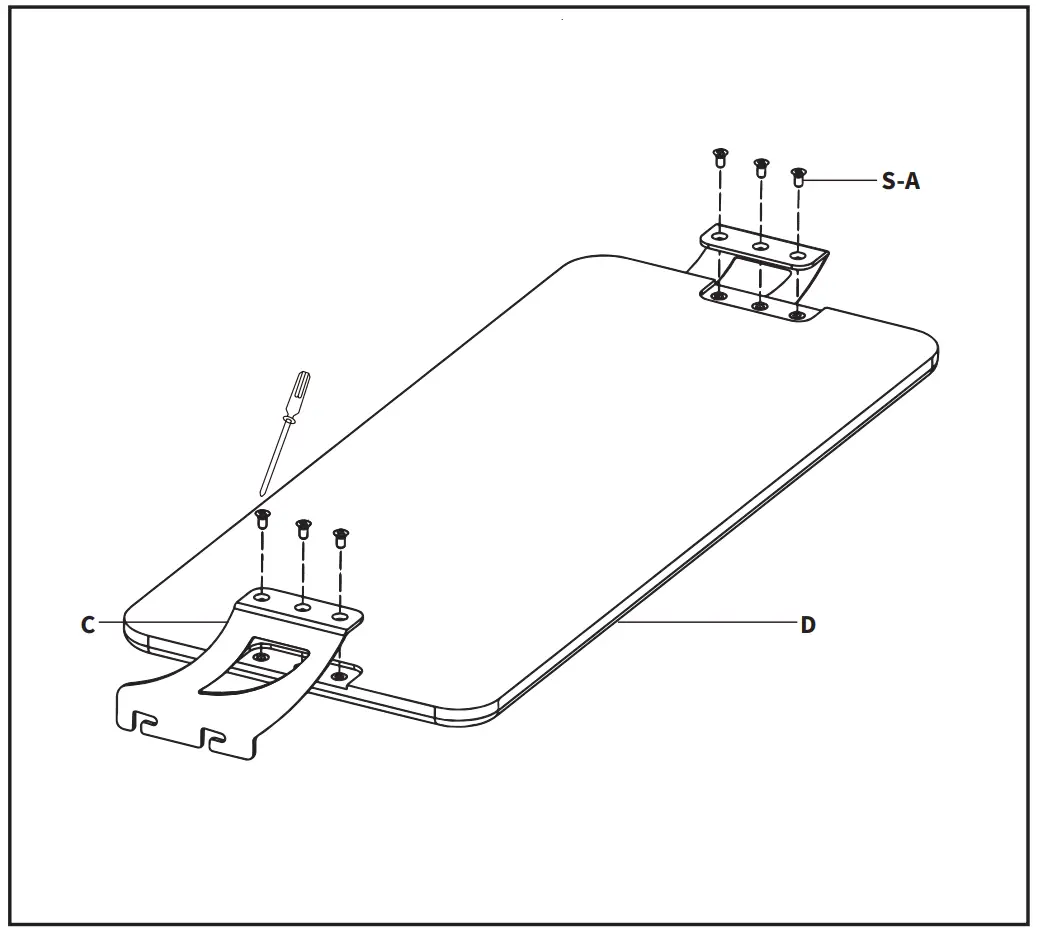

Mount Keyboard Brackets (C) to Keyboard Tray (D) using M5x10mm screws (S-A).

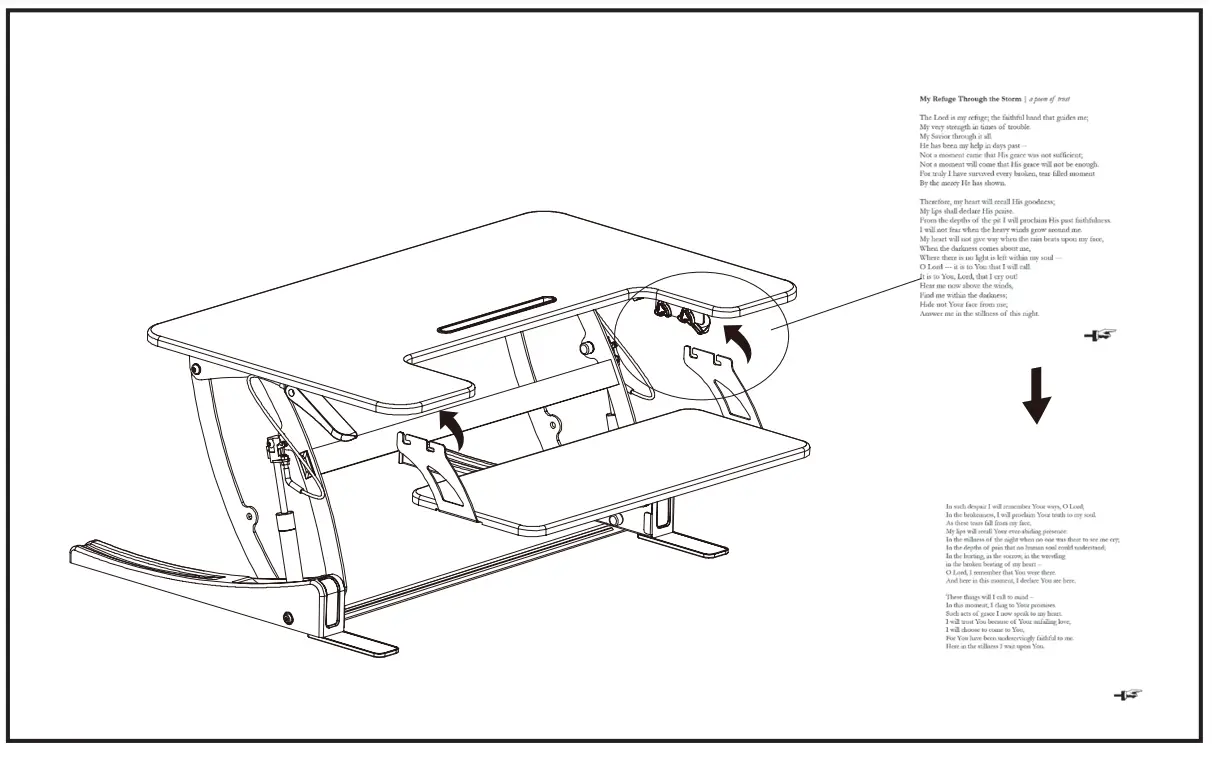

STEP 5
Hang assembled keyboard tray onto pre-installed knobs, and tighten knobs to secure.
NOTE: Make sure the keyboard brackets are curving towards the user, not towards the inside of the desk.
STEP 6

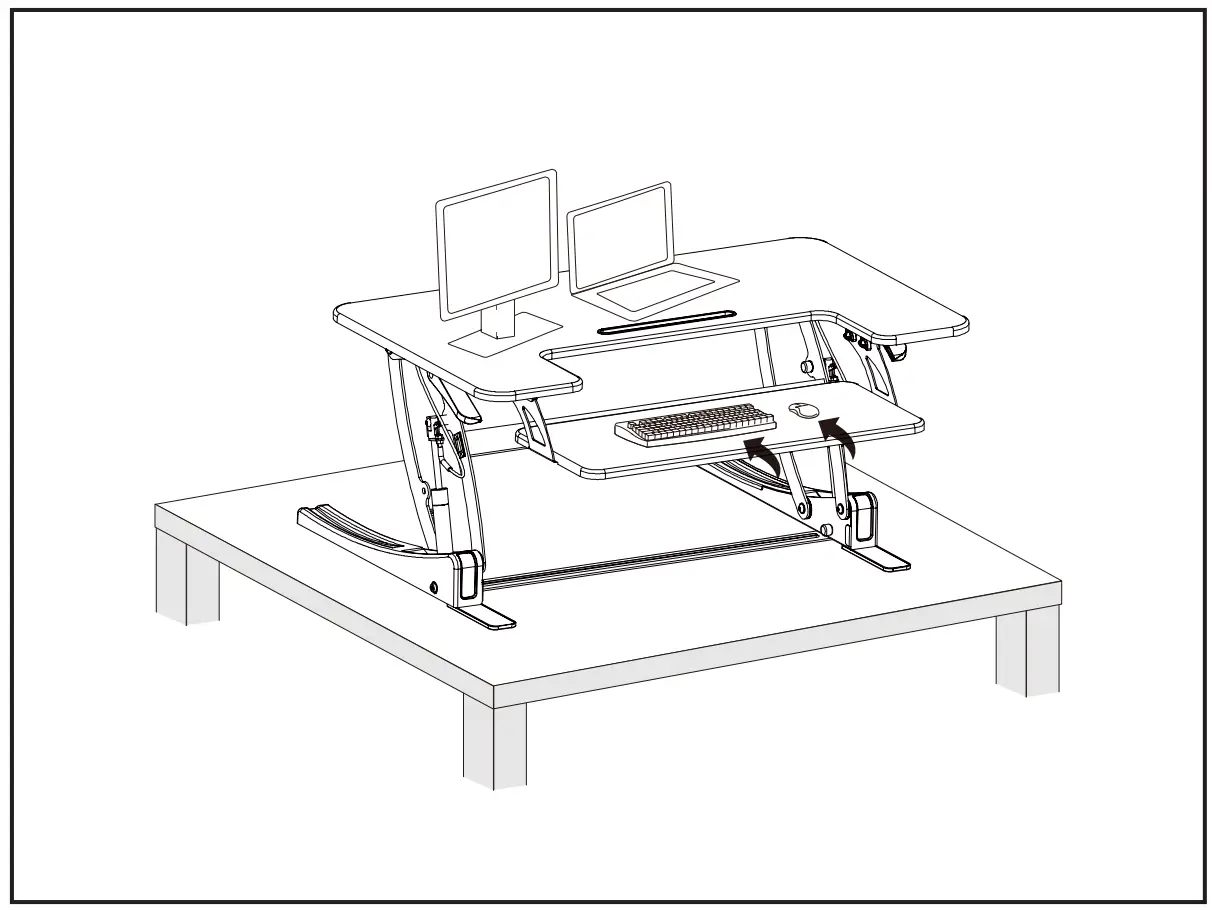

Place monitor, laptop and other items on desk surface.

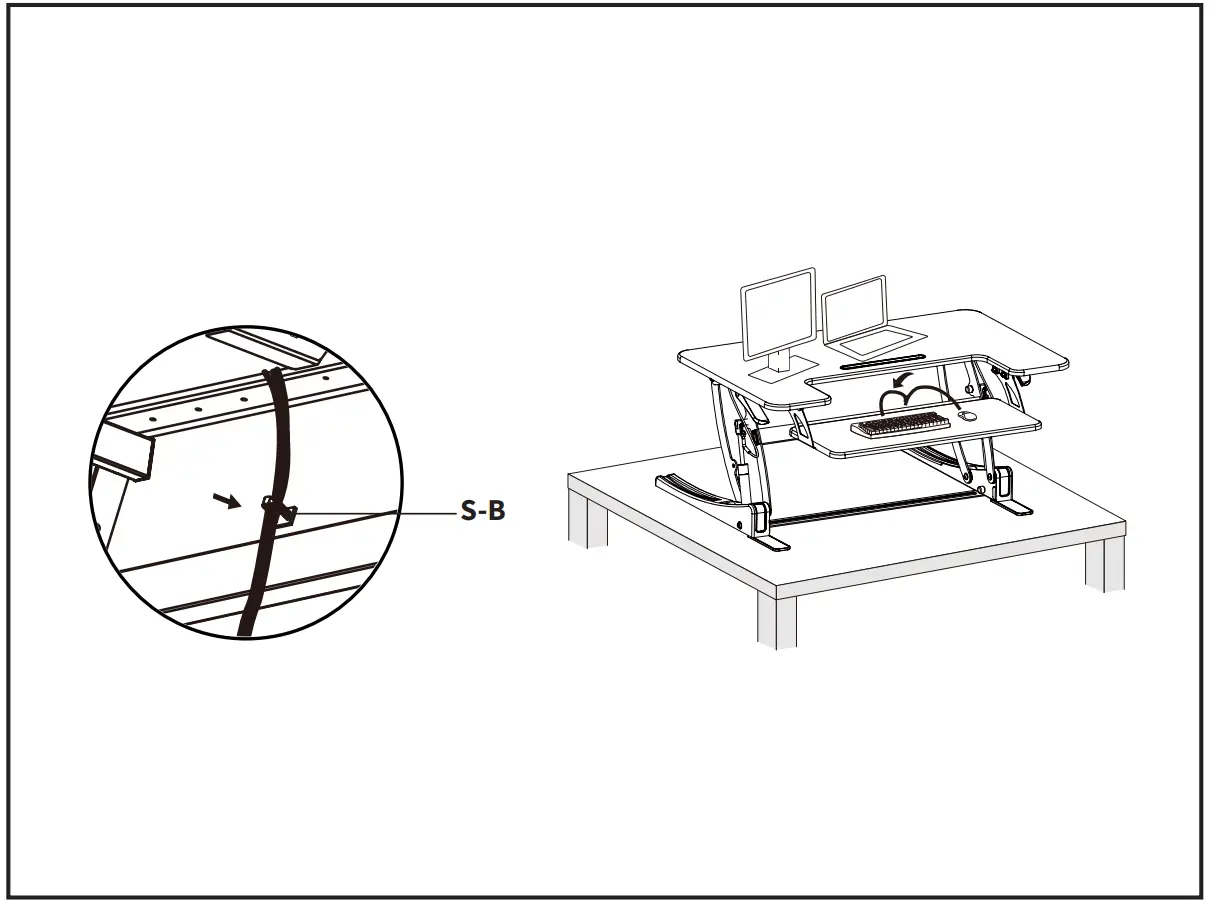

STEP 7
Attach Cable Clip (S-B) to desk to manage keyboard and mouse cables.

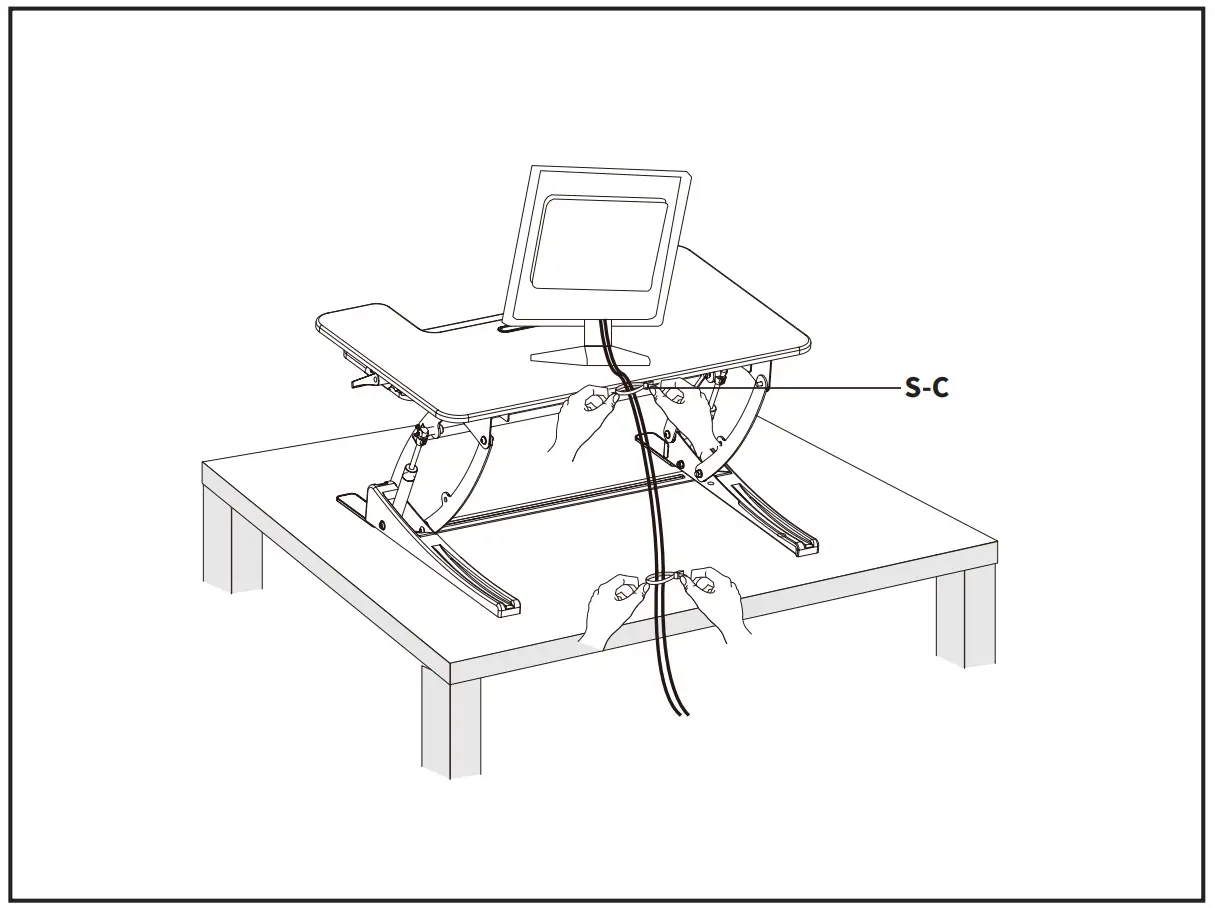

STEP 8
Manage cables using Zip Ties (S-C).

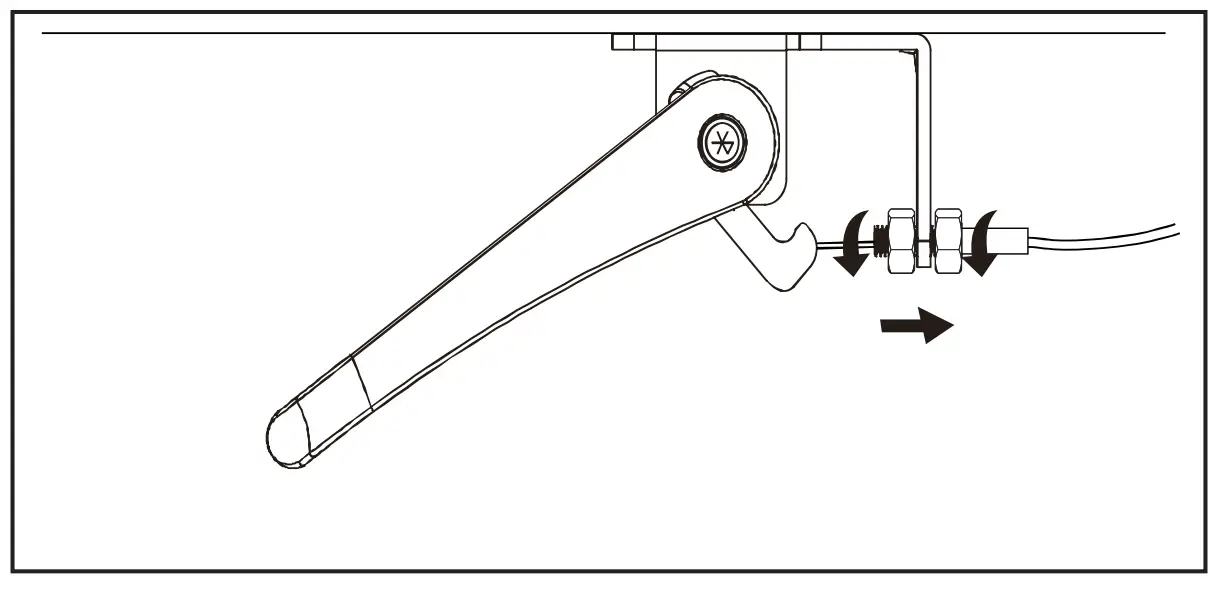

STEP 9
If locks are not releasing properly to change desk height, adjust the position of the black tube containing the steel release cable. Turn the nuts at the end of the tube just behind the handle as shown, moving the tube away from the handle until the cable once again has proper tension, then tighten the nuts.

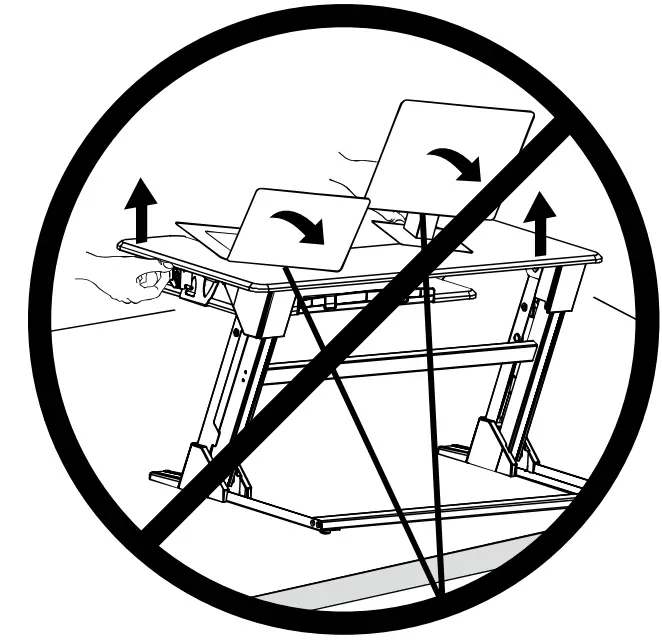

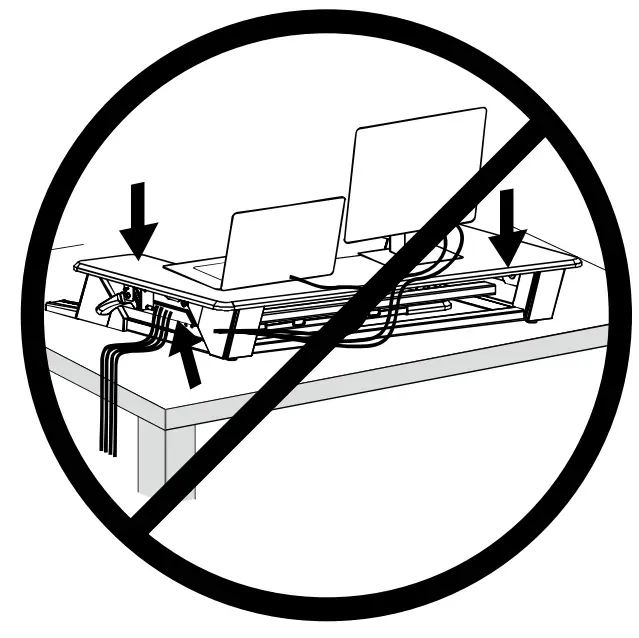

CAUTION!

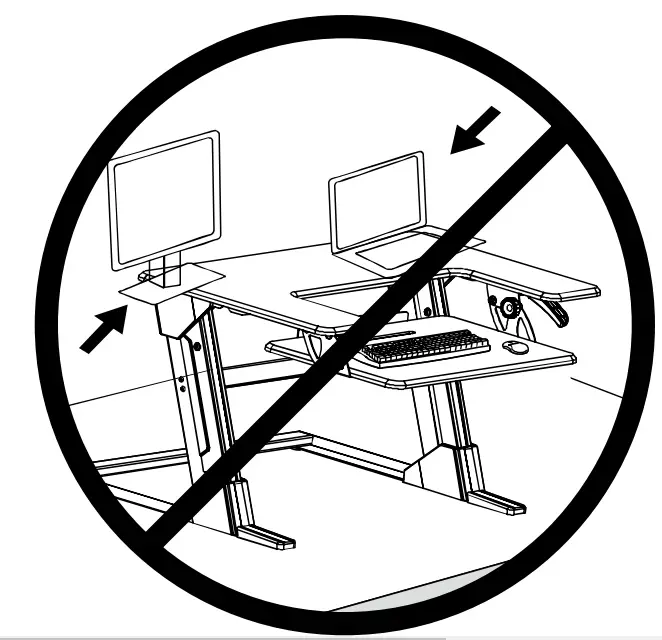

- Keep monitor and laptop base fully on the desktop.
- Follow the cable routing instructions to avoid the potential to pinch cables.
- Leave enough slack in cable to allow for full range of vertical motion (15″ / 38 cm)

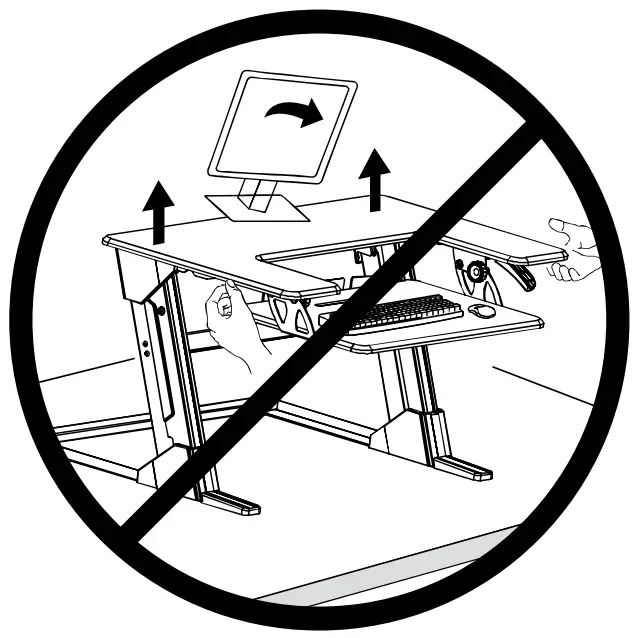

- Raise desktop slowly to keep items stable.
Failure to follow these instructions may result in property damage and/or personal injury.
