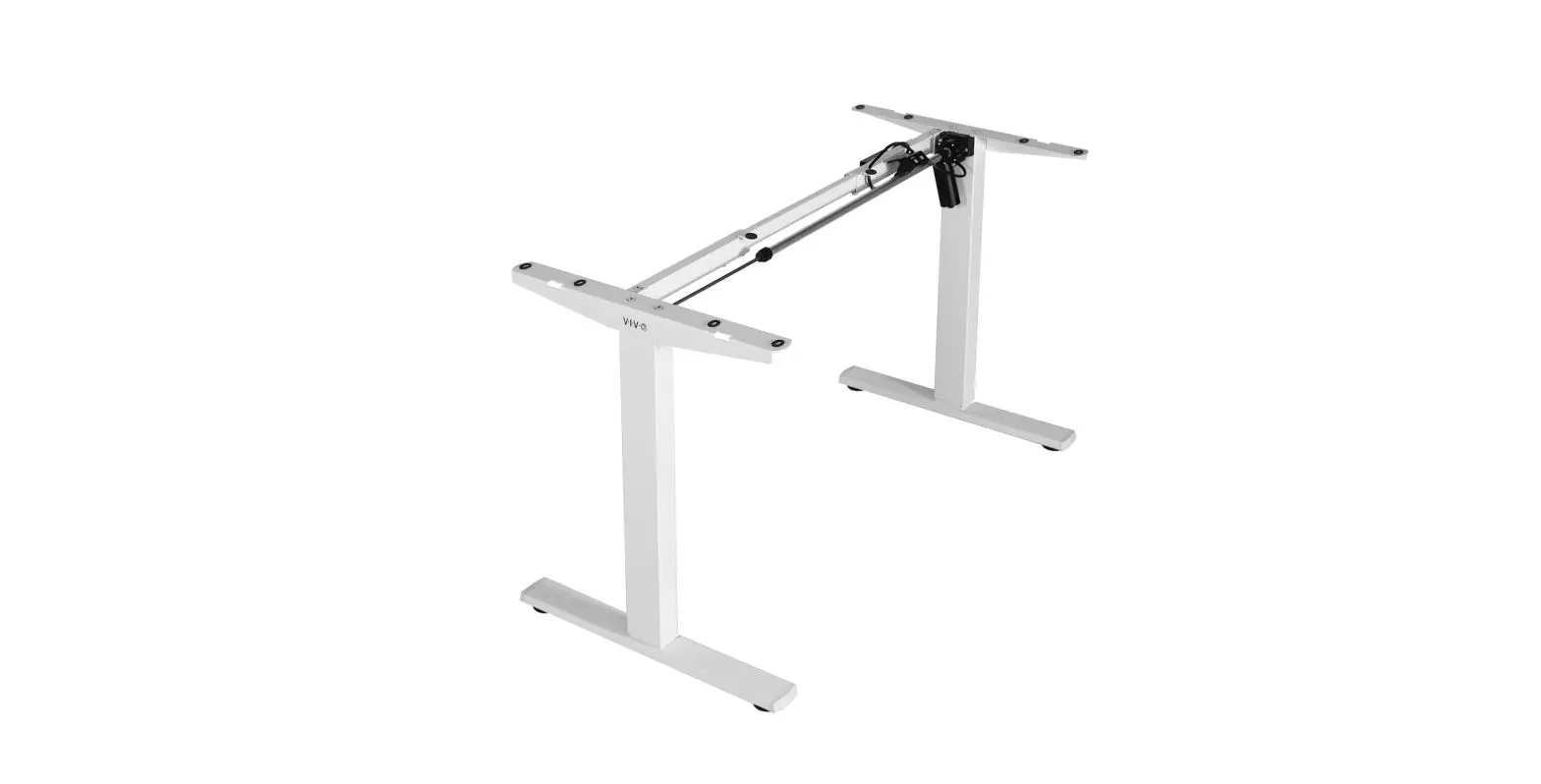

1 DESK-V100EB Electric Stand Up Desk Frame Workstation

DESK-V100EB Electric Stand Up Desk Frame Workstation

Product Information

The Black Electric Single Motor Desk Frame with SKU DESK-V100EB
is a motorized desk frame designed for single users. The desk frame
comes with a crossbar, two side brackets, a leg, a motorized leg, a
tray, a sync rod, two feet, a controller, an AC adapter, four power
cables, two hooks, and various screws and cable clips. The desk
frame has a weight capacity of 176lbs (80kg).

Product Usage Instructions

Before assembling the desk frame, check to make sure all parts
are present and not damaged. If there are any issues, contact
customer support.
Use a Phillips screwdriver and drill to assemble the desk
frame.
Follow the instructional video or manual to assemble the desk
frame step-by-step.
Start by mounting the crossbar (A) to the leg (B) and motorized
leg (C) using M8x50 screws (S-A) and a 5mm Allen wrench (T-A).
Install the feet (D) onto the leg and motorized leg.
Attach the side brackets (E) to the leg and motorized leg using
M8x12 screws (S-B) and a Phillips screwdriver.
Attach the tray (F) to the crossbar using ST4.2×16 screws (S-D)
and a Phillips screwdriver.
Connect the sync rod (G) to the motorized leg and controller
(H).
Attach the hooks (K) to the cable clips (S-E) and power cables
(J).
Connect the power cables to the controller and AC adapter
(I).
Plug in the AC adapter and use the controller to adjust the
height of the desk frame.

If there are any issues during assembly or usage, contact
customer support for assistance. Do not exceed the weight capacity
of the desk frame to avoid serious injury. The desk frame also
contains small parts that may pose a choking hazard and should be
kept away from children under 3 years old.

View Fullscreen

Black Electric Single Motor Desk Frame SKU: DESK-V100EB
Instruction Manual
ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-v100eb [email protected] 309-278-5303 www.vivo-us.com

PERSONABLE CUSTOMER SUPPORT
7AM – 7PM
Monday-Friday

Give us a Call: 309-278-5303

Chat Us: www.vivo-us.com

Email Us: [email protected]

We’re Here for You!
Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST.
We offer immediate assistance with rapid response times from customer service agents and product techncians to
help you every step of the way!

Missing a Part?
If any parts are received damaged / defective OR you are missing a part, please reach out to us within 30 days of
product delievery to have it replaced at no cost. We are happy to replace parts to ensure you have a fully
functioning product

PRE-ASSEMBLY | BEFORE YOU BEGIN

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a qualified

technician. Check carefully to make sure there are no missing

or defective parts. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We

cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

WARNING: CHOKING HAZARD
SMALL PARTS – NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS
REQUIRED.

ELECTRICAL WARNING :
THIS PRODUCT IS POWERED BY ELECTRICITY. IN ORDER TO AVOID BURNS, FIRE AND ELECTRIC SHOCK, PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY. · DO NOT CLEAN PRODUCT WHILE POWER IS CONNECTED. · DO NOT DISASSEMBLE OR REPLACE COMPONENTS WHILE POWER IS CONNECTED. · NEVER OPERATE THE SYSTEM WITH A DAMAGED CORD OR PLUG. PLEASE CONTACT YOUR
SELLER TO REPLACE DAMAGED PARTS. · NEVER OPERATE SYSTEM IN DAMP ENVIRONMENTS OR IF ANY ELECTRICAL COMPONENTS HAVE
MADE CONTACT WITH LIQUIDS. · ALTERATIONS OF THE GIVEN POWER UNIT ARE NOT ALLOWED. · OUTDOOR USE IS PROHIBITED.

WEIGHT CAPACITY
DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury.

176lbs (80kg)

Product Warranty For the most up to date details on your product’s warranty, please visit the product’s listing on our website or reach out to customer support. vivo-us.com/products/desk-v100eb
Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or [email protected]. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense.

TOOLS NEEDED: |

Phillips Screwdriver

Drill

DIFFICULTY LEVEL

PACKAGE CONTENTS
Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us.

A (x1) Crossbar
E (x2) Side Bracket

B (x1) Leg
F (x1) Tray

C (x1) Motorized
Leg
G (x1) Sync Rod

D (x2) Foot
H (x1) Controller

I (x1) AC Adapter

J(x4) Power Cable

K (x2) Hook

S-A (x4) M8x50 Screw
S-E (x5) Cable Clip

S-B (x4) M8x12

S-C (x8) M6x35

S-D (x12) ST4.2×16 Screw

T-A (x1) 5mm Allen
Wrench

T-B (x1) Wrench

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

ASSEMBLY STEPS
STEP 1: Mount Crossbar
Loosen screws on Crossbar (A) using 5mm Allen Wrench (T-A), extend, and then re-tighten screws. Mount Crossbar (A) to Leg (B) and Motorized Leg (C) using M8x50 Screws (S-A) and 5mm Allen Wrench (T-A).
T-A S-A

A C B

A (x1) Crossbar

B (x1) Leg

STEP 2: Install Feet

C (x1) Motorized Leg

S-A (x4) M8x50 Screw

T-A (x1) 5mm Allen Wrench

Place Feet (D) on Leg (B) and Motorized Leg (C). Secure using M6x35 Screws (S-C) and 5mm Allen Wrench (T-A).
T-A

D S-C

D (x2) Foot

S-C (x8) M6x35

T-A (x1) 5mm Allen Wrench

STEP 3: Install Side Brackets
Assemble Side Brackets (E) to Leg (B) and Motorized Leg (C) using M8x12 Screws (S-B) and 5mm Allen Wrench (T-A).
E A

T-A

S-B

E (x2) Side Bracket

S-B (x4) M8x12

STEP 4: Fit Desktop

Place frame assembly upside down on the desktop. Slide Tray (F) under Crossbar

T-A

(A). Loosen the screws on Crossbar (A) using 5mm Allen Wrench (T-A). Extend

frame to fit the desktop, and then re-tighten screws.

F (x1) Tray
6

T-A (x1) 5mm Allen Wrench

STEP 5: Attach Frame to Desktop
Secure frame assembly to the desktop with ST4.2×16 Screws (S-D) and a Phillips screwdriver.
S-D

S-D (x12) ST4.2×16 Screw

STEP 6: Install Sync Rod

Loosen the knobs on Sync Rod (G). Insert the hex shaft into Leg (B) until it reaches the notch. While holding

the hex shaft, extend Sync Rod (G) onto the hex shaft of Motorized Leg (C) until it reaches the retainer.

Re-tighten the knobs.

NOTE: Hand tightening is recommended for the knobs on Sync Rod (G), but Wrench (T-B) has been

provided if needed.

Retainer

G (x1) Sync Rod

T-B (x1) Wrench

B Notch
7

STEP 7: Install Monitors
Mount Controller (H) to the desktop using ST4.2×16 Screws (S-D) and a Phillips screwdriver. Connect cables from Motorized Leg (C) and AC Adapter (I) to Controller (H). Connect Power Cable (J) to AC Adapter (I).
S-D H
C

I H

I J

H (x1) Controller

I (x1) AC Adapter

J(x4) Power Cable

STEP 8: Adjust Height
Manage cables using Cable Management Clips (S-E). Insert Hooks (K) into Side Brackets (E).
S-E

J(x4) Power Cable

S-E (x5) Cable Clip

STEP 9: Controller

Plug Power Cable (J) into an AC outlet. Follow the reset process to initialize the desk (pg 10). The desk is now ready for use.

J(x4) Power Cable
9

TROUBLESHOOTING
DESCRIPTION No response while pressing button
The desktop cannot be lifted
Duty cycle exceeded (max. 2min operating)

RESOLUTION
Check to make sure all cables are fully connected. If cables are good, perform reset.
Make sure the desktop and other items do not exceed the weight limit (154lbs).
Allow desk to rest for 30 minutes.

Reset Process
· Press and hold the up and down arrows until the red light between buttons turns on. · Press and hold the down arrow. The desk will lower to the lowest point and then raise to the
home position. Continue to hold the down arrow until the desk stops moving and the red light turns off.
