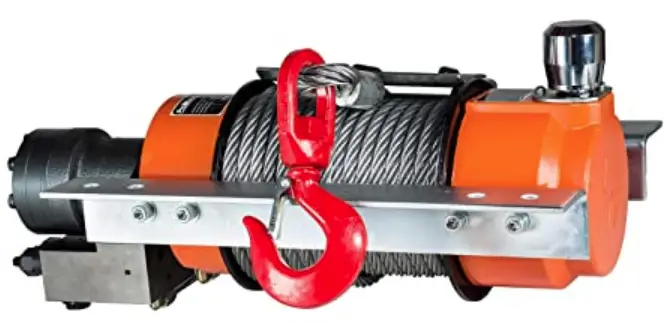

ProWINCH PWYH18000 9 Ton Hydraulic Winch
Key features
- Powerful 18,000-lb. rated line pull
- Equipped with a dependable disk brake
- Impressive IP67 Rating
- Features a 2 – stage planetary gear train system, with a 17.3:1 gear ratio
- 3 Year Warranty, Service and Parts Available in Stock in USA and Latin America
Technical Specifications
| Wire rope capacity per layer first/last | 18,000 / 8,000 | 1st Layer Load Capacity | 18000 lb / 8165 kg |
| Speed /min | 23-37ft / 7-11.2m | Number of Speeds | Variable Speed |
| Motor/Engine Type | Hydraulic | Oil Pressure | 2538 psi |
| Oil Flow | 20 gal/min | Protection IEC 60529 | IP67 |
| Transmission / Reducer Type | 2 Stages Planetary / 2 Etapas Planetario | Gear Ratio | 17.3:1 |
| Motor Brake | Disk Brake | Free Spooling Clutch Type | Manual |
| Wire Rope NOT Included | ø9/16 in x98 ft | ø14 mm x 30 m | Standards | SAE-J706 |
| Warranty | 3 Year |
PWYH18000
NOTE:
- Recommended oil flow supply range is 35-75 l/min.
- Dual balance valves as standard, winch must be used in Independent oil supply system which with relief valve.
- The relief valve can be selected from the valve block selection table as optional.
WARNING:
- The winch will never be used for hoisting people or hoisting objects above people.
- Do not use clutch under load.
- Do not equip winch into oil supply system without a relief valve.

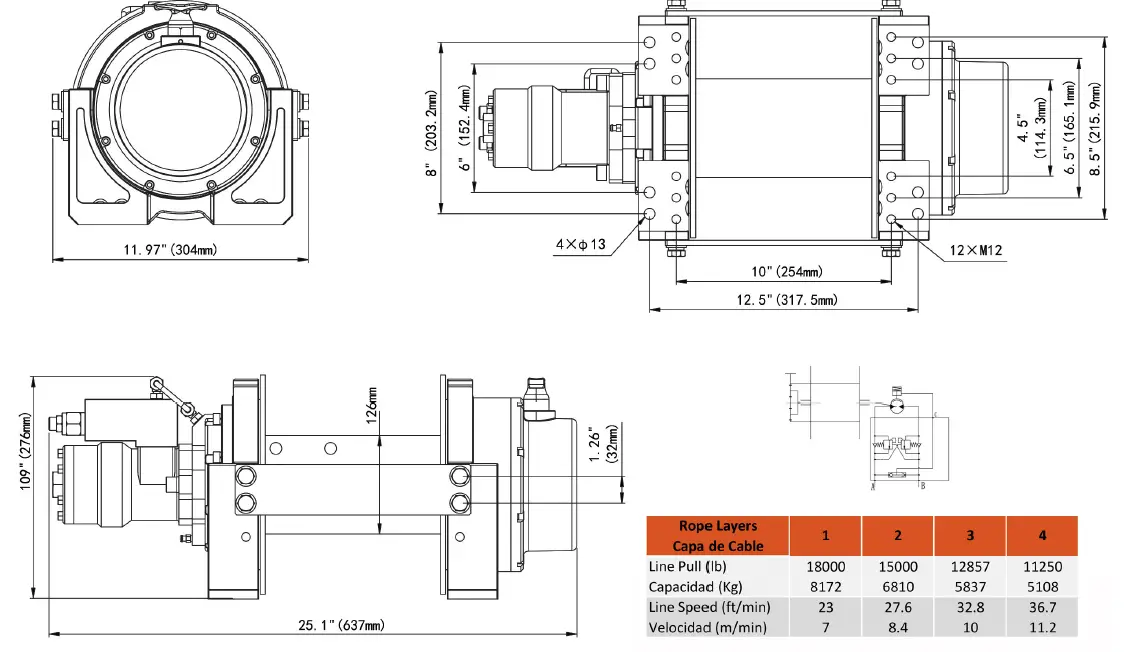

tight & Dimensions
- A Total Height of 10.9 in
- D Depth 12 i
- w Width 25 in
- Total Weigh 155 Ibs/ 70 Kg
Packaging Details
- NW1 Net Weight 155 lbs/70 Kg
- GW1 Gross Weig 168 Ibs/ 76 Kg
- PH1 Packaging Heigh 17 in / 41 cm
- PW1 Packaging Width 19 in / 47 cm
- PDI Packaging Depth 33 in /83 cm
