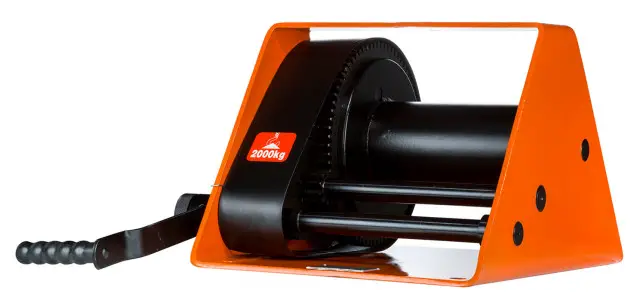

PWUG2000 2 Ton Manual Winch Automatic Brake
User Manual
Key features
- 3 Year Warranty, Service, and Parts Available in Stock in the USA and Latin America
Technical Specifications
| 1st Layer Load Capacity | 4409 lb / 2000 kg |
| Gear Ratio | 43.7:1 |
| Dynamic Brake | NOT IN DATASHEET |
| Standards | ASMEB30.7 |
| Duty Class | H1/M2/1Cm/Class A |
| Drum Brake | Automatic |
| Wire Rope NOT Included | ø9/16 in x98 ft | ø13mm x 30 m |
| Warranty | 3 Year |

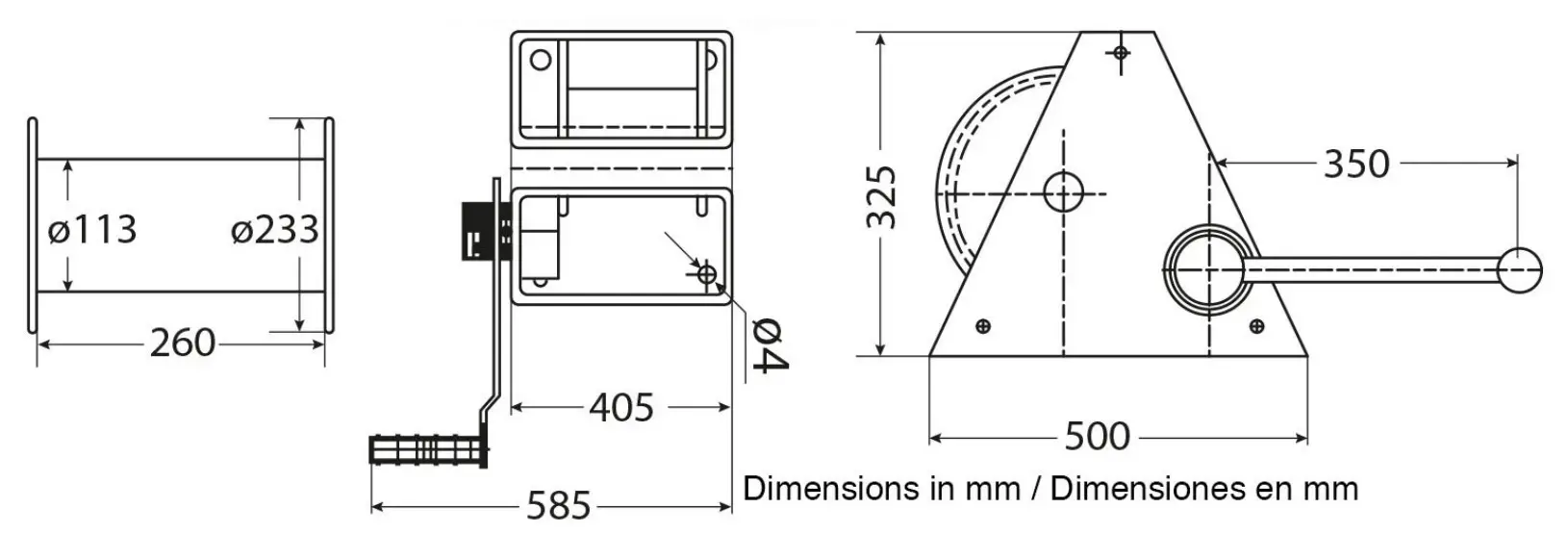

Weight & Dimensions
| Total Weight | 148 lbs / 66.8 Kg |
Packaging Details
| NW1 Net Weight | 148 lbs / 66.80 Kg |
| GW1 Gross Weight | 148 lbs / 67 Kg |
| PH1 Packaging Height | 15 in / 38 cm |
| PW1 Packaging Width | 21 in / 52 cm |
| PD1 Packaging Depth | 21 in / 52 cm |
