YAMAHA YW50AP Rear Wheel and Rear Brake
REAR WHEEL
PARTS NAME

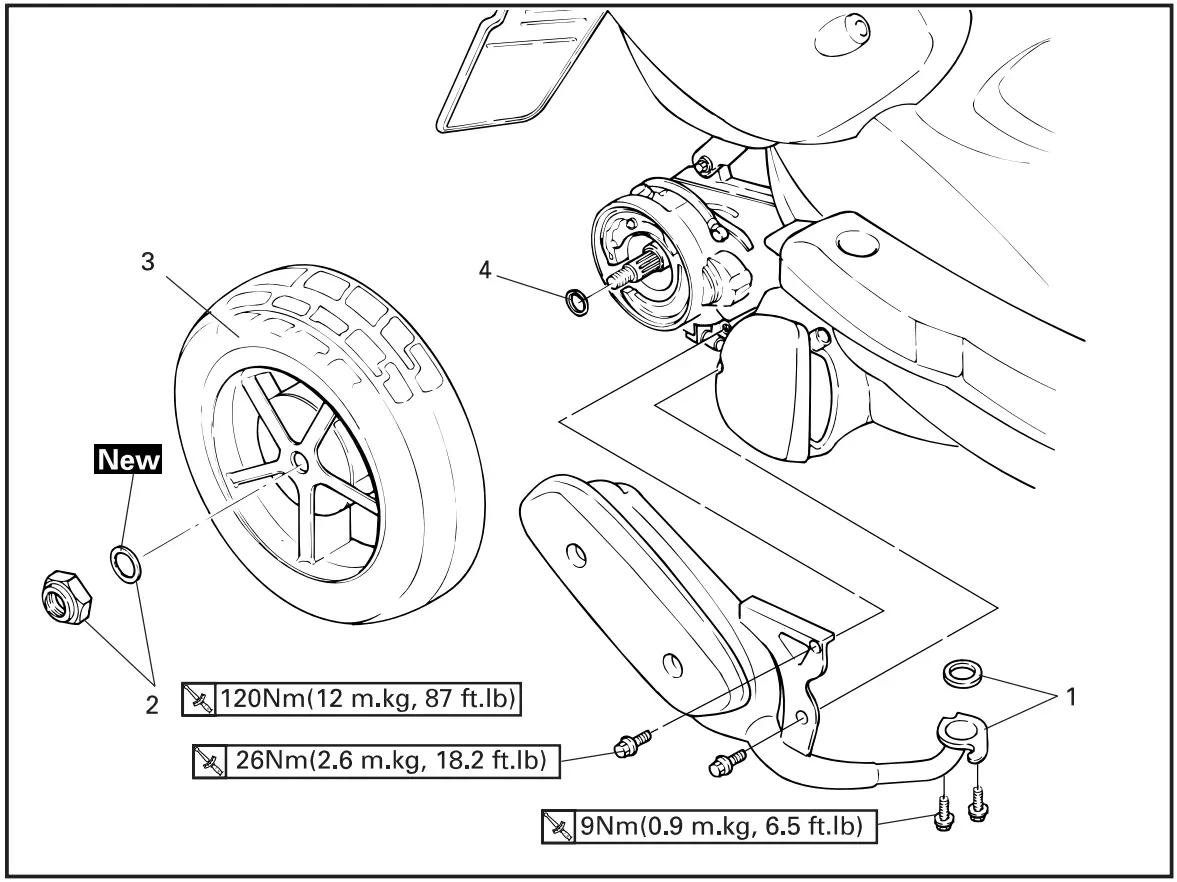

Order | Job name/Part name | Q’ty |
Rear wheel and rear brake removal | ||
1 | Muffler assembly/Gasket | 1/1 |
| 2 | Nut/Plain washer | 1 |
3 | Rear wheel assembly | 1 |
| 4 | Plain washer | 1 |
Remarks
Remove the parts in order.
NOTE:
Place the scooter on a suitable atand so that the rear wheel is elevated.
Reverse the disassembly procedure for installation.
