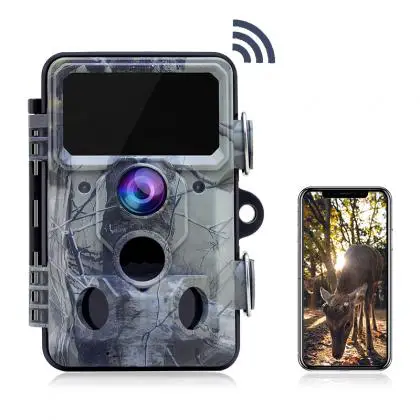

RED LEAF RD1019WF Wifi Trail Camera
1296P HD Video Record
The game camera support 1296P high-resolution video record, it will
help you to remember the real wildlife world with our trail when you
are away.
850nm Low-Glow Infrared Night Vision
850nm Low-Glow Infrared technology clearly shows the night
behavior of animals without disturbing them.

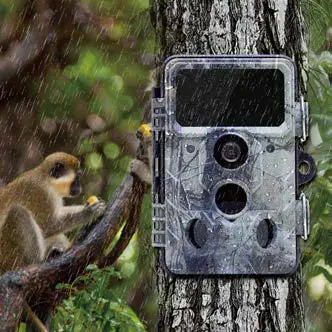

Waterproof IP66
It will work good even in a dust weather or heave rain, and you can
use the threaded tripod and mounting strap when install it in the wild.
Technical Specification
| Image and Video | |
| Photo resolution | 24M(6544 x 3680), 20M(5888 x 3312), 16M(5376 x 3024), 12M (4608 x 2592), 8M (3840 x 2160), 5M (2960 x 1664), 3M(2400 x 1344), 2M (1920 x 1088) |
| Screen | 2.3″ colour TFT LCD; 320 x 240 pixels |
| Lens | F=4.3; F/NO=2.0; FOV=80°; Auto IR filter |
| Triggering time | approx. 0.4 second; Pre boot 0.2 second |
| Video resolutions | 1296P(1728 x 1296, 30fps), 1080P (1920 x 1080, 30fps), 720P (1080 x 720, 30fps), 480P(848 x 480, 30fps), 360P(640 x 360, 30fps) |
| Effectiveness | Daytime: 1 m – infinitive; Night time: 3 m – 20 m |
| Storage formats | Photo: JPEG; Video: MPEG-4(H.264) |
| Audio | |
| Microphone | -42 dB high sensitivity sound collection |
| Buzzer | 1W, 85dB |
| WiFi and Bluetooth | |
| WiFi | 2.4~2.5GHz 802.11 b/g/n (High-speed up to 150 Mbps) |
| Bluetooth 5.0 frequency | 2.4GHz ISM frequency
|
| Trigger Alarm | |
| Detection angle of sensors | Central sensor zone: 60°; Side sensor zone: each 30° ; Total sensor angle zone: 120° |
| Triggering distance | up to 20 metres |
| PIR Sensitivity | High / Medium / Low |
| Data Storage | |
| Recording medium | Supports SD/SDHC memory cards up to 32 GB (optional)
|
| Night vision | |
| Day / Night Mode | Day/night, Auto Switcing |
| IR-CUT | Built-in |
| IR flash | 40pcs 850nm infrared LEDs range 20m |
| APP | |
| System Requirements | IOS 9.0 or Android 5.1 above |
| Real-time Video Preview | Only supports APP mode, Direct Video Connection, easy to install and test |
| APP Function | Installation target, parameter setting, time synchronization, shooting test, power warning, SD/SDHC card warning, PIR test, full screen preview |
| Quick Parameter Setting | Supported |
| Online Data Management | Video, Photos, Events: Support online Viewing, Deletion, Download |
| Power Supply and Power Consumption | |
| Power supply | 8x batteries type LR6 (AA); 8x NiMH batteries type LR6 (AA) with low self discharge; external 6V power supply, at least 2A (not supplied) |
| Standby time | approx. 6 months (with 8 batteries) |
| Others | |
| Spray water protected | Yes (IP protection class66) |
| Connections | Mini USB 2.0 |
| Dimensions | Approx. 135(H) x 101(B) X 76(T) MM |
