Ml3 Smart Visual Ear Cleaning Rod
User Manual

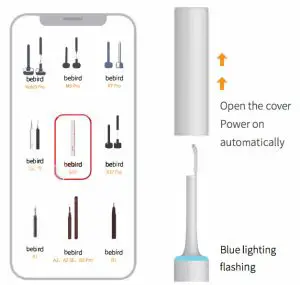

Open Ml3
- Scan QR code to download APP
http://www.bebird.cn/app/en.html - Ente APP Select bebird M 13
- Open the cove Power on automatically

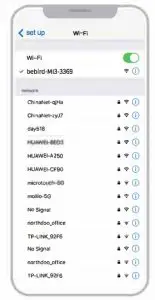

Connect Product WiFi

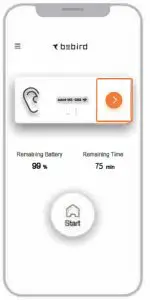

| 1. Connect product WiFi “bluebird-Ml3-XXXX” | 2. Back to be bird APP Click on “Start” to use. |
 |  |

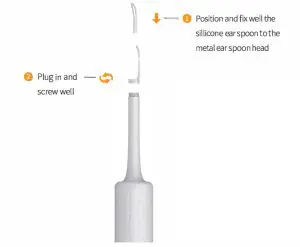

Accessory replacement
Unscrew the ear spoon head and pull out the silicone ear spoon for replacement. Screw and plug the ear spoon head well.
The ear spoon must be assembled, in place before using it to prevent falling off.
Accessory
| 1. Metal & Silicone wrapped Ear Spoon (Small ) x 1 Separate picks tor whole family | 5. Sponge Ear Spoon x 1 Removing of earwax and grease in ears |
 |  |
| 2. Double-colo Ear-elastic Ear Spoon (Big) Ix 1 Easy and thorough removing of cerumen | 6. Ear Pick Accessories Bucket x 1 Easily store and remove earwax |
 |  |
| 3. Double-color Q-elastic Ear Spoon (Small) x l Thorough removing of cerumen | 7. Alcohol cottonswab xl |
|  |
| 4. Double-color Annular Ear Spoon x 1 Easy Scraping; higher curvature | 8. Data Cable x 1 TYPE-c data cable |
 |  |
Troubleshooting
| Trouble | Solution |
| Startup and no response | Please try several more times according to the correct boot-up method |
| Please use the attached charging base for charging. The charging time is about lh | |
| The camera does not turn on | Shut down and restart the ear cleaning rod |
| APP quits quickly | Delete the existing APP and re•scan the QR code for installation. |
| The power indicator of the ear cleaning rod flashing rapidly in red light | Low power mode, please charge ear cleaning rod with the provided USB cable from the original package |
| WiFi connection is unstable, sometimes it is disconnected in seconds | Restart ear cleaning rod, reconnect be bird APP |
| The product failed to display the real-time image after successfully connecting the be bird APP | Disconnect the phone from WiFi, restart the product and reconnect the WiFi |
| if the above operation still fails to solve the problem, please contact Customer Service for further assistance | |
Hazardous Material
| Part name | Hazardous Material | |||||
| (Pb) | (Hg) | (Cd) | (Crf!/1)) | (PBB) | (PBDE) | |
| Printed Circuit Common ents | X | O | O | O | O | O |
| Case | O | O | O | O | O | O |
| Plastic Rubber accessory | O | O | O | O | O | O |
This form is formulated in accordance with SJ/T 11364
O: represent the hazardous material ratio is below GB/T26572-2011
X: represent the hazardous material ratio is over GB/126572-2011
Product parameter
| Brand | bebird |
| 肝oduct Name | bebird smart visual ear cleaning rod |
| Model | Ml3 |
| Rod weight | 24.3g |
| Network standard | IEEE 802.llb/g/n |
| Antenna | Internal FPC antenna |
| Wo「king f「equency | 2.4Ghz |
| Image transmission rate | 20fps |
| Image sensor | CMOS |
| Working temperature | 10⁓50 ° C( B21 |
| Battery | 300mAh lithium battery |
| Battery life | About 75 minutes |
| Cha「ging time | lh |
| Input parameters | 5V  0.4A |
| Wo如ng voltage | 4.2V |
| Rated power | 1.5W |
| Lens diameter | 3.5mm |
| Optimum focal length | 1.5 ⁓2cm |
| Pixel | 1000W |
| Gyroscope | 6 axis |
Warranty Card
User information
| User information | |
| User name | Telephone number |
| Purchase date | |
| Seller | Telephone number |
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction
