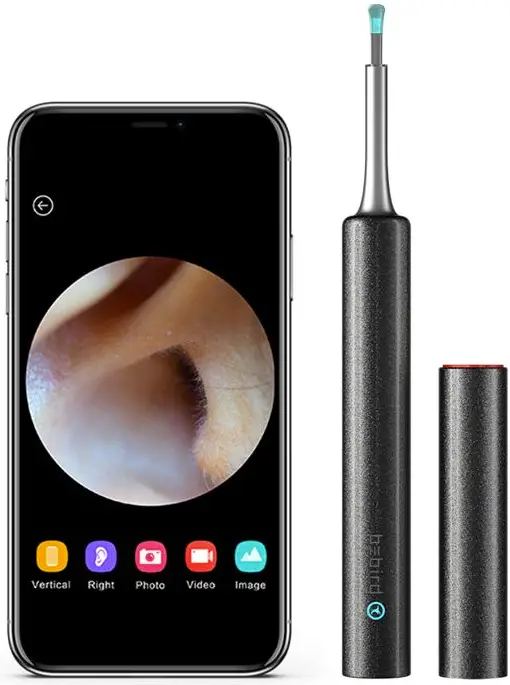

Beacenov BCN-A1 Smart Visual Ear Cleaning Rod

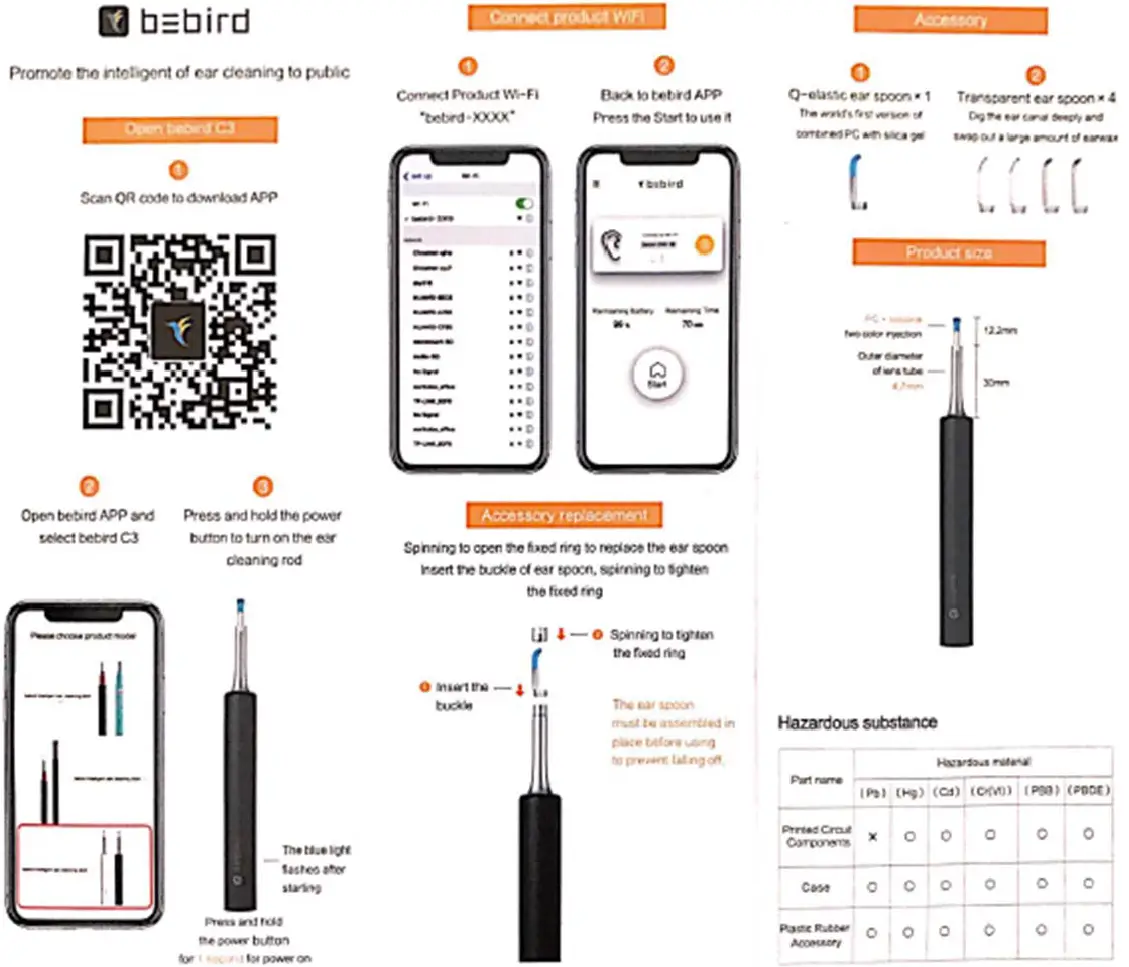

Part 1: Intelligent HD Video Ear Cleaning
- Open Beacenov
Scan QR code to download APP
- Open Beacenov APP and Enter the start page.

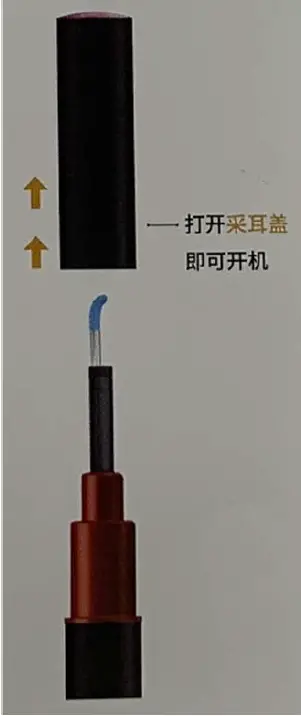

- Open the lid the power is on.
Part 2: Connect Product Wi-Fi

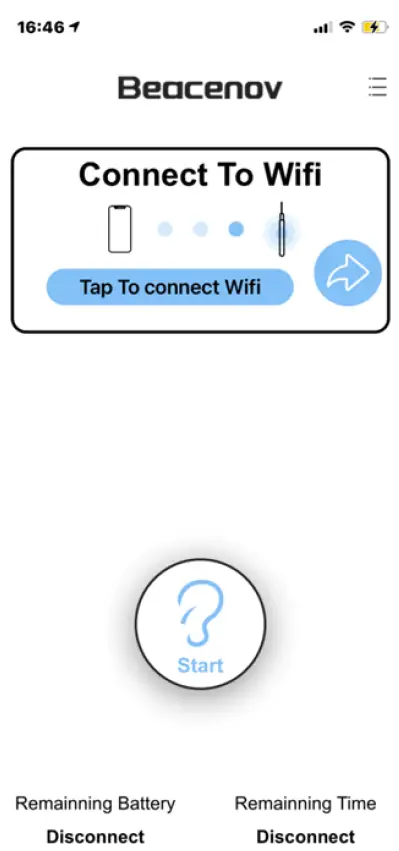

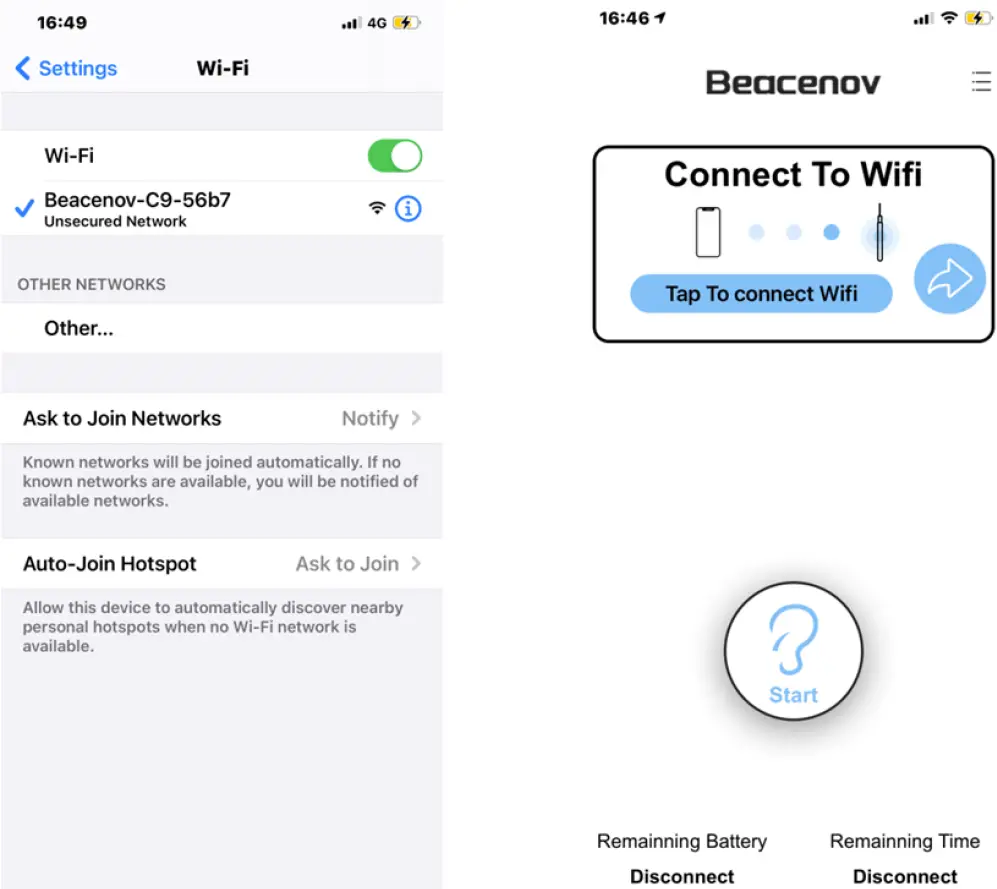

- Connect Product Wi-Fi “Beacenov-XXXX”.
- Back to Beacenov APP Press the Start to use it.
Accessory Replacement
Spinning to open the fixed ring to replace the ear spoon insert the buckle of ear spoon, spinning to tighten the fixed ring.
- Insert the buckle.
- Spinning to tighten the fixed ring.
Part 3: Accessory

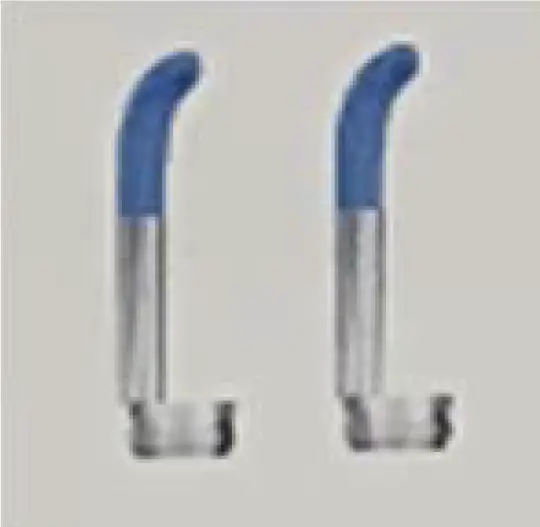

- Shallow-digging ear spoon×2
Dig the ear canal deeply and swap out a large amount of earwax.

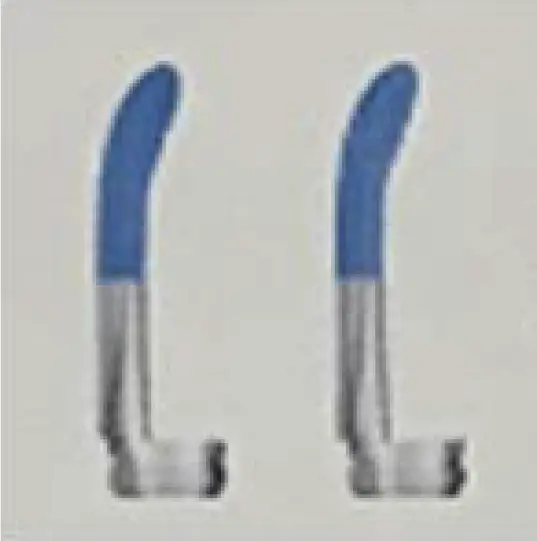

- Deep-digging ear spoon×2
Dig the ear canal shallow and remove a small amount of earwax.
- Umbel ear spoon×2
Clean up earwax debris.
Product Size
- PC Semitransparent
- Outer diameter of lens tube 4.7mm
Hazardous Substances
Part Name | Hazardous Substances | |||||
| (Pb) | (Hg) | (Cd) | Cr(VI) | (PBB) | (PBDE) | |
| Printed Circuit Components | × | ◯ | ◯ | ◯ | ◯ | ◯ |
Case | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |
| Plastic Rubber Accessory | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ |

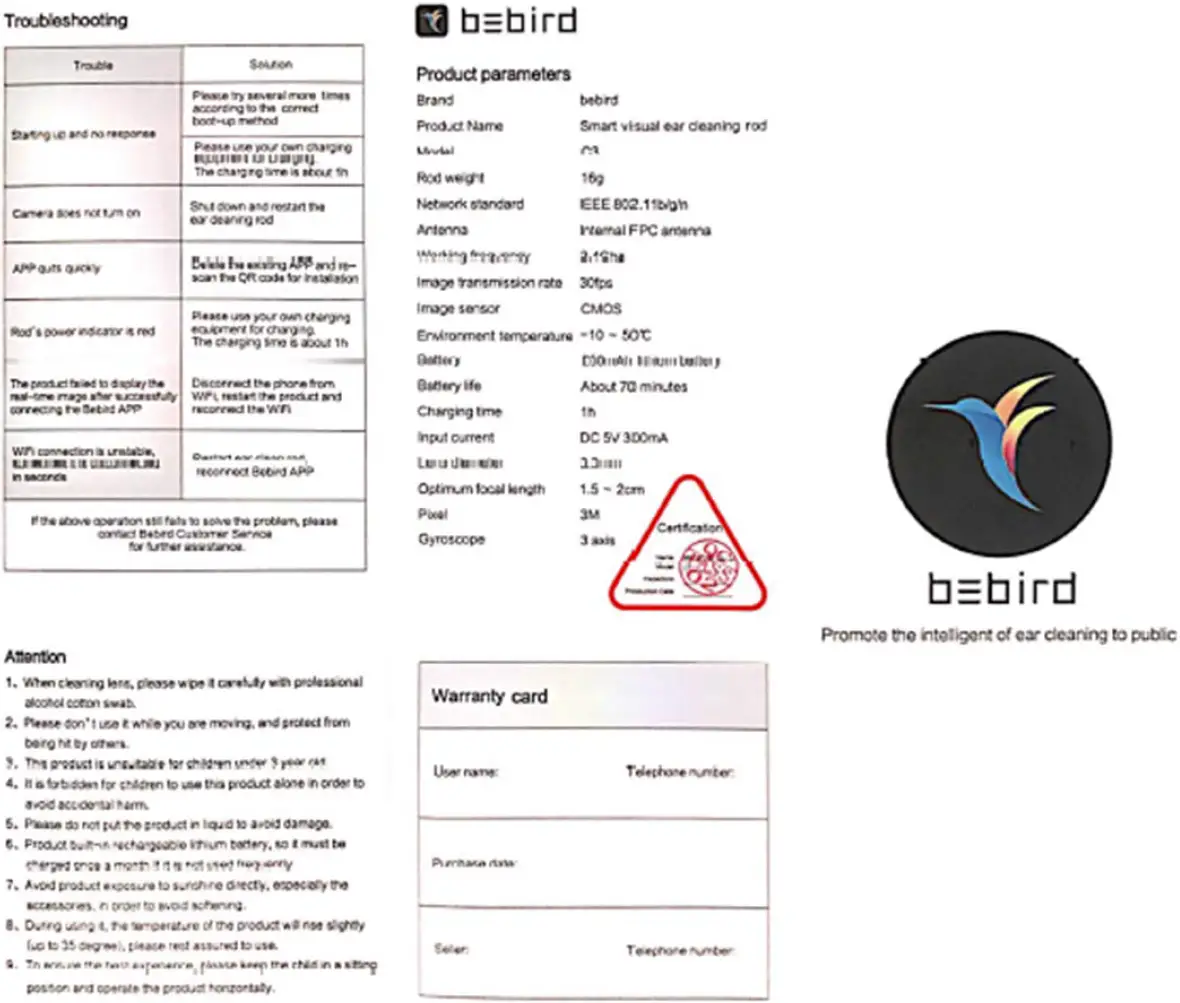

Part 4: Troubleshooting
Trouble | Solution |
| Starting up and no response |
|
| Unable to start when the battery is low. Please use the matching charging cable for charging. | |
| Camera does not turn on |
|
| APP quits quickly | Delete the existing APP and re-scan the QR code for installation |
| The installation of accessories and tools is not smooth | First align ear spoon with lens tube. Then insert the buckle of ear spoon, and spinning to tighten the fixed ring. |
| Rod’s power indicator is orange | The indicator light flashes orange when the battery is low. Please use the matching charging cable for charging about 1.5h. |
| The product failed to display the real-time image after successfully connecting the Beacenov APP | Disconnect the phone from Wi-Fi, restart ear clean rod and reconnect the Wi-Fi. |
| Wi-Fi connection is unstable, sometimes it is disconnected in seconds | Restart ear clean rod, reconnect Beacenov APP |
| If the above operation still fails to solve the problem, please contact Beacenov Customer Service for further assistance. | |
Attention
- When cleaning lens, please wipe it carefully with professional cotton swab.
- Please don’t use the product while you are moving, and protect from being hit by others.
- This product is unsuitable for children under 3 years old.
- It is forbidden for children to use this product alone, in order to avoid accidental harm.
- Please do not put the product in liquid to avoid damage.
- Product built-in rechargeable lithium battery. So it must be recharged once a month If it is not used frequently.
- Avoid exposing the product to direct sunlight, especially the accessories in the accessory barrel, so as not to soften.
- During using this product ,the temperature of the product will rise slightly (up to 35 degree), please rest assured to use.
- To ensure the best experience, please keep the child in a sitting position and operate the product horizontally.
Part 5: Product Parameters
- Product Name: Smart visual Ear cleaning rod
- Model: BCN-A1
- Rod Weight: 18 g
- Network Standard: IEEE 802.11b/g/n
- Antenna: Internal FPC antenna
- Working Frequency: 2.4GHz
- Image Transmission Rate: 30fps
- Image Sensor: CMOS
- Environment Temperature: -10~50°C
- Battery: 200mAh lithium battery
- Battery Life: About 60 minute
- Charging Time: 1.5h
- Input Current: DC 5V 300mA
- Lens Diameter: 3.5mm
- Optimum Focal Length: 1.5~2cm
- Pixel: 300
- Gyroscope: 6 axis
Warranty Card |
| User name: Telephone number: |
| Purchase date: |
| Seller: Telephone number: |
Part 6: Intelligent HD Video Ear Cleaning
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
