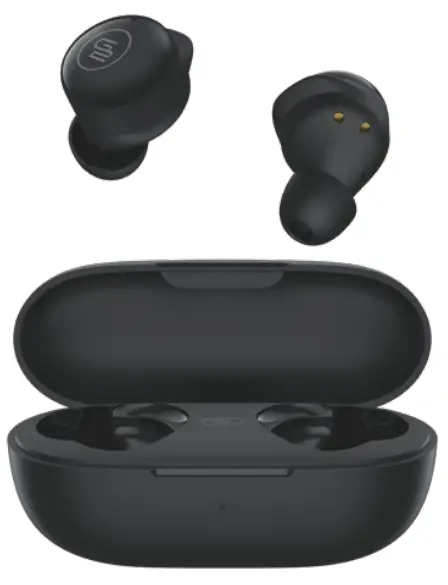

Gogen Tws Bro B02 Earbuds User Manual

Earbuds

WS BRO B02

SECURITY PRECAUTIONS

In order to have a proper and safe use of the headset, please read this user manual in detail and save it. Be aware of the following guidelines when using your headset:
WARNING

• You should adjust the volume carefully when using the headset to prevent hearing damage.
• Please stop using the headset in potentially hazardous situations to ensure your safety.
• Please avoid using the headset to listen to music, make or receive calls which may cause a distraction while driving.
• Put this product and its accessories somewhere out of the reach of children, to avoid a fatal danger caused by inappropriate use.
• You should keep water from entering the headset, which may cause damage to the sound quality or the headset.
• You should avoid turning the volume so high that you can’t hear anything around you. If you feel a tinnitus or the volume is too high, please reduce the volume.
• Stop using the headset if you feel obvious discomfort, irritation or have other adverse reactions.
• The headset should not be stored or used at temperatures below -10°C or above 40°C which may shorten headset or battery life.

TECHNICAL SPECIFICATIONS

• Bluetooth Version: V 5.3
• Bluetooth Profile: HFP, A2DP, AVRCP
• Audio codecs: SBC, AAC
• Frequency range: 2402 MHz – 2480 MHz
• Operating range: 10 m
• Frequency Response: 20 Hz – 20 KHz
• Rated Power: 3 mW
• Sensitivity: 102 dB (±3 dB) @ 1 KHz
• Impedance: 16 Ω ± 15%
• EIRP: 1,32 dBm
• Battery: Li-Polymer 380 mAh Charging Case + 43 mAh x 2 earbuds
• Music playing time: up to 6,5 hours + 24 hours with charging case
• N.W.: 4,8 g / earbud, 34,5 g including charging case

ACCESSORIES

Eartips, USB Charge Cable, Charging Case

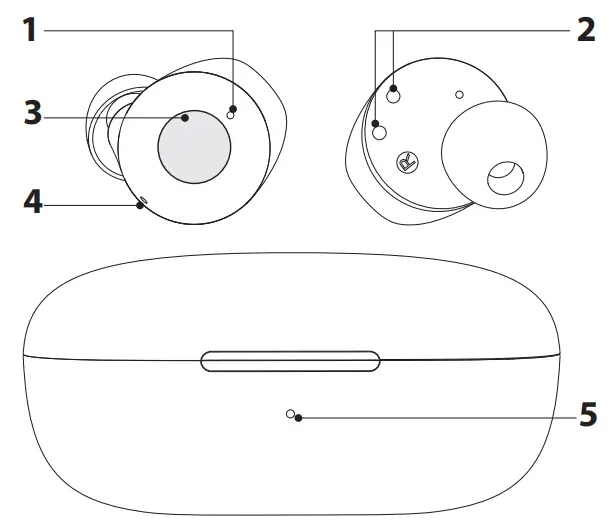

DEVICE LAYOUT

1. LED
2. Charging interface
3. Touch control area
4. Microphone
5. Charging battery indicator

POWER ON & PAIRING

When turning on the handset for the first time, take it out and put it back in the charging case to activate it. The headphones automatically turn on and pair with each other when removed from the charging case. When turned on, the right earphone flashes blue.
The left earphone lights up blue permanently.
BLUETOOTH CONNECTION STEPS

1. Please keep your headset and mobile phone as close as you can, within 1 meter.
2. Turn on “Bluetooth” in setting on your phone or other devices, and then find and select GOGTWSBROB02.
3. Click on GOGTWSBROB02 and Bluetooth Headset gets connected with your phone or devices automatically. (Some may require pass code which is “0000” (4 zeros)).
4. After successfully pairing the headphones, both headphones will light up blue for 3 seconds and then turn off.

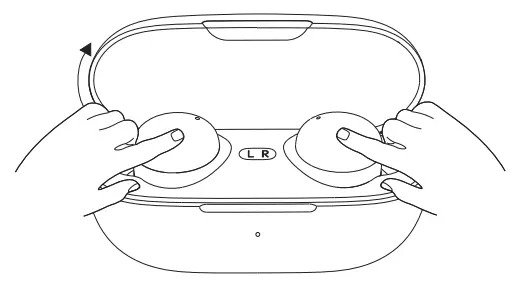

RESET

In case of failure pairing or unnormal working, you need to RESET the headphones as following:
Place the earphones in the charging case and press the touch surface on both earphones in the charging case for 10 seconds. After a successful restart, the white diode will flash 5 times on both headphones.

TAP CONTROL INSTRUCTIONS

CHARGING

CHARGING OF HEADSET
Place the headphones in the charging case and close the lid. The headset indicator light turns white when charging and turns off automatically when fully charged.
CHARGING OF CHARGING BASE
Connect the USB cable to the charging case. Connect the other end of the USB cable to a computer or charger. The LED indicator on the case flash blue during charging. It lights blue when fully charged.

WARNING:

• You must select a qualified charger from a regular manufacturer (charging Voltage: 5V Charging Current: 400mA for charging case)
• A fully charged headset will lose its power automatically if left unused. It is recommended to charge the headset each three months.
• Do not leave the headset in a too hot or too cold condition (best between -10°C and +40°C) which may affect the headset‘s operations although it is fully.
• Please wear this Headset properly for best tone quality. Do not disassemble hardware. Please use soft and dry cottons for cleaning.
• Make sure the headset is fully charged before first use.
• This Headset is not waterproof. Do not use it while swimming or diving.
• If do not use this Headset for long time, please charge once a week to extend battery life.
• Keep your Headset and device as close as you can to avoid interference of signal path.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator’s effective capacity caused by its use or age.
Effective capacity gradually decreases depending on the method of use of the accumulator.

We reserve the right to change technical specifications.TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN.
DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring  this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve  natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type TWSBROB02 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

www.GoGEN.cz
