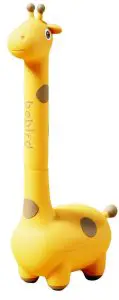

bebird D3 Pro Smart Visual Ear Cleaner Wireless Wax Removal Tool User Guide
Bring professional & enjoyable ear cleaning home
Open bebird D3 Pro
IOS
Search for “bebird” in App Store
Android
Search for “bebird” in Google Play
- Start bebird D3 Pro Scan QR code to download APP

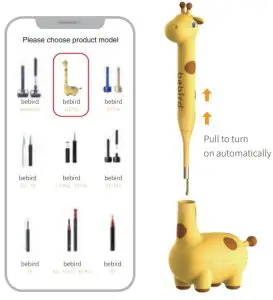

- Open APP Click bebird D3 Pro
- Pull to turn on automatically

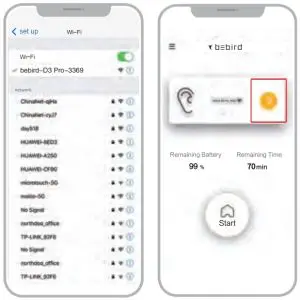

Connect Product WiFi
Connect Product Wi-Fi “bebird-D3 Pro-XXXX”
Back to bebird APP Enter and start to use it

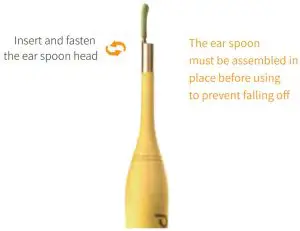

Accessory Replacement
Spinning to open the fixing ring to replace the ear spoo nInsert the buckle of ear spoon, spinning to tighten the fixing ring

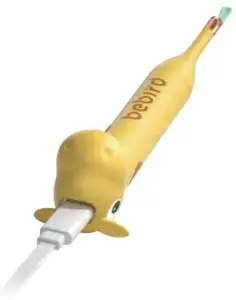

Charging slot

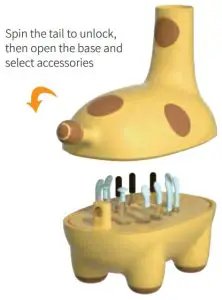

Bottom Storage Box
Spin to open the charging base to swap accessories
Accessory

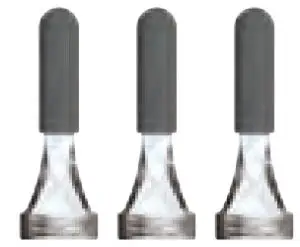

- Metal & Silicone wrapped Ear Spoon （Small ) x3 Harmless ear cleaning
- Double-color Q-elastic Ear Spoon ( Small ) x 2 Thorough removing of cerumen
- Double-color Annular Ear Spoon x 2 Easy Scraping; higher curvature
- Double-color Q-elastic Ear Spoon ( Big ) x 2 Easy and thorough removing of cerumen
- Microlens Cover x 1 Cover the magnifying target with the Plug the ear cleaning rod in the lens cover, it turns into an electronic magnifier
- Sponge Ear Spoon x 3 Removing of earwax and grease in ears
- Charging Cable x 1 TYPE-C Charging cable
Product Size
Hazardous substance
| Part name | Hazardous material | |||||
（Pb） | （Hg） | （Cd） | （Cr(VI)） | （PBB） | （PBDE） | |
| PCrionmtepdoCniercnutsit | × | O | O | O | O | O |
| Case | O | O | O | O | O | O |
| Plaasctcicesrusobrbyer | O | O | O | O | O | O |
This form is formulated in accordance with SJ/T 11364
O: represent the hazardous materrial ratio is below GB/T26572-2011
X:represent the hazardous materrial ratio is over GB/T26572-2011
Troubleshooting
| Trouble | Solution |
| starting up and no response | Please use the attached charging cable for quick charging. The charging time is 1hr |
| Camera does not turn on | Close and open the cover to try a few times |
| APP quit quickly | Delete the existing APP and rescan the QR code for installation |
| Installation of tools in accessory barrel is not smooth | Firstly align the ear-cleaning tool with the lens sleeve, then install it into the lens sleev |
| The power indicator of the ear picker shows blue light Flashes quickly | Please use the attached charging cable for charging. The charging time is 1hr |
| The display on the app is not reading properly | Disconnect the phone with product and open cover to restart it, then set phone to reconnect product |
| WiFi connection is unstable, sometimes it is disconnected in seconds | Close and open the cover to restart rod and restart app in phone to connect rod |
| If you still have problems with the above procedures, please contact our Customer Service Representatives directly for further assistance | |
Attention
- When cleaning lens, please wipe it carefully with professional alcohol cotton swab.
- Please don’t use it while you are moving, and protect from being hit by others.
- This product is unsuitable for children under 3 year old.
- It is forbidden for children to use this product alone in order to avoid accidental harm.
- Please do not put the product in liquid to avoid damage.
- Product built-in rechargeable lithium battery, so it must be charged once a month If it is not used frequently.
- Avoid product exposure to sunshine directly, especially the accessories, in order to avoid softening.
- During using it, the temperature of the product will rise slightly (up to 35 degree), please rest assured to use.
- To ensure the best experience, please keep the child in a sitting position and operate the product horizontally
Product parameters
| Brand | bebird |
| Product Name | Smart visual ear-clean Rod |
| Model | D3 Pro |
| Rod weight | 120g |
| Network standard | IEEE 802.11b/g/n |
| Antenna | Internal FPC antenna |
| Working frequency | 2.4Ghz |
| Image transmission rate | 20fps |
| image sensor | CMOS |
| Working temperature | -10 ～ 45℃ |
| Battery | 230mAh lithium battery |
| Battery life | about 70 minutes |
| Charging time | 1h |
| Input Parameters | 5V 0.4A |
| Working Voltage | 4.2V |
| Amount of Power | 5W |
| Lens diameter | 3.5mm |
| Optimum focal length | 1.5 ～ 2cm |
| Depth of field | 10 ～ 50mm |
| Pixel | 8M |
| Gyroscope | 360 degree multi-directional gyroscope |

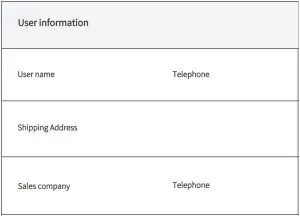

Warranty card
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
