Ningbo Pdlux Electronic Technology PD-V12 High-Frequency Microwave Sensor
Application
- Intelligent switch
- Wall-hung switch
- Intruder detect

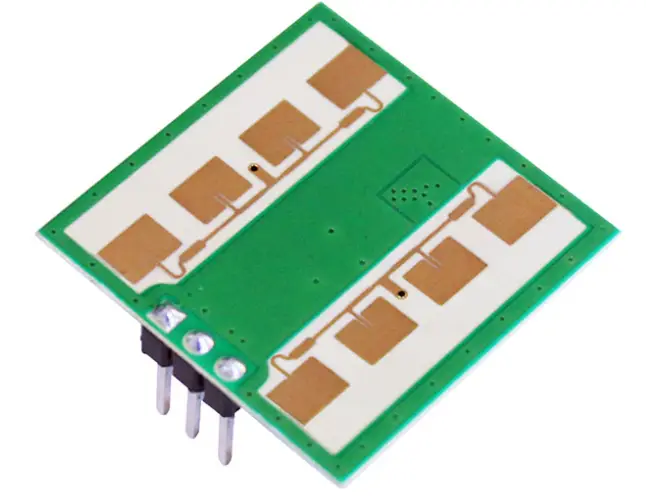

PD-V12 24.1GHz 360° Microwave Motion Sensor is a K-Band Bi-Static Doppler transceiver modlue. It’s built-in Resonator Oscillator (CRO).This module, PD-V12 adopts flat Plane Antenna, suitable for wall mounting. It can improve its front signal receiving ability and reduce its flank blind area. Its performance is better than the sensors in the market.
This module is ideally suiable for occupancy sensor in automatic lighting switches.It can also be used for ceiling mount intruder detectors.
- According with EN 300440-V2.1.1、EN 62479：2010,
- RED directive-2014/53/EU
- According with FCC Part 15.245
- According with EN 62321,ROHS direct ive – 2011/65/EU
- According with REACH directive – 1907/2006/EC

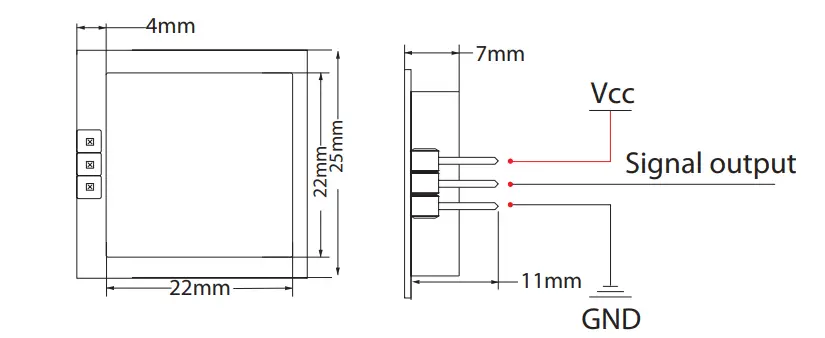

Products size
Parameter
| Parameter | Notes | Min | Typ | Max | Units |
| Supply Voltage | Vcc | 3.0 | 5.0 | 5.25 | V |
| Current Consumption | Icc | 20 | 35 | 38 | mA |
| Operation Mode | Powered by PWM, it can control the working current at 3-15mA | ||||
| Pulse Width | Tpulse | 10 | s | ||
| Operating Temperature | Top | -30~+75 | c | ||
| Storage Temperature | Tstg | -10 | +60 | c | |
| Stable Time | <5 | Sec | |||
| Frequency Setting | f | 24.075 | 24.100 | 24.175 | GHz |
| Radiated Power (EIRP) | Pout | <2.0 | <2.5 | <3.0 | mW |
| Storage Ambient Humidity | 45%~65% | RH | |||
WARNING: The actual detection range is related to the signal amplification gain of the circuit, the overall layout of the PCBA and the threshold of the MCU.
- Note1: The radiated emissions is designed to meet FCC and CE rules.
- Note2: The Received Signal Strength(RSS) is measured at the total 1 Ways path loss of 70dB.
- Note3: The noise voltages are measured from 10Hz to 100Hz at the Output port, inside an Anechoic chamber.
- Note4: Pulse operation

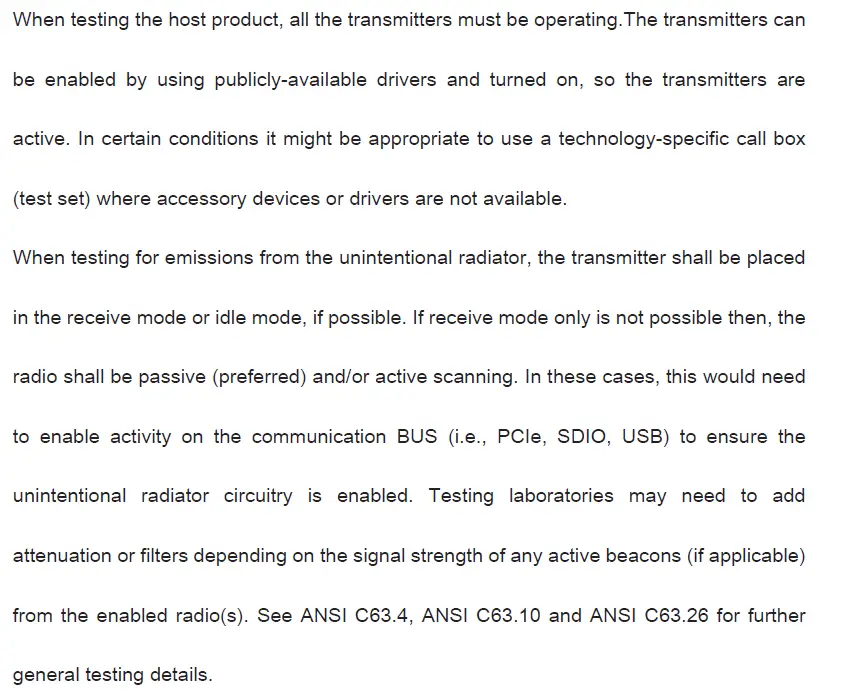

Operating the host Product

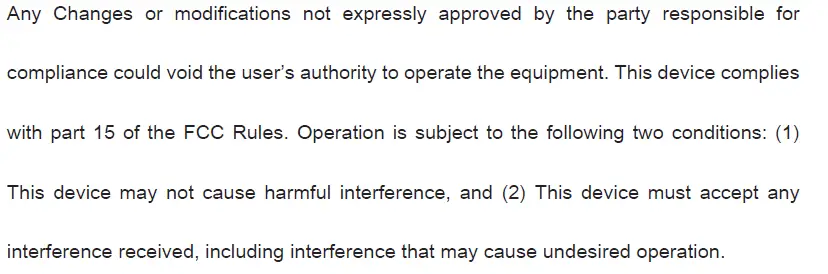

FCC Statment
