Saxby Lighting 86878 Odyssey Pir 2lt Wall Light Instructions

Saxby Lighting 86878 Odyssey Pir 2lt Wall Light Instructions

saxby-lighting-logo

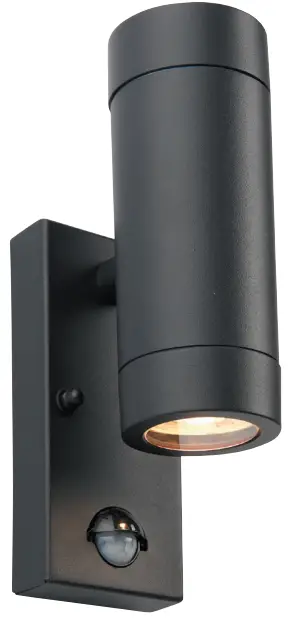

saxby lighting 86878 Odyssey PIR 2LT Wall Light

saxby-lighting-86878-Odyssey-PIR-2LT-Wall-Light-product

FEATURES

  • 2 years warranty
  • Satin black & clear glass finish
  • Constructed from aluminium alloy & glass
  • Complete with built in manual override PIR
  • 10 lux – 2000 lux. 110º detection angle, 8m maximum range with a 5 sec – 5 min timer function

SPEC DATA

  • Product Wattage: Max. 2 x 7W LED GU10 (required)
  • Product Voltage: 220-240V
  • IP Rating: 44
  • Product Weight (KG): 0.58
  • Terminal Block: 4-way
  • Class: 2

ACCESSORIES

  • 70257, 7W GU10 LED 60º, 3000K
  • 70258, 7W GU10 LED 60º, 4000K
  • 74045, 7W GU10 LED 60º, 6000K
  • 92537, 5W GU10 LED blue

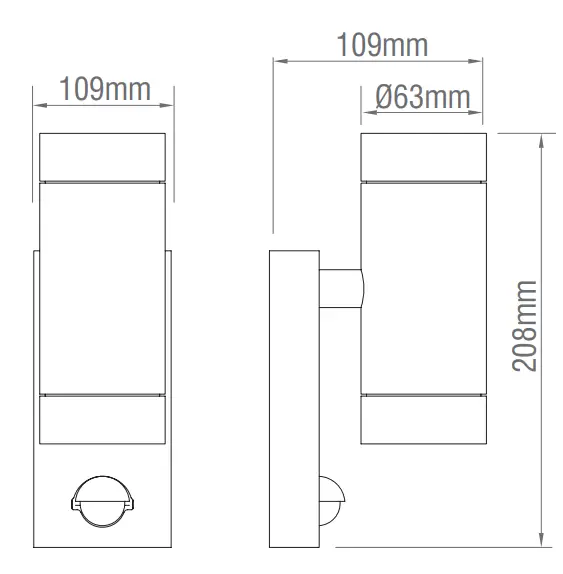

DIMENSIONS

saxby-lighting-86878-Odyssey-PIR-2LT-Wall-Light-fig-1

Unit 8, Grand Union Trading Estate Abbey Road, Park Royal London NW10 7UL
TEL: 0845-634-1515 E: [email protected]
Saxby Lighting, Cabot Lane, Creekmoor, Poole, Dorset, BH17 7BY.
T: (+44) 0333 00 333 08 F: (+44) 01202 409811 E: [email protected]
www.nationallighting.co.uk
