ProSeries-M Peristaltic Metering Pumps
User Guide

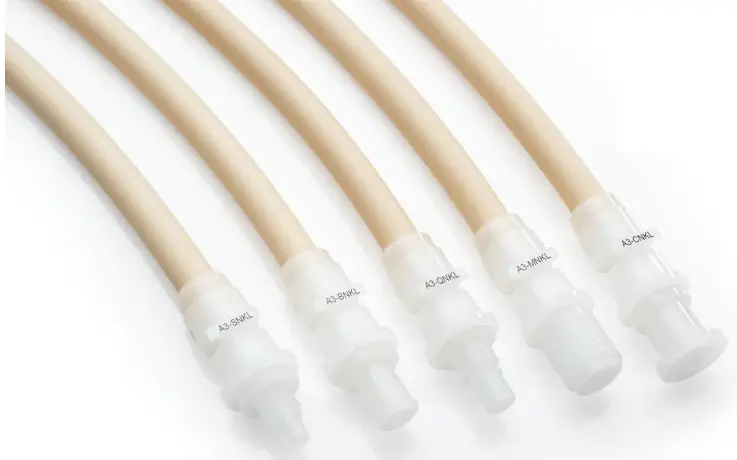

THE RIGHT TUBE FOR YOUR APPLICATION
This datasheet will guide you through the tube selection process.
Selecting a suitable tubing material is important to the success of the Flex-Pro peristaltic pump in a specific application.
Variables that will affect tube performance include system pressure, output volume, and chemical being dosed.
Engineering and Technical Data

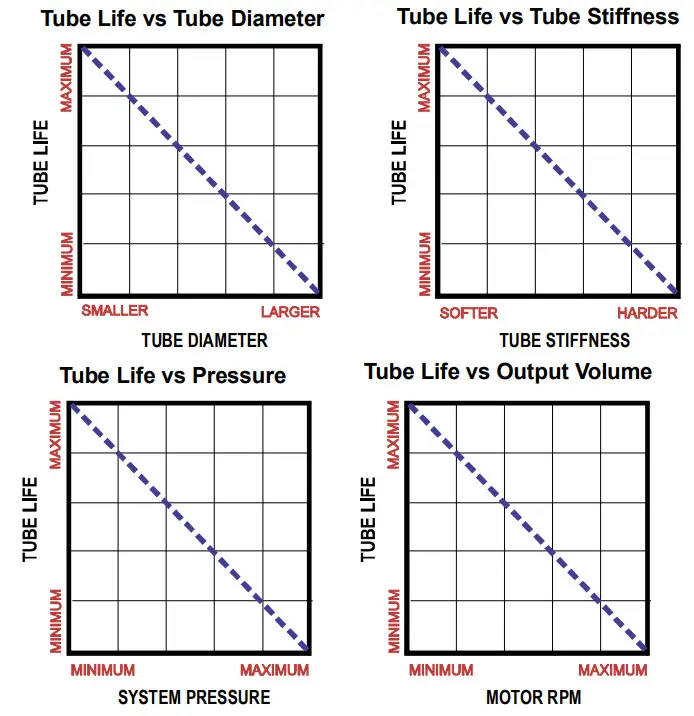

TUBING CHARACTERISTICS
Shown below are the three primary application variables that will affect the life of the tube and the tubing characteristics that are affected by these variables. Chemical resistance is not depicted graphically.
| APPLICATION VARIABLES | TUBING CHARACTERISTICS | ||
| Tube Diameter | Material Formulation | Material Stiffness | |
| Discharge Pressure | X | X | |
| Output Volume | X | ||
| Chemical | X | ||
MATERIALS AND DIAMETERS
- The first letter in the tubing designation always indicates the tube’s material.
- The second letter indicates the tube size. Two of the same letters indicate a dual tube assembly.
- The letter “L” at the end of the code indicates a “low pressure” or “softer” version of the tube.
N = Flex-A-Prene® –
Excellent material for most water treatment applications. Chemically resistant to 25% Sodium Hypochlorite, 50% Sulfuric Acid, 30% Fluosilicic Acid, Ferric Chloride, Alum, and many others. Available in a wide stiffness range for both low and high-pressure applications.
T = Flex-A-Chem® –
This tubing material consists of an outer Flex-A-Prene jacket with an inner liner that is virtually unaffected by acids, bases, salts, ketones, and alcohol. Available in a medium stiffness for applications up to 50 psi.
G = Flex-A-Thane® –
This polyurethane material can be used with a variety of chemicals including Oil and Water based Polymers, Sodium Hypochlorite, Alum, Ferric Chloride, fuels and lubricants, and many others. Available in a medium stiffness for applications up to 65 psi.
| Flex-Pro Peristaltic Pump Tubing Options | ||||||||
| Material Designation | Tube Material | Tube Size | Tube Size | Tube Stiffness | M-2 Maximum | Pressure M-3 | Capability M-4 | Max Temp |
| Code | Material | Code | ID Inches | Code | PSI (bar) | PSI (bar) | PSI (bar) | F (C) |
| ND | Flex-A-Prene® | D | 0.075 | Medium | 125 (8.6) | 125 (8.6) | NA | 185 (85) |
| NEE | Flex-A-Prene® | EE | 0.093 | Medium | 110 (7.6) | 110 (7.6) | NA | 185 (85) |
| NGG | Flex-A-Prene® | GG | 0.187 | Medium | 110 (7.6) | 110 (7.6) | NA | 185 (85) |
| NHL | Flex-A-Prene® | HL | 0.25 | Medium | 65 (4.5) | 65 (4.5) | 65 (4.5) | 185 (85) |
| NHHL | Flex-A-Prene® | HHL | 0.25 | Medium | 65 (4.5) | 65 (4.5) | 65 (4.5) | 185 (85) |
| NJ | Flex-A-Prene® | J | 0.312 | Hard | NA | 125 (8.6) | 100 (6.9) | 185 (85) |
| NK | Flex-A-Prene® | K | 0.375 | Hard | NA | 125 (8.6) | 80 (5.5) | 185 (85) |
| NKL | Flex-A-Prene® | KL | 0.375 | Soft | NA | 30 (2.1) | 30 (2.1) | 185 (85) |
| NL | Flex-A-Prene® | L | 0.5 | Medium | NA | NA | 50 (3.4) | 185 (85) |
| NP | Flex-A-Prene® | P | 0.75 | Medium | NA | NA | 30 (2.1) | 185 (85) |
| TH | Flex-A-Chem® | H | 0.25 | Medium | 50 (3.4) | 50 (3.4) | 30 (2.1) | 130 (54) |
| TK | Flex-A-Chem® | K | 0.375 | Medium | NA | 50 (3.4) | 30 (2.1) | 130 (54) |
| GE | Flex-A-Thane® | E | 0.125 | Medium | 65 (4.5) | 65 (4.5) | NA | 130 (54) |
| GG | Flex-A-Thane® | G | 0.187 | Medium | 65 (4.5) | 65 (4.5) | NA | 130 (54) |
| GH | Flex-A-Thane® | H | 0.25 | Medium | NA | 65 (4.5) | 65 (4.5) | 130 (54) |
| GK | Flex-A-Thane® | K | 0.375 | Medium | NA | 65 (4.5) | 65 (4.5) | 130 (54) |
| G2G | Flex-A-Thane® | GG | 0.187 | Medium | 65 (4.5) | 65 (4.5) | NA | 130 (54) |

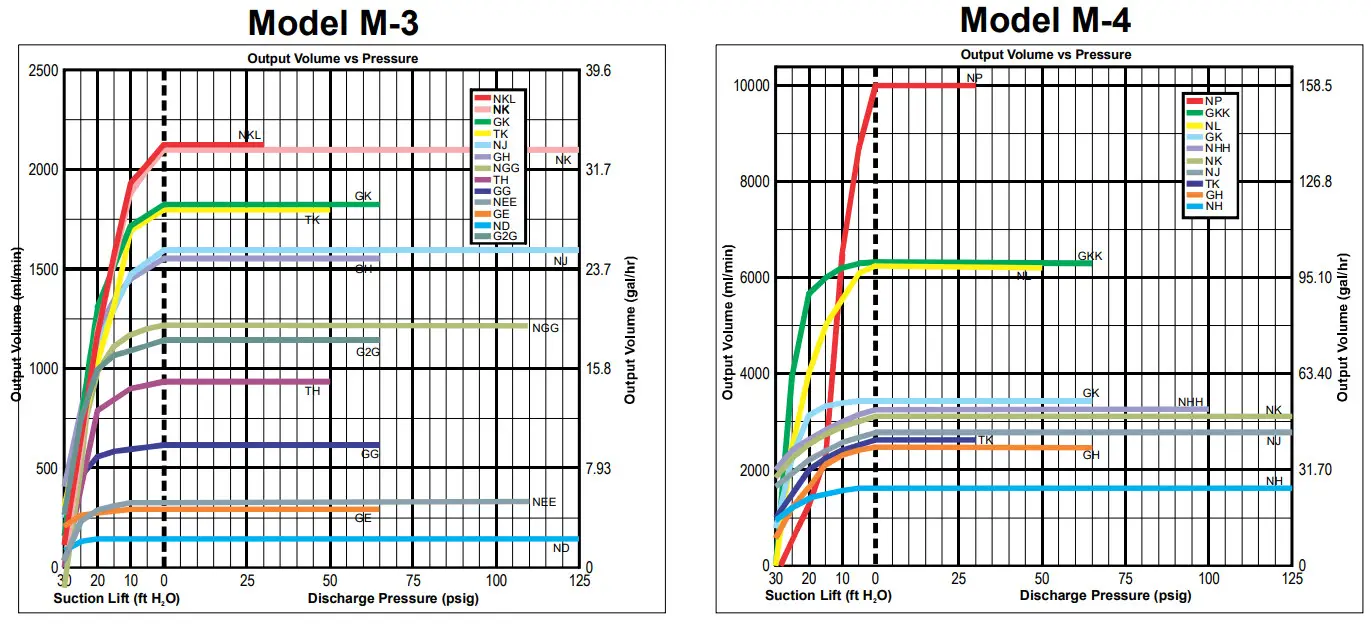

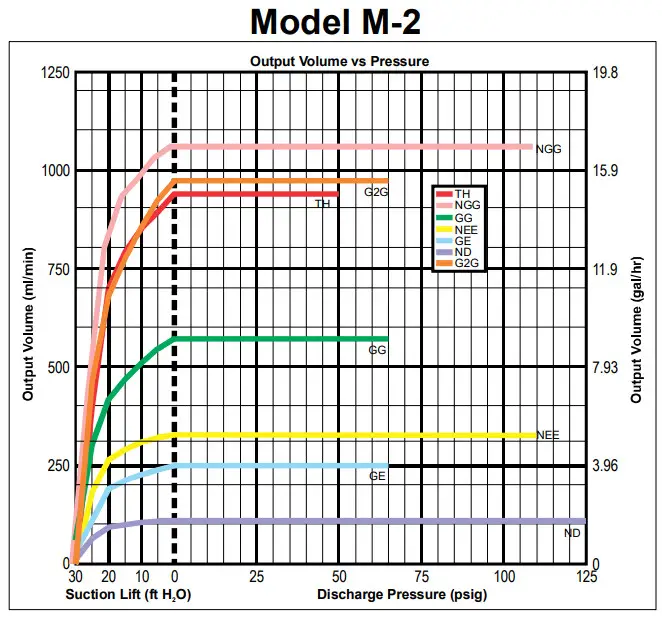

Output vs Pressure and Viscosity
VISCOSITY EFFECTS
The viscosity of your chemical will have an effect on the pump output volume.
- As the viscosity increases, the pump output is reduced.
- Long suction lines will reduce the pump output. Use a flooded suction where possible.
- A small inside diameter suction line will reduce output. Use a large ID pipe or tube where possible.
- Pump tube assemblies with ½” pipe thread or ½” ID barb connections have the largest through holes. Use these options when pumping viscous fluids.
SUCTION LIFT EFFECTS
Note that the pump’s output specification is based on laboratory tests with water at 72 degrees Fahrenheit (Sp.gr. = 1.0) and 3 feet of suction lift. When lifting fluids with a Specific Gravity other than water, your output rate will vary. Use the following equation and the graphs below to calculate your pump output.
Fluid Sp.Gr. x Suction Lift Height = the equivalent height in water
Example: The Sp.Gr. of 12.5% Sodium Hypochlorite at 60 degrees F is 1.20. If the required suction lift is 8 feet, the equivalent suction lift using water is 1.20 x 8 = 9.6 feet.
Note: All tests are performed after approximately 30 minutes tube break-in period. Tested using 72 F water at o atmospheric conditions at sea level. Outputvolume is shown with the pump operating at 125 rpm motor speed.

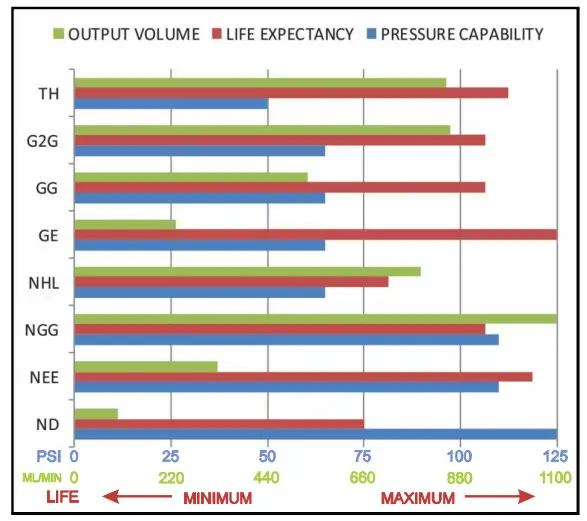

Tube Life Guidelines
How to use this data:
- Select the tube materials that are resistant to the chemical. See the following pages for chemical resistance data.
- Select the tube sizes that meet the system pressure requirement.
- Select the tube with the highest output volume and life expectancy.

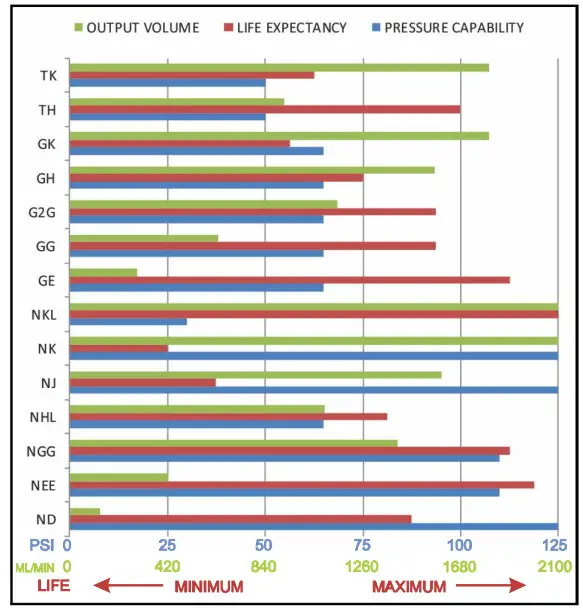

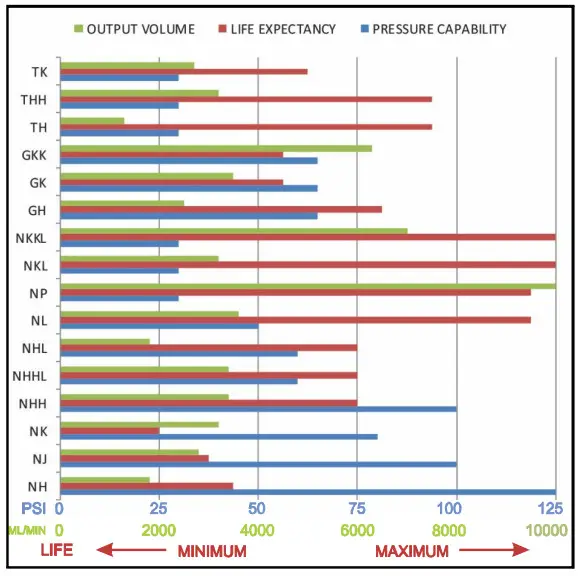

| Model M-2 Pump Tubes and Output Ranges | |||||
| Tube Material | Tube Size | Max Pressure | Max Temp | Output Range | Roller Size |
| Material | Code | PSI (bar) | F (C) | ML/Min | Code |
| Flex-A-Prene® | ND | 125 (8.6) | 185 (85) | .54 – 108 | A2-SND-R |
| Flex-A-Prene® | NEE | 110 (7.6) | 185 (85) | 1.4 – 280 | A2-SNGG-R |
| Flex-A-Prene® | NGG | 110 (7.6) | 185 (85) | 5.4 – 1085 | A2-SNGG-R |
| Flex-A-Prene® | NHL | 65 (4.5) | 185 (85) | 4.3 – 870 | A2-SNGG-R |
| Flex-A-Chem® | TH | 50 (3.4) | 130 (54) | 3.7 – 740 | A2-STH-R |
| Flex-A-Thane® | GE | 65 (4.5) | 130 (54) | 1.2 – 253 | A2-SGE-R |
| Flex-A-Thane® | GG | 65 (4.5) | 130 (54) | 2.9 – 586 | A2-SGE-R |
| Flex-A-Thane® | G2G | 65 (4.5) | 130 (54) | 4.7 – 945 | A2-SGE-R |
| Model M-3 Pump Tubes and Output Ranges | |||||
| Tube Material | Tube Size | Max Pressure | Max Temp | Output Range | Roller Size |
| Material | Code | PSI (bar) | F (C) | ML/Min | Code |
| Flex-A-Prene® | ND | 125 (8.6) | 185 (85) | .01 – 132 | A3-SND-R |
| Flex-A-Prene® | NEE | 110 (7.6) | 185 (85) | .03 – 300 | A3-SNGG-R |
| Flex-A-Prene® | NGG | 110 (7.6) | 185 (85) | .12 – 1200 | A3-SNGG-R |
| Flex-A-Prene® | NHL | 65 (4.5) | 185 (85) | .11 – 1097 | A3-SNGG-R |
| Flex-A-Chem® | NJ | 125 (8.6) | 185 (85) | .16 – 1596 | A3-SNGG-R |
| Flex-A-Thane® | NK | 125 (8.6) | 185 (85) | .21 – 2100 | A3-SNGG-R |
| Flex-A-Thane® | NKL | 30 (2.1) | 185 (85) | .21 – 2100 | A3-STH-R |
| Flex-A-Thane® | TH | 50 (3.4) | 130 (54) | .10 – 950 | A3-STH-R |
| Flex-A-Thane® | TK | 50 (3.4) | 130 (54) | .22 – 2220 | A3-SNGG-R |
| Flex-A-Thane® | GE | 65 (4.5) | 130 (54) | .03 – 290 | A3-SGE-R |
| Flex-A-Thane® | GG | 65 (4.5) | 130 (54) | .06 – 637 | A3-SGE-R |
| Flex-A-Thane® | GH | 65 (4.5) | 130 (54) | .16 – 1570 | A3-SGE-R |
| Flex-A-Thane® | GK | 65 (4.5) | 130 (54) | .20 – 1800 | A3-SGE-R |
| Flex-A-Thane® | G2G | 65 (4.5) | 130 (54) | .12 – 1150 | A3-SGE-R |
| Model M-2 Pump Tubes and Output Ranges | |||||
| Tube Material | Tube Size | Max Pressure | Max Temp | Output Range | Roller Size |
| Material | Code | PSI (bar) | F (C) | ML/Min | Code |
| Flex-A-Prene® | NH | 125 (8.6) | 185 (85) | .2 – 1800 | A4-MNH-R |
| Flex-A-Prene® | NHL | 65 (4.5) | 185 (85) | .2 – 1800 | A4-MNH-R |
| Flex-A-Prene® | NJ | 100 (6.9) | 185 (85) | .3 – 2800 | A4-MNH-R |
| Flex-A-Prene® | NK | 80 (5.5) | 185 (85) | .3 – 3200 | A4-MNH-R |
| Flex-A-Chem® | NHH | 100 (6.9) | 185 (85) | .3 – 3400 | A4-MNH-R |
| Flex-A-Thane® | NHHL | 65 (4.5) | 185 (85) | .3 – 3400 | A4-MNH-R |
| Flex-A-Thane® | NL | 50 (3.4) | 185 (85) | .6 – 6300 | A4-MNL-R |
| Flex-A-Thane® | NP | 30 (2.1) | 185 (85) | 1 – 10000 | A4-MNL-R |
| Flex-A-Thane® | TK | 30 (2.1) | 130 (54) | .2 – 2700 | A4-MTH-R |
| Flex-A-Thane® | GH | 65 (4.5) | 130 (54) | .3 – 2500 | A4-MGH-R |
| Flex-A-Thane® | GK | 65 (4.5) | 130 (54) | .4 – 3500 | A4-MGH-R |
| Flex-A-Thane® | GKK | 65 (4.5) | 130 (54) | .6 – 6300 | A4-MGH-R |
| 28-Day Immersions at 73° F E = Excellent G = Good F = Fair U = Not Recommended | F Iex-A-Prene | Flex-A-Chem | F Iex-A-Prene | Flex-A-Chem | F Iex-A-Prene | Flex-A-Chem | Flex-A-Thane | ||||||||
| Chemical, Conc. % (1) | E | E | Chemical, Conc. %(1) | E | Chemical, Conc. %(1) | it LT LT | |||||||||
| Acetate Solvents | F | U | U | Bromine, | Anhydrous Liquid | U | U | U | Ethylene Chbrohydrin | E | E | U | |||
| Acetic Acid, 10% in w | E | E | G | Butadiene | E | G | E | Ethylene Diamine | F | U | U | ||||
| Acetic Acid, 50-60% in w | G | E | U | Butane | E | G | E | Ethylene Dichloride | F | U | U | ||||
| Acetic Acid, Glacial, 100% | G | E | U | Butyl | Acetate | G | U | U | Ethylene Glycol | E | E | E | |||
| Acetic Anhydride | E | E | U | Butyl | Alcohol | G | E | U | Ethylene Oxide | E | E | E | |||
| Acetone | U | G | U | Butyric Acid | G | U | U | Fatty Acids | F | F | G | ||||
| Acrylonitrile | G | G | U | Calcium Bisulfite, 1% in w | E | E | E | Ferric Chloride, 43% in w | E | E | E | ||||
| AdipicAcid, 100% in all | G | U | U | Calcium Bromide 52% | E | E | E | Ferric Hydroxide | E | E | U | ||||
| Air | E | E | E | Calcium Carbonate, 25% adds | E | E | E | Ferric Nitrate, 60% in w | E | E | E | ||||
| Alcohols General | E | E | U | Calcium Chlorate, 30% in w | E | E | E | Ferric Salts | E | E | E | ||||
| An aliphatic Hydrocarbons | U | U | G | Calcium Chloride, 30% in w | E | E | E | Ferric Sulfate, 5% in w | E | E | E | ||||
| A lyl Alcohol | F | E | U | Calcium Hydroxide, 10% in glycerol | E | E | U | Ferrous Chloride, 40% in w | E | E | E | ||||
| An um, 5% in w | E | E | E | Calcium Hydroxide, 20% in water | E | E | U | Ferrous Salts | E | E | E | ||||
| A uminum Chloride, 53% in w | E | E | E | Calcium Hypochlorite, 20% in w | E | E | G | Ferrous Sulfate, 5% in w | E | E | E | ||||
| A uminum Chlorohydrate of 50% | E | E | – | Calcium Nitrate, 55% in w | E | E | E | Fluoborate Salts | E | E | E | ||||
| Aluminum Fluoride, 0.1% in w | E | E | E | Calcium Oxide, 3% in w | E | E | E | Fluoric Add, 48% in w | U | E | U | ||||
| Aluminum Hydroxide, 2% in w | E | E | E | Calcium Salts | E | E | E | Fluorine Gas | U | U | U | ||||
| Aluminum Nitrate, 39% in w | E | E | E | Calcium Sulfate, 1% in w | E | E | E | Fluosilicic Acid, 30%w (Fluoride) | E | E | F | ||||
| Aluminum Potassium Sulfate | E | E | E | Carbon Dioxide, Wet/Dry | E | E | E | Formaldehyde, 37% in w | U | F | U | ||||
| Aluminum Sulfate | E | E | E | Carbon Disulfide | U | U | U | Formic Acid, 25% in w | E | E | F | ||||
| Aluminum Sulfate, 50% in w | E | E | E | Carbon Monoxide | E | E | E | Formic Acid, 40-50% in w | G | E | U | ||||
| Aluminum Salts | E | E | E | Carbon Tetrachloride | U | U | U | Formic Acid, 98% in w | G | E | U | ||||
| Amines | F | U | U | Carbonic Acid | E | E | E | Fruit Juice | E | E | E | ||||
| Ammonia, Anhydrous Liquid | G | G | F | Castor Oil | F | G | E | Fuel Oil | U | U | G | ||||
| Ammonium Acetate, 45% in w | E | E | G | Cellosolve | F | U | U | Furfural | U | U | U | ||||
| Ammonium Bifluoride, 50% in w | E | E | E | Cellosolve Acetate | F | U | U | GallicAcid, 17% in acetone | G | U | U | ||||
| Ammonium Bisulfite, 50% | E | E | – | Chloroacetic Acid, 20% in w | G | E | U | Gasoline, Automotive | U | U | G | ||||
| Ammonium Carbonate, 50% in w | E | E | E | Chlorobenzene, Mono, Di, Tri | U | U | U | Gelatin | E | E | E | ||||
| Ammonium Chloride, 23% in w | E | E | E | Chloroform | U | U | U | Glucose, 50% in w | E | E | E | ||||
| Ammonium Hydroxide, 5-10% in w | E | E | E | Chlorosulfonic Acid | U | U | U | Glycerol, (Glycerin) , | E | E | E | ||||
| Ammonium Hydroxide, 30% in w | E | E | F | Chromic Acid, 10-20% in w | E | E | U | Glycolic Acid, 70% in w | G | E | U | ||||
| Ammonium Nitrate, 54% in w | E | E | E | Chromic Acid, 50% in w | F | G | U | Heptane | U | U | G | ||||
| Ammonium Persulfate, 30% in w | E | E | E | Chromium Salts | E | E | E | Hexane | U | U | G | ||||
| Ammonium Phosphate, 21% in w | E | E | E | Citric Acid, 50% in w | E | E | G | Hydrazine | F | U | U | ||||
| Ammonium Salts | E | E | E | Coconut Oil | F | G | E | Hydrobromic Acid, 20-50% in w | U | E | U | ||||
| Ammonium Sulfate, 30% in w | E | E | E | Copper Salts | E | E | E | HydrobromicAcid, 100% in w | U | E | U | ||||
| Amyl Acetate | G | U | U | Corn Syrup | E | E | E | Hydrochloric Acid, 10% in w | E | E | F | ||||
| Amyl Alcohol | U | E | F | Cottonseed Oil | F | G | E | Hydrochloric Acid, 37% in w | G | E | U | ||||
| Amyl Chloride | F | U | U | Cresol (m, o, or p) | U | E | U | Hydrocyanic Acid | E | E | G | ||||
| Aniline | F | U | U | Cresylic Acid | G | U | U | Hydrofluoric Add, 10% in w | U | E | U | ||||
| An | line Hydrochloride | F | U | U | Cupric Chloride, 40% in w | E | E | E | Hydrofluoric Add, 25% in w | U | E | U | |||
| An | Timony Salts | E | E | E | Cupric Cyanide, 10% in dilute bases | E | E | E | Hydrofluoric Add, 40-48% in w | U | E | U | |||
| An | Timony Dichloride | E | E | F | Cupric Nitrate, 70% in w | E | E | E | Hydriodic Acid, 55-58% in w | G | E | U | |||
| Aq | ua Regia | U | E | U | Cupric Sulfate, 13% in w | E | E | E | Hydrogen Peroxide, 3% in w | E | E | E | |||
| Aq | ueous Ammonia | E | E | F | Cyclohexane | U | U | G | Hydrogen Peroxide, 10% in w | E | E | E | |||
| Aromatic Hydrocarbons | U | U | U | Cyclohexanone | U | F | U | Hydrogen Peroxide, 30% in w | E | E | F | ||||
| Arsenic Add, 20% in w | F | E | E | Detergent Solutions | G | E | E | Hydrogen Peroxide, 90% in w | G | G | U | ||||
| Arsenic Salts | E | E | E | Diacetone Alcohol | U | E | F | Hydrogen Sulfide | E | E | E | ||||
| ASTM Reference No. 1 Oil | F | U | E | Dibutyl Phthalate | E | E | U | Hydroquinone, 7% in w | G | E | E | ||||
| ASTM Reference No. 2 Oil | U | U | E | Dichbrobenzene | U | U | U | Hypochlorous Acid, 25% in w | E | E | F | ||||
| ASTM Reference No. 3 Oil | U | U | E | Diesel Fuel | U | U | G | Iodine, 50 ppm in w | E | E | E | ||||
| Barium Carbonate, 1% in w | E | E | E | Diethylamine, 2.5% in w | E | E | E | Isobutyl Alcohol | F | E | U | ||||
| Barium Chloride, 27% in w | E | E | E | Diethylene Glycol | E | E | E | Isooctane | U | U | G | ||||
| Barium Hydroxide, 5% in w | E | E | E | Diethyl Ether | F | U | U | Isopropyl Acetate | G | U | U | ||||
| Barium Salts | E | E | E | Dimethylformamide | G | E | U | Isopropyl Alcohol | F | E | U | ||||
| Barium Sulfate, <1% in dilute adds | E | E | E | Dimethylsulfoxide | E | G | U | Isopropyl Ether | F | U | U | ||||
| Barium Sulfide | E | E | E | Dioctyl Phthalate | E | E | U | Jet Fuel, Jp8 | U | U | G | ||||
| Beer | E | E | E | Dioxane | U | U | U | Kerosene | U | U | G | ||||
| Benzaldehyde | U | F | U | Ether | F | U | U | Ketones | U | F | U | ||||
| Benzene | U | U | U | Ethyl Acetate | F | G | U | Lacquer Solvents | G | U | U | ||||
| Benzenesulfonic Acid | U | U | U | Ethyl Alcohol (Ethanol) | F | E | U | LacticAdd, 3-10% in w | E | E | G | ||||
| Benzoic Acid | E | E | U | Ethyl Benzoate | U | U | U | Lactic Add, 85% in w | G | E | U | ||||
| Benzyl Alcohol | E | E | U | Ethyl Chloride | F | U | U | Lard, Animal Fat | F | G | E | ||||
| Bleach Liquor, 22% in w | E | E | G | Ethyl Ether | F | U | U | Lead Acetate, 35% in w | E | E | E | ||||
| Borax_ 6% in w | E | E | E | Ethvlamine. 70% in w | U | G | U | Lead Nitrate, 27% in w | E | E | E | ||||
| Boric Add, 4% in w | E | E | E | Ethylene Bromide | U | F | U | Lead Salts | E | E | E | ||||
Blue-White Industries tests its products with water only. The information herein was supplied to Blue-White by reputable sources, but the accuracy or completeness thereof is
not guaranteed, and the following is made in lieu of all warranties, expressed or implied, including the implied warranties of merchantability and fitness for purpose: Seller’s and
manufacturer’s only obligation shall be to replace such quantity of the product proved to be defective. Before using, the user shall determine the suitability of the product for its intended use, and the user assumes all risk and liability whatsoever in connection therewith. NEITHER SELLER NOR MANUFACTURER SHALL BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGES, DIRECT, INCIDENTAL, OR CONSEQUENTIAL, ARISING OUT OF THE USE OF CHEMICALS WITH THE PRODUCT. No statements or recommendations not contained herein shall have any force or effect unless in an agreement signed by officers of the seller and manufacturer.
(1) – If a concentration is not indicated, assume 100% concentration or the maximum percent solubility in water.
NOTE – Concentrations of room temperature liquids are given in % volume. Concentrations of room temperature solids are given in % weight.
w = Water
alc = Alcohol
– = No Data
white.com is for sale | www.brandforce.com
Municipal Solutions - Blue-White Industries
