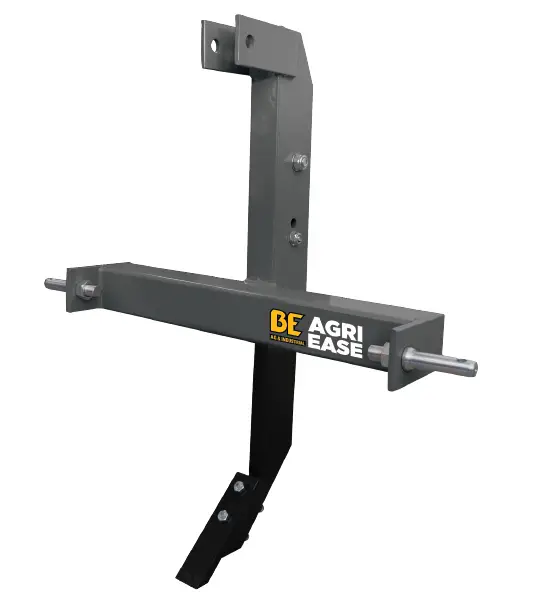

Braber Equipment BE-SS1RG Subsoiler
FOR MODELS:
- BE-SS1RG
| PURCHASE DATE | MODEL NO. | SERIAL NUMBER |

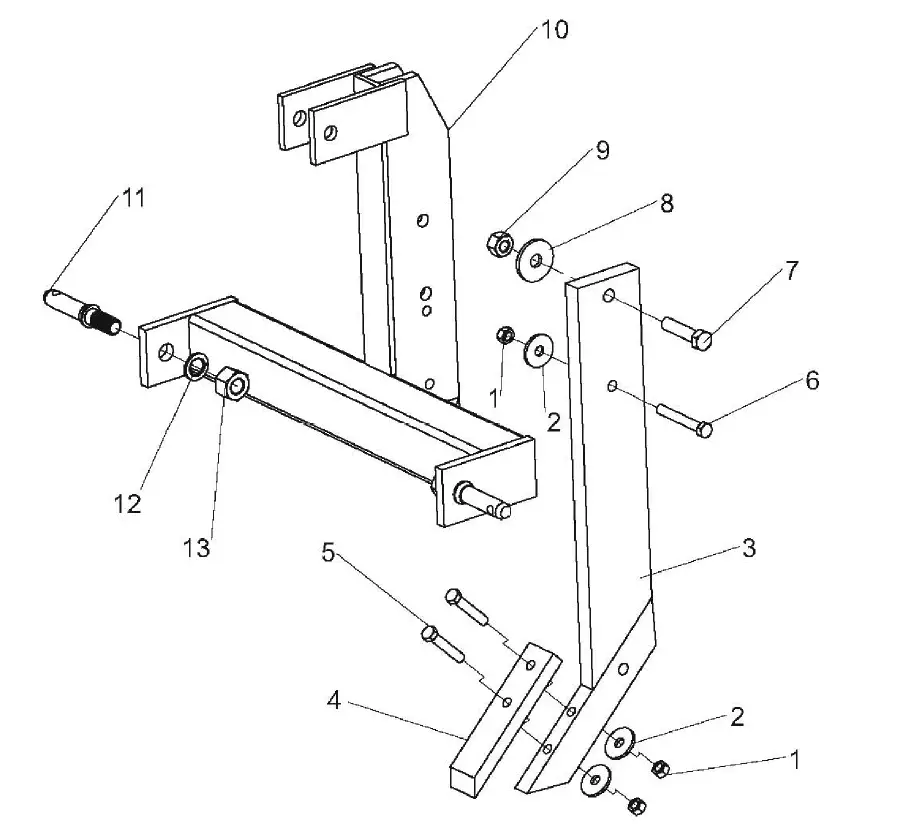

EXPLODED VIEW & PARTS LIST
| REF. | PART NUMBER | DESCRIPTION | QTY |
| 1 | Lock Nut M12 | 3 | |
| 2 | Washer 12 | 3 | |
| 3 | SS3G | Shank | 1 |
| 4 | SS4G | Tooth | 1 |
| 5 | Bolt M12x85 | 2 | |
| 6 | Bolt M12x65 | 1 | |
| 7 | 01.016.070 | Bolt M16x70 | 1 |
| 8 | Washer 16 | 1 | |
| 9 | Lock Nut M16 | 1 | |
| 10 | SS10G | Main Frame | 1 |
| 11 | Hitch Pin | 2 | |
| 12 | Lock Washer 22 | 2 | |
| 13 | Bolt M22 | 2 |
