Segway P65u Kickscooter User Manual

SEGWAY P65U KickScooter

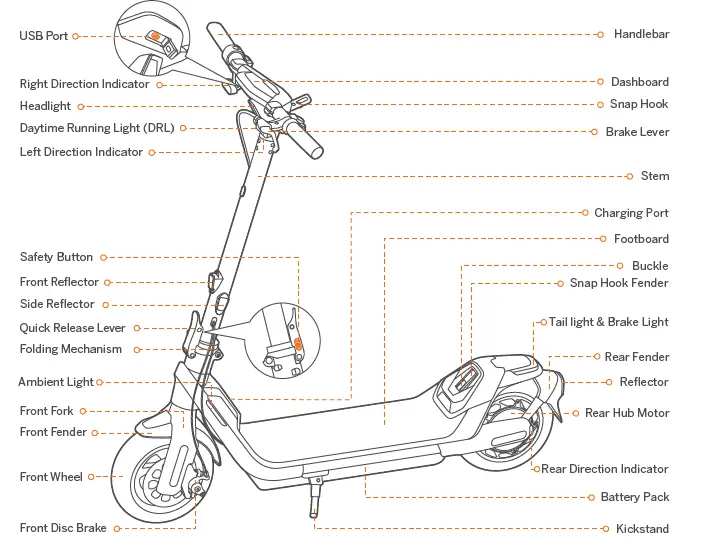

Diagram and Functions

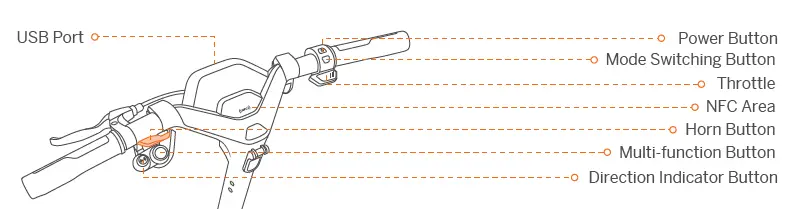

Handlebar Functions

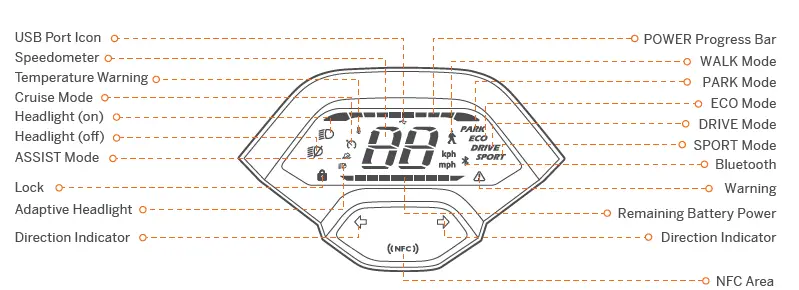

Dashboard

Symbol	Name	Meaning	Description
	POWER Progress Bar	The symbol displays the motor output power of the scooter.
	Speedometer	The symbol displays the current speed of the scooter.
	Cruise Mode	The symbol indicates that the cruise mode is activated.	Enabling the cruise mode via the Segway-Ninebot app: 1)  In ECO, DRIVE or SPORT mode, press the Multi-function Button to activate the cruise mode when the speed ＞ 3.1 mph (5 km/h). Then the scooter will cruise at the current speed. Note: When the cruise mode is activated, the scooter will beep and the front and rear direction indicators will flash once respectively. 2)  Turn off the cruise mode with the following methods: Method 1: Twist the throttle or squeeze the brake lever. Method 2: Press the Multi-function Button. Method 3: Switch the speed mode.
	Lock	When the icon flashes, it means the scooter enters Anti-theft mode.	When the scooter is powered off after 30 seconds: If the scooter is moved or touched by someone, it will enter to Anti-theft mode. At this point, the scooter will start beeping and the front and rear direction indicators will flash, and the motor will be locked automatically. Note: Only available to power on the scooter with NFC card.
		When the icon lights up, it means the scooter is locked.	When locked via the Segway-Ninebot app or in the unlocking state via password, the scooter will keep beeping and the tail light will flash. Unlock the scooter with the following methods: 1)  Press the Power Button to wake up the dashboard, the dashboard will display the digit “0” by default, then enter the four-digit password 1-2-3-4 with the Direction Indicator Button and confirm the password with the Multi-function Button successively. Note: Enable/Disable the unlock with password feature via the Segway-Ninebot app and set your own password. 2)  Tap the NFC card on the NFC Area. 3)  Unlock via the Segway-Ninebot app.

Symbol	Name	Meaning	Description
	Temperature Warning	It indicates that the battery temperature has reached 60°C (140°F) or is below 0°C (32°F).
	USB Port Icon	When the USB port icon lights up, it means that the device (not fully charged) is connected to the USB port.
	Bluetooth	It indicates that the scooter is connected to the Segway-Ninebot app.
	Warning	The symbol indicates that the scooter has detected an error. The error code will display on the dashboard. Please contact the after-sales service for repair.
	Remaining battery power	The symbol displays the remaining battery power in battery bar.
	Adaptive Headlight	When the icon flashes, it means the Adaptive headlight feature is turned on.	When this feature is turned on, the headlight will work automatically to adapt to a variety of situations and conditions and help illuminate the way.
	SPORT mode	When the icon lights up in red, it means that the fast speed mode is turned on.
		When the icon lights up in white, it means that the fast speed mode is turned off.

Speed Modes Introduction

Mode/model	P65U (Speed limit)	Switching methods
(WALK)	3.7 mph (5 km/h)	Enable/Disable WALK mode via the Segway-Ninebot app. Note: The headlight is always on and the tail light will keep flashing in WALK mode.
(ASSIST)	3.7 mph (5 km/h)	Enabling ASSIST mode via the Segway-Ninebot app: Press and hold the throttle for 5 seconds to activate ASSIST mode. Exit ASSIST mode: Release the throttle and squeeze the brake lever, and slow down to zero speed.
	0 mph (0 km/h)	The scooter will automatically enter to PARK mode in the following circumstances: 1)  Stop riding and the scooter is at a complete stop. 2)  The start speed ≤ 1.24 mph (2 km/h). Note: The start speed is set to 3 km/h by default, only available to change via the Segway-Ninebot app (0–3.1 mph [0–5 km/h]). Exit PARK mode: 1)  Squeeze the brake lever. 2)  Press and hold the throttle till the speed ≥ 1.86 mph (3 km/h).
	11.2 mph (18 km/h)	Press the Mode Switching Button twice.
	21.7 mph (35 km/h)	Press the Mode Switching Button twice.
	21.7 mph (35 km/h)	Press the Mode Switching Button twice.
	25 mph (40 km/h)	1)  Press the Mode Switching Button twice to switch to SPORT mode. 2)  Enable/Disable the fast speed mode via the Segway-Ninebot app. Note: After activating the scooter, this feature is available only when the riding mileage reaches 3.1 miles (5 km). DO NOT turn on the fast speed mode in bad weather! DO NOT use this feature before familiarizing yourself with the scooter!

Specifications

1]: Max. Speed: tested while riding with a full battery, 75 kg (165 lbs) load on pavement.
* Some of the factors that may affect the maximum speed include the rider’s weight, remaining battery power, wind resistance, etc.
Warning: it is your legal duty to comply with your local traffic law and regulations when using this product. In the Unites States, in certain States, an electric kickscooter is not allowed to be used on public road (i.e., “on-road” ), if its maximum speed capacity, weight and/or other features do not comply with the mandatory requirements imposed by law. With respect to maximum speed capacity restriction, certain States require that an electric kickscooters’ maximum speed capacity shall be capped at / limited to a specific miles per hour if it is for on-road use, and the cap / limit varies in different States. By way of examples, the States that impose such maximum speed capacity restriction include New York, Florida, Arizona, New Jersey etc. In the event you intend to use this product on-road in a State that imposes such maximum speed capacity restriction, you MUST select a proper lower speed mode of this Product to assure that the product’ s maximum speed capacity under such speed mode complies with the law. In the event the maximum speed capacity of the lowest speed mode of this product nevertheless exceeds the maximum speed capacity restriction imposed by a State for on-road use, you shall not use this product on-road in that State. Furthermore, a State may have other law regulating on-road use of this product, such as maximum speed requirement and/or helmet requirement. In addition to State law, there may be further restrictions or prohibition on use of electric kickscooters by local law and/or regulations. For off-road use of this product, there may be other restrictions and/or limitations imposed by the property owner or others. The App of the product may provide additional useful information related to this matter.

Disclaimer: this is not a legal opinion or legal advice. The information provided herein (including in the App) is for your convenience and information purpose only. It is not intended to cover every piece of law and/or regulation that may be applicable to this product. Segway and Ninebot explicitly hereby disclaim any and all warranty and/or representation, express or implied, related to completeness, accuracy, up-to-date of such information. Segway and/or Ninebot reserves the right but not obligation to correct, implement and/or update the information. You shall use the information at your own risk. It is your sole responsibility to learn and understand any and all the law and/or regulation, requirements, prohibition, restriction and/or limitation imposed by either law, government authority, court, private party or the others that may apply to your use of this product.

Disclaimer: this is not a legal opinion or legal advice. The information provided herein (including in the App) is for your convenience and information purpose only. It is not intended to cover every piece of law and/or regulation that may be applicable to this product. Segway and Ninebot explicitly hereby disclaim any and all warranty and/or representation, express or implied, related to completeness, accuracy, up-to-date of such information. Segway and/or Ninebot reserves the right but not obligation to correct, implement and/or update the information. You shall use the information at your own risk. It is your sole responsibility to learn and understand any and all the law and/or regulation, requirements, prohibition, restriction and/or limitation imposed by either law, government authority, court, private party or the others that may apply to your use of this product

Typical Range: tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), at the speed of 9.9 mph (16 km/h) on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.

Common Failures

Federal Communications Commission

Certifications

This product is certified to ANSI/CAN/UL-2272. The battery complies with UN/DOT 38.3. The battery complies with ANSI/CAN/UL-2271. Federal Communications Commission (FCC) Compliance Statement for USA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference,
2. this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.  Industry Canada (IC) Compliance Statement for Canada This device complies with Industry Canada license-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device Neither Segway Inc. nor Ninebot is responsible for any changes or modifications not expressly approved by Segway Inc. or Ninebot. Such modifications could void the user’s authority to operate the equipment.

Model: P65U FCC ID: 2ALS8-KS0007 IC ID: 22636-KS0007
