Segway F25 Ninebot Kickscooter Owner's Manual

F25 Ninebot KickScooter
Owner’s Manual

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot app to download the latest user materials. You must install the app, activate your KickScooter, and obtain the latest updates and safety instructions.

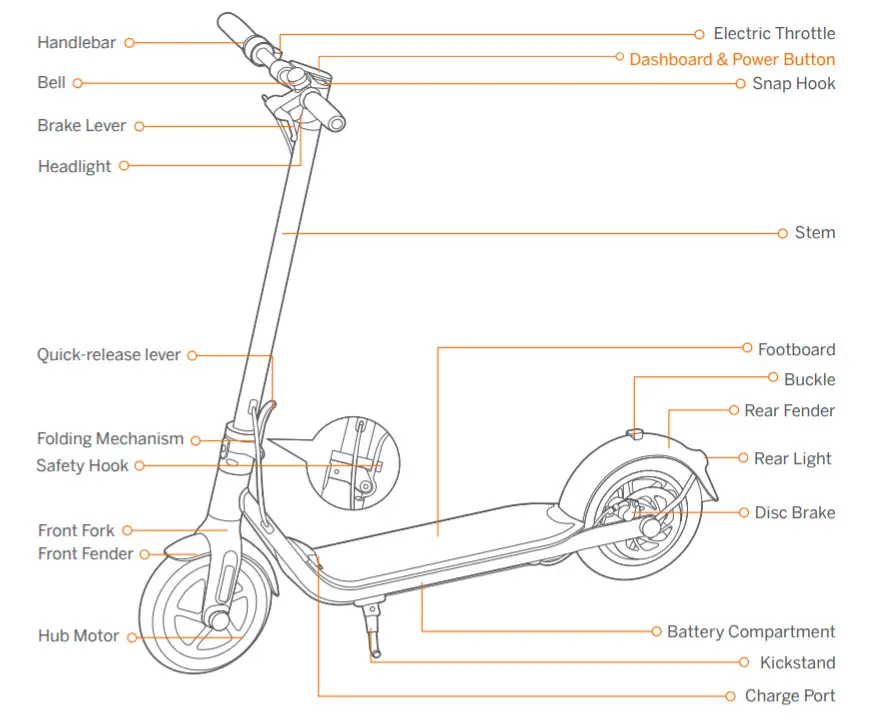

Diagram

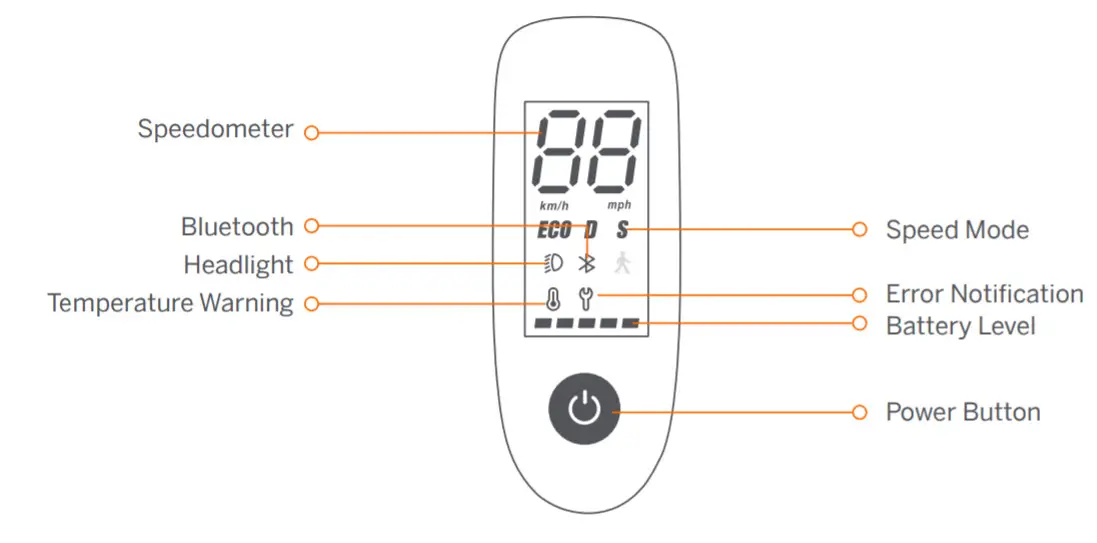

Dashboard & Power Button

Power Button: Press the button to turn on; press and hold the button for 3 seconds to turn off. When the KickScooter is on, press the button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Please switch between metric and imperial units via the Segway-Ninebot app. How to switch: Tap the slide menu > Settings.
Speed Mode: There are three modes available. The top speed is as follows:

Error Notification: It indicates that the scooter has detected an error.
Temperature Warning: If the temperature warning is on, it indicates that the battery temperature has reached 131°F (55°C) or is below 32°F (0°C).
* At this point, the vehicle cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Battery Level: When the battery is at its full capacity, it will show 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.

Specifications

	Item	Parameter
Product	Name	Ninebot KickScooter
	Model	F25
	Length x Width x Height	Approx. 45 x 18.9 x 45.7 in (1143 x 480 x 1160 mm)
	Folded: Length x Width x Height	Approx. 45 x 18.9 x 19.5 in (1143 x 480 x 495 mm)
	Net Weight	Approx. 32.4 lbs (14.7 kg)
Rider	Payload	66-220 lbs (30-100 kg)
	Recommended Age	14+ years
	Required Height	3’11”-6’6″ (120-200 cm)
Machine	Max. Speed	Approx. 15.5 mph (25 km/h)
	Typical Range”	Approx. 12.4 miles (20 km)
	Max. Slope	Approx. 12%
	Traversable Terrain	Asphalt/flat pavement: obstacles < 0.4 in (1 cm): gaps < 1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	14-122°F (-10-50°C)
	IP Rating	IPX5
	Duration of Charging	Approx. 3.5 h
Battery	Nominal Voltage	36 V
	Max. Charging Voltage	42 V
	Charging Temperature	32-104°F (0-40°C)
	Nominal Capacity	5100 mAh
	Nominal Energy	183 Wh
	Battery Management System	Over-heating, short circuit, over-current, over-discharge and over-charge protection
Motor	Nominal Power	0.3 kW. 300 W
Charger	Output Power	0.07 kW. 70 W
	Input Voltage	100-240 V
	Max. Output Voltage	42 V
	Rated Output	41V1.7 A
Features	Brake Light	LED Rear Light
	Riding Modes	Energy-saving mode. Standard mode and Sport mode
Tire	Tire Pressure	40-45 psi
	Tires	10-inch pneumatic tires.
Product	Name	Ninebot KickScooter
	Model	F30	I F3OS I	F40
	Length x Width x Height	Approx. 45 x 18 9 x 45.7 in (1143 x 4.80 x 1160 mm)
	Folded: Length x Width x Height	Approx. 45 x 18.9 x 19.5 in (1143 x 480 x 495 mm)
	Net Weight	Approx. 33.3 lbs (15.1 kg) I		Approx. 34.8 lbs (15.8 kg)
Rider	Payload	66-265 lbs (30-120 kg)
	Recommended Age	14+ years
	Required Height	311″-6’6″ (120-200 cm)
Machine	Max. Speed	Approx. 15.5 mph (25 km/h)		Approx. 18.6 mph (30 km/h)
	Typical Rangel	Approx. 18.6 miles (30 km)		Approx. 24.9 miles (40 km)
	Max. Slope	Approx. 15%		Approx. 20%
	Traversable Terrain	Asphalt/flat pavement: obstacles < 0.4 in (1 cm): gaps <1.2 in (3 cm)
	Operating Temperature	14-104°F (-10-40°C)
	Storage Temperature	14-122°F (-10-50°C)
	IP Rating	IPX5
	Duration of Charging	Approx. 5 h		I Approx. 6.5 h
Battery	Nominal Voltage	36 V
	Max. Charging Voltage	42 V =
	Charging Temperature	32-104°F (0-40°C)
	Nominal Capacity	7650 mAh		10200 mAh
	Nominal Energy	275 Wh		367 Wh
	Battery Management System	Over-heating, short circuit, over-current. over-discharge and over-charge protection
Motor	Nominal Power	0.3 kW. 300 W		10.35 kW. 350 W
Charger	Output Power	0.07 kW. 70 W
	Input Voltage	100-240 V-
	Max. Output Voltage	42 V
	Rated Output	41 V 1.7
Features	Brake Light	LED Rear Light
	Riding Modes	Energy-saving mode. Standard mode and Sport mode
Tire	Tire Pressure	40-45 psi
	Tires	10-inch pneumatic tires.

1. Typical Range: tested while riding under full power, 165 lbs (75 kg) load, 77°F (25°C), 60% of max. speed on average on pavement.
   * Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.

Certifications

This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.
The battery complies with UN/DOT 38.3.
The battery complies with ANSI/CAN/UL-2271.
Federal Communications Commission (FCC) Compliance Statement for the USA
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,  and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which  can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following  measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
Industry Canada (IC) Compliance Statement for Canada
This device complies with Industry Canada license-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
CAN ICES-3 (B)/NMB-3(B)
Neither Segway Inc. nor Ninebot is responsible for any changes or modifications not expressly approved by Segway Inc.

Model: F25 / F30 / F30S / F40
FCC ID: 2ALS8-KS0005
IC: 22636-KS0005
