Segway P100se Kickscooter User Manual

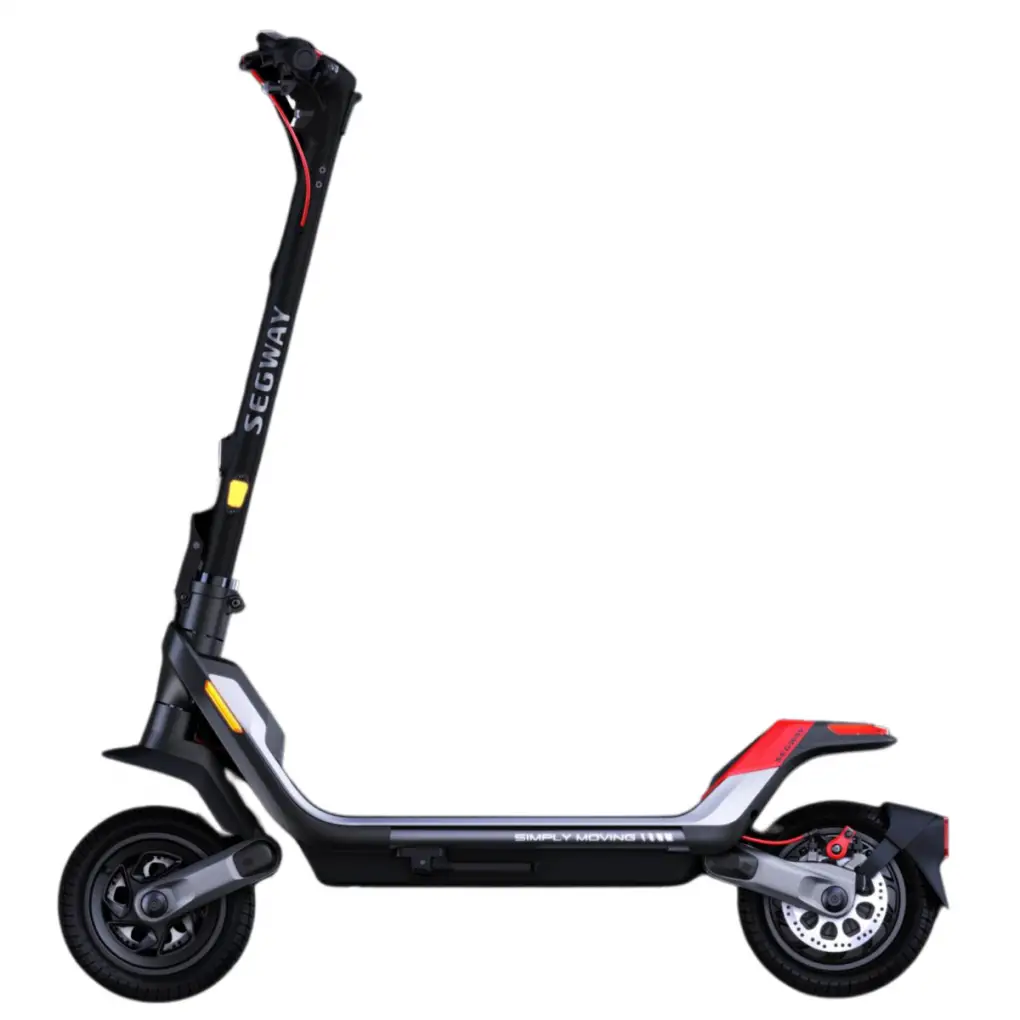

SEGWAY P100SE KickScooter

The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Ninebot app to download the latest user materials. You must install the app, activate your KickScooter, and obtain the latest updates and safety instructions.

Diagram and Functions

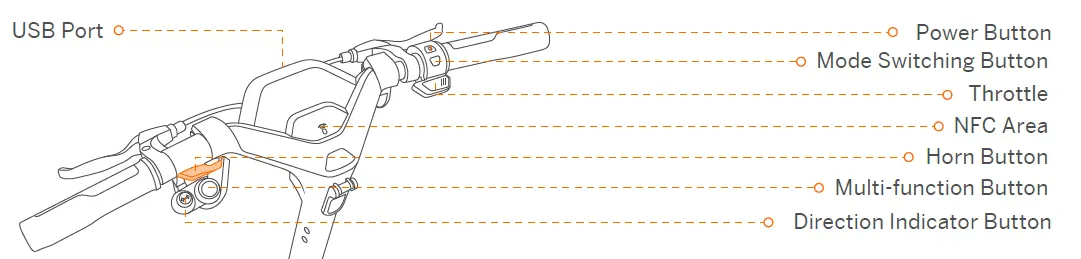

Handlebar Functions

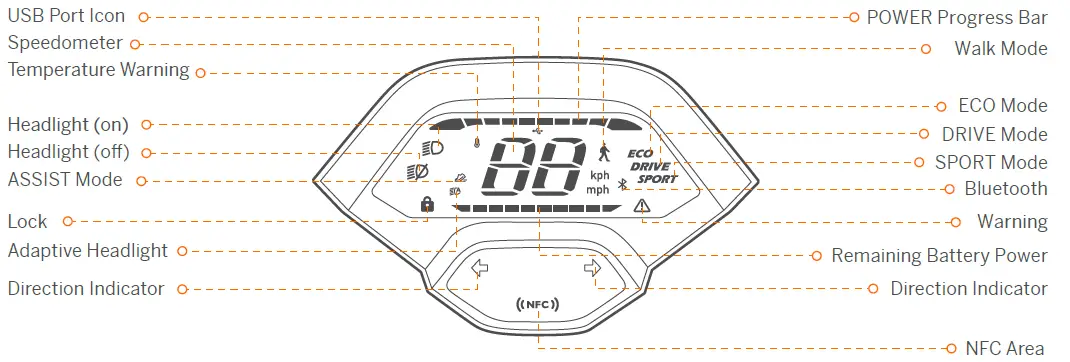

Dashboard

Symbol	Name	Meaning	Description
	POWER Progress Bar	The symbol displays the motor output power of the scooter.
	Speedometer	The symbol displays the current speed of the scooter.
		When the icon flashes, it means the scooter enters Anti-theft mode.	When the scooter is powered off after 30 seconds: If the scooter is moved or touched by someone, it will enter to Anti-theft mode. At this point, the scooter will start beeping and the front and rear direction indicators will flash, and the motor will be locked automatically.
	Lock	When the icon lights up, it means the scooter is locked.	When locked via the Segway-Ninebot app or in the unlocking state via password, the scooter will keep beeping and the tail light will flash. Unlock the scooter with the following methods: 1) Press the Power Button to wake up the dashboard, the dashboard will display the digit “0” by default, then enter the four-digit password 1-2-3-4 with the Direction Indicator Button and confirm the password with the Multi-function Button successively. Note: After activating your scooter, enable/disable the unlock with a password feature via the Segway-Ninebot app and set your password. Otherwise, you cannot unlock your scooter with a password. 2) Tap the NFC card on the NFC Area. 3) Unlock via the Segway-Ninebot app.
	Temperature Warning	It indicates that the battery temperature has reached 60°C (140°F) or is below 0°C (32°F).

Symbol	Name	Meaning	Description
	USB Port Icon	When the USB port icon lights up, it means that the device (not fully charged) is connected to the USB port.
	Bluetooth	It indicates that the scooter is connected to the Segway-Ninebot app.
	Warning	The symbol indicates that the scooter has detected an error. The error code will display on the dashboard. Please contact the after-sales service for repair.
	Remaining battery power	The symbol displays the remaining battery power in battery bar.
	Adaptive Headlight	When the icon flashes, it means the Adaptive headlight feature is turned on.	When this feature is turned on, the headlight will work automatically to adapt to a variety of situations and conditions and help illuminate the way.

Speed Modes Introduction

Mode/model	P100SE (Speed limit)	Switching methods
	3–5 km/h (1.9–3.7 mph)	Enable/Disable Walk mode via the Segway-Ninebot app. Note: The headlight is always on and the tail light will keep flashing in Walk mode.
	3–5 km/h (1.9–3.7 mph)	Enabling ASSIST mode via the Segway-Ninebot app: When the scooter is at a complete stop, press the Multi-function Button to turn on ASSIST mode. Note: When turned on, the scooter will beep once and the front and rear direction indicators will flash once. Turn off ASSIST mode: Release the throttle and squeeze brake levers to stop, then press the Multi-function Button again.
ceo	18 km/h (11.2 mph)	Press the Mode Switching Button twice.
drive	20 km/h (12.4 mph)	Press the Mode Switching Button twice.
sport	25 km/h (15.5 mph)	Press the Mode Switching Button twice.

Specifications

1. Typical Range: tested while riding with a full battery, 75 kg (165 lbs) load, 25°C (77°F), at the speed of 9.9 mph (16 km/h)
   on average on pavement.

* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.

Common Failures

Certifications

• This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.
• The battery complies with UN/DOT 38.3.
• The battery complies with ANSI/CAN/UL-2271.
• European Union Compliance Statement
• Information on Disposal for Users of Waste Electrical & Electronic Equipment

• This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.
• Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
• Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.
• Please contact your local authority for further details of your nearest designated collection point.
• Battery recycling information for the European Union
• This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point.
• Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
• Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. There are separate collection systems for used batteries and accumulators.
• Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.
• Radio Equipment Directive
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.
• Restriction of the use of certain hazardous substances (RoHS) Directive
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or “RoHS 2.0”).
• Machinery Directive
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/EC.
• EU Authorised Representative:
• Segway-Ninebot Europe
• Dynamostraat 7, 1014 BN Amsterdam, The Netherlands.
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: P100SE complies with the essential requirements and other relevant provisions of
• the Radio Equipment Directive 2014/53/EU, the machinery directive 2006/42/EC, and the RoHS Directive 2011/65/EU and amendment Commission
• Delegated Directive (EU) 2015/863.
• The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions
• UK Compliance Statement
• Radio Equipment Regulations 2017
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.
• The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of
• the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.
• Supply of Machinery (Safety) Regulations 2008
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008.

• UK Authorised Representative：
• UKCA Experts Ltd.
• Dept 302, 43 Ostin Road Carrot, Don caster, DN6 8DA, United Kingdom
• Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: P100SE complies with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017，Supply of Machinery (Safety) Regulations 2008 and the Restriction of the Use of Certain Hazardous Substances in
• Electrical and Electronic Equipment Regulations 2012.
• The declaration of conformity can be viewed at the following address: www.segway.com

Trademark

Segway and the Rider Design are the trademarks of Segway Inc.; Android is the trademark of Google Inc., App Store is a service mark of Apple Inc. The respective owners reserve the rights of their trademarks and copyrights, etc. referred to in this manual.
We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple app Store (iOS) or the Google Play Store (Android) to download and install the Segway-Ninebot App. Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice.
（※The Segway-Ninebot App can support Kick Scooter with built-in Bluetooth）
© 2022 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.
