ClarkDietrich BS-10 Big Stick Composite Corner Bead

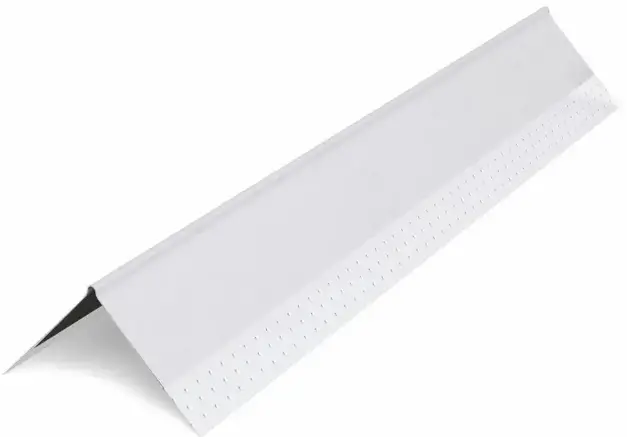

ClarkDietrich-BS-10-Big-Stick-Composite-Corner-Bead-PRODUCT

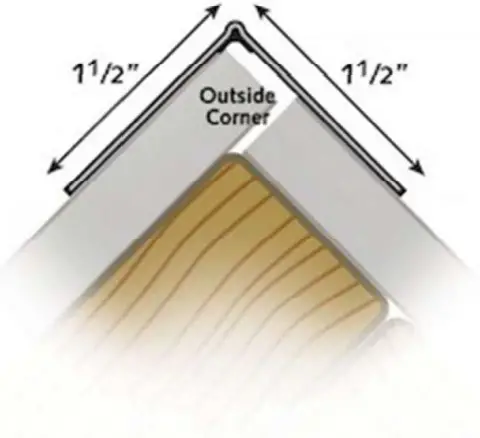

DIMENSIONClarkDietrich-BS-10-Big-Stick-Composite-Corner-Bead-FIG-1

Installation

  1. Measure wall height and subtract 1 /2″. Measure and cut
    Big-Stick using a scissors or utility knife. Cut the ends of
    Big-Stick at a 45° angle.
  2. With a 4″ or 5″ taping knife, apply a smooth, liberal coat of all-purpose compound to corner.
  3. Press Big-Stick into the wet compound. Adjust if necessary to create a straight line.
  4. Wipe down tight with taping knife using a little additional pressure on the outer edges of Big- Stick. Immediately apply a light skim coat of compound over surface. Wipe down tight and smooth. Let dry completely over several hours or overnight.
  5. With a 6″ or 8″ taping knife, apply your final coat of compound feathering the compound beyond previous coat. Let dry completely over several hours or overnight.
  6. Sand lightly with 120 grit sandpaper. Big-Stick will not fuzz-up like paper or mesh tapes.
